JZS155-ATPQF (1995)
Toyota Crown/Crown Majesta
ILLUST NO. 1 OF 2(9508-9707)UZS151,157 ; (9508- )JZS151,155,LS151
A340E,A340H,A341E,A350E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-30010 |
JZS15#,LS151,UZS155..A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX |
1 | ||
| 35501-30010 |
JZS155,LS151,UZS15# |
1 | ||
| 35501-30010 |
JZS15#,LS151,UZS15# |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-50020 |
JZS151,155,UZS157..F,ROYT |
1 | ||
| 35505-50010 |
UZS157..4FC;JZS155,157,UZS151,155..A,C,E,ROY,ROYG |
1 | ||
| 35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90254-04011 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 90254-04011 |
GS151,JZS155,LS151,UZS15#..ATM |
1 | ||
| 90254-04011 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
JZS15#,LS151,UZS15# |
2 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
JZS15#,LS151,UZS15# |
2 | ||
| 35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90560-20006 |
JZS15#,LS151,UZS15# |
1 | ||
| 90560-20006 |
JZS15#,LS151,UZS15# |
1 | ||
| 90560-20006 |
JZS155,LS151,UZS15# |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-30020 |
JZS15#,LS151,UZS15# |
1 | ||
| 35556-30020 |
JZS155,LS151,UZS15# |
1 | ||
| 35556-30020 |
JZS15#,LS151,UZS155..4FC |
1 | ||
| 35556E - RING, E (FOR PARKING LOCK PAWL SHAFT) | ||||
| 90523-08021 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 90523-08021 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 90523-08021 |
GS151,JZS155,LS151,UZS15#..ATM |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-30020 |
JZS15#,LS151,UZS15# |
1 | ||
| 35557-30020 |
JZS15#,LS151,UZS155..A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX |
1 | ||
| 35557-30020 |
JZS155,LS151,UZS15# |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-21002 |
JZS155,LS151,UZS15# |
1 | ||
| 90508-21002 |
JZS15#,LS151,UZS15# |
1 | ||
| 90508-21002 |
JZS15#,LS151,UZS155..4FC |
1 | ||
| 35561 - SHAFT, MANUAL VALVE LEVER | ||||
| 35561-30070 |
JZS151,155,LS151,UZS151,157 |
1 | ||
| 35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH | ||||
| 35572-30070 |
GS151,JZS151,155,LS151,UZS151,157..ATM |
1 | ||
| 35572-30070 |
UZS151,157;GS151,JZS151,155,LS151..LPGTE,TDE,TWC |
1 | ||
| 35595 - BRACKET, PARKING LOCK PAWL | ||||
| 35595-30010 |
JZS155,LS151,UZS15# |
1 | ||
| 35595-30010 |
JZS15#,LS151,UZS155..A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX |
1 | ||
| 35595-30010 |
JZS15#,LS151,UZS15# |
1 | ||
| Common parts | ||||
| 91611-60614 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||

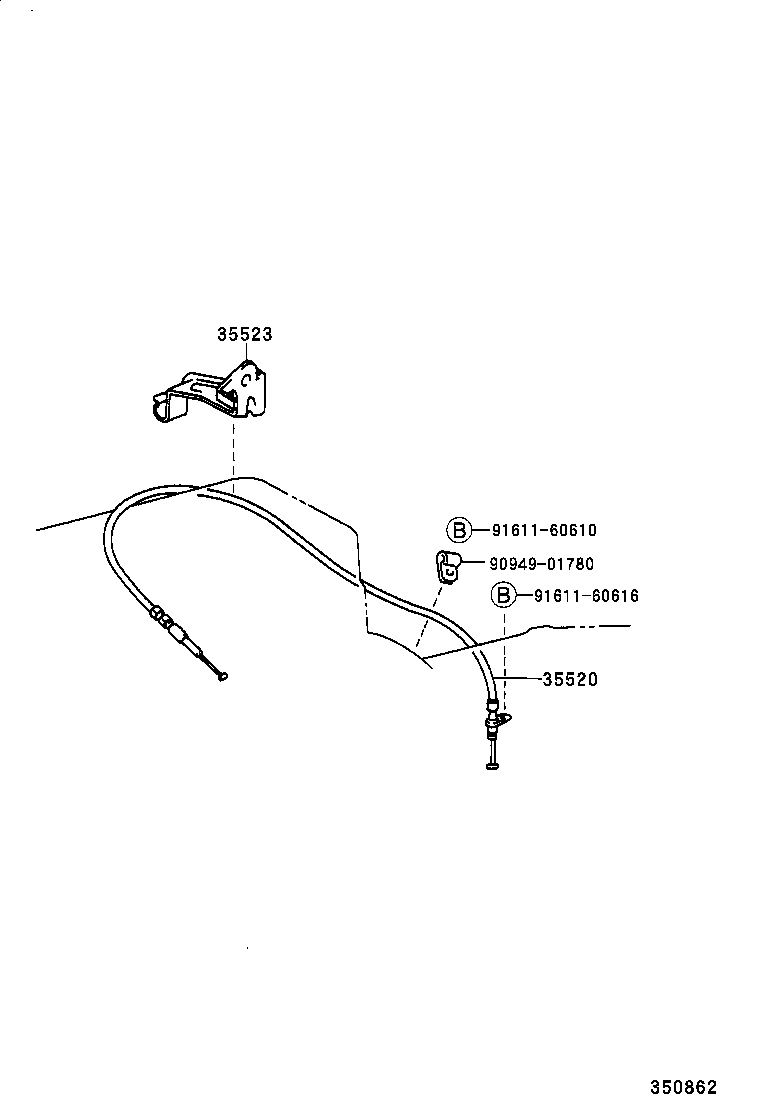

ILLUST NO. 2 OF 2(9508- )JZS155..4FC
A340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-24060 |
JZS155..4FC |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-30130 |
JZS155..4FC |
1 | ||
| Common parts | ||||
| 90949-01780 | ||||
| 91611-60610 | ||||
| 91611-60616 | ||||
