JZS155-ATAXF (1995)
Toyota Crown/Crown Majesta

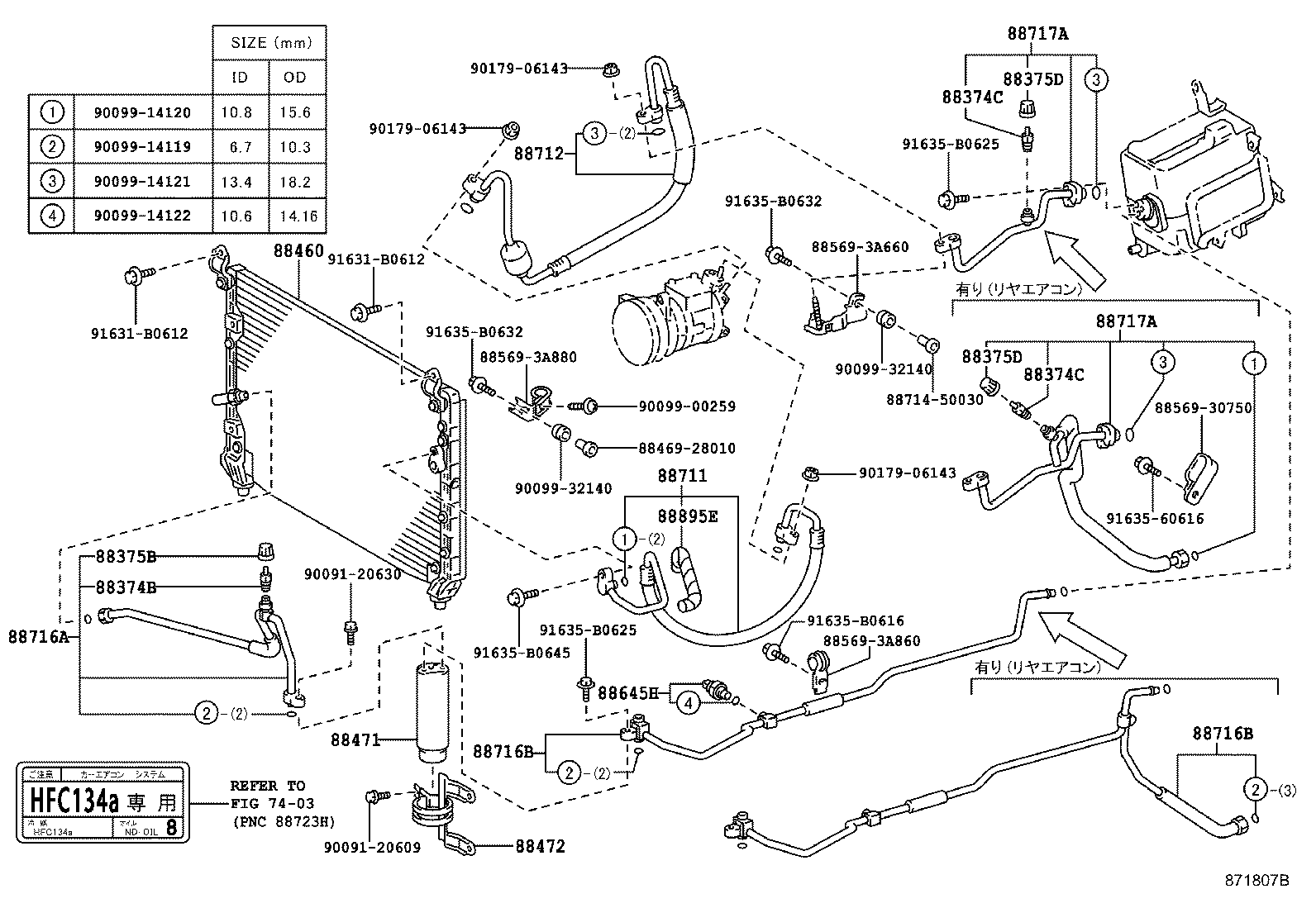

ILLUST NO. 1 OF 2(9508- )JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
LS151..HT;LS151..NOB;GS151,JZS15#,UZS151,157 |
1 | ||
| 88374-30010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
LS151..HT;LS151..NOB;GS151,JZS15#,UZS151,157 |
1 | ||
| 88374-30010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
LS151..HT;LS151..NOB;GS151,JZS15#,UZS151,157 |
1 | ||
| 88375-30290 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
LS151..HT;LS151..NOB;GS151,JZS15#,UZS151,157 |
1 | ||
| 88375-30290 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-30710 |
JZS155..ROY,ROYG,ROYT |
1 | ||
| 88460-30740 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-30370 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 88472-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-30380 |
JZS155 |
1 | ||
| 88645-22070 |
JZS151,155,LS151,UZS155 ｱﾘ(ﾘﾔﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88645-22080 |
JZS151..SALEX;GS151,JZS153,157,UZS151,157;JZS151,155..HT..(ROY,ROYEX,ROYT) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-3A310 |
JZS155..A,E |
1 | ||
| 88711-3A360 |
JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 88711-3A260 |
JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 88711-3A350 |
JZS155..A,E |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-3A730 |
JZS155..ROY,ROYG,ROYT |
1 | ||
| 88712-3A780 |
JZS155..A,E |
1 | ||
| 88712-3A730 |
JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-30140 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 88726-30170 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88726-3K150 |
JZS155,UZS157..E,F |
1 | ||
| 88726-3K340 |
JZS155,UZS151,157..A,C,E,F ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88726-3K070 |
GS151;JZS151..SALEX;JZS151,155..HT..(ROY,ROYEX,ROYT) |
1 | ||
| 88726-3K160 |
JZS155,UZS151..A,C |
1 | ||
| 88726-3K160 |
JZS155,UZS157..E,F ｱﾘ(ﾘﾔｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88726-3K080 |
GS151..HTWC;JZS151..SALEX;JZS151,155..HT..(ROY,ROYEX,ROYT) ｱﾘ(ﾘﾔﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88726-3K360 |
GS151,JZS151,155..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TWC) ｱﾘ(ﾘﾔﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88726-3K350 |
GS151;JZS151..SALEX;JZS151,155..HT..(ROY,ROYEX,ROYT) |
1 | ||
| 88726-3K320 |
JZS155,UZS157..E,F |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88726-3K150 |
JZS155,UZS157..E,F |
1 | ||
| 88726-3K340 |
JZS155,UZS151,157..A,C,E,F ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88726-3K070 |
GS151;JZS151..SALEX;JZS151,155..HT..(ROY,ROYEX,ROYT) |
1 | ||
| 88726-3K160 |
JZS155,UZS151..A,C |
1 | ||
| 88726-3K160 |
JZS155,UZS157..E,F ｱﾘ(ﾘﾔｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88726-3K080 |
GS151..HTWC;JZS151..SALEX;JZS151,155..HT..(ROY,ROYEX,ROYT) ｱﾘ(ﾘﾔﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88726-3K360 |
GS151,JZS151,155..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TWC) ｱﾘ(ﾘﾔﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88726-3K350 |
GS151;JZS151..SALEX;JZS151,155..HT..(ROY,ROYEX,ROYT) |
1 | ||
| 88726-3K320 |
JZS155,UZS157..E,F |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88727-3A800 |
JZS155..HT..(ROY,ROYT) |
1 | ||
| 88727-3A810 |
JZS151..SALEX;JZS155..HT..(ROY,ROYT) ｱﾘ(ﾘﾔﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88727-3A810 |
JZS155..HT..(ROY,ROYT) ｱﾘ(ﾘﾔﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88727-3A840 |
JZS155..A |
1 | ||
| 88727-3A830 |
JZS155..E |
1 | ||
| 88727-3A840 |
JZS155..E ｱﾘ(ﾘﾔｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88727-3A800 |
JZS153;JZS155..HT..(ROY,ROYT) |
1 | ||
| 88727-3A800 |
JZS153,157;JZS151..SALEX;JZS151,155..HT..(ROY,ROYEX,ROYT) |
1 | ||
| 88727-3A810 |
JZS151..SALEX;JZS151,155..HT..(ROY,ROYEX,ROYT) ｱﾘ(ﾘﾔﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88727-3A800 |
JZS155..HT..(ROY,ROYT) |
1 | ||
| 88727-3A810 |
JZS151..SALEX;JZS155..HT..(ROY,ROYT) ｱﾘ(ﾘﾔﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88727-3A810 |
JZS155..HT..(ROY,ROYT) ｱﾘ(ﾘﾔﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88727-3A840 |
JZS155..A |
1 | ||
| 88727-3A830 |
JZS155..E |
1 | ||
| 88727-3A840 |
JZS155..E ｱﾘ(ﾘﾔｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88727-3A800 |
JZS153;JZS155..HT..(ROY,ROYT) |
1 | ||
| 88727-3A800 |
JZS153,157;JZS151..SALEX;JZS151,155..HT..(ROY,ROYEX,ROYT) |
1 | ||
| 88727-3A810 |
JZS151..SALEX;JZS151,155..HT..(ROY,ROYEX,ROYT) ｱﾘ(ﾘﾔﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88895E - INSULATOR, RETURN TUBE | ||||
| 88895-12030 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| Common parts | ||||
| 88469-28010 | ||||
| 88569-30750 | ||||
| 88569-3A660 | ||||
| 88569-3A860 | ||||
| 88569-3A880 | ||||
| 88714-50030 | ||||
| 90091-20609 | ||||
| 90091-20630 | ||||
| 90099-00259 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90099-32140 | ||||
| 90179-06143 | ||||
| 91631-B0612 | ||||
| 91635-60616 | ||||
| 91635-B0616 | ||||
| 91635-B0625 | ||||
| 91635-B0632 | ||||
| 91635-B0645 | ||||
| Linked diagrams | ||||
| 7403 | ||||

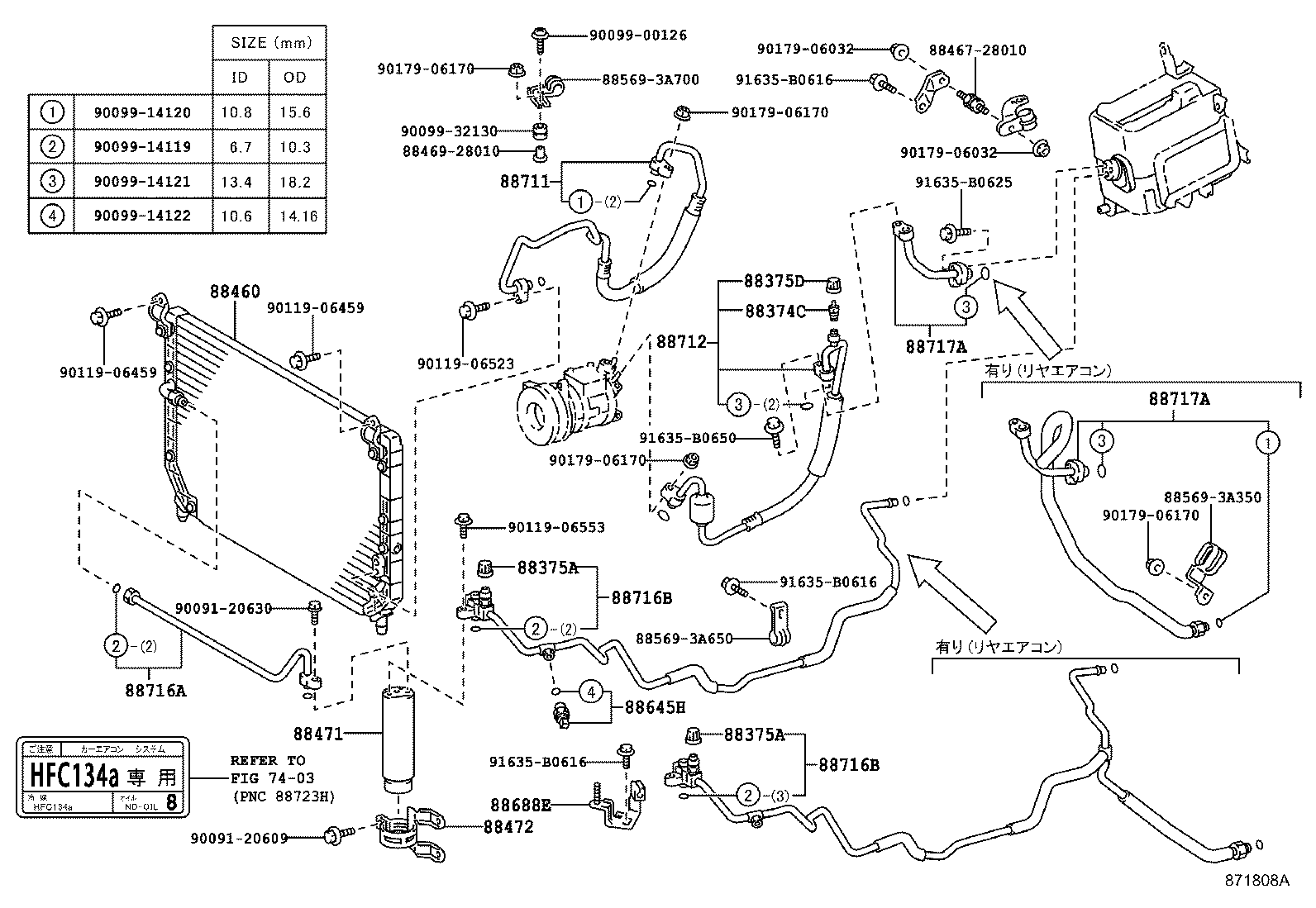

ILLUST NO. 1 OF 2(9508- )A,E
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
LS151..HT;LS151..NOB;GS151,JZS15#,UZS151,157 |
1 | ||
| 88374-30010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
LS151..HT;LS151..NOB;GS151,JZS15#,UZS151,157 |
1 | ||
| 88375-30290 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-30710 |
JZS155..ROY,ROYG,ROYT |
1 | ||
| 88460-30740 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-30370 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 88472-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-30380 |
JZS155 |
1 | ||
| 88645-22070 |
JZS151,155,LS151,UZS155 ｱﾘ(ﾘﾔﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88645-22080 |
JZS151..SALEX;GS151,JZS153,157,UZS151,157;JZS151,155..HT..(ROY,ROYEX,ROYT) |
1 | ||
| 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88688-3A490 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-3A310 |
JZS155..A,E |
1 | ||
| 88711-3A360 |
JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 88711-3A260 |
JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 88711-3A350 |
JZS155..A,E |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-3A730 |
JZS155..ROY,ROYG,ROYT |
1 | ||
| 88712-3A780 |
JZS155..A,E |
1 | ||
| 88712-3A730 |
JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-30140 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 88726-30170 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88726-3K150 |
JZS155,UZS157..E,F |
1 | ||
| 88726-3K340 |
JZS155,UZS151,157..A,C,E,F ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88726-3K070 |
GS151;JZS151..SALEX;JZS151,155..HT..(ROY,ROYEX,ROYT) |
1 | ||
| 88726-3K160 |
JZS155,UZS151..A,C |
1 | ||
| 88726-3K160 |
JZS155,UZS157..E,F ｱﾘ(ﾘﾔｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88726-3K080 |
GS151..HTWC;JZS151..SALEX;JZS151,155..HT..(ROY,ROYEX,ROYT) ｱﾘ(ﾘﾔﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88726-3K360 |
GS151,JZS151,155..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TWC) ｱﾘ(ﾘﾔﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88726-3K350 |
GS151;JZS151..SALEX;JZS151,155..HT..(ROY,ROYEX,ROYT) |
1 | ||
| 88726-3K320 |
JZS155,UZS157..E,F |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88726-3K150 |
JZS155,UZS157..E,F |
1 | ||
| 88726-3K340 |
JZS155,UZS151,157..A,C,E,F ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88726-3K070 |
GS151;JZS151..SALEX;JZS151,155..HT..(ROY,ROYEX,ROYT) |
1 | ||
| 88726-3K160 |
JZS155,UZS151..A,C |
1 | ||
| 88726-3K160 |
JZS155,UZS157..E,F ｱﾘ(ﾘﾔｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88726-3K080 |
GS151..HTWC;JZS151..SALEX;JZS151,155..HT..(ROY,ROYEX,ROYT) ｱﾘ(ﾘﾔﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88726-3K360 |
GS151,JZS151,155..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TWC) ｱﾘ(ﾘﾔﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88726-3K350 |
GS151;JZS151..SALEX;JZS151,155..HT..(ROY,ROYEX,ROYT) |
1 | ||
| 88726-3K320 |
JZS155,UZS157..E,F |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88727-3A800 |
JZS155..HT..(ROY,ROYT) |
1 | ||
| 88727-3A810 |
JZS151..SALEX;JZS155..HT..(ROY,ROYT) ｱﾘ(ﾘﾔﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88727-3A810 |
JZS155..HT..(ROY,ROYT) ｱﾘ(ﾘﾔﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88727-3A840 |
JZS155..A |
1 | ||
| 88727-3A830 |
JZS155..E |
1 | ||
| 88727-3A840 |
JZS155..E ｱﾘ(ﾘﾔｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88727-3A800 |
JZS153;JZS155..HT..(ROY,ROYT) |
1 | ||
| 88727-3A800 |
JZS153,157;JZS151..SALEX;JZS151,155..HT..(ROY,ROYEX,ROYT) |
1 | ||
| 88727-3A810 |
JZS151..SALEX;JZS151,155..HT..(ROY,ROYEX,ROYT) ｱﾘ(ﾘﾔﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88727-3A800 |
JZS155..HT..(ROY,ROYT) |
1 | ||
| 88727-3A810 |
JZS151..SALEX;JZS155..HT..(ROY,ROYT) ｱﾘ(ﾘﾔﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88727-3A810 |
JZS155..HT..(ROY,ROYT) ｱﾘ(ﾘﾔﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88727-3A840 |
JZS155..A |
1 | ||
| 88727-3A830 |
JZS155..E |
1 | ||
| 88727-3A840 |
JZS155..E ｱﾘ(ﾘﾔｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88727-3A800 |
JZS153;JZS155..HT..(ROY,ROYT) |
1 | ||
| 88727-3A800 |
JZS153,157;JZS151..SALEX;JZS151,155..HT..(ROY,ROYEX,ROYT) |
1 | ||
| 88727-3A810 |
JZS151..SALEX;JZS151,155..HT..(ROY,ROYEX,ROYT) ｱﾘ(ﾘﾔﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| Common parts | ||||
| 88467-28010 | ||||
| 88469-28010 | ||||
| 88569-3A350 | ||||
| 88569-3A650 | ||||
| 88569-3A700 | ||||
| 90091-20609 | ||||
| 90091-20630 | ||||
| 90099-00126 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90099-32130 | ||||
| 90119-06459 | ||||
| 90119-06523 | ||||
| 90119-06553 | ||||
| 90179-06032 | ||||
| 90179-06170 | ||||
| 91635-B0616 | ||||
| 91635-B0625 | ||||
| 91635-B0650 | ||||
| Linked diagrams | ||||
| 7403 | ||||

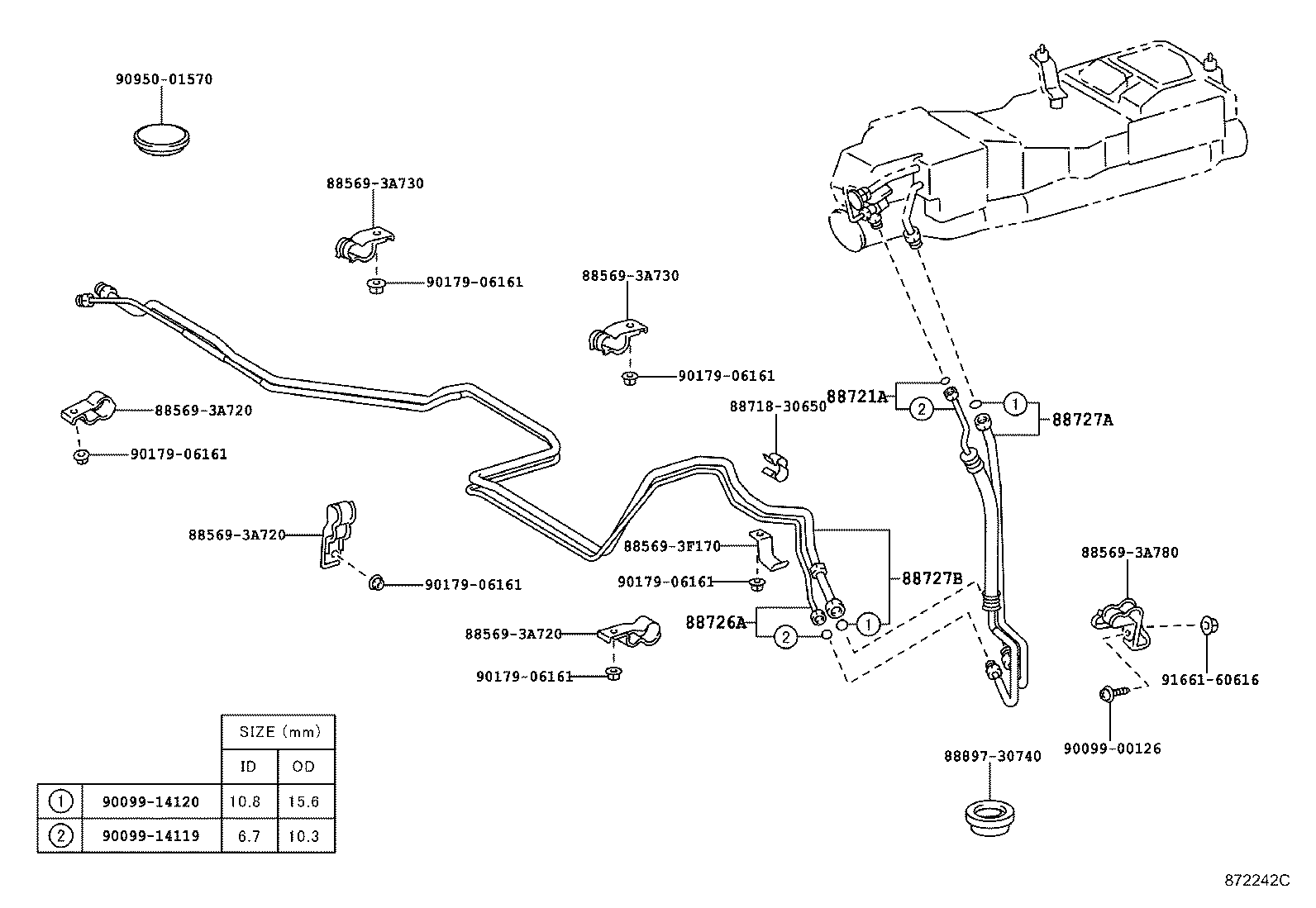

ILLUST NO. 2 OF 2(9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88721A - HOSE, LIQUID, A | ||||
| 88721-30420 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 88721-30410 |
GS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 88721-30420 |
JZS155,UZS15#..A,C,F |
1 | ||
| 88721-30420 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 88721-30420 |
JZS155..E ｱﾘ(ﾘﾔｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-3K190 |
JZS155,UZS151,157..A,C,F |
1 | ||
| 88726-3K190 |
JZS155..E ｱﾘ(ﾘﾔｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88726-3K450 |
GS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 88726-3K190 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 88726-3K190 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 88726-3K180 |
GS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 88727A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88727-3F010 |
JZS155,UZS15#..A,C,F |
1 | ||
| 88727-3F010 |
JZS155..E ｱﾘ(ﾘﾔｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88727-3F010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 88727-3F010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 88727-3A890 |
GS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88727-3A870 |
JZS155,UZS151,157..A,C,F |
1 | ||
| 88727-3A870 |
JZS155..E ｱﾘ(ﾘﾔｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88727-3A870 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 88727-3A870 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 88727-3A860 |
GS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| Common parts | ||||
| 88569-3A720 | ||||
| 88569-3A730 | ||||
| 88569-3A780 | ||||
| 88569-3F170 | ||||
| 88718-30650 | ||||
| 88897-30740 | ||||
| 90099-00126 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90179-06161 | ||||
| 90950-01570 | ||||
| 91661-60616 | ||||

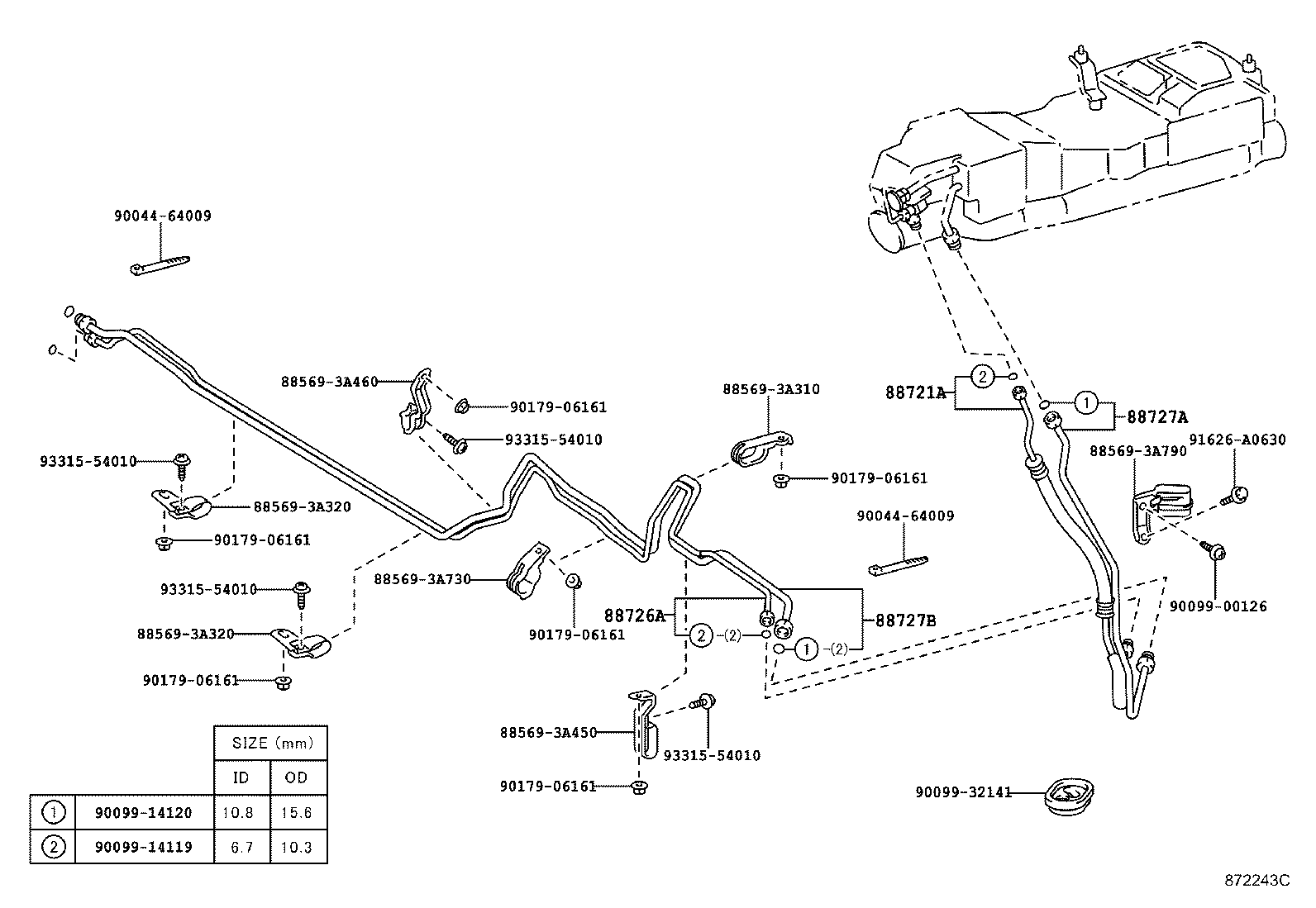

ILLUST NO. 2 OF 2(9508- )A,C,E,F
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88721A - HOSE, LIQUID, A | ||||
| 88721-30420 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 88721-30410 |
GS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 88721-30420 |
JZS155,UZS15#..A,C,F |
1 | ||
| 88721-30420 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 88721-30420 |
JZS155..E ｱﾘ(ﾘﾔｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-3K190 |
JZS155,UZS151,157..A,C,F |
1 | ||
| 88726-3K190 |
JZS155..E ｱﾘ(ﾘﾔｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88726-3K450 |
GS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 88726-3K190 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 88726-3K190 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 88726-3K180 |
GS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 88727A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88727-3F010 |
JZS155,UZS15#..A,C,F |
1 | ||
| 88727-3F010 |
JZS155..E ｱﾘ(ﾘﾔｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88727-3F010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 88727-3F010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 88727-3A890 |
GS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88727-3A870 |
JZS155,UZS151,157..A,C,F |
1 | ||
| 88727-3A870 |
JZS155..E ｱﾘ(ﾘﾔｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88727-3A870 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 88727-3A870 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 88727-3A860 |
GS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| Common parts | ||||
| 88569-3A310 | ||||
| 88569-3A320 | ||||
| 88569-3A450 | ||||
| 88569-3A460 | ||||
| 88569-3A730 | ||||
| 88569-3A790 | ||||
| 90044-64009 | ||||
| 90099-00126 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-32141 | ||||
| 90179-06161 | ||||
| 91626-A0630 | ||||
| 93315-54010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
