JZS155-ATAXF (1995)

Toyota Crown/Crown Majesta

Production Aug 1995 - Sep 1999
Engine 2JZGE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )LS151..ROY ; (9508- )GS151,JZS15#,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,ROYT

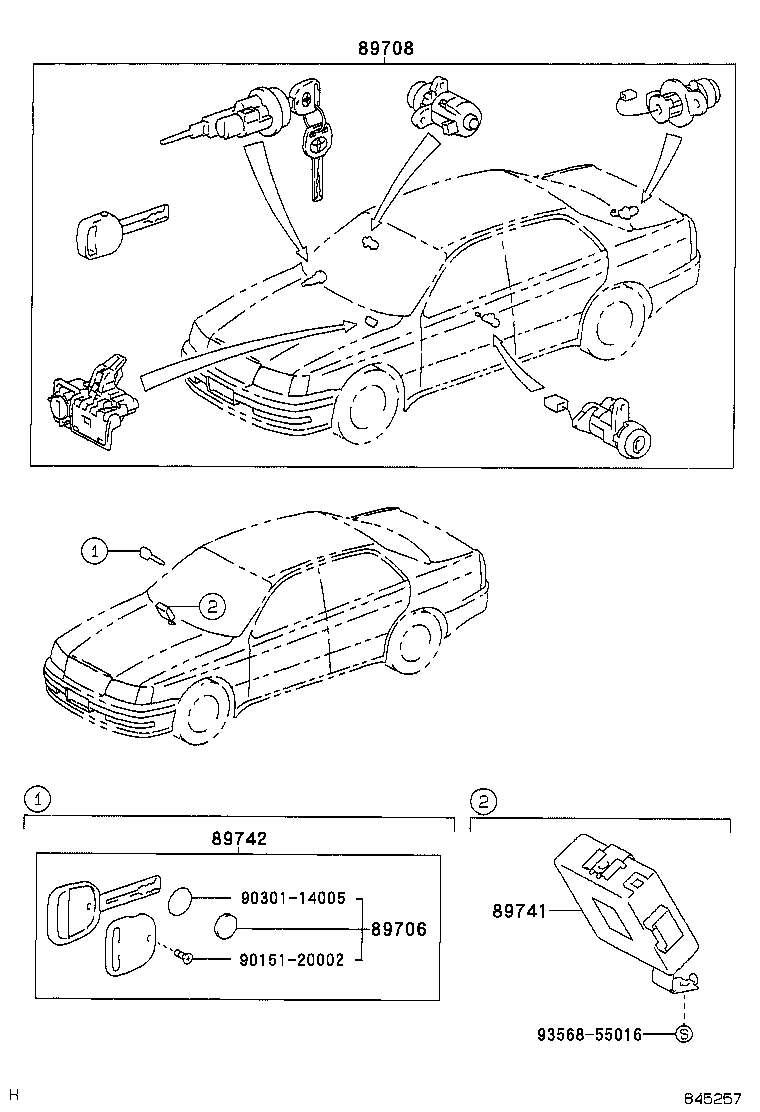

Click highlighted areas on diagram

diagram 89706 89708 89741 89742 9015120002 9030114005 9356855016
Part # Description Qty Price
89706 - BATTERY SET, TRANSMITTER
89706-50010

JZS151,153..ROY,ROYT;GS151,JZS155,157,LS151,UZS15#..(A,C,E,F,ROY,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC)

 1
89708 - CYLINDER SET, WIRELESS DOOR LOCK
89708-30160

JZS155,UZS15#..A,C,E,F

 1
89708-30170

JZS15#,LS151..HT..(ROY,ROYG,ROYT)

 1
89741 - RECEIVER, DOOR CONTROL
89741-30160

JZS155,UZS15#..A,C,E,F

 1
89741-30170

JZS151,153..ROY,ROYT;GS151,JZS155,157,LS151..(ROY,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC)

 1
89742 - TRANSMITTER, DOOR CONTROL
89742-30210

JZS155,UZS15#..A,C,E,F

 1
89742-30220

JZS151,153..ROY,ROYT;GS151,JZS155,157,LS151..(ROY,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC)

 1
Common parts
90151-20002
90301-14005
93568-55016
