JZS155-ATAXF (1995)
Toyota Crown/Crown Majesta

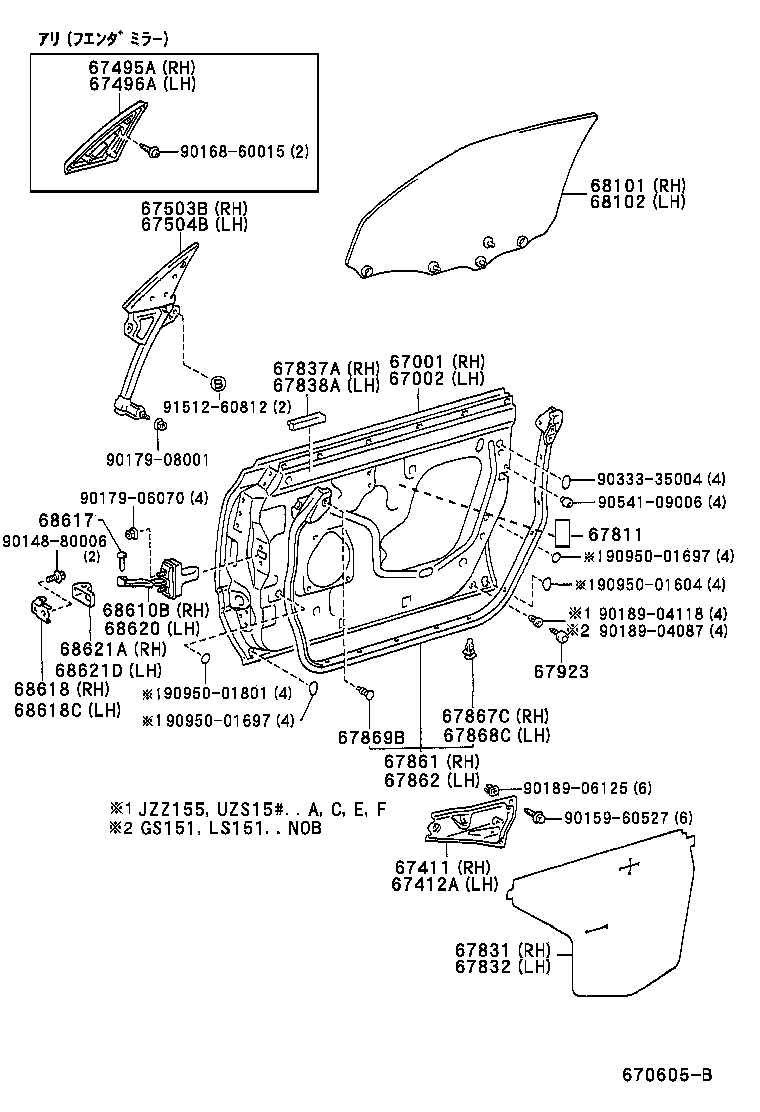

ILLUST NO. 2 OF 3(9508- )HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-30760 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 67001-30750 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 67001-30751 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 67001-30761 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-30830 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 67002-30841 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 67002-30831 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 67002-30840 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 67411 - FRAME, FRONT DOOR WINDOW, FRONT UPPER RH | ||||
| 67411-30200 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 67412A - FRAME, FRONT DOOR WINDOW, FRONT UPPER LH | ||||
| 67412-30200 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-30070 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-30060 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 67503B - BRACKET SUB-ASSY, FRONT DOOR MIRROR, RH | ||||
| 67503-30030 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 67504B - BRACKET SUB-ASSY, FRONT DOOR MIRROR, LH | ||||
| 67504-30030 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67811-22070 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-30360 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-30220 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 67837A - SEAL, FRONT DOOR VENT, RH | ||||
| 67837-30020 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 67838A - SEAL, FRONT DOOR VENT, LH | ||||
| 67837-30020 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-30240 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-30240 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
GS151,JZS15#,LS151,UZS15#..HT |
16 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
GS151,JZS15#,LS151,UZS15#..HT |
16 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-30050 |
GS151,JZS15#,LS151,UZS15#..HT |
10 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-30080 |
GS151,LS151..NOB;JZS155,UZS15#..A,C,E,F |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-30360 |
GS151,JZS15#,LS151,UZS15#..HT *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68101-30390 |
GS151,JZS15#,LS151,UZS15#..HT..(A,C,E,F,ROY,ROYEX,ROYG) *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68101-30610 |
GS151,JZS15#,LS151,UZS15#..HT *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68101-30620 |
JZS151,155..ROYT *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68101-30600 |
GS151,JZS15#,LS151,UZS15#..HT *UVCTT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-30390 |
GS151,JZS15#,LS151,UZS15#..HT..(A,C,E,F,ROY,ROYEX,ROYG) *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102-30620 |
JZS151,155..ROYT *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102-30360 |
GS151,JZS15#,LS151,UZS15#..HT *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102-30600 |
GS151,JZS15#,LS151,UZS15#..HT *UVCTT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102-30360 |
GS151,JZS15#,LS151,UZS15#..HT..(A,C,E,F,ROY,ROYEX,ROYG) *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102-30610 |
GS151,JZS15#,LS151,UZS15#..HT *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-30120 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-50010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 68618 - BRACKET, FRONT DOOR CHECK ARM, RH | ||||
| 68618-50010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 68618C - BRACKET, FRONT DOOR CHECK ARM, LH | ||||
| 68618-50010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-30050 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 68621A - COVER, FRONT DOOR CHECK, RH | ||||
| 68621-50030 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 68621D - COVER, FRONT DOOR CHECK, LH | ||||
| 68621-50030 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| Common parts | ||||
| 90148-80006 | ||||
| 90159-60527 | ||||
| 90168-60015 | ||||
| 90179-06070 | ||||
| 90179-08001 | ||||
| 90189-04087 | ||||
| 90189-04118 | ||||
| 90189-06125 | ||||
| 90333-35004 | ||||
| 90541-09006 | ||||
| 90950-01604 | ||||
| 90950-01697 | ||||
| 90950-01801 | ||||
| 91512-60812 | ||||
ILLUST NO. 1 OF 3(9508- )HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-30130 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-30130 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-3A580B0 |
UZS151,155 ﾄﾘﾑ = TYPE E-*104,BLUE GRAY,TRIM1# |
1 | ||
| 67610-3F320B0 |
JZS155,UZS15#..A,C,E,F ﾄﾘﾑ = TYPE A-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 67610-3F320E0 |
JZS155,UZS15#..A,C,E,F ﾄﾘﾑ = TYPE A-*104,ANTELOPE,TRIM4# |
1 | ||
| 67610-3F330B0 |
JZS15#,LS151..HT..(ROY,ROYG) ﾄﾘﾑ = TYPE B-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 67610-3F330E0 |
JZS15#,LS151..HT..(ROY,ROYG,ROYT) ﾄﾘﾑ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 67610-3F340B0 |
JZS151,155..ROYT ﾄﾘﾑ = TYPE C-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 67610-3F200B0 |
JZS151,155..ROYT ﾄﾘﾑ = TYPE C-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 67610-3F530B1 |
JZS155,UZS15#..A,C,E,F ﾄﾘﾑ = TYPE A-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 67610-3F540B0 |
JZS155,UZS15#..A,C,F ﾄﾘﾑ = TYPE E-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 67610-3F530E0 |
JZS155,UZS15#..A,C,E,F ﾄﾘﾑ = TYPE A-*104,ANTELOPE,TRIM4# |
1 | ||
| 67650-3A770B0 |
GS151,JZS151,153,155,LS151..HT..(ROY,ROYEX,ROYG) ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) & ﾄﾘﾑ = TYPE B-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 67650-3A770E0 |
GS151,JZS151,153,155,LS151..HT..(ROY,ROYEX,ROYG,ROYT) ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) & ﾄﾘﾑ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 67650-3A770B0 |
GS151,JZS153..ROYEX;JZS151,155,157..HT..(ROY,ROYEX) ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A),DK.BLUE GRAY,TRIM1# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-07066E3 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
4 | ||
| 90467-07066E5 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) ANTELOPE,TRIM4# |
4 | ||
| 90467-07066B3 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
4 | ||
| 90467-07066B2 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) DK.BLUE GRAY,TRIM1# |
4 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-01800E2 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
4 | ||
| 90950-01800B1 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX DK.BLUE GRAY,TRIM1# |
4 | ||
| 90950-01800E3 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX ANTELOPE,TRIM4# |
4 | ||
| 90950-01800B2 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
4 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3F830E0 |
JZS155,UZS15#..A,C,E,F ﾄﾘﾑ = TYPE A-*104,ANTELOPE,TRIM4# |
1 | ||
| 67620-3F830B0 |
JZS155,UZS15#..A,C,E,F ﾄﾘﾑ = TYPE A-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 67620-3F840E0 |
JZS15#,LS151..HT..(ROY,ROYG,ROYT) ﾄﾘﾑ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 67620-3F840B0 |
JZS15#,LS151..HT..(ROY,ROYG) ﾄﾘﾑ = TYPE B-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 67620-3F850B0 |
JZS151,155..ROYT ﾄﾘﾑ = TYPE C-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 67050-30030B0 |
UZS151,155 ﾄﾘﾑ = TYPE E-*104,BLUE GRAY,TRIM1# |
1 | ||
| 67050-30040E0 |
GS151,JZS151,153,155,LS151..HT..(ROY,ROYEX,ROYG,ROYT) ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) & ﾄﾘﾑ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 67050-30050B0 |
JZS151,155..ROYT ﾄﾘﾑ = TYPE C-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 67050-30040B0 |
GS151,JZS151,153,155,LS151..HT..(ROY,ROYEX,ROYG) ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) & ﾄﾘﾑ = TYPE B-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 67050-30090B1 |
JZS155,UZS15#..A,C,E,F ﾄﾘﾑ = TYPE A-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 67050-30100B0 |
JZS155,UZS15#..A,C,F ﾄﾘﾑ = TYPE E-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 67050-30090E0 |
JZS155,UZS15#..A,C,E,F ﾄﾘﾑ = TYPE A-*104,ANTELOPE,TRIM4# |
1 | ||
| 67050-30040B0 |
GS151,JZS153..ROYEX;JZS151,155,157..HT..(ROY,ROYEX) ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A),DK.BLUE GRAY,TRIM1# |
1 | ||
| 67688B - GRILLE, SPEAKER DOOR, NO.2 RH | ||||
| 67688-30010B1 |
GS151,JZS15#,LS151,UZS15#..HT DK.BLUE GRAY,TRIM1# |
1 | ||
| 67688-30010E0 |
GS151,JZS15#,LS151,UZS15#..HT ANTELOPE,TRIM4# |
1 | ||
| 67689B - GRILLE, SPEAKER DOOR, NO.2 LH | ||||
| 67689-30010B1 |
GS151,JZS15#,LS151,UZS15#..HT DK.BLUE GRAY,TRIM1# |
1 | ||
| 67689-30010E0 |
GS151,JZS15#,LS151,UZS15#..HT ANTELOPE,TRIM4# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-30080 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-30060 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 74237C - CAP, FRONT DOOR ARMREST BASE | ||||
| 74237-30030B0 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) DK.BLUE GRAY,TRIM1# |
1 | ||
| 74237-30030E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 74237-30030E1 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) ANTELOPE,TRIM4# |
1 | ||
| 74237-30030B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90159-40141 | ||||
| 90159-40223 | ||||
| 90168-40061 | ||||
| 90168-40100 | ||||
| 90189-04200 | ||||
| 90467-09177 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8602 | ||||

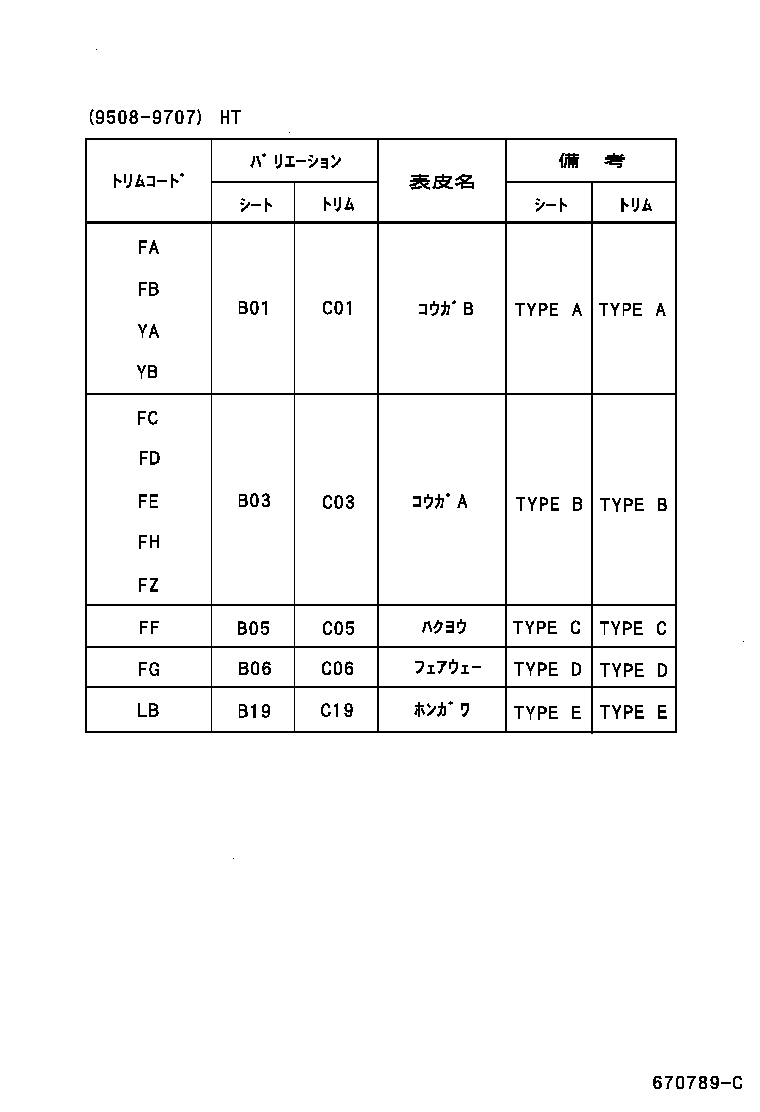

ILLUST NO. 3 OF 3(9508-9707)HT
| Part # | Description | Qty | Price |
|---|

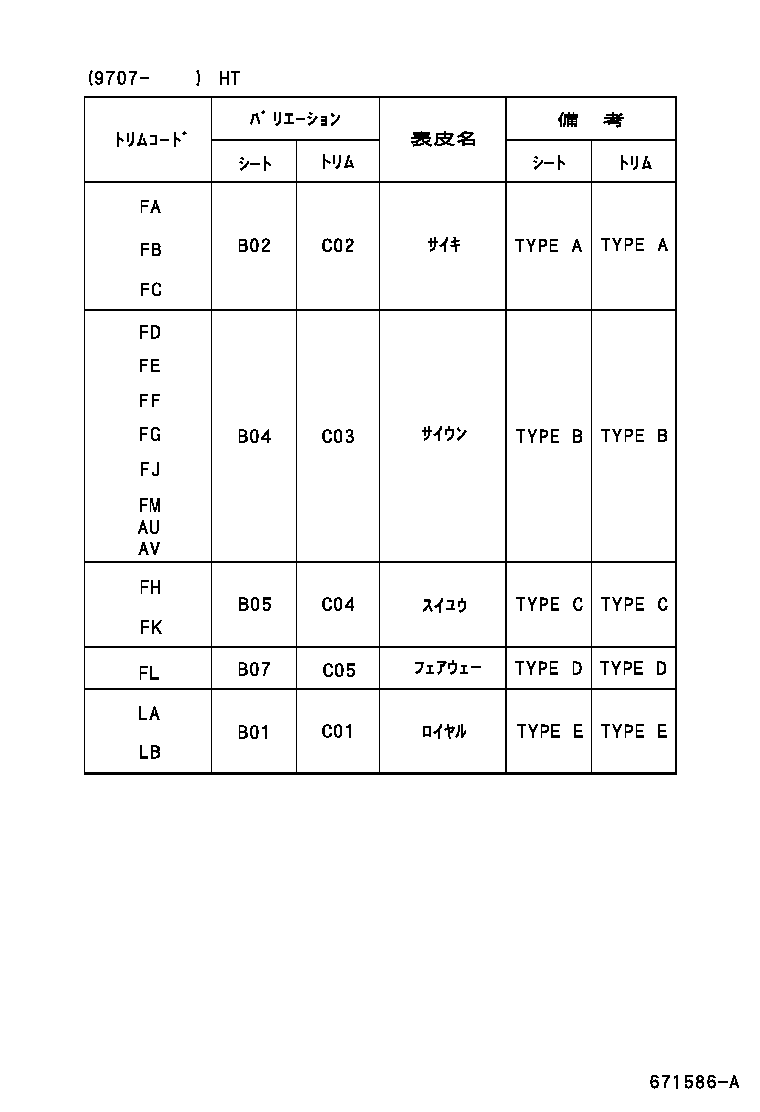

ILLUST NO. 3 OF 3(9707- )HT
| Part # | Description | Qty | Price |
|---|
