JZS155-ATAXF (1995)
Toyota Crown/Crown Majesta

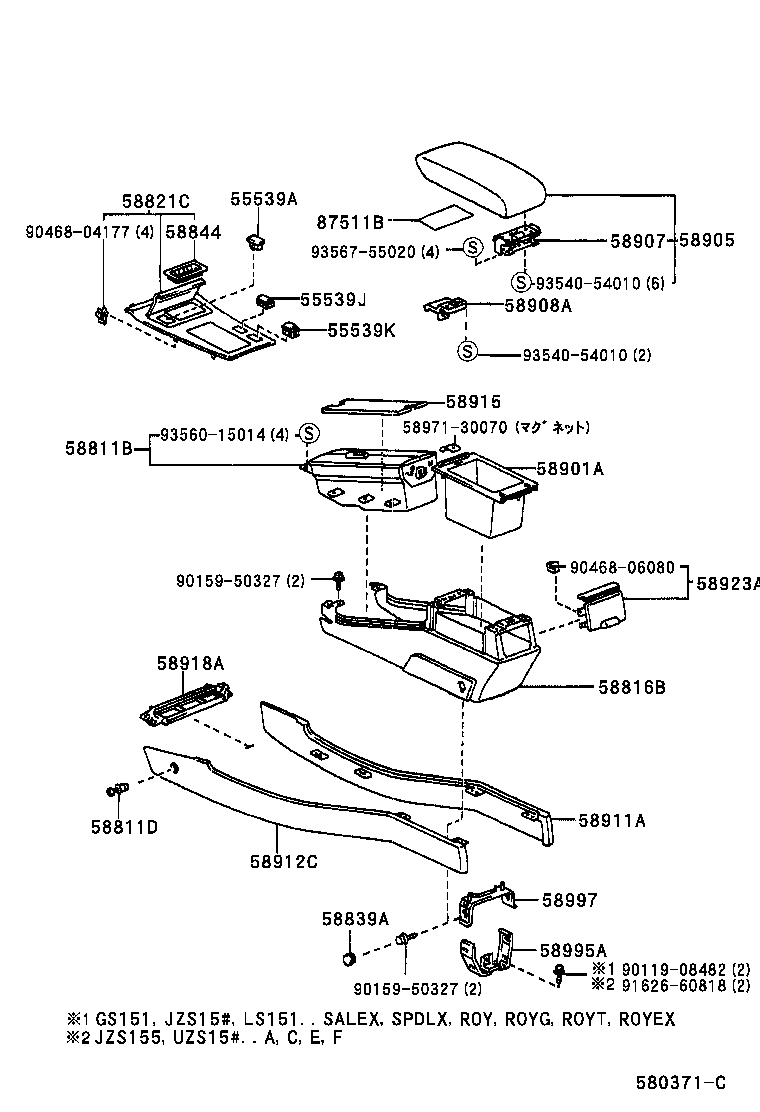

(9508-9707)ATM ; (9707- )ATM..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-30080C0 |
GS151,JZS157,UZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(A,E,ROY,ROYEX,ROYT) BLACK,TRIM1#,4# |
1 | ||
| 55539J - COVER, SPARE SWITCH HOLE | ||||
| 55539-30130 |
JZS151,155,LS151,UZS155,157..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 55539-30150 |
JZS151,155,LS151,UZS155,157..A,C,E,F,ROY,ROYEX,ROYG,ROYT ﾓｸﾒ |
1 | ||
| 58811B - BOX, CONSOLE | ||||
| 58801-30220B0 |
GS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) DK.BLUE GRAY,TRIM1# |
1 | ||
| 58801-30230 |
GS151,JZS153..ROYEX;JZS151,155,157..HT..(ROY,ROYEX) ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 58801-30220E1 |
GS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) ANTELOPE,TRIM4# |
1 | ||
| 58801-30220B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 58801-30220E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-08182E1 |
JZS155..SED..ROYG;GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) ANTELOPE,TRIM4# |
2 | ||
| 90467-08182B3 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
2 | ||
| 90467-08182B2 |
GS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) DK.BLUE GRAY,TRIM1# |
2 | ||
| 90467-08182E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
2 | ||
| 58816B - INSERT, CONSOLE BOX | ||||
| 58816-30060E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 58816-30060B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 58816-30060E1 |
GS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) ANTELOPE,TRIM4# |
1 | ||
| 58816-30060B0 |
GS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) DK.BLUE GRAY,TRIM1# |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58804-30210 |
JZS155..HT;JZS151..ROY,ROYT;JZS155..SED..ROY ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) |
1 | ||
| 58804-30190 |
UZS151,155;LS151..SED..WIB ｱﾘ(ﾘﾔ ｼ-ﾄﾋ-ﾀ) |
1 | ||
| 58804-30220 |
JZS155..HT;JZS155..SED..ROY;GS151,JZS151,153..ROY,ROYT |
1 | ||
| 58804-30360 |
JZS155..HT;JZS155..SED..ROY;JZS151,LS151,UZS15#..C,F,ROY,ROYEX,ROYT ﾓｸﾒ;ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 58804-30340 |
UZS151,155;JZS151,155,LS151..SED..(ROY,ROYG) ﾓｸﾒ;ｱﾘ(ﾘﾔ ｼ-ﾄﾋ-ﾀ & ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58917-30100B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
2 | ||
| 58917-30100E1 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX ANTELOPE,TRIM4# |
2 | ||
| 58917-30100E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
2 | ||
| 58917-30100B0 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX DARK BLUE GRAY,TRIM1# |
2 | ||
| 58844 - BEZEL, CONSOLE BOX | ||||
| 58844-30060 |
UZS151,155;LS151..SED..WIB;GS151,JZS151,153,155..SED..(ROY,ROYG,SPDLX)..(LPGTE,TWC) ｱﾘ(ﾘﾔ ｼ-ﾄﾋ-ﾀ) |
1 | ||
| 58844-30080 |
JZS153..SALEX;JZS153,155..HT;JZS155..SED..ROY;GS151,JZS151,157,LS151,UZS15#..ATM |
1 | ||
| 58844-30060 |
UZS151,155;JZS151,155,LS151..SED..(ROY,ROYG) ｱﾘ(ﾘﾔ ｼ-ﾄﾋ-ﾀ) |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58811-30310 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 58811-30310 |
GS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-30450E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 58905-30400B2 |
GS151,JZS15#,LS151..ROY,ROYG LT. BLUISH GRAY,TRIM1# |
1 | ||
| 58905-30470B0 |
UZS151,155 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 58905-30410B1 |
JZS151,155..ROYT DK. BLUE GRAY,TRIM1# |
1 | ||
| 58905-30450B0 |
JZS155,UZS15#..A,C,E,F LT. BLUISH GRAY,TRIM1# |
1 | ||
| 58905-30400E2 |
GS151,JZS15#,LS151..ROY,ROYG,ROYT QUARTZ,TRIM4# |
1 | ||
| 58905-30510B1 |
JZS155,UZS15#..A,C,F ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 58905-30500E1 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 58905-30500B2 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 58905-30480B0 |
GS151,JZS153..ROYEX;JZS151,155,157..HT..(ROY,ROYEX) ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A),BLUE GRAY,TRIM1# |
1 | ||
| 58905-30490B0 |
JZS151,155..ROYT DARK BLUE GRAY,TRIM1# |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-30100 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 58907-30130 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58907-30100 |
GS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-50010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58911A - PANEL, BOX SIDE, NO.1 | ||||
| 58911-30130E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 58911-30140B0 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 58911-30130E1 |
GS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) ANTELOPE,TRIM4# |
1 | ||
| 58911-30130B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 58911-30130B0 |
GS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) DK.BLUE GRAY,TRIM1# |
1 | ||
| 58911-30140E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 58912C - PANEL, BOX SIDE, NO.2 | ||||
| 58912-30170B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 58912-30170E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 58912-30170E1 |
GS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) ANTELOPE,TRIM4# |
1 | ||
| 58912-30170B0 |
GS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) DK.BLUE GRAY,TRIM1# |
1 | ||
| 58912-30180B0 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 58912-30180E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 58915 - PANEL, BOX BOTTOM | ||||
| 58915-30050 |
GS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) |
1 | ||
| 58915-30050 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 58918A - BRACKET, BOX SUPPORT | ||||
| 58918-30040 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58903-30130 |
JZS153,LS151..HT;GS151..LPGTE..NOB;GS151,JZS151,155..ROYEX,ROYT ﾓｸﾒ |
1 | ||
| 58903-30110 |
LS151..SED..WIB;GS151,JZS151,155..ROY,ROYG |
1 | ||
| 58903-30150 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58903-30160E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 58903-30160B0 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 58903-30180 |
GS151,JZS153..ROYEX;JZS151,155,157..HT..(ROY,ROYEX) ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-30140 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58995-30130 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58995-30170 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-30070 |
GS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) |
1 | ||
| 58997-30070 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| Common parts | ||||
| 58971-30070 | ||||
| 90119-08482 | ||||
| 90159-50327 | ||||
| 90468-04177 | ||||
| 90468-06080 | ||||
| 91626-60818 | ||||
| 93540-54010 | ||||
| 93560-15014 | ||||
| 93567-55020 | ||||

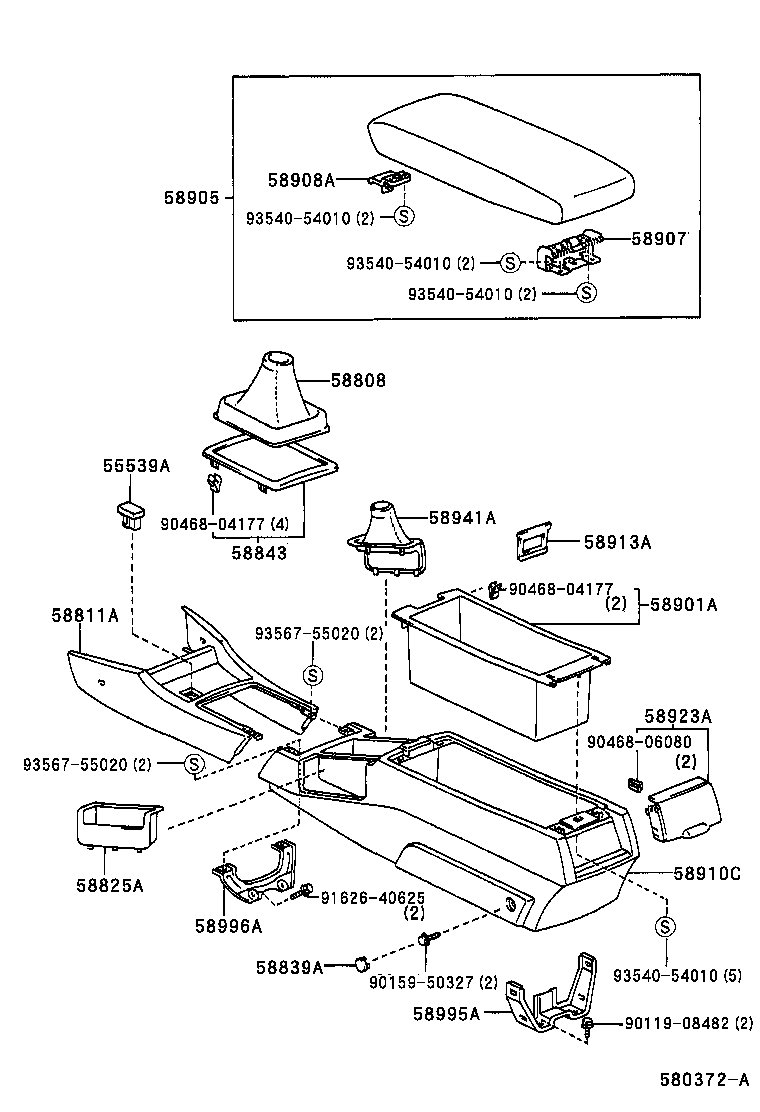

(9512- )5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-30080C0 |
GS151,JZS157,UZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(A,E,ROY,ROYEX,ROYT) BLACK,TRIM1#,4# |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58917-30100B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
2 | ||
| 58917-30100E1 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX ANTELOPE,TRIM4# |
2 | ||
| 58917-30100E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
2 | ||
| 58917-30100B0 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX DARK BLUE GRAY,TRIM1# |
2 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58811-30310 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 58811-30310 |
GS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-30450E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 58905-30400B2 |
GS151,JZS15#,LS151..ROY,ROYG LT. BLUISH GRAY,TRIM1# |
1 | ||
| 58905-30470B0 |
UZS151,155 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 58905-30410B1 |
JZS151,155..ROYT DK. BLUE GRAY,TRIM1# |
1 | ||
| 58905-30450B0 |
JZS155,UZS15#..A,C,E,F LT. BLUISH GRAY,TRIM1# |
1 | ||
| 58905-30400E2 |
GS151,JZS15#,LS151..ROY,ROYG,ROYT QUARTZ,TRIM4# |
1 | ||
| 58905-30510B1 |
JZS155,UZS15#..A,C,F ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 58905-30500E1 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 58905-30500B2 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 58905-30480B0 |
GS151,JZS153..ROYEX;JZS151,155,157..HT..(ROY,ROYEX) ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A),BLUE GRAY,TRIM1# |
1 | ||
| 58905-30490B0 |
JZS151,155..ROYT DARK BLUE GRAY,TRIM1# |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-30100 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 58907-30130 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58907-30100 |
GS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-50010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58903-30130 |
JZS153,LS151..HT;GS151..LPGTE..NOB;GS151,JZS151,155..ROYEX,ROYT ﾓｸﾒ |
1 | ||
| 58903-30110 |
LS151..SED..WIB;GS151,JZS151,155..ROY,ROYG |
1 | ||
| 58903-30150 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58903-30160E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 58903-30160B0 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 58903-30180 |
GS151,JZS153..ROYEX;JZS151,155,157..HT..(ROY,ROYEX) ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-30140 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58995-30130 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58995-30170 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-30100 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| Common parts | ||||
| 90119-08482 | ||||
| 90159-50327 | ||||
| 90468-04177 | ||||
| 90468-06080 | ||||
| 91626-40625 | ||||
| 93540-54010 | ||||
| 93567-55020 | ||||

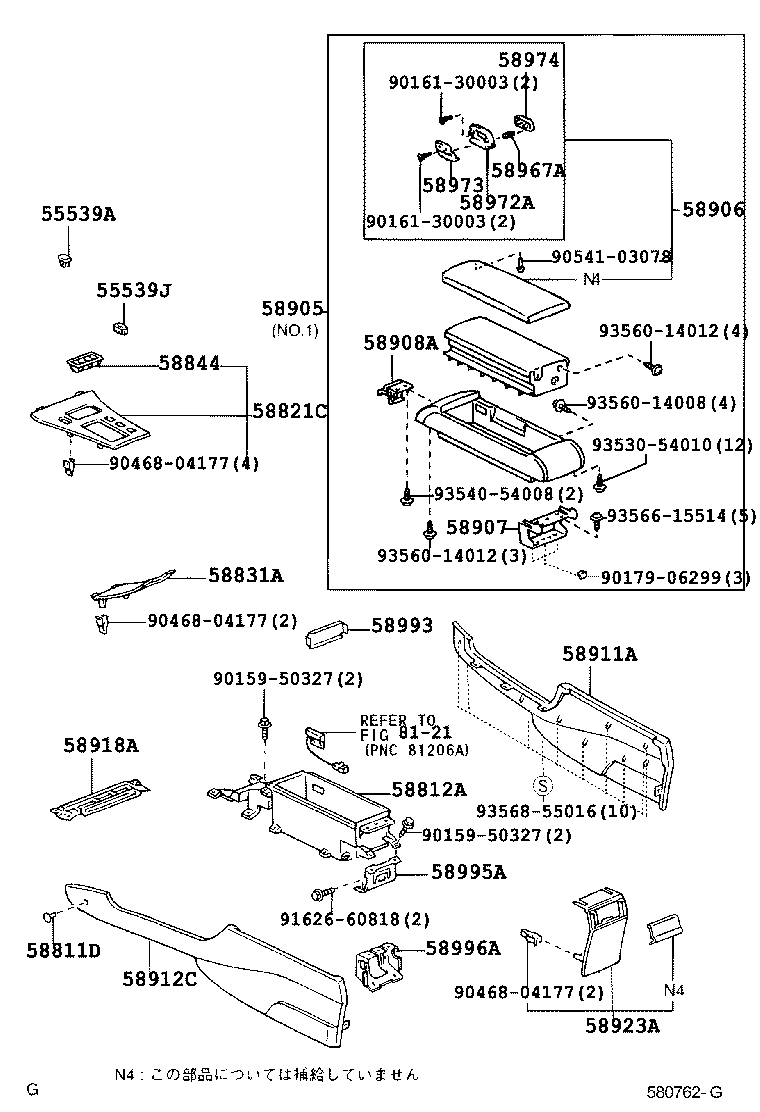

(9707- )A,C,E,F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-30080C0 |
GS151,JZS157,UZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(A,E,ROY,ROYEX,ROYT) BLACK,TRIM1#,4# |
1 | ||
| 55539J - COVER, SPARE SWITCH HOLE | ||||
| 55539-30130 |
JZS151,155,LS151,UZS155,157..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 55539-30150 |
JZS151,155,LS151,UZS155,157..A,C,E,F,ROY,ROYEX,ROYG,ROYT ﾓｸﾒ |
1 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-08182E1 |
JZS155..SED..ROYG;GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) ANTELOPE,TRIM4# |
2 | ||
| 90467-08182B3 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
2 | ||
| 90467-08182B2 |
GS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) DK.BLUE GRAY,TRIM1# |
2 | ||
| 90467-08182E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
2 | ||
| 58812A - BOX, CONSOLE, LOWER | ||||
| 58812-30050 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58804-30210 |
JZS155..HT;JZS151..ROY,ROYT;JZS155..SED..ROY ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) |
1 | ||
| 58804-30190 |
UZS151,155;LS151..SED..WIB ｱﾘ(ﾘﾔ ｼ-ﾄﾋ-ﾀ) |
1 | ||
| 58804-30220 |
JZS155..HT;JZS155..SED..ROY;GS151,JZS151,153..ROY,ROYT |
1 | ||
| 58804-30360 |
JZS155..HT;JZS155..SED..ROY;JZS151,LS151,UZS15#..C,F,ROY,ROYEX,ROYT ﾓｸﾒ;ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 58804-30340 |
UZS151,155;JZS151,155,LS151..SED..(ROY,ROYG) ﾓｸﾒ;ｱﾘ(ﾘﾔ ｼ-ﾄﾋ-ﾀ & ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) |
1 | ||
| 58831A - GARNISH, CONSOLE UPPER PANEL, FRONT | ||||
| 58831-30160 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58844 - BEZEL, CONSOLE BOX | ||||
| 58844-30060 |
UZS151,155;LS151..SED..WIB;GS151,JZS151,153,155..SED..(ROY,ROYG,SPDLX)..(LPGTE,TWC) ｱﾘ(ﾘﾔ ｼ-ﾄﾋ-ﾀ) |
1 | ||
| 58844-30080 |
JZS153..SALEX;JZS153,155..HT;JZS155..SED..ROY;GS151,JZS151,157,LS151,UZS15#..ATM |
1 | ||
| 58844-30060 |
UZS151,155;JZS151,155,LS151..SED..(ROY,ROYG) ｱﾘ(ﾘﾔ ｼ-ﾄﾋ-ﾀ) |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-30450E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 58905-30400B2 |
GS151,JZS15#,LS151..ROY,ROYG LT. BLUISH GRAY,TRIM1# |
1 | ||
| 58905-30470B0 |
UZS151,155 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 58905-30410B1 |
JZS151,155..ROYT DK. BLUE GRAY,TRIM1# |
1 | ||
| 58905-30450B0 |
JZS155,UZS15#..A,C,E,F LT. BLUISH GRAY,TRIM1# |
1 | ||
| 58905-30400E2 |
GS151,JZS15#,LS151..ROY,ROYG,ROYT QUARTZ,TRIM4# |
1 | ||
| 58905-30510B1 |
JZS155,UZS15#..A,C,F ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 58905-30500E1 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 58905-30500B2 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 58905-30480B0 |
GS151,JZS153..ROYEX;JZS151,155,157..HT..(ROY,ROYEX) ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A),BLUE GRAY,TRIM1# |
1 | ||
| 58905-30490B0 |
JZS151,155..ROYT DARK BLUE GRAY,TRIM1# |
1 | ||
| 58906 - DOOR SUB-ASSY, UPPER CONSOLE | ||||
| 58906-30080B0 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 58906-30090B0 |
JZS155,UZS15#..A,C,E,F ﾎﾝｶﾞﾜ,BLUE GRAY,TRIM1# |
1 | ||
| 58906-30080E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-30100 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 58907-30130 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58907-30100 |
GS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-50010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58911A - PANEL, BOX SIDE, NO.1 | ||||
| 58911-30140E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 58911-30130E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 58911-30140B0 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 58911-30130E1 |
GS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) ANTELOPE,TRIM4# |
1 | ||
| 58911-30130B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 58911-30130B0 |
GS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) DK.BLUE GRAY,TRIM1# |
1 | ||
| 58912C - PANEL, BOX SIDE, NO.2 | ||||
| 58912-30170B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 58912-30170E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 58912-30170E1 |
GS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) ANTELOPE,TRIM4# |
1 | ||
| 58912-30170B0 |
GS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) DK.BLUE GRAY,TRIM1# |
1 | ||
| 58912-30180B0 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 58912-30180E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 58918A - BRACKET, BOX SUPPORT | ||||
| 58918-30040 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58903-30130 |
JZS153,LS151..HT;GS151..LPGTE..NOB;GS151,JZS151,155..ROYEX,ROYT ﾓｸﾒ |
1 | ||
| 58903-30110 |
LS151..SED..WIB;GS151,JZS151,155..ROY,ROYG |
1 | ||
| 58903-30150 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58903-30160E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 58903-30160B0 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 58903-30180 |
GS151,JZS153..ROYEX;JZS151,155,157..HT..(ROY,ROYEX) ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 58967A - SPRING, CONSOLE DOOR STOPPER | ||||
| 58967-30170 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 58972A - BASE, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58972-30020B0 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 58972-30020E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 58973 - PIN, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58973-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58974 - PLATE, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58974-30060E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 58974-30060B0 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 58993 - BRACKET, CONSOLE BOX MOUNTING, REAR | ||||
| 58993-30050 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-30140 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58995-30130 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58995-30170 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-30100 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90161-30003 | ||||
| 90179-06299 | ||||
| 90468-04177 | ||||
| 90541-03078 | ||||
| 91626-60818 | ||||
| 93530-54010 | ||||
| 93540-54008 | ||||
| 93560-14008 | ||||
| 93560-14012 | ||||
| 93566-15514 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
