Toyota Crown/crown majesta JZS155 FUEL INJECTION SYSTEM

Part #	Description	Period	Qty
22060 - LEVER ASSY, THROTTLE W/SENSOR
22060-46010	2JZGE..JZS155,157	07/1997 - 09/1999	1
22060-46010	2JZGE..JZS155	09/1999 - 12/2999	1
22210 - BODY ASSY, THROTTLE
22210-46270	2JZGE..JZS155 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	08/1995 - 07/1997	1
22210-46260	2JZGE..JZS155	08/1995 - 07/1997	1
22030-46110	2JZGE..JZS155,157	07/1997 - 12/2999	1
22210-46280	2JZGE..JZS155..ROY,ROYG,ROYT ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆｼﾖｳ	08/1995 - 07/1997	1
22210 - BODY ASSY, THROTTLE
22210-46270	2JZGE..JZS155 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	08/1995 - 07/1997	1
22210-46260	2JZGE..JZS155	08/1995 - 07/1997	1
22030-46110	2JZGE..JZS155,157	07/1997 - 12/2999	1
22210-46280	2JZGE..JZS155..ROY,ROYG,ROYT ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆｼﾖｳ	08/1995 - 07/1997	1
22210 - BODY ASSY, THROTTLE
22210-46270	2JZGE..JZS155 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	08/1995 - 07/1997	1
22210-46260	2JZGE..JZS155	08/1995 - 07/1997	1
22030-46110	2JZGE..JZS155,157	07/1997 - 12/2999	1
22210-46280	2JZGE..JZS155..ROY,ROYG,ROYT ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆｼﾖｳ	08/1995 - 07/1997	1
22210Z - THERMOSTAT, MANIFOLD
90916-03104	2JZGE..JZS155,157	08/1995 - 09/1999	1
90916-03104	2JZGE..JZS155	09/1999 - 12/2999	1
22210Z - THERMOSTAT, MANIFOLD
90916-03104	2JZGE..JZS155,157	08/1995 - 09/1999	1
90916-03104	2JZGE..JZS155	09/1999 - 12/2999	1
22210Z - THERMOSTAT, MANIFOLD
90916-03104	2JZGE..JZS155,157	08/1995 - 09/1999	1
90916-03104	2JZGE..JZS155	09/1999 - 12/2999	1
22218 - COVER(FOR THROTTLE BODY)
22218-46120	2JZGE..JZS155	09/1999 - 12/2999	1
22218-46120	2JZGE..JZS155,157	07/1997 - 09/1999	1
22267 - BRACKET, THROTTLE BODY
22267-46030	2JZGE..JZS155	09/1999 - 12/2999	1
22267-46030	2JZGE..JZS155,157	08/1995 - 09/1999	1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-46090	2JZGE..JZS155	08/1995 - 07/1997	1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-46090	2JZGE..JZS155	08/1995 - 07/1997	1
22271 - GASKET, THROTTLE BODY
22271-46040	2JZGE..JZS155	08/1995 - 07/1997	1
22271-46070	2JZGE..JZS155,157	07/1997 - 09/1999	1
22271-46070	2JZGE..JZS155	09/1999 - 12/2999	1
23250 - INJECTOR ASSY, FUEL
23209-46030	2JZGE..JZS155	08/1995 - 11/1995	6
23209-46031	2JZGE..JZS155	09/1999 - 12/2999	6
23250B - RING, O(FOR FUEL INJECTOR)
90301-07024	1JZGE,2JZGE..JZS15#	09/1999 - 12/2999	6
90301-07024	1JZGE,2JZGE..JZS15#	12/1998 - 09/1999	6
90301-07001	1JZGE,2JZGE..JZS15#	08/1995 - 12/1998	6
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005	2JZGE..JZS155,157	09/1996 - 09/1999	6
90480-13005	2JZGE..JZS155	09/1999 - 12/2999	6
90480-13005	1JZGE,2JZGE..JZS15#	08/1995 - 09/1996	6
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23207-46021	1JZGE,2JZGE..JZS15#	09/1999 - 12/2999	1
23207-46021	1JZGE,2JZGE..JZS15#	08/1995 - 09/1999	1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
90430-12026	1JZGE,2JZGE..JZS15#	09/1999 - 12/2999	1
90430-12026	1JZGE,2JZGE..JZS15#	08/1995 - 09/1999	1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-46010	1JZGE,2JZGE..JZS15#	08/1995 - 09/1999	1
23280-46010	1JZGE,2JZGE..JZS15#	09/1999 - 12/2999	1
23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET)
90401-10038	1JZGE,2JZGE..JZS15#	09/1999 - 12/2999	1
90401-10038	1JZGE,2JZGE..JZS15#	08/1995 - 09/1999	1
23280F - GASKET(FOR FUEL PRESSURE REGULATOR)
90430-10012	1JZGE,2JZGE..JZS15#	09/1999 - 12/2999	2
90430-10012	1JZGE,2JZGE..JZS15#	08/1995 - 09/1999	2
23280F - GASKET(FOR FUEL PRESSURE REGULATOR)
90430-10012	1JZGE,2JZGE..JZS15#	09/1999 - 12/2999	2
90430-10012	1JZGE,2JZGE..JZS15#	08/1995 - 09/1999	2
23291 - INSULATOR, INJECTOR VIBRATION
23291-46010	1JZGE,2JZGE..JZS15#	08/1995 - 09/1999	6
23291-46010	1JZGE,2JZGE..JZS15#	09/1999 - 12/2999	6
23300T - GASKET(FOR FUEL FILTER)
90430-12026	1JZGE,2JZGE..JZS15#	08/1995 - 12/2999	2
23300T - GASKET(FOR FUEL FILTER)
90430-12026	1JZGE,2JZGE..JZS15#	08/1995 - 12/2999	2
23801F - HOSE, FUEL, NO.1
23906-46010	2JZGE..JZS155..A,E	08/1995 - 12/2999	1
90923-01410	1JZGE,2JZGE..JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX	08/1995 - 12/2999	1
23801H - GASKET(FOR FUEL PIPE)
90430-14008	1JZGE,2JZGE..JZS15#	09/1999 - 12/2999	1
90430-14008	1JZGE,2JZGE..JZS15#	08/1995 - 09/1999	1
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-46030	2JZGE..JZS155	08/1995 - 08/1997	1
23801-46031	2JZGE..JZS155	09/1999 - 12/2999	1
23801-46031	2JZGE..JZS155,157	08/1997 - 09/1999	1
23802B - PIPE SUB-ASSY, FUEL, NO.2
23802-46060	2JZGE..JZS155,157	08/1995 - 09/1999	1
23802-46060	2JZGE..JZS155	09/1999 - 12/2999	1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-46040	2JZGE..JZS155	08/1995 - 09/1996	1
23807-46040	1JZGE,2JZGE..JZS15#	09/1999 - 12/2999	1
23807-46040	1JZGE,2JZGE..JZS15#	09/1996 - 09/1999	1
23849C - BOLT, UNION(FOR FUEL PIPE SUPPORT)
90401-12097	1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX	08/1995 - 12/2999	1
90401-12029	2JZGE..JZS155..A,E	08/1995 - 12/2999	1
23881B - BRACKET, FUEL HOSE
23881-46020	2JZGE..JZS155..A,E	08/1995 - 12/2999	1
23881-46030	1JZGE,2JZGE..JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX	08/1995 - 12/2999	1
Common parts
90079-10009
90079-11021
90079-11025
90079-21004
90079-30006
90079-40005
90079-60004
90105-10416
90119-06896
90119-08893
90119-08A60
90126-08020
90179-06161
90179-08153
90301-07024
90561-08009
90929-01313
91511-J0840
91642-C0612
91645-80616
91651-B0614
92112-60818
96135-41300
Linked diagrams
8404
8411

JZS155-AEPUF (1995)

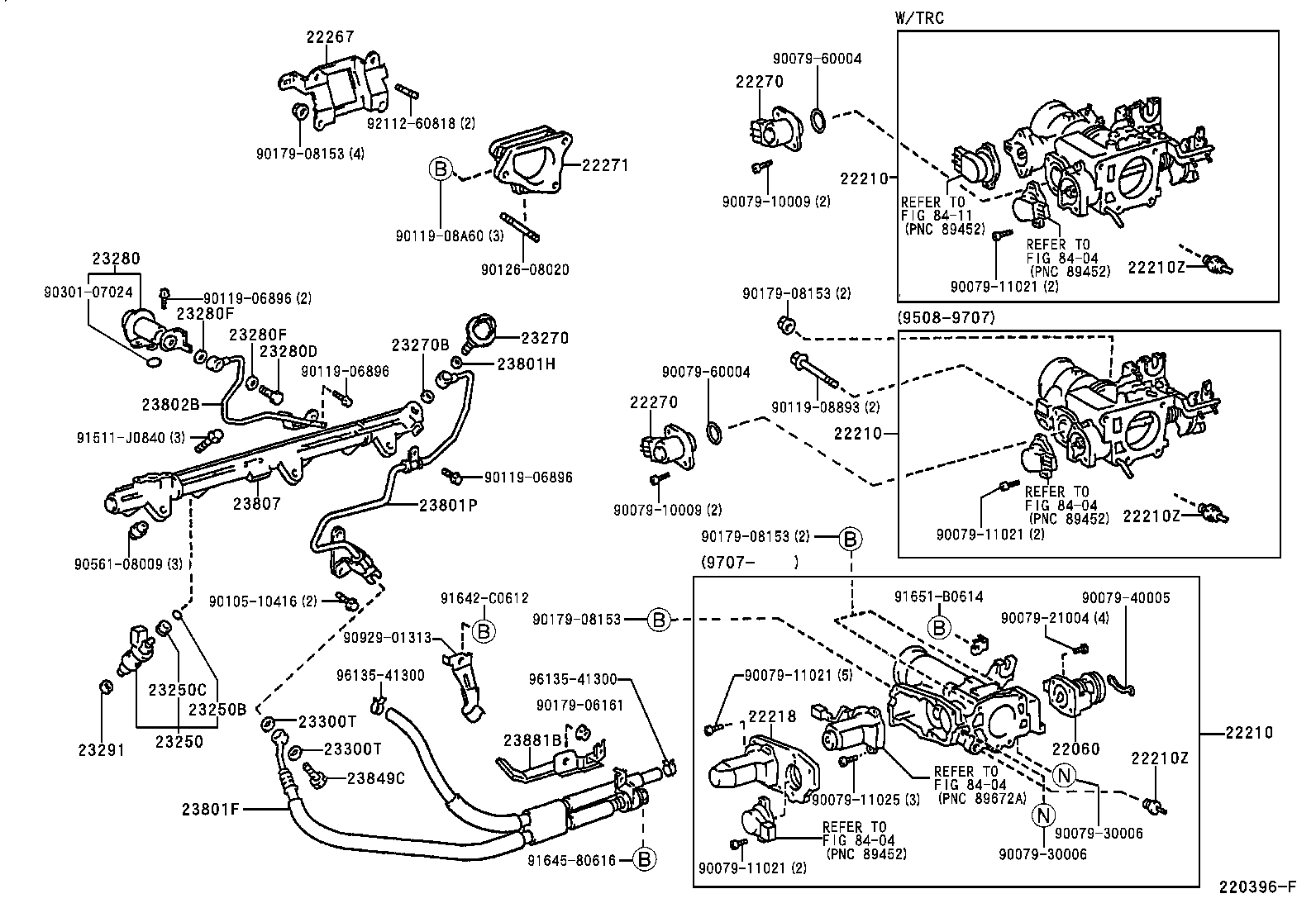

ILLUST NO. 1 OF 3(9508-9909)2JZGE..JZS155..A,E
