JZS155-AEPQF (1995)

Toyota Crown/Crown Majesta

Production Dec 1995 - Aug 2001
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

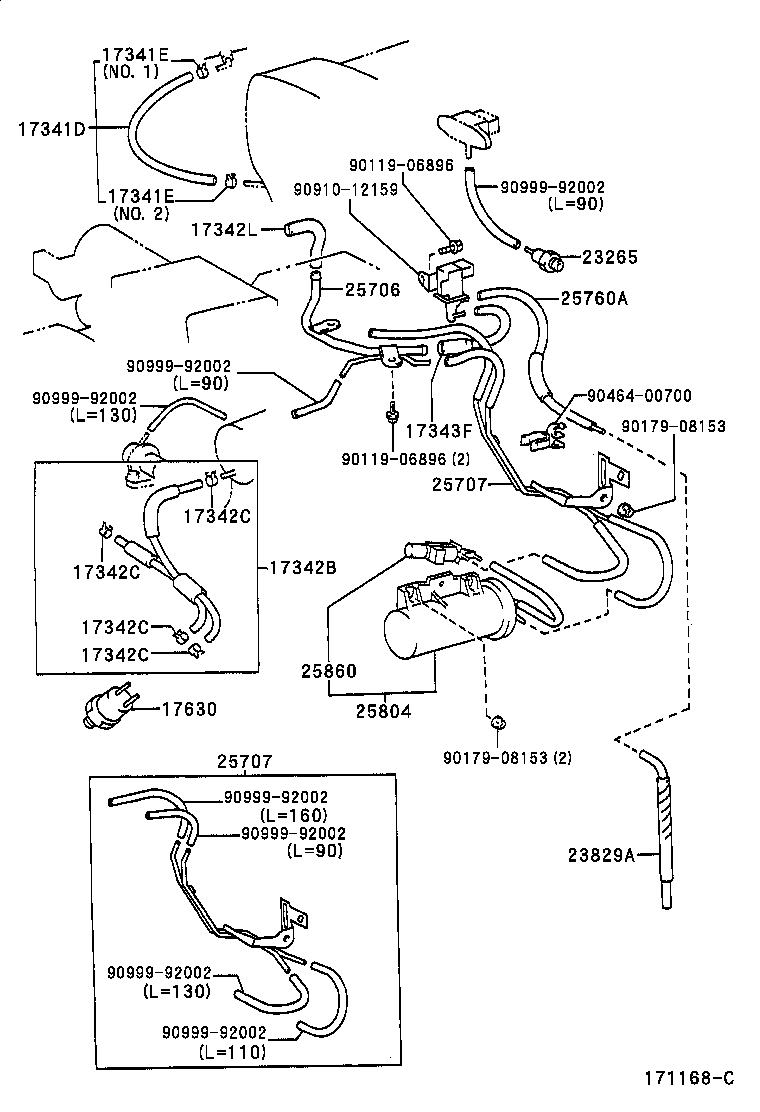

(9707- )2JZGE..ROY,ROYG,ROYT

Click highlighted areas on diagram

diagram 17341D 17341E 17341E 17342B 17342C 17342C 17342C 17342C 17342L 17343F 17630 23265 23829A 25706 25707 25707 25760A 25804 25860 9011906896 9011906896 9017908153 9017908153 9046400700 9091012159 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002
Part # Description Qty Price
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-46160

2JZGE..JZS155..A,E

 1
17341-46170

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-51100

1JZGE,2JZGE..JZS15#

NO.1

 1
96132-51300

1JZGE,2JZGE..JZS15#

NO.2

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-51100

1JZGE,2JZGE..JZS15#

NO.1

 1
96132-51300

1JZGE,2JZGE..JZS15#

NO.2

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-46090

2JZGE..JZS155..A,E

 1
17342-46120

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 1
17342-46150

2JZGE..JZS155..A,E

 1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10106

2JZGE..JZS155..A,E

 4
96132-51000

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 4
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10106

2JZGE..JZS155..A,E

 4
96132-51000

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 4
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10106

2JZGE..JZS155..A,E

 4
96132-51000

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 4
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10106

2JZGE..JZS155..A,E

 4
96132-51000

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 4
17342L - HOSE, AIR, NO.2
17342-46170

2JZGE..JZS155,157

 1
17342-46170

2JZGE..JZS155

 1
17343F - HOSE, AIR, NO.3
17343-46110

2JZGE..JZS155,157

 1
17343-46110

2JZGE..JZS155

 1
17630 - VALVE ASSY, AIR CONTROL
17630-70020

1JZGE,2JZGE..JZS15#

 1
17630-70020

2JZGE..JZS155,157

 1
23265 - FILTER, GAS, NO.1
90917-11031

1JZGE,2JZGE..JZS15#

 1
90917-11031

1JZGE,2JZGE..JZS15#

 1
23829A - HOSE, FUEL VAPOR FEED
23829-46040

2JZGE..JZS155..A,E

 1
23829-46090

2JZGE..JZS155,157..ROY,ROYG,ROYT

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-46060

2JZGE..JZS155

 1
25706-46090

2JZGE..JZS155,157

 1
25706-46090

2JZGE..JZS155

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-46090

1JZGE,2JZGE..JZS15#

 1
25707-46090

1JZGE,2JZGE..JZS15#

 1
25707-46020

2JZGE..JZS155

 1
25707-46021

1JZGE,2JZGE..JZS15#

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-46090

1JZGE,2JZGE..JZS15#

 1
25707-46090

1JZGE,2JZGE..JZS15#

 1
25707-46020

2JZGE..JZS155

 1
25707-46021

1JZGE,2JZGE..JZS15#

 1
25760A - HOSE ASSY, VACUUM TRANSMITTING
25760-46040

2JZGE..JZS155

 1
25760-46040

2JZGE..JZS155,157

 1
25804 - VALVE SET, VACUUM CONTROL
25804-46020

2JZGE..JZS155

 1
25804-46060

2JZGE..JZS155

 1
25804-46060

1JZGE,2JZGE..JZS15#

 1
25804-46060

1JZGE,2JZGE..JZS15#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
90910-12124

2JZGE..JZS155

 1
90910-12124

2JZGE..JZS155

TAIHEIYO

 1
90910-12124

2JZGE..JZS155

TAIHEIYO

 1
90910-12124

1JZGE,2JZGE..JZS15#

TAIHEIYO

 1
25860-46010

1JZGE,2JZGE..JZS15#

AISIN

 1
25860-46010

2JZGE..JZS155

AISIN

 1
90910-12124

1JZGE,2JZGE..JZS15#

TAIHEIYO

 1
25860-46010

1JZGE,2JZGE..JZS15#

AISIN

 1
Common parts
90119-06896
90179-08153
90464-00700
90910-12159
90999-92002

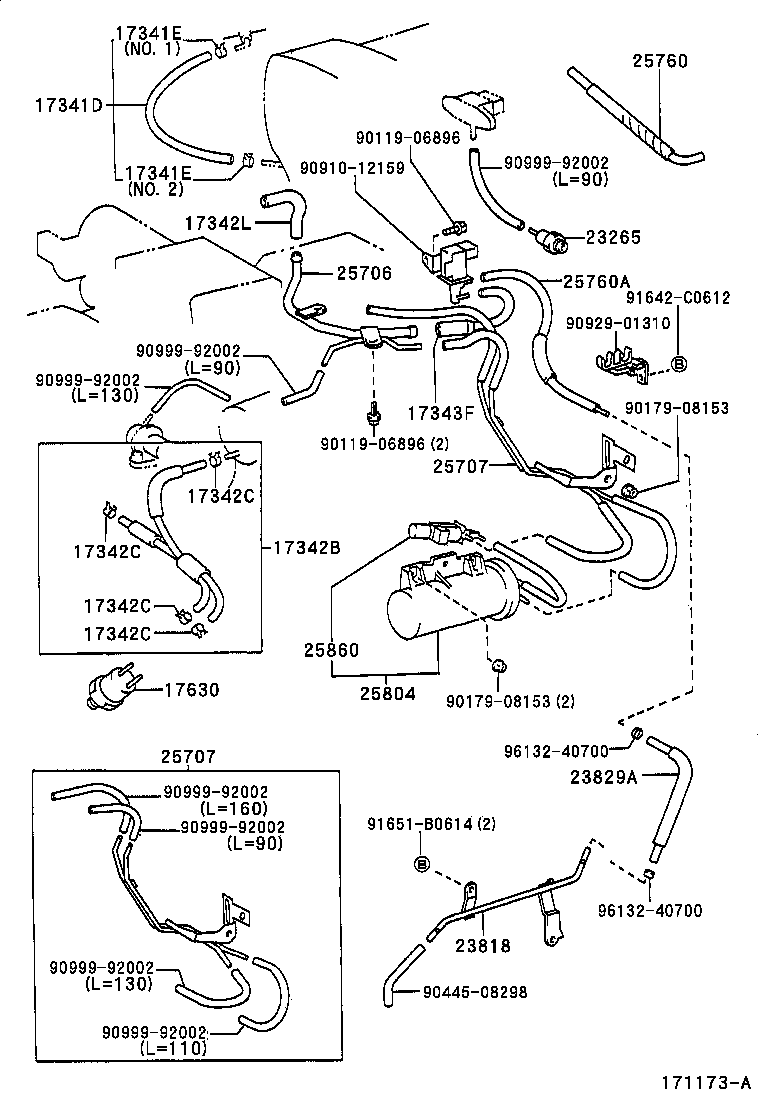

(9707- )2JZGE..JZS155..A,E

Click highlighted areas on diagram

diagram 17341D 17341E 17341E 17342B 17342C 17342C 17342C 17342C 17342L 17343F 17630 23265 23818 23829A 25706 25707 25707 25760 25760A 25804 25860 9011906896 9011906896 9017908153 9017908153 9044508298 9091012159 9092901310 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 91642C0612 91651B0614 9613240700 9613240700
Part # Description Qty Price
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-46160

2JZGE..JZS155..A,E

 1
17341-46170

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-51100

1JZGE,2JZGE..JZS15#

NO.1

 1
96132-51300

1JZGE,2JZGE..JZS15#

NO.2

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-51100

1JZGE,2JZGE..JZS15#

NO.1

 1
96132-51300

1JZGE,2JZGE..JZS15#

NO.2

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-46090

2JZGE..JZS155..A,E

 1
17342-46120

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 1
17342-46150

2JZGE..JZS155..A,E

 1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10106

2JZGE..JZS155..A,E

 4
96132-51000

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 4
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10106

2JZGE..JZS155..A,E

 4
96132-51000

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 4
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10106

2JZGE..JZS155..A,E

 4
96132-51000

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 4
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10106

2JZGE..JZS155..A,E

 4
96132-51000

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 4
17342L - HOSE, AIR, NO.2
17342-46170

2JZGE..JZS155,157

 1
17342-46170

2JZGE..JZS155

 1
17343F - HOSE, AIR, NO.3
17343-46110

2JZGE..JZS155,157

 1
17343-46110

2JZGE..JZS155

 1
17630 - VALVE ASSY, AIR CONTROL
17630-70020

1JZGE,2JZGE..JZS15#

 1
17630-70020

2JZGE..JZS155,157

 1
23265 - FILTER, GAS, NO.1
90917-11031

1JZGE,2JZGE..JZS15#

 1
90917-11031

1JZGE,2JZGE..JZS15#

 1
23818 - PIPE, FUEL VAPOR FEED
23818-46030

2JZGE..JZS155..A,E

 1
23818-46010

2JZGE..JZS155..A,E

 1
23829A - HOSE, FUEL VAPOR FEED
23829-46040

2JZGE..JZS155..A,E

 1
23829-46090

2JZGE..JZS155,157..ROY,ROYG,ROYT

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-46060

2JZGE..JZS155

 1
25706-46090

2JZGE..JZS155,157

 1
25706-46090

2JZGE..JZS155

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-46090

1JZGE,2JZGE..JZS15#

 1
25707-46090

1JZGE,2JZGE..JZS15#

 1
25707-46020

2JZGE..JZS155

 1
25707-46021

1JZGE,2JZGE..JZS15#

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-46090

1JZGE,2JZGE..JZS15#

 1
25707-46090

1JZGE,2JZGE..JZS15#

 1
25707-46020

2JZGE..JZS155

 1
25707-46021

1JZGE,2JZGE..JZS15#

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-46011

2JZGE..JZS155..A,E

 1
25760A - HOSE ASSY, VACUUM TRANSMITTING
25760-46040

2JZGE..JZS155

 1
25760-46040

2JZGE..JZS155,157

 1
25804 - VALVE SET, VACUUM CONTROL
25804-46020

2JZGE..JZS155

 1
25804-46060

2JZGE..JZS155

 1
25804-46060

1JZGE,2JZGE..JZS15#

 1
25804-46060

1JZGE,2JZGE..JZS15#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
90910-12124

2JZGE..JZS155

 1
90910-12124

2JZGE..JZS155

TAIHEIYO

 1
90910-12124

2JZGE..JZS155

TAIHEIYO

 1
90910-12124

1JZGE,2JZGE..JZS15#

TAIHEIYO

 1
25860-46010

1JZGE,2JZGE..JZS15#

AISIN

 1
25860-46010

2JZGE..JZS155

AISIN

 1
90910-12124

1JZGE,2JZGE..JZS15#

TAIHEIYO

 1
25860-46010

1JZGE,2JZGE..JZS15#

AISIN

 1
Common parts
90119-06896
90179-08153
90445-08298
90910-12159
90929-01310
90999-92002
91642-C0612
91651-B0614
96132-40700

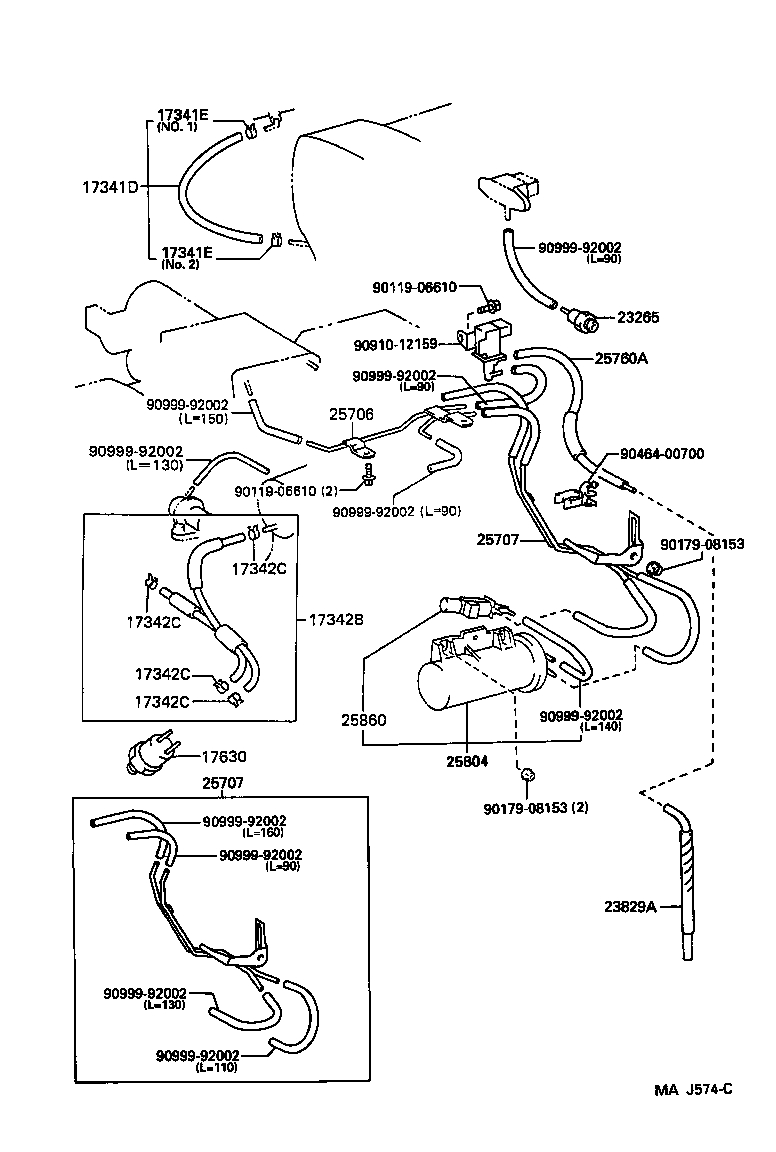

(9508-9707)2JZGE..ROY,ROYG,ROYT

Click highlighted areas on diagram

diagram 17341D 17341E 17341E 17342B 17342C 17342C 17342C 17342C 17630 23265 23829A 25706 25707 25707 25760A 25804 25860 9011906610 9011906610 9017908153 9017908153 9046400700 9091012159 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002
Part # Description Qty Price
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-46160

2JZGE..JZS155..A,E

 1
17341-46170

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-51100

1JZGE,2JZGE..JZS15#

NO.1

 1
96132-51300

1JZGE,2JZGE..JZS15#

NO.2

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-51100

1JZGE,2JZGE..JZS15#

NO.1

 1
96132-51300

1JZGE,2JZGE..JZS15#

NO.2

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-46090

2JZGE..JZS155..A,E

 1
17342-46120

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 1
17342-46150

2JZGE..JZS155..A,E

 1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10106

2JZGE..JZS155..A,E

 4
96132-51000

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 4
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10106

2JZGE..JZS155..A,E

 4
96132-51000

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 4
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10106

2JZGE..JZS155..A,E

 4
96132-51000

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 4
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10106

2JZGE..JZS155..A,E

 4
96132-51000

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 4
17630 - VALVE ASSY, AIR CONTROL
17630-70020

1JZGE,2JZGE..JZS15#

 1
17630-70020

2JZGE..JZS155,157

 1
23265 - FILTER, GAS, NO.1
90917-11031

1JZGE,2JZGE..JZS15#

 1
90917-11031

1JZGE,2JZGE..JZS15#

 1
23829A - HOSE, FUEL VAPOR FEED
23829-46040

2JZGE..JZS155..A,E

 1
23829-46090

2JZGE..JZS155,157..ROY,ROYG,ROYT

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-46060

2JZGE..JZS155

 1
25706-46090

2JZGE..JZS155,157

 1
25706-46090

2JZGE..JZS155

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-46090

1JZGE,2JZGE..JZS15#

 1
25707-46090

1JZGE,2JZGE..JZS15#

 1
25707-46020

2JZGE..JZS155

 1
25707-46021

1JZGE,2JZGE..JZS15#

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-46090

1JZGE,2JZGE..JZS15#

 1
25707-46090

1JZGE,2JZGE..JZS15#

 1
25707-46020

2JZGE..JZS155

 1
25707-46021

1JZGE,2JZGE..JZS15#

 1
25760A - HOSE ASSY, VACUUM TRANSMITTING
25760-46040

2JZGE..JZS155

 1
25760-46040

2JZGE..JZS155,157

 1
25804 - VALVE SET, VACUUM CONTROL
25804-46020

2JZGE..JZS155

 1
25804-46060

2JZGE..JZS155

 1
25804-46060

1JZGE,2JZGE..JZS15#

 1
25804-46060

1JZGE,2JZGE..JZS15#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
90910-12124

2JZGE..JZS155

 1
90910-12124

2JZGE..JZS155

TAIHEIYO

 1
90910-12124

2JZGE..JZS155

TAIHEIYO

 1
90910-12124

1JZGE,2JZGE..JZS15#

TAIHEIYO

 1
25860-46010

1JZGE,2JZGE..JZS15#

AISIN

 1
25860-46010

2JZGE..JZS155

AISIN

 1
90910-12124

1JZGE,2JZGE..JZS15#

TAIHEIYO

 1
25860-46010

1JZGE,2JZGE..JZS15#

AISIN

 1
Common parts
90119-06610
90179-08153
90464-00700
90910-12159
90999-92002

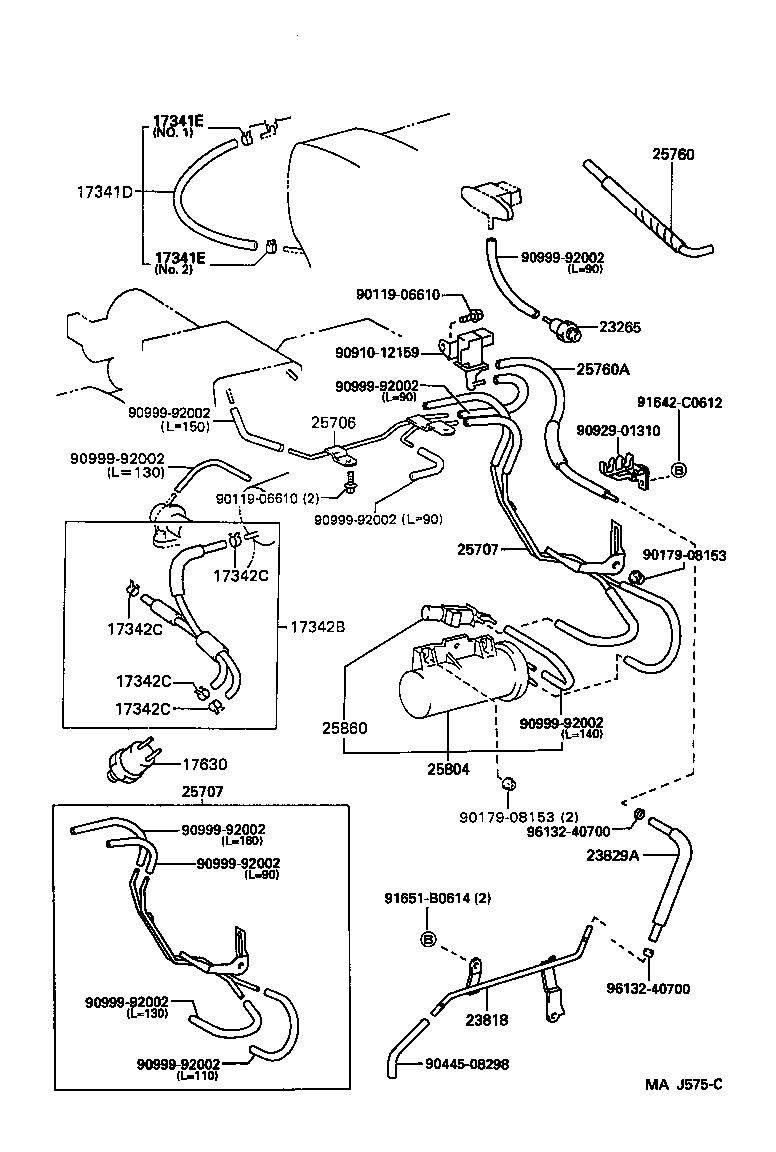

(9508-9707)2JZGE..A,E

Click highlighted areas on diagram

diagram 17341D 17341E 17341E 17342B 17342C 17342C 17342C 17342C 17630 23265 23818 23829A 25706 25707 25707 25760 25760A 25804 25860 9011906610 9011906610 9017908153 9017908153 9044508298 9091012159 9092901310 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 91642C0612 91651B0614 9613240700 9613240700
Part # Description Qty Price
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-46160

2JZGE..JZS155..A,E

 1
17341-46170

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-51100

1JZGE,2JZGE..JZS15#

NO.1

 1
96132-51300

1JZGE,2JZGE..JZS15#

NO.2

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-51100

1JZGE,2JZGE..JZS15#

NO.1

 1
96132-51300

1JZGE,2JZGE..JZS15#

NO.2

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-46090

2JZGE..JZS155..A,E

 1
17342-46120

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 1
17342-46150

2JZGE..JZS155..A,E

 1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10106

2JZGE..JZS155..A,E

 4
96132-51000

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 4
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10106

2JZGE..JZS155..A,E

 4
96132-51000

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 4
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10106

2JZGE..JZS155..A,E

 4
96132-51000

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 4
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10106

2JZGE..JZS155..A,E

 4
96132-51000

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 4
17630 - VALVE ASSY, AIR CONTROL
17630-70020

1JZGE,2JZGE..JZS15#

 1
17630-70020

2JZGE..JZS155,157

 1
23265 - FILTER, GAS, NO.1
90917-11031

1JZGE,2JZGE..JZS15#

 1
90917-11031

1JZGE,2JZGE..JZS15#

 1
23818 - PIPE, FUEL VAPOR FEED
23818-46030

2JZGE..JZS155..A,E

 1
23818-46010

2JZGE..JZS155..A,E

 1
23829A - HOSE, FUEL VAPOR FEED
23829-46040

2JZGE..JZS155..A,E

 1
23829-46090

2JZGE..JZS155,157..ROY,ROYG,ROYT

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-46060

2JZGE..JZS155

 1
25706-46090

2JZGE..JZS155,157

 1
25706-46090

2JZGE..JZS155

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-46090

1JZGE,2JZGE..JZS15#

 1
25707-46090

1JZGE,2JZGE..JZS15#

 1
25707-46020

2JZGE..JZS155

 1
25707-46021

1JZGE,2JZGE..JZS15#

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-46090

1JZGE,2JZGE..JZS15#

 1
25707-46090

1JZGE,2JZGE..JZS15#

 1
25707-46020

2JZGE..JZS155

 1
25707-46021

1JZGE,2JZGE..JZS15#

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-46011

2JZGE..JZS155..A,E

 1
25760A - HOSE ASSY, VACUUM TRANSMITTING
25760-46040

2JZGE..JZS155

 1
25760-46040

2JZGE..JZS155,157

 1
25804 - VALVE SET, VACUUM CONTROL
25804-46020

2JZGE..JZS155

 1
25804-46060

2JZGE..JZS155

 1
25804-46060

1JZGE,2JZGE..JZS15#

 1
25804-46060

1JZGE,2JZGE..JZS15#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
90910-12124

2JZGE..JZS155

 1
90910-12124

2JZGE..JZS155

TAIHEIYO

 1
90910-12124

2JZGE..JZS155

TAIHEIYO

 1
90910-12124

1JZGE,2JZGE..JZS15#

TAIHEIYO

 1
25860-46010

1JZGE,2JZGE..JZS15#

AISIN

 1
25860-46010

2JZGE..JZS155

AISIN

 1
90910-12124

1JZGE,2JZGE..JZS15#

TAIHEIYO

 1
25860-46010

1JZGE,2JZGE..JZS15#

AISIN

 1
Common parts
90119-06610
90179-08153
90445-08298
90910-12159
90929-01310
90999-92002
91642-C0612
91651-B0614
96132-40700
