JZS153-ATPSF (1995)

Toyota Crown/Crown Majesta

Production Dec 1995 - Sep 1999
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512- )JZS153,157

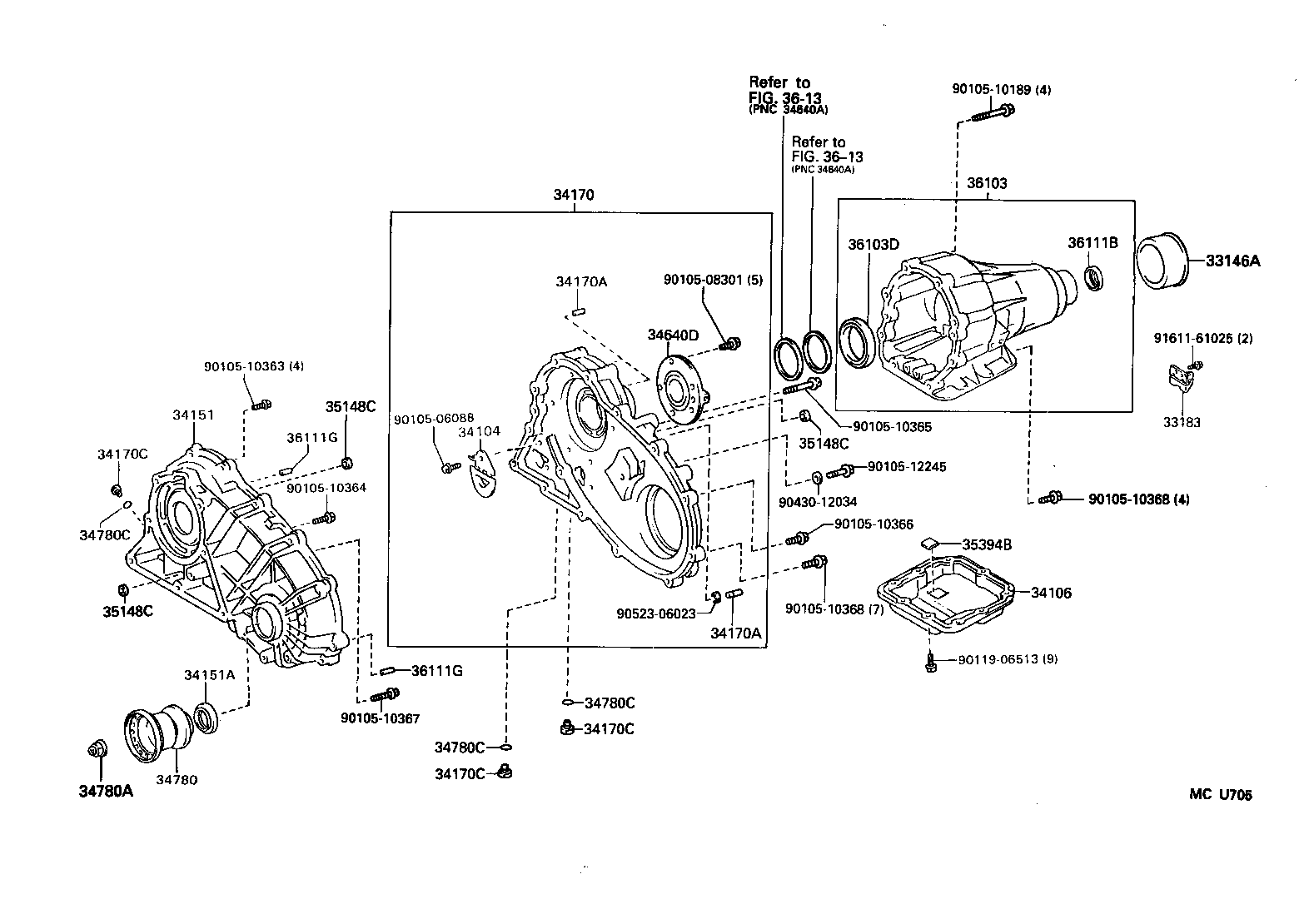

Click highlighted areas on diagram

diagram 33146A 33183 34104 34106 34151 34151A 34170 34170A 34170A 34170C 34170C 34170C 34640D 34780 34780A 34780C 34780C 34780C 35148C 35148C 35148C 35394B 36103 36103D 36111B 36111G 36111G 3613 3613 9010506088 9010508301 9010510189 9010510363 9010510364 9010510365 9010510366 9010510367 9010510368 9010510368 9010512245 9011906513 9043012034 9052306023 9161161025
Part # Description Qty Price
33146A - DEFLECTOR, TRANSFER EXTENSION HOUSING DUST
33146-30010

JZS153,157

 1
33183 - DAMPER, TRANSFER DYNAMIC
33183-22010

JZS153,157

 1
34780 - YOKE ASSY, FLANGE
34780-30040

JZS153,157

 1
34780A - NUT (FOR FLANGE YOKE)
90179-22018

JZS153,157

 1
36103 - CASE SUB-ASSY, TRANSFER
36101-22010

JZS153,157

 1
36101-30010

JZS153

 1
36103D - BEARING (FOR TRANSFER CASE)
90363-60007

JZS153,157

 1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-40001

JZS153,157

 1
Common parts
90105-06088
90105-08301
90105-10189
90105-10363
90105-10364
90105-10365
90105-10366
90105-10367
90105-10368
90105-12245
90119-06513
90430-12034
90523-06023
91611-61025
Linked diagrams
3613
