JZS153-AEPQF (1997)

Toyota Crown/Crown Majesta

Production Jul 1997 - Aug 2001
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

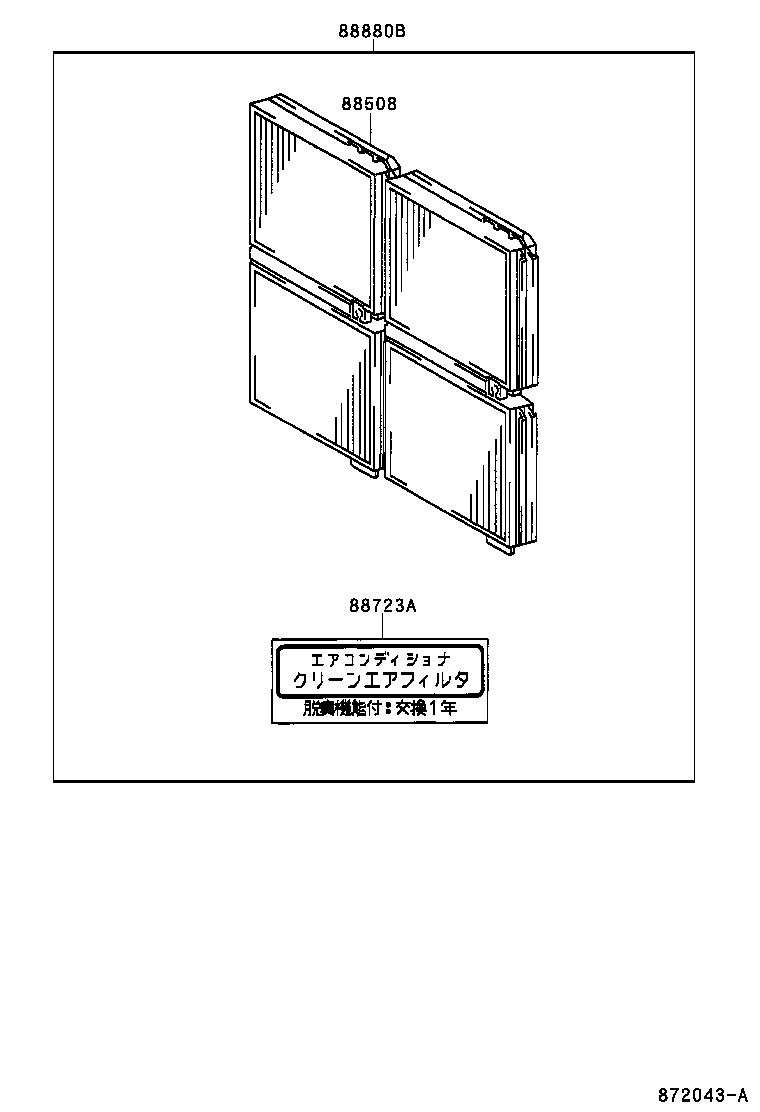

ILLUST NO. 3 OF 3(9707- )

Click highlighted areas on diagram

diagram 88508 88723A 88880B
Part # Description Qty Price
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-30020

GS151,JZS15#,LS151,UZS15#

ｱﾘ(ｸﾘ-ﾝｴｱﾌｲﾙﾀ)

 2
88723A - LABEL, COOLER SERVICE CAUTION
88723-30070

GS151,JZS15#,LS151,UZS15#

 1
88880B - FILTER ASSY, CLEAN AIR
88880-30020

GS151,JZS15#,LS151,UZS15#

 1
