JZS153-AEPQF (1997)

Toyota Crown/Crown Majesta

Production Jul 1997 - Aug 2001
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

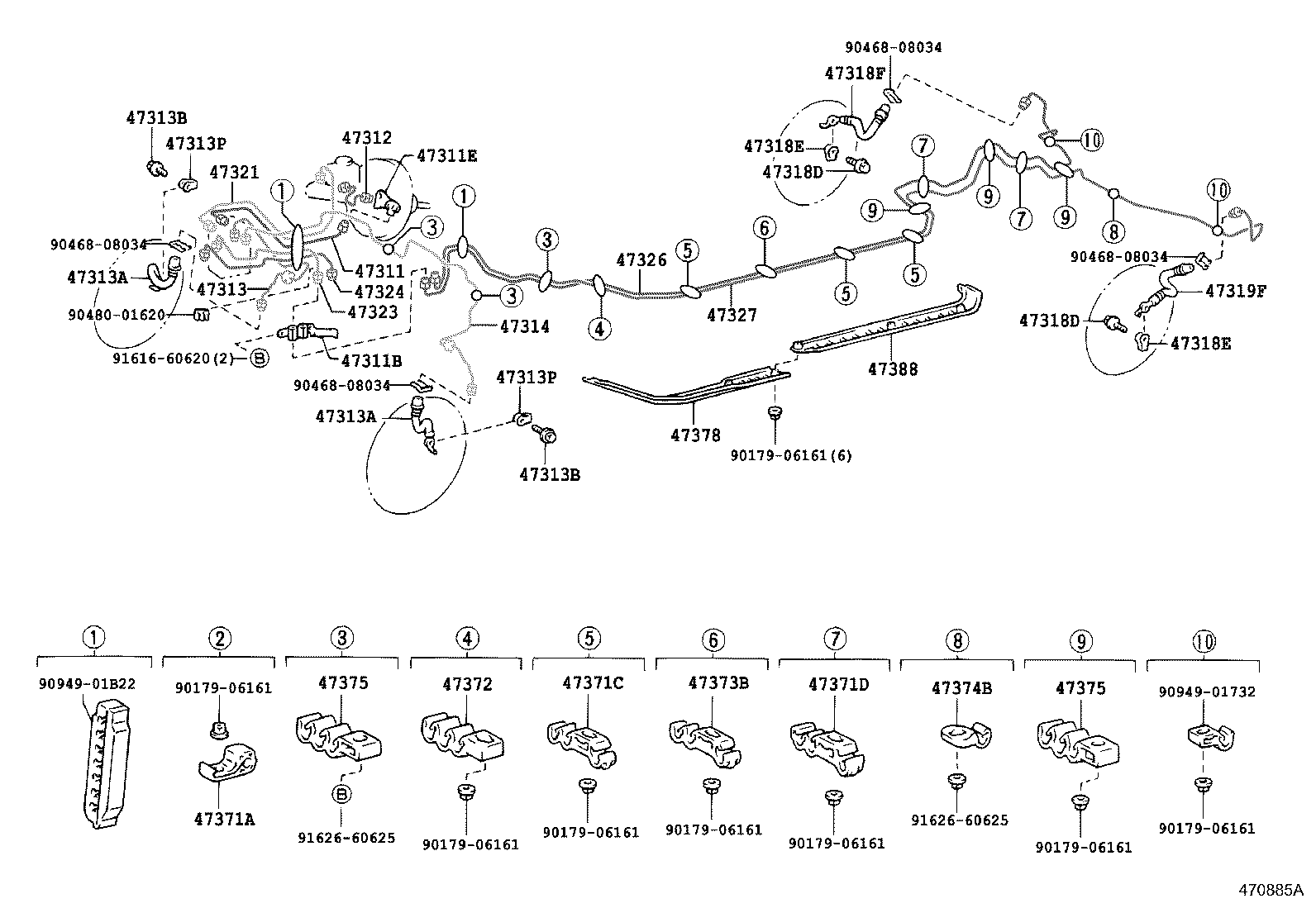

ILLUST NO. 1 OF 2(9707-9909)A,E

Click highlighted areas on diagram

diagram 47311 47311B 47311E 47312 47313 47313A 47313A 47313B 47313B 47313P 47313P 47314 47318D 47318D 47318E 47318E 47318F 47319F 47321 47323 47324 47326 47327 47371A 47371C 47371D 47372 47373B 47374B 47375 47375 47378 47388 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9046808034 9046808034 9046808034 9046808034 9048001620 9094901732 9094901B22 9161660620 9162660625 9162660625
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-30590

GS151,JZS151,153,157

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10213

GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10042

GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 2
90401-10058

GS151,JZS15#,LS151,UZS15#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10042

GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 2
90401-10058

GS151,JZS15#,LS151,UZS15#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-30380

GS151,JZS151,153,157

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10015

GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 2
90401-10058

GS151,JZS15#,LS151,UZS15#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10015

GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 2
90401-10058

GS151,JZS15#,LS151,UZS15#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-30010

GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-30010

GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 4
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02840

GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02840

GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-30310

GS151,JZS151,153,157

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-30200

GS151,JZS151,153,157

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-30050

GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 1
47327-30050

GS151,JZS151,153,157

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-30420

GS151,JZS151,153,157

 2
47373B - CLAMP, BRAKE TUBE, NO.3
47371-22420

GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-22530

GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 2
Common parts
90179-06161
90468-08034
90480-01620
90949-01732
90949-01B22
91616-60620
91626-60625

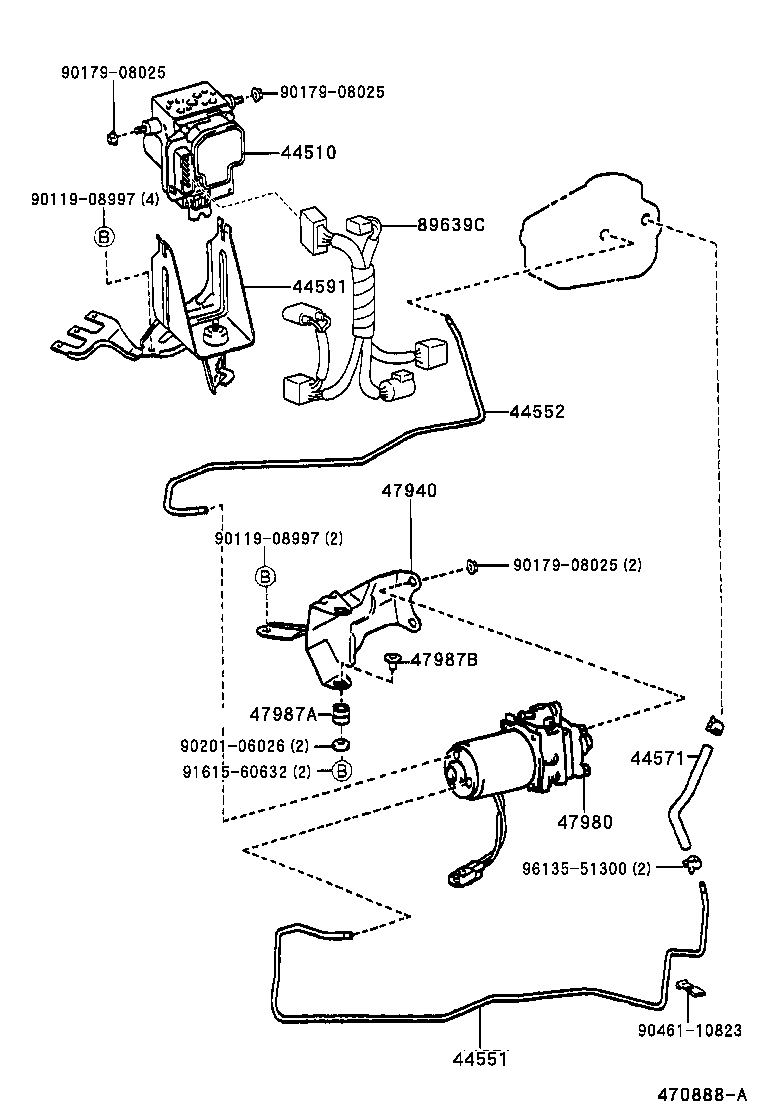

ILLUST NO. 2 OF 2(9707-9909)A,E

Click highlighted areas on diagram

diagram 44510 44551 44552 44571 44591 47940 47980 47987A 47987B 89639C 9011908997 9011908997 9017908025 9017908025 9017908025 9020106026 9046110823 9161560632 9613551300
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-30020

GS151,JZS151,153,157

 1
Common parts
90119-08997
90179-08025
90201-06026
90461-10823
91615-60632
96135-51300
