JZS151-ATPXF (1995)
Toyota Crown/Crown Majesta

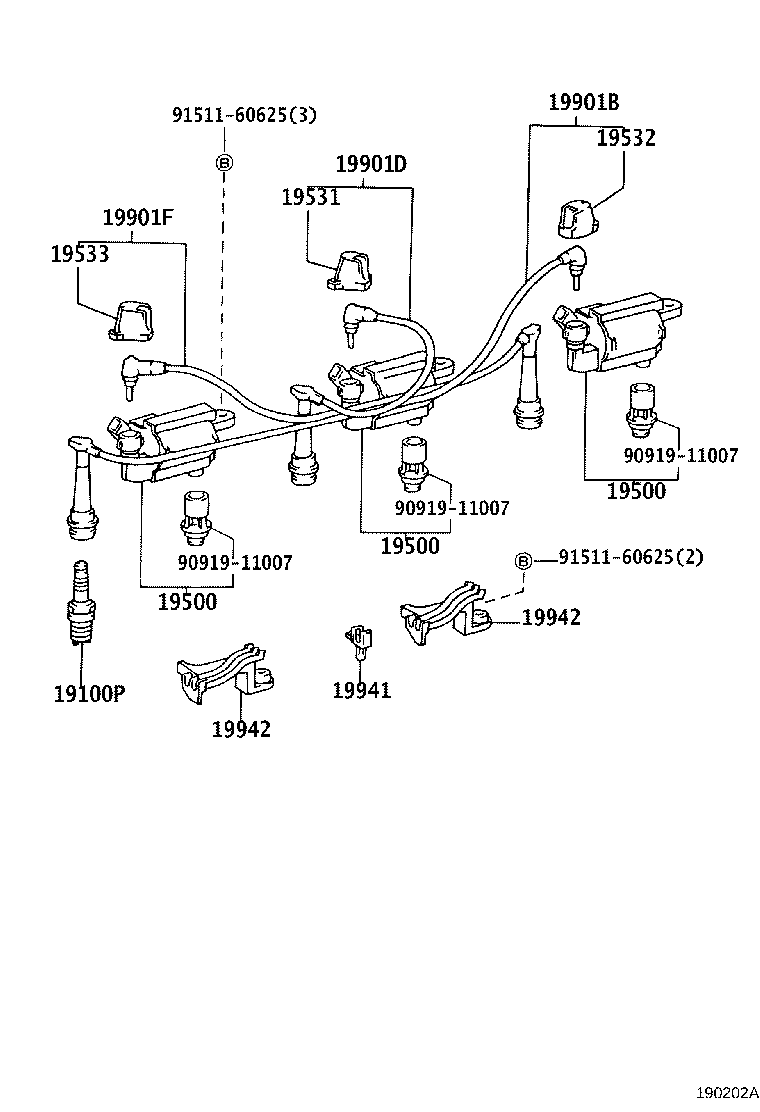

(9508- )2JZGE ; (9609- )1JZGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01196 |
1JZGE,2JZGE..JZS15# PK16TR11 |
6 | ||
| 90919-01168 |
1JZGE..JZS151,153 PK16R11 |
6 | ||
| 90919-01197 |
1JZGE,2JZGE..JZS15# BKR5EKPB11 |
6 | ||
| 90919-01169 |
1JZGE..JZS151,153 BKR5EP−11 |
6 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02197 |
1JZGE..JZS151,153 |
1 | ||
| 90919-02216 |
1JZGE,2JZGE..JZS15# |
3 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02197 |
1JZGE..JZS151,153 |
1 | ||
| 90919-02216 |
1JZGE,2JZGE..JZS15# |
3 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02197 |
1JZGE..JZS151,153 |
1 | ||
| 90919-02216 |
1JZGE,2JZGE..JZS15# |
3 | ||
| 19531 - HOLDER, RESISTIVE CORD, NO.1 | ||||
| 19539-50010 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 19532 - HOLDER, RESISTIVE CODE, NO.2 | ||||
| 19532-46010 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 19533 - HOLDER, RESISTIVE CORD, NO.3 | ||||
| 19539-70010 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 19539-16010 |
1JZGE..JZS151,153 |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-15325 |
1JZGE..JZS151,153 |
1 | ||
| 90919-15456 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-15327 |
1JZGE..JZS151,153 |
1 | ||
| 90919-15317 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 19901F - CORD, SPARK PLUG RESISTIVE, NO.5 | ||||
| 90919-12946 |
1JZGE..JZS151,153 |
1 | ||
| 90919-15457 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 19941 - CLAMP, RESISTIVE CORD, NO.1 | ||||
| 90929-01277 |
1JZGE..JZS151,153 |
1 | ||
| 90929-01361 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 19942 - CLAMP, RESISTIVE CORD, NO.2 | ||||
| 90929-01278 |
1JZGE..JZS151,153 |
2 | ||
| 90929-01360 |
1JZGE,2JZGE..JZS15# |
2 | ||
| 19942 - CLAMP, RESISTIVE CORD, NO.2 | ||||
| 90929-01278 |
1JZGE..JZS151,153 |
2 | ||
| 90929-01360 |
1JZGE,2JZGE..JZS15# |
2 | ||
| Common parts | ||||
| 90919-11007 | ||||
| 91511-60625 | ||||

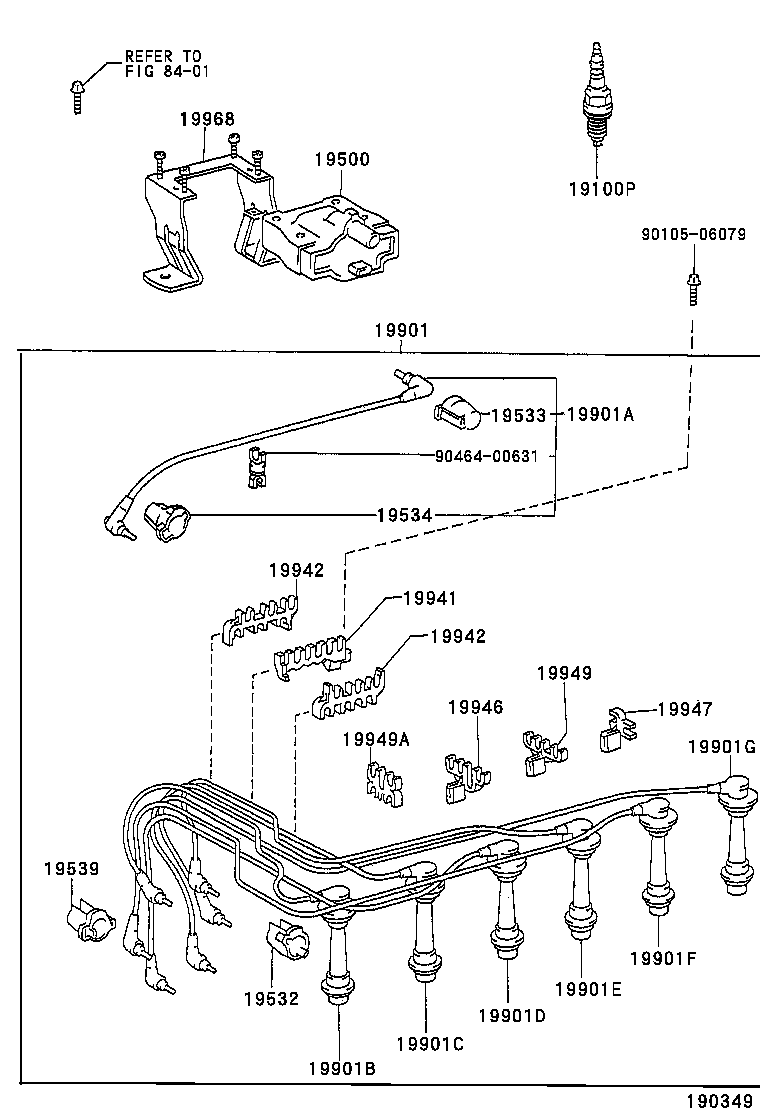

(9508-9609)1JZGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01196 |
1JZGE,2JZGE..JZS15# PK16TR11 |
6 | ||
| 90919-01168 |
1JZGE..JZS151,153 PK16R11 |
6 | ||
| 90919-01197 |
1JZGE,2JZGE..JZS15# BKR5EKPB11 |
6 | ||
| 90919-01169 |
1JZGE..JZS151,153 BKR5EP−11 |
6 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02197 |
1JZGE..JZS151,153 |
1 | ||
| 90919-02216 |
1JZGE,2JZGE..JZS15# |
3 | ||
| 19532 - HOLDER, RESISTIVE CODE, NO.2 | ||||
| 19532-46010 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 19533 - HOLDER, RESISTIVE CORD, NO.3 | ||||
| 19539-70010 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 19539-16010 |
1JZGE..JZS151,153 |
1 | ||
| 19534 - HOLDER, RESISTIVE CORD, NO.4 | ||||
| 19539-62020 |
1JZGE..JZS151,153 |
1 | ||
| 19539 - HOLDER, RESISTIVE CODE, NO.4 | ||||
| 19539-46010 |
1JZGE..JZS151,153 CORD NO.5 |
1 | ||
| 19539-50010 |
1JZGE..JZS151,153 CORD NO.3 |
1 | ||
| 19539-11010 |
1JZGE..JZS151,153 CORD NO.1 |
1 | ||
| 19539-62010 |
1JZGE..JZS151,153 CORD NO.2,4 |
2 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-21593 |
1JZGE..JZS151,153 |
1 | ||
| 19901A - CORD, COIL RESISTIVE | ||||
| 90919-13467 |
1JZGE..JZS151,153 |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-15325 |
1JZGE..JZS151,153 |
1 | ||
| 90919-15456 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-15326 |
1JZGE..JZS151,153 |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-15327 |
1JZGE..JZS151,153 |
1 | ||
| 90919-15317 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-15328 |
1JZGE..JZS151,153 |
1 | ||
| 19901F - CORD, SPARK PLUG RESISTIVE, NO.5 | ||||
| 90919-12946 |
1JZGE..JZS151,153 |
1 | ||
| 90919-15457 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 19901G - CORD, SPARK PLUG RESISTIVE, NO.6 | ||||
| 90919-15329 |
1JZGE..JZS151,153 |
1 | ||
| 19941 - CLAMP, RESISTIVE CORD, NO.1 | ||||
| 90929-01277 |
1JZGE..JZS151,153 |
1 | ||
| 90929-01361 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 19942 - CLAMP, RESISTIVE CORD, NO.2 | ||||
| 90929-01278 |
1JZGE..JZS151,153 |
2 | ||
| 90929-01360 |
1JZGE,2JZGE..JZS15# |
2 | ||
| 19942 - CLAMP, RESISTIVE CORD, NO.2 | ||||
| 90929-01278 |
1JZGE..JZS151,153 |
2 | ||
| 90929-01360 |
1JZGE,2JZGE..JZS15# |
2 | ||
| 19946 - CLAMP, RESISTIVE CORD, NO.3 | ||||
| 90929-01279 |
1JZGE..JZS151,153 |
1 | ||
| 19947 - CLAMP, RESISTIVE CORD, NO.4 | ||||
| 90929-01280 |
1JZGE..JZS151,153 |
1 | ||
| 19949 - CLAMP, RESISTIVE CORD, NO.5 | ||||
| 90929-01285 |
1JZGE..JZS151,153 |
1 | ||
| 19949A - CLAMP, CORD, NO.6 | ||||
| 19949-50010 |
1JZGE..JZS151,153 |
1 | ||
| 19968 - BRACKET, IGNITION COIL | ||||
| 19968-46020 |
1JZGE..JZS151,153 |
1 | ||
| Common parts | ||||
| 90105-06079 | ||||
| 90464-00631 | ||||
| Linked diagrams | ||||
| 8401 | ||||
