JZS151-ATPSF (1995)
Toyota Crown/Crown Majesta

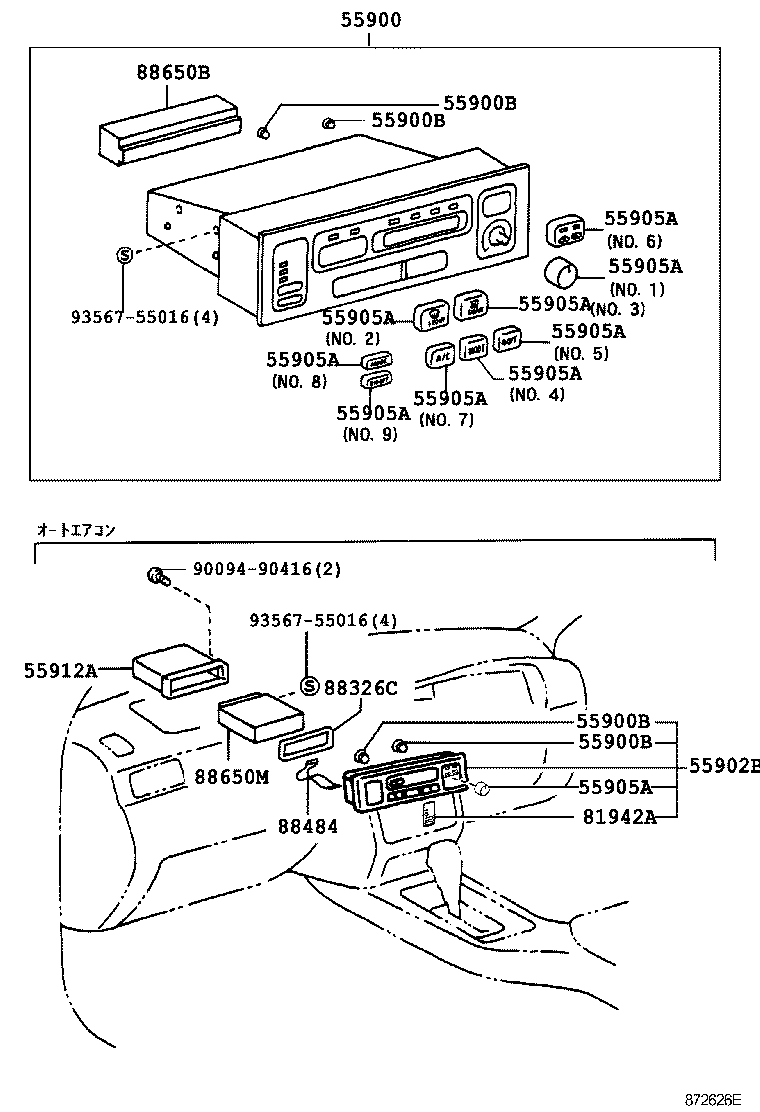

ILLUST NO. 1 OF 4(9508- )
ｴｱｺﾝﾃﾞｲｼﾖﾅ ｺﾝﾄﾛ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 84999-60690 |
GS151,JZS15#,LS151,UZS15#..C,E,F,ROY,ROYEX,ROYT 14V 1.4W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),ﾉﾌﾞ |
4 | ||
| 84999-60680 |
JZS155..SED..ROY;GS151,JZS151,153,LS151,UZS15# 7.5V 0.38W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),液晶 |
2 | ||
| 84999-60680 |
GS151,JZS15#,LS151,UZS15#..C,E,F,ROY,ROYEX,ROYT 7.5V 0.38W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),液晶 |
2 | ||
| 84999-60690 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT 14V 1.4W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),ﾉﾌﾞ |
4 | ||
| 84999-60690 |
JZS155..SED..ROY;GS151,JZS151,153,LS151,UZS15# 14V 1.4W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),ﾉﾌﾞ |
4 | ||
| 84999-60680 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT 7.5V 0.38W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),液晶 |
2 | ||
| 84999-60680 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 7.5V 0.38W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),液晶 |
2 | ||
| 84999-60690 |
GS151,JZS15#,LS151,UZS15# 14V 1.4W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),ﾉﾌﾞ |
4 | ||
| 84999-60680 |
GS151,JZS15#,LS151,UZS15# 7.5V 0.38W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),液晶 |
2 | ||
| 84999-60690 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 14V 1.4W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),ﾉﾌﾞ |
4 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 84999-60690 |
GS151,JZS15#,LS151,UZS15#..C,E,F,ROY,ROYEX,ROYT 14V 1.4W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),ﾉﾌﾞ |
4 | ||
| 84999-60680 |
JZS155..SED..ROY;GS151,JZS151,153,LS151,UZS15# 7.5V 0.38W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),液晶 |
2 | ||
| 84999-60680 |
GS151,JZS15#,LS151,UZS15#..C,E,F,ROY,ROYEX,ROYT 7.5V 0.38W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),液晶 |
2 | ||
| 84999-60690 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT 14V 1.4W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),ﾉﾌﾞ |
4 | ||
| 84999-60690 |
JZS155..SED..ROY;GS151,JZS151,153,LS151,UZS15# 14V 1.4W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),ﾉﾌﾞ |
4 | ||
| 84999-60680 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT 7.5V 0.38W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),液晶 |
2 | ||
| 84999-60680 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 7.5V 0.38W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),液晶 |
2 | ||
| 84999-60690 |
GS151,JZS15#,LS151,UZS15# 14V 1.4W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),ﾉﾌﾞ |
4 | ||
| 84999-60680 |
GS151,JZS15#,LS151,UZS15# 7.5V 0.38W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),液晶 |
2 | ||
| 84999-60690 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 14V 1.4W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),ﾉﾌﾞ |
4 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 84999-60690 |
GS151,JZS15#,LS151,UZS15#..C,E,F,ROY,ROYEX,ROYT 14V 1.4W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),ﾉﾌﾞ |
4 | ||
| 84999-60680 |
JZS155..SED..ROY;GS151,JZS151,153,LS151,UZS15# 7.5V 0.38W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),液晶 |
2 | ||
| 84999-60680 |
GS151,JZS15#,LS151,UZS15#..C,E,F,ROY,ROYEX,ROYT 7.5V 0.38W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),液晶 |
2 | ||
| 84999-60690 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT 14V 1.4W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),ﾉﾌﾞ |
4 | ||
| 84999-60690 |
JZS155..SED..ROY;GS151,JZS151,153,LS151,UZS15# 14V 1.4W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),ﾉﾌﾞ |
4 | ||
| 84999-60680 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT 7.5V 0.38W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),液晶 |
2 | ||
| 84999-60680 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 7.5V 0.38W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),液晶 |
2 | ||
| 84999-60690 |
GS151,JZS15#,LS151,UZS15# 14V 1.4W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),ﾉﾌﾞ |
4 | ||
| 84999-60680 |
GS151,JZS15#,LS151,UZS15# 7.5V 0.38W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),液晶 |
2 | ||
| 84999-60690 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 14V 1.4W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),ﾉﾌﾞ |
4 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 84999-60690 |
GS151,JZS15#,LS151,UZS15#..C,E,F,ROY,ROYEX,ROYT 14V 1.4W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),ﾉﾌﾞ |
4 | ||
| 84999-60680 |
JZS155..SED..ROY;GS151,JZS151,153,LS151,UZS15# 7.5V 0.38W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),液晶 |
2 | ||
| 84999-60680 |
GS151,JZS15#,LS151,UZS15#..C,E,F,ROY,ROYEX,ROYT 7.5V 0.38W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),液晶 |
2 | ||
| 84999-60690 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT 14V 1.4W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),ﾉﾌﾞ |
4 | ||
| 84999-60690 |
JZS155..SED..ROY;GS151,JZS151,153,LS151,UZS15# 14V 1.4W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),ﾉﾌﾞ |
4 | ||
| 84999-60680 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT 7.5V 0.38W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),液晶 |
2 | ||
| 84999-60680 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 7.5V 0.38W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),液晶 |
2 | ||
| 84999-60690 |
GS151,JZS15#,LS151,UZS15# 14V 1.4W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),ﾉﾌﾞ |
4 | ||
| 84999-60680 |
GS151,JZS15#,LS151,UZS15# 7.5V 0.38W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),液晶 |
2 | ||
| 84999-60690 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 14V 1.4W,ｷｬｯﾌﾟ付き,ｱﾘ(ｵｰﾄｴｱｺﾝ),ﾉﾌﾞ |
4 | ||
| 55902B - CONTROL SUB-ASSY, HEATER | ||||
| 55902-30160 |
JZS151,LS151..SALEX,SPDLX;GS151,JZS153,UZS157..HTWC,TWC;JZS151,155,LS151..HT..(E,ROY,ROYEX,ROYT) |
1 | ||
| 55902-30320 |
JZS151..HT..ROY;GS151,JZS155..HT..(ROY,ROYEX) ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ);ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 55902-30150 |
JZS151,LS151..HT;GS151,JZS153,UZS157;JZS151,LS151..SALEX,SPDLX ｱﾘ(ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ ﾘﾔｴｱｺﾝ) OR ﾅｼ(ﾘﾔｴｱｺﾝ) |
1 | ||
| 55902-30140 |
GS151,JZS151,155,LS151..(ROY,ROYEX,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) ｱﾘ(ﾘﾔﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-30270 |
JZS153..HT;GS151,JZS151,155,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55905-30270 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55905-30370 |
GS151,JZS153..ROYEX;JZS151,155,157..HT..(ROY,ROYEX) ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 55905-30270 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-30270 |
JZS153..HT;GS151,JZS151,155,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55905-30270 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55905-30370 |
GS151,JZS153..ROYEX;JZS151,155,157..HT..(ROY,ROYEX) ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 55905-30270 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-30270 |
JZS153..HT;GS151,JZS151,155,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55905-30270 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55905-30370 |
GS151,JZS153..ROYEX;JZS151,155,157..HT..(ROY,ROYEX) ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 55905-30270 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-30270 |
JZS153..HT;GS151,JZS151,155,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55905-30270 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55905-30370 |
GS151,JZS153..ROYEX;JZS151,155,157..HT..(ROY,ROYEX) ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 55905-30270 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-30270 |
JZS153..HT;GS151,JZS151,155,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55905-30270 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55905-30370 |
GS151,JZS153..ROYEX;JZS151,155,157..HT..(ROY,ROYEX) ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 55905-30270 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-30270 |
JZS153..HT;GS151,JZS151,155,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55905-30270 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55905-30370 |
GS151,JZS153..ROYEX;JZS151,155,157..HT..(ROY,ROYEX) ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 55905-30270 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-30270 |
JZS153..HT;GS151,JZS151,155,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55905-30270 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55905-30370 |
GS151,JZS153..ROYEX;JZS151,155,157..HT..(ROY,ROYEX) ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 55905-30270 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-30270 |
JZS153..HT;GS151,JZS151,155,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55905-30270 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55905-30370 |
GS151,JZS153..ROYEX;JZS151,155,157..HT..(ROY,ROYEX) ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 55905-30270 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-30270 |
JZS153..HT;GS151,JZS151,155,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55905-30270 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55905-30370 |
GS151,JZS153..ROYEX;JZS151,155,157..HT..(ROY,ROYEX) ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 55905-30270 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-30270 |
JZS153..HT;GS151,JZS151,155,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55905-30270 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55905-30370 |
GS151,JZS153..ROYEX;JZS151,155,157..HT..(ROY,ROYEX) ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 55905-30270 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55912A - HOUSING, HEATER CONTROL | ||||
| 55912-30040 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-30150 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ｱﾘ(ﾘﾔﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88326C - PLATE, COVER | ||||
| 88326-26010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 88484 - WIRE, COOLER, NO.1 | ||||
| 88484-26010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 88650M - COMPUTER ASSY, AIR CONDITIONER | ||||
| 88650-3A040 |
JZS153..HT;JZS155..SED..ROY;GS151,JZS151,LS151..ROY,ROYEX,ROYT,SALEX |
1 | ||
| 88650-3A210 |
JZS151,LS151..SALEX,SPDLX;GS151,JZS153,UZS157..HTWC,TWC;JZS151,155,LS151..HT..(E,ROY,ROYEX,ROYT) ｱﾘ(ﾌﾛﾝﾄ ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 88650-3A170 |
JZS151..HT;JZS151..SALEX ﾅｼ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ) & ｱﾘ(ﾘﾔﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88650-3A180 |
JZS153;JZS151..HT;JZS151..SALEX |
1 | ||
| 88650-3A200 |
GS151,JZS151,155,LS151,UZS15#..HTWC,TDE,TWC ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ) |
1 | ||
| Common parts | ||||
| 90094-90416 | ||||
| 93567-55016 | ||||

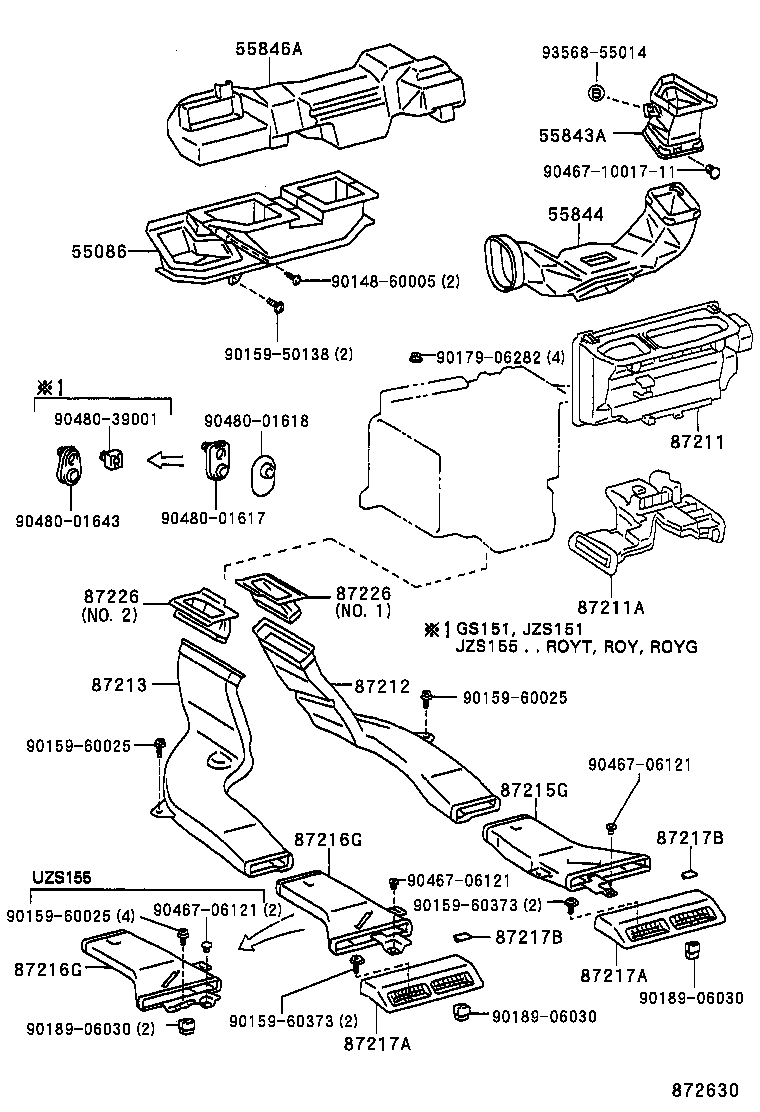

ILLUST NO. 2 OF 4(9508- )
ﾌﾛﾝﾄ ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3 | ||||
| 55086-30110 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-30190 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-30160 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 55844-30160 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 55846A - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-30150 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87201-30540 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87201-30610 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-30380 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-30300 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 87215G - GUIDE, AIR DUCT, REAR RH | ||||
| 87215-22041 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 87216G - GUIDE, AIR DUCT, REAR LH | ||||
| 87216-22051 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 87216G - GUIDE, AIR DUCT, REAR LH | ||||
| 87216-22051 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 87217A - DUCT, AIR, REAR NO.6 | ||||
| 87218-30240B0 |
JZS15#,LS151,UZS157..E,F,ROY,ROYG,ROYT BLUE GRAY,TRIM1# |
2 | ||
| 87218-30240E0 |
JZS15#,LS151,UZS157..E,F,ROY,ROYG,ROYT QUARTZ,TRIM4# |
2 | ||
| 87217A - DUCT, AIR, REAR NO.6 | ||||
| 87218-30240B0 |
JZS15#,LS151,UZS157..E,F,ROY,ROYG,ROYT BLUE GRAY,TRIM1# |
2 | ||
| 87218-30240E0 |
JZS15#,LS151,UZS157..E,F,ROY,ROYG,ROYT QUARTZ,TRIM4# |
2 | ||
| 87226 - ADAPTER, AIR DUCT | ||||
| 87226-30080 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX NO.2 |
1 | ||
| 87226-30070 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX NO.1 |
1 | ||
| 87226 - ADAPTER, AIR DUCT | ||||
| 87226-30080 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX NO.2 |
1 | ||
| 87226-30070 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX NO.1 |
1 | ||
| Common parts | ||||
| 90148-60005 | ||||
| 90159-50138 | ||||
| 90159-60025 | ||||
| 90159-60373 | ||||
| 90179-06282 | ||||
| 90189-06030 | ||||
| 90467-06121 | ||||
| 90467-1001711 | ||||
| 90480-01617 | ||||
| 90480-01618 | ||||
| 90480-01643 | ||||
| 90480-39001 | ||||
| 93568-55014 | ||||

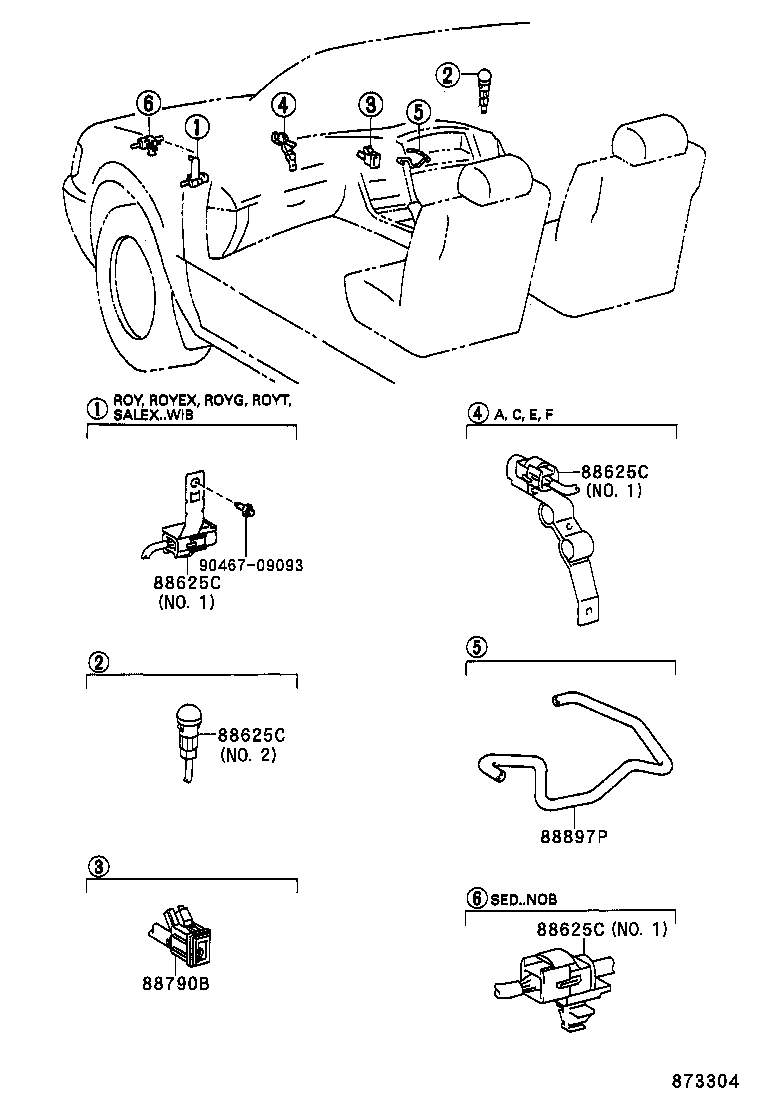

ILLUST NO. 3 OF 4(9508- )
ｻ-ﾐｽﾀ(ｾﾝｻ) & SW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88625-3A070 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..WIB NO.1 |
1 | ||
| 88625-3A100 |
GS151,JZS15#,LS151,UZS15# NO.2 |
1 | ||
| 88625-3A130 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..WIB NO.1 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-3A070 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..WIB NO.1 |
1 | ||
| 88625-3A100 |
GS151,JZS15#,LS151,UZS15# NO.2 |
1 | ||
| 88625-3A130 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..WIB NO.1 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-3A070 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..WIB NO.1 |
1 | ||
| 88625-3A100 |
GS151,JZS15#,LS151,UZS15# NO.2 |
1 | ||
| 88625-3A130 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..WIB NO.1 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-3A070 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..WIB NO.1 |
1 | ||
| 88625-3A100 |
GS151,JZS15#,LS151,UZS15# NO.2 |
1 | ||
| 88625-3A130 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..WIB NO.1 |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-22100 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 88897P - ASPIRATOR | ||||
| 88899-30810 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| Common parts | ||||
| 90467-09093 | ||||
ILLUST NO. 4 OF 4(9508- )
ﾘﾔ & ﾙ-ﾌｻｲﾄﾞ ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62973 - DUCT, ROOF SIDE AIR, NO.2 RH | ||||
| 62973-30050 |
GS151,JZS151,155,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 62974 - DUCT, ROOF SIDE AIR, NO.2 LH | ||||
| 62974-30050 |
GS151,JZS151,155,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 62975 - ADAPTER, REAR COOLER AIR DUCT, RH | ||||
| 62975-30050 |
GS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 62976A - ADAPTER, REAR COOLER AIR DUCT, LH | ||||
| 62976-30020 |
GS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 62985 - REGISTER, ROOF SIDE AIR OUTLET | ||||
| 62985-30060B2 |
GS151,JZS151,155,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX LT.BLUISH GRAY,TRIM1# |
2 | ||
| 62985-30060E0 |
GS151,JZS151,155,LS151,UZS15# QUARTZ,TRIM4# |
2 | ||
| 62985 - REGISTER, ROOF SIDE AIR OUTLET | ||||
| 62985-30060B2 |
GS151,JZS151,155,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX LT.BLUISH GRAY,TRIM1# |
2 | ||
| 62985-30060E0 |
GS151,JZS151,155,LS151,UZS15# QUARTZ,TRIM4# |
2 | ||
| 62997A - COVER, QUARTER VENT HOLE | ||||
| 62997-30030 |
GS151,JZS151,155,LS151,UZS15# |
2 | ||
| 62997A - COVER, QUARTER VENT HOLE | ||||
| 62997-30030 |
GS151,JZS151,155,LS151,UZS15# |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
