Toyota Crown/crown majesta JZS151 FRONT TURN SIGNAL LAMP

JZS151-ATPSF (1995)

Toyota Crown/Crown Majesta

Production Aug 1995 - Sep 1999

Engine 1JZGE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

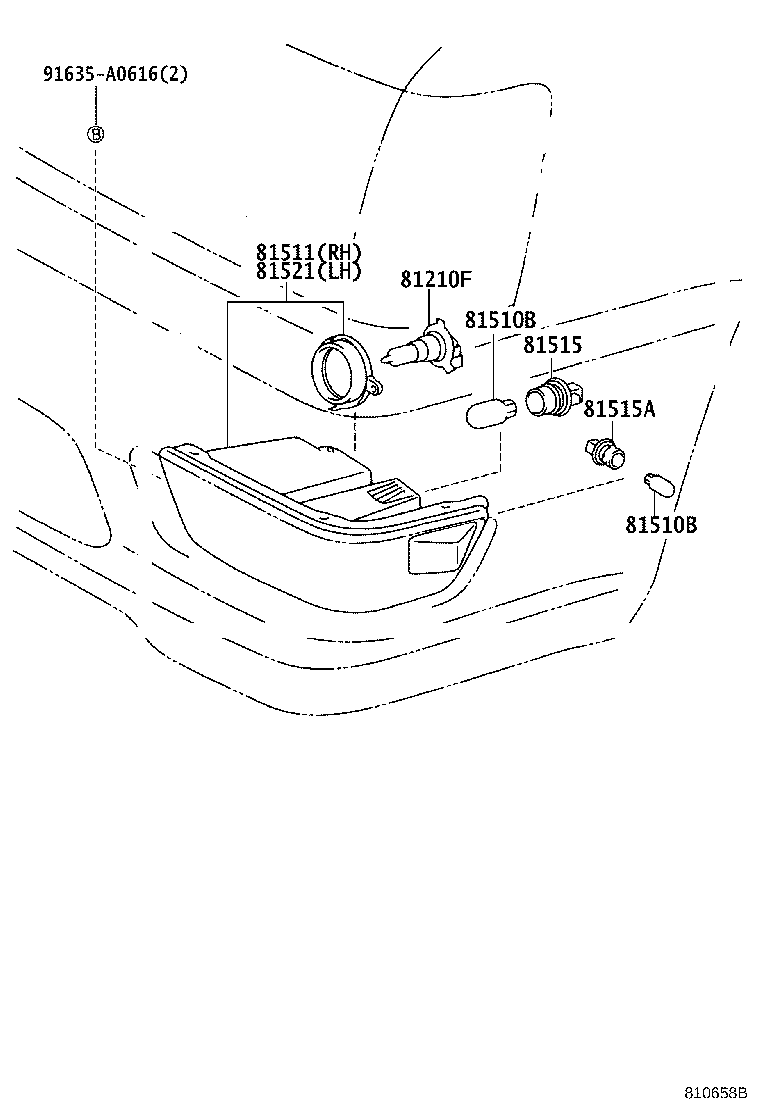

(9707- )HT..ROY,ROYEX,ROYG,ROYT

Click highlighted areas on diagram

Part #	Description	Period	Qty
81210F - BULB, FOG LAMP
90080-81040	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) 12V 51W	07/1997 - 09/1999	2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-12050	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) 12V 5W,SIDE TURN	08/1995 - 07/1997	2
90981-13043	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) 12V 21W,FRONT TURN	08/1995 - 09/1999	2
99132-12050	GS151,JZS15#,LS151,UZS15#..HT 12V 5W,SIDE TURN	07/1997 - 09/1999	2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-12050	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) 12V 5W,SIDE TURN	08/1995 - 07/1997	2
90981-13043	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) 12V 21W,FRONT TURN	08/1995 - 09/1999	2
99132-12050	GS151,JZS15#,LS151,UZS15#..HT 12V 5W,SIDE TURN	07/1997 - 09/1999	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-30370	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)	07/1997 - 09/1999	1
81511-30340	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)	08/1995 - 07/1997	1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
90075-99128	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	11/1997 - 09/1999	2
90075-99080	GS151,JZS15#,LS151,UZS15#	08/1995 - 07/1997	2
90075-99080	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	07/1997 - 11/1997	2
81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP
99159-10228	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)	07/1997 - 03/1998	2
90075-99079	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)	08/1995 - 07/1997	2
90075-60016	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)	03/1998 - 09/1999	2
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-30570	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)	08/1995 - 07/1997	1
81521-30600	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)	07/1997 - 09/1999	1
Common parts
91635-A0616

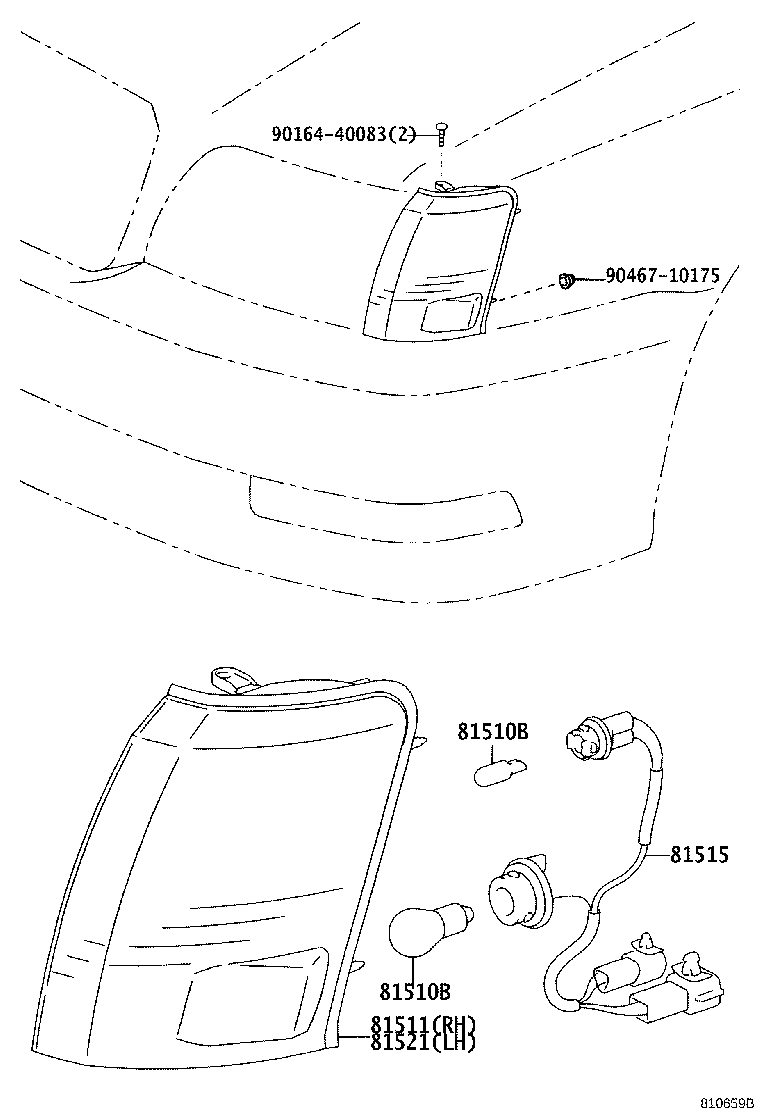

(9707- )A,C,E,F

Click highlighted areas on diagram

Part #	Description	Period	Qty
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-12050	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) 12V 5W,SIDE TURN	08/1995 - 07/1997	2
90981-13043	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) 12V 21W,FRONT TURN	08/1995 - 09/1999	2
99132-12050	GS151,JZS15#,LS151,UZS15#..HT 12V 5W,SIDE TURN	07/1997 - 09/1999	2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-12050	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) 12V 5W,SIDE TURN	08/1995 - 07/1997	2
90981-13043	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) 12V 21W,FRONT TURN	08/1995 - 09/1999	2
99132-12050	GS151,JZS15#,LS151,UZS15#..HT 12V 5W,SIDE TURN	07/1997 - 09/1999	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-30370	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)	07/1997 - 09/1999	1
81511-30340	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)	08/1995 - 07/1997	1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
90075-99128	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	11/1997 - 09/1999	2
90075-99080	GS151,JZS15#,LS151,UZS15#	08/1995 - 07/1997	2
90075-99080	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	07/1997 - 11/1997	2
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-30570	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)	08/1995 - 07/1997	1
81521-30600	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)	07/1997 - 09/1999	1
Common parts
90164-40083
90467-10175

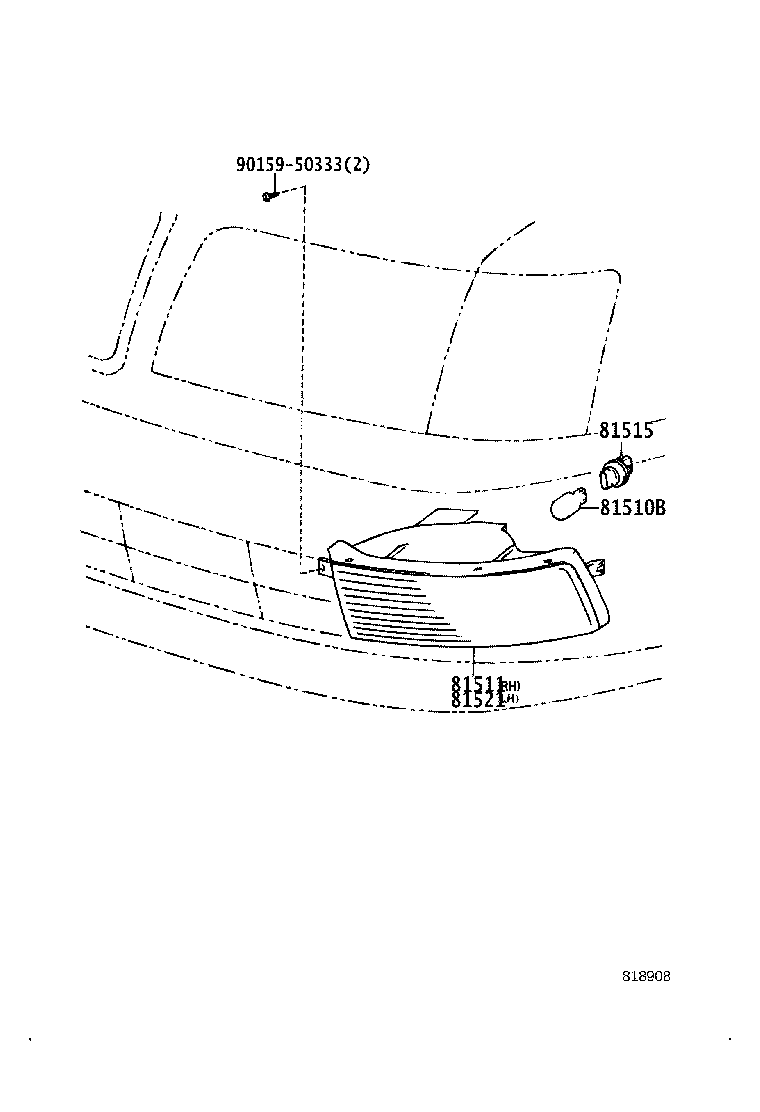

(9508-9707)A,C,E,F

Click highlighted areas on diagram

Part #	Description	Period	Qty
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-12050	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) 12V 5W,SIDE TURN	08/1995 - 07/1997	2
90981-13043	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) 12V 21W,FRONT TURN	08/1995 - 09/1999	2
99132-12050	GS151,JZS15#,LS151,UZS15#..HT 12V 5W,SIDE TURN	07/1997 - 09/1999	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-30370	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)	07/1997 - 09/1999	1
81511-30340	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)	08/1995 - 07/1997	1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
90075-99128	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	11/1997 - 09/1999	2
90075-99080	GS151,JZS15#,LS151,UZS15#	08/1995 - 07/1997	2
90075-99080	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	07/1997 - 11/1997	2
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-30570	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)	08/1995 - 07/1997	1
81521-30600	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)	07/1997 - 09/1999	1
Common parts
90159-50333

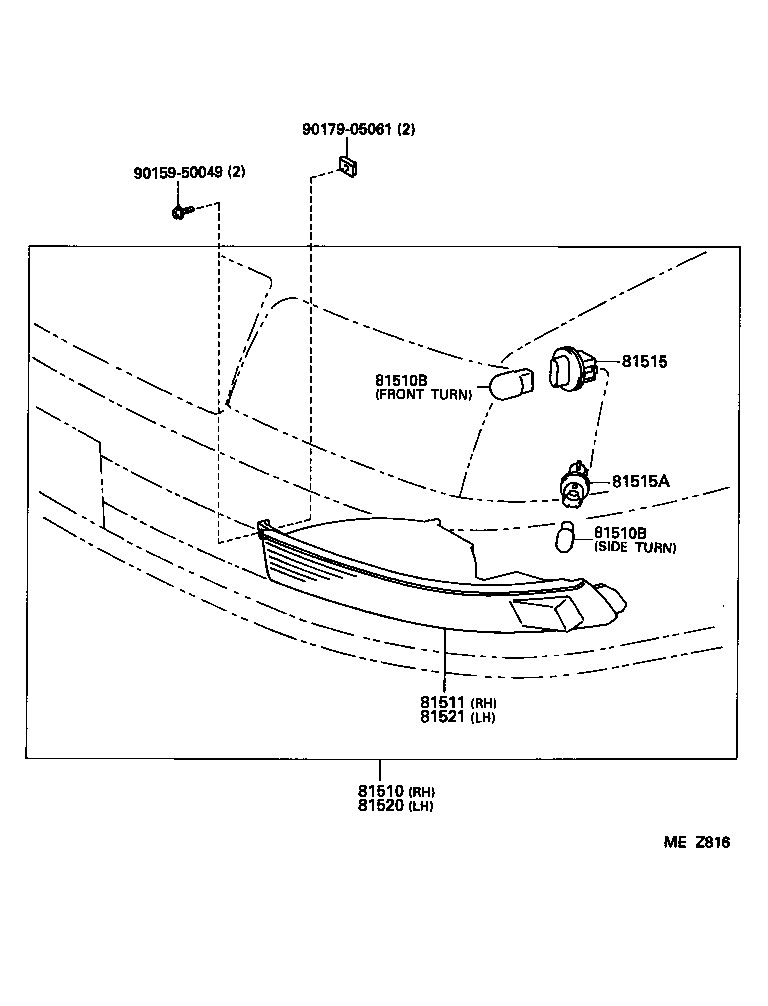

(9508-9707)HT..ROY,ROYEX,ROYG,ROYT

Click highlighted areas on diagram

Part #	Description	Period	Qty
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-30340	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)	08/1995 - 07/1997	1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-12050	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) 12V 5W,SIDE TURN	08/1995 - 07/1997	2
90981-13043	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) 12V 21W,FRONT TURN	08/1995 - 09/1999	2
99132-12050	GS151,JZS15#,LS151,UZS15#..HT 12V 5W,SIDE TURN	07/1997 - 09/1999	2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-12050	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) 12V 5W,SIDE TURN	08/1995 - 07/1997	2
90981-13043	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) 12V 21W,FRONT TURN	08/1995 - 09/1999	2
99132-12050	GS151,JZS15#,LS151,UZS15#..HT 12V 5W,SIDE TURN	07/1997 - 09/1999	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-30370	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)	07/1997 - 09/1999	1
81511-30340	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)	08/1995 - 07/1997	1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
90075-99128	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	11/1997 - 09/1999	2
90075-99080	GS151,JZS15#,LS151,UZS15#	08/1995 - 07/1997	2
90075-99080	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	07/1997 - 11/1997	2
81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP
99159-10228	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)	07/1997 - 03/1998	2
90075-99079	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)	08/1995 - 07/1997	2
90075-60016	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)	03/1998 - 09/1999	2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-30570	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)	08/1995 - 07/1997	1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-30570	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)	08/1995 - 07/1997	1
81521-30600	GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)	07/1997 - 09/1999	1
Common parts
90159-50049
90179-05061
