JZS151-ATPSF (1995)

Toyota Crown/Crown Majesta

Production Aug 1995 - Sep 1999
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )HT

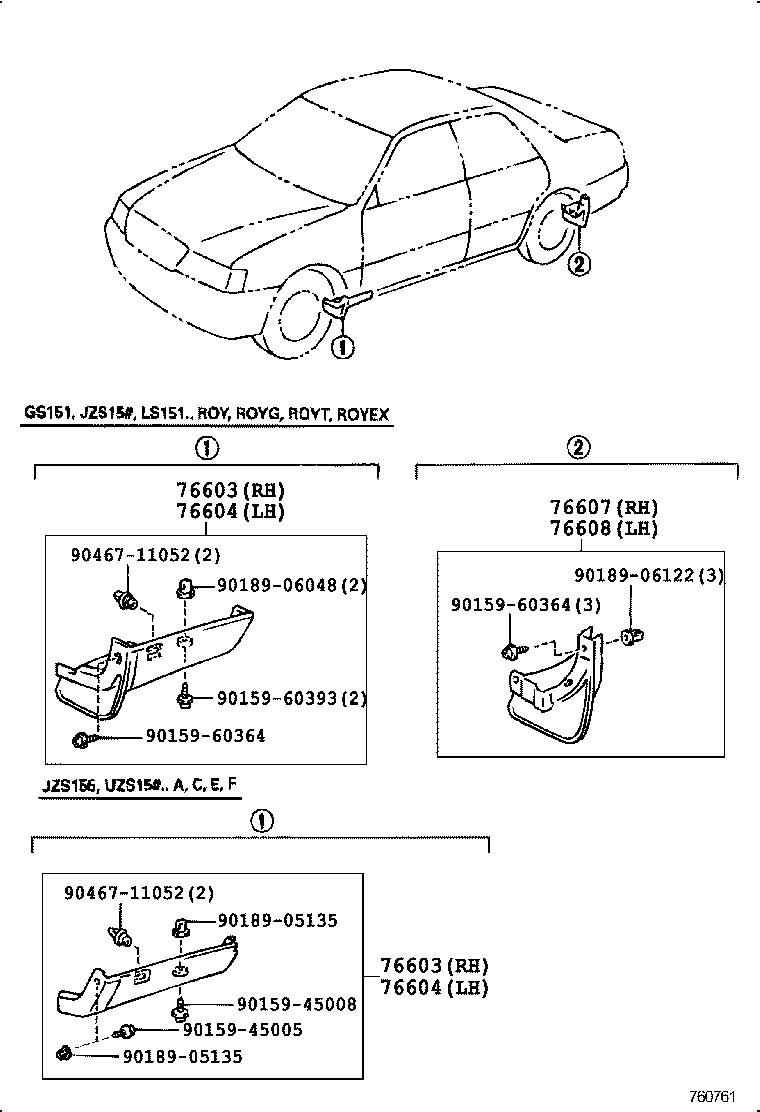

Click highlighted areas on diagram

diagram 76603 76603 76604 76604 76607 76608 9015945005 9015945008 9015960364 9015960364 9015960393 9018905135 9018905135 9018906048 9018906122 9046711052 9046711052
Part # Description Qty Price
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76603-39035

GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)

 1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76603-39035

GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76604-39035

GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76604-39035

GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-39455

GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-39455

GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)

 1
Common parts
90159-45005
90159-45008
90159-60364
90159-60393
90189-05135
90189-06048
90189-06122
90467-11052
