JZS151-ATPSF (1995)

Toyota Crown/Crown Majesta

Production Aug 1995 - Sep 1999
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

Click highlighted areas on diagram

diagram 74404A 74407A 74431 74455A 9011906492 9011906782 9017906206
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-30250

GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 1
74407A - BOLT SUB-ASSY, BATTERY CLAMP
74407-22060

GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 1
74431 - TRAY, BATTERY
74431-30120

GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 1
74431-30121

GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 1
74455A - HOSE, BATTERY DRAIN
74455-30020

GS151,JZS15#,LS151,UZS15#

 1
Common parts
90119-06492
90119-06782
90179-06206

(9508- )A,C,E,F

Click highlighted areas on diagram

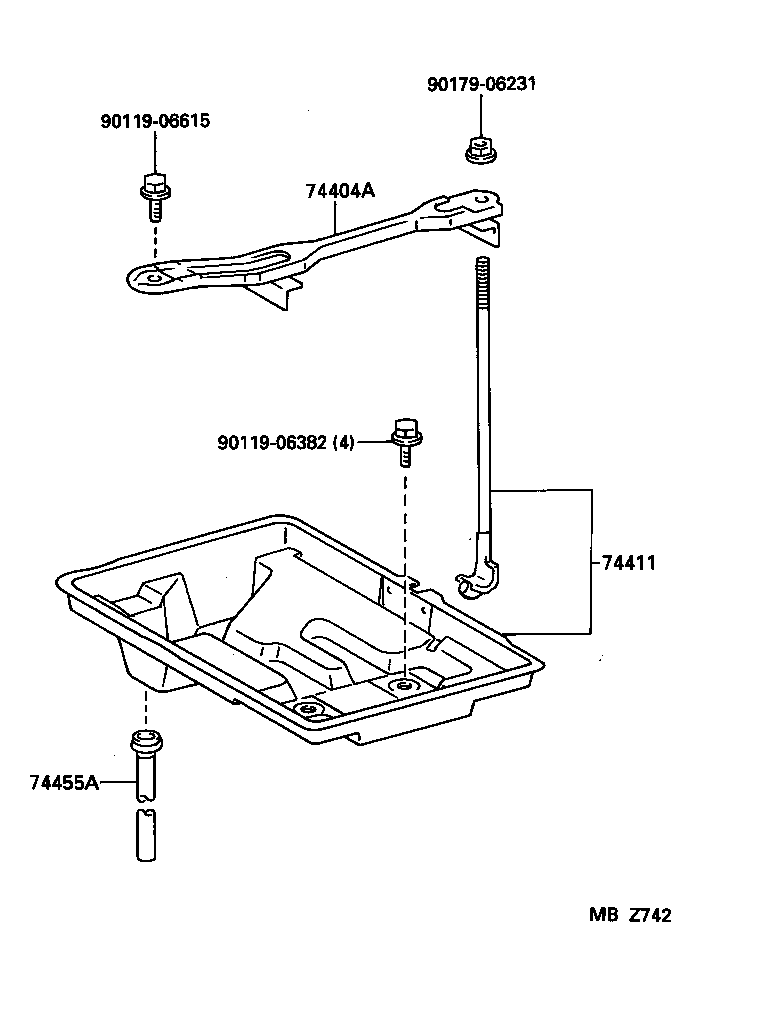

diagram 74404A 74411 74455A 9011906382 9011906615 9017906231
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-30250

GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 1
74455A - HOSE, BATTERY DRAIN
74455-30020

GS151,JZS15#,LS151,UZS15#

 1
Common parts
90119-06382
90119-06615
90179-06231
