JZS151-ATPSF (1995)
Toyota Crown/Crown Majesta

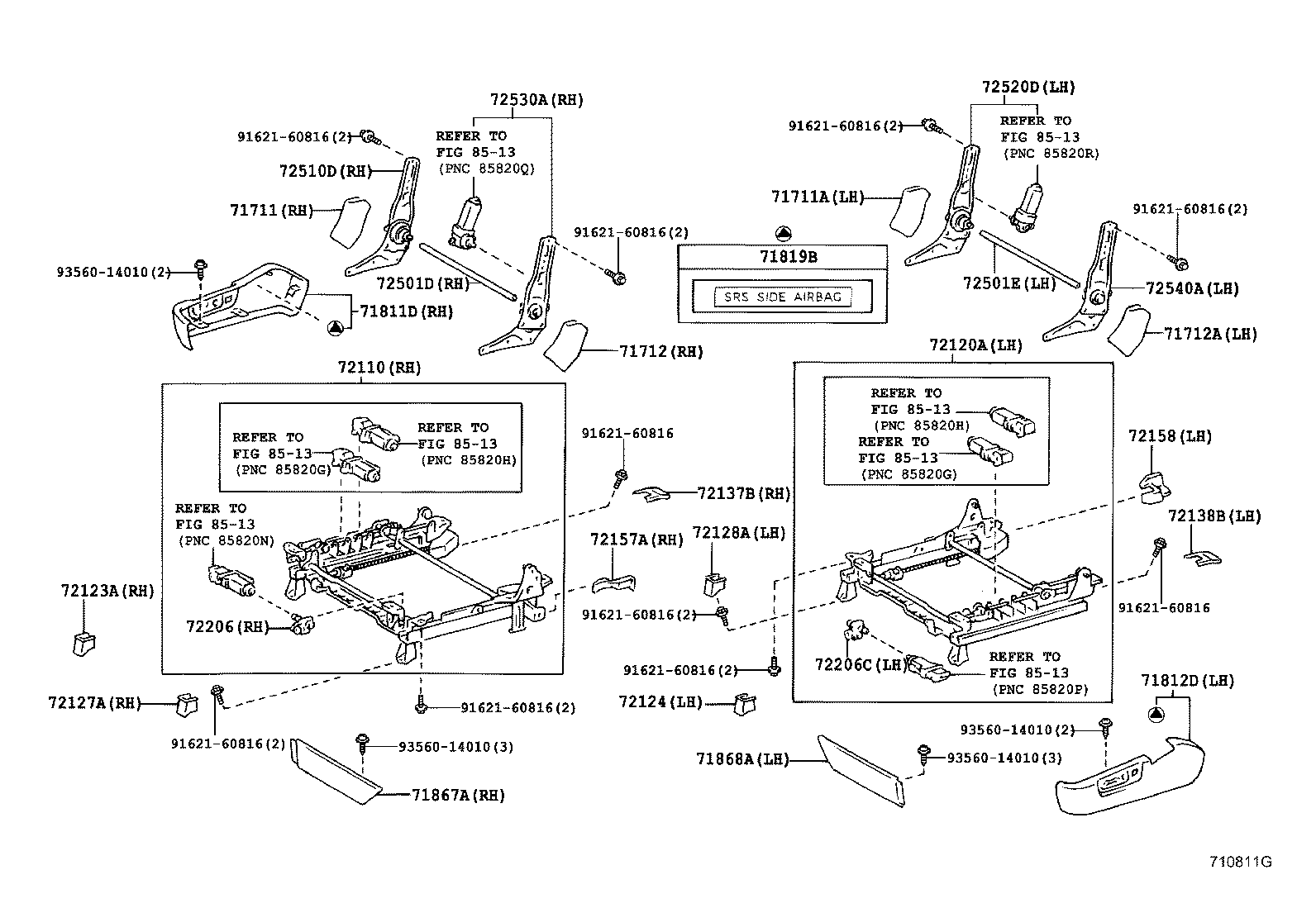

ILLUST NO. 2 OF 2(9508- )A,C,E,F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-30250E0 |
GS151;JZS151,155,LS151..SED..ROY;JZS15#,LS151..ROYEX,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 71811-30260E0 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 71811-30260B1 |
JZS15#,LS151..ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71811-30250B1 |
GS151;JZS151,153,155,LS151..SED..ROY;JZS151,153,LS151..ROYEX,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-30170E0 |
JZS151,155,LS151..ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 71812-30170B0 |
JZS151,155,LS151..ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71812-30160E0 |
JZS155..ROYT;JZS155..SED..ROY;GS151,JZS151,153,157,LS151 QUARTZ,TRIM4# |
1 | ||
| 71812-30160B1 |
JZS155..SED..ROY;GS151,JZS151,153,157,LS151..ROY,ROYEX,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 71819B - LABEL, SIDE AIR BAG NAME | ||||
| 71819-12020E1 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) QUARTZ,TRIM4# |
1 | ||
| 71819-12020B5 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,SALEX,SPDLX)..(HTWC,TDE,TWC) DK.CHARCOAL,TRIM1# |
1 | ||
| 71819-12020B3 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,SALEX,SPDLX)..(HTWC,TDE,TWC) BLUE GRAY,TRIM1# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-30070B1 |
GS151;JZS151,153,155,LS151..SED..ROY;JZS151,153,LS151..ROYEX,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 71867-30070E0 |
GS151;JZS151,155,LS151..SED..ROY;JZS15#,LS151..ROYEX,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 71867-30060B1 |
JZS151,153,155,LS151..ROY,ROYG ｱﾘ(ｳﾝﾃﾝｾｷ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71867-30060E0 |
JZS151,153,155,LS151..ROY,ROYG,ROYT ｱﾘ(ｳﾝﾃﾝｾｷ ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-30120E0 |
JZS155..ROYT;JZS155..SED..ROY;GS151,JZS151,LS151 QUARTZ,TRIM4# |
1 | ||
| 71868-30100B0 |
JZS155..SED..ROY;JZS151,LS151..ROY ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71868-30120B1 |
JZS155..SED..ROY;GS151,JZS151,LS151..ROY,ROYEX,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 71868-30100E0 |
JZS155..SED..ROY;JZS151,LS151..ROY ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 72110 - REGULATOR ASSY, POWER SEAT, RH | ||||
| 72010-30010 |
JZS151,155,LS151..ROY,ROYG,ROYT |
1 | ||
| 72010-30030 |
JZS151,155,LS151..ROY,ROYG,ROYT |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-20130B3 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 72123-20130E2 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-20130E2 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 72123-20130B3 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-30060B1 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 72127-30060E0 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72127-30060E0 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 72127-30060B1 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-30100E0 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 72137-30100B1 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-30050E0 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 72138-30050B1 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-30070B1 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 72157-30070E0 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-30060B1 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 72158-30060E0 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 72206 - HOUSING SUB-ASSY, POWER SEAT, NO.2 | ||||
| 72206-30060 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 72206-30050 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 72206C - HOUSING SUB-ASSY, POWER SEAT, NO.2 | ||||
| 72206-30050 |
JZS151,155,LS151..ROY,ROYG |
2 | ||
| 72206-30050 |
JZS151,155,LS151..ROY,ROYG,ROYT |
2 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-22030 |
JZS155..SED..ROYG;JZS15#,LS151..HT..(ROY,ROYG) |
1 | ||
| 72501-30070 |
GS151;JZS151,155,LS151..SED..ROY;JZS15#,LS151..ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-30070 |
JZS155..ROYT;JZS155..SED..ROY;GS151,JZS151,153,LS151 |
1 | ||
| 72501-22030 |
JZS155..ROYT;JZS155..SED..ROY;JZS151,LS151..ROY,ROYT ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 72501-22030 |
JZS155..SED..ROY;JZS151,LS151..ROY ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| Common parts | ||||
| 91621-60816 | ||||
| 93560-14010 | ||||
| Linked diagrams | ||||
| 8513 | ||||

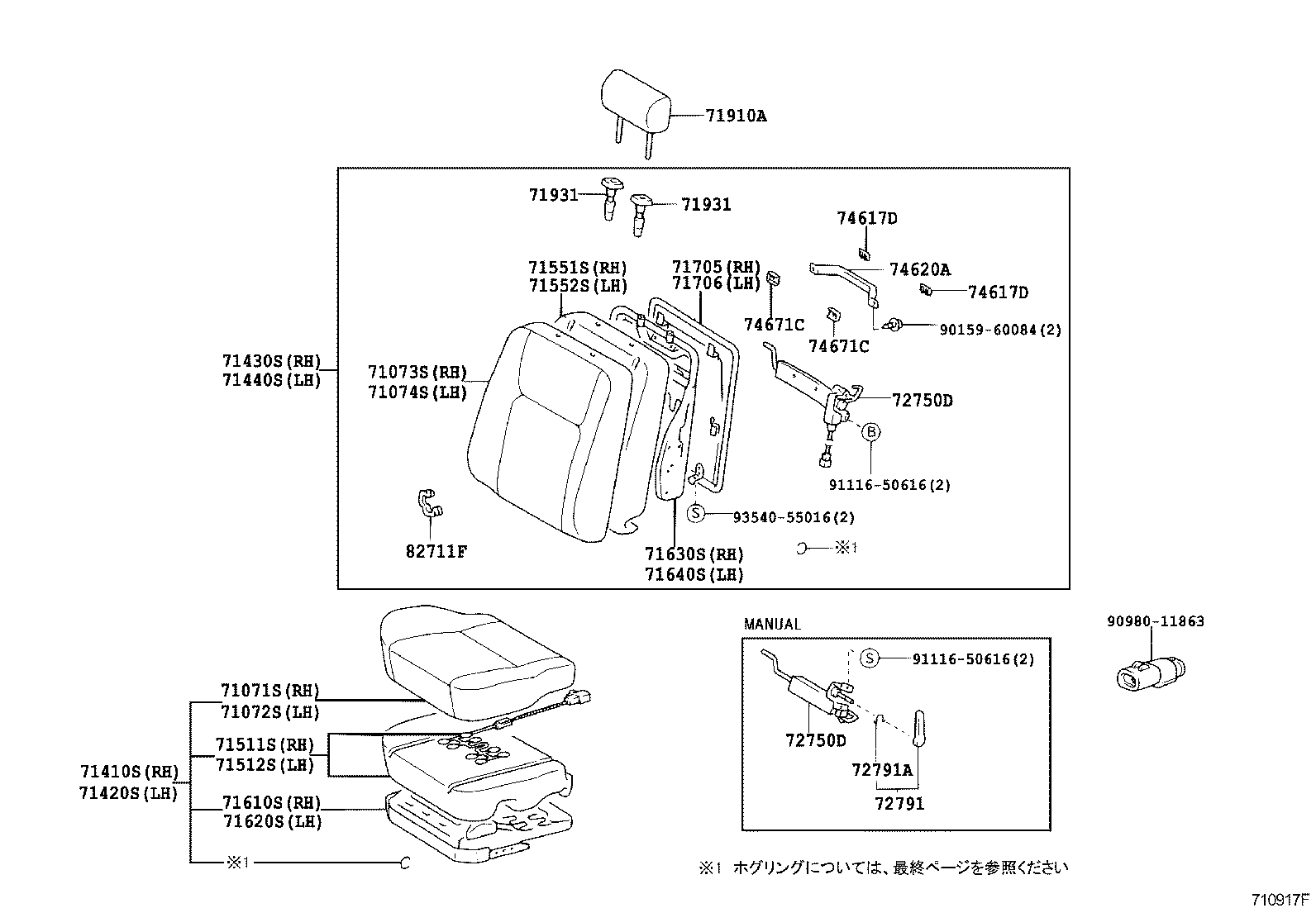

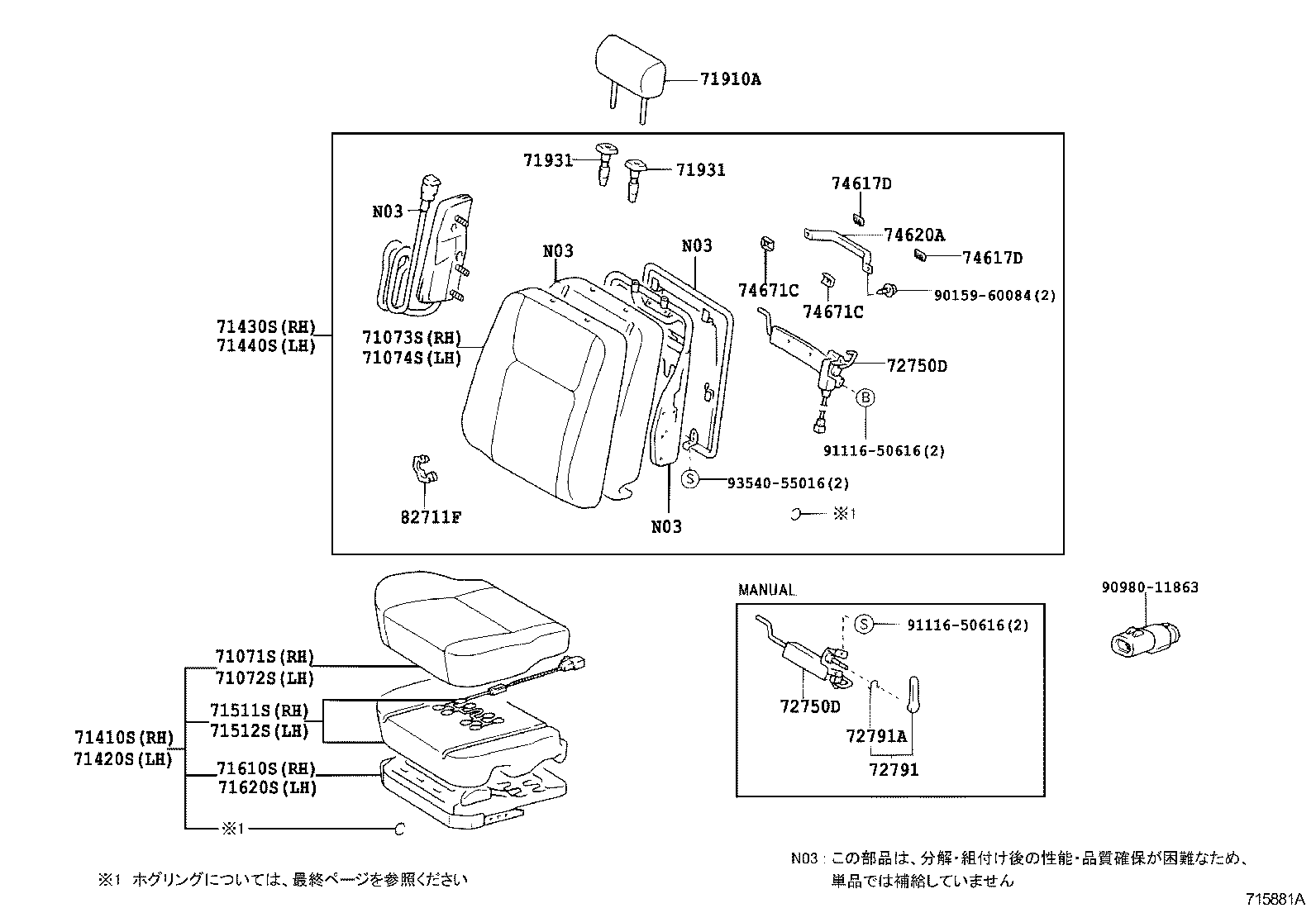

ILLUST NO. 1 OF 2(9508- )
ﾅｼ(ｻｲﾄﾞ ｴｱ ﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3F220B0 |
JZS151,155,LS151..ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ｼ-ﾄ = TYPE B-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71071-3F220E0 |
JZS151,155,LS151..ROY,ROYG,ROYT ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71071-3F230B5 |
JZS151..ROYEX;GS151,LS151..ROYEX,SALEX;JZS151,155,LS151..SED..ROY ｼ-ﾄ = TYPE B-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71071-3F230E5 |
JZS151..ROYEX,ROYT;JZS151,155,LS151..SED..ROY;GS151,JZS155,LS151..ROYEX,ROYT,SALEX ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71071-3F310B0 |
GS151..LPGTE..NOB;GS151,JZS151,LS151..ROYEX,SALEX ｼ-ﾄ = TYPE D-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71071-3F310E0 |
GS151..LPGTE..NOB;GS151,JZS151,LS151..ROYEX,SALEX ｼ-ﾄ = TYPE D-*104,ANTELOPE,TRIM4# |
1 | ||
| 71071-3F230B5 |
GS151,JZS151..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM1# |
1 | ||
| 71071-3K070B0 |
GS151,JZS151..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM17 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-3A520E0 |
JZS151,155,LS151..ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71072-3A550E0 |
GS151..LPGTE..NOB;GS151,JZS151,LS151..ROYEX,SALEX ｼ-ﾄ = TYPE D-*104,ANTELOPE,TRIM4# |
1 | ||
| 71072-3A550B0 |
GS151..LPGTE..NOB;GS151,JZS151,LS151..ROYEX,SALEX ｼ-ﾄ = TYPE D-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71072-3A530B9 |
JZS155..SED..ROY;GS151..LPGTE..NOB;GS151..ROY,ROYEX,SALEX;JZS151,LS151..ROY,ROYEX ｼ-ﾄ = TYPE B-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71072-3A520B0 |
JZS151,155,LS151..ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ｼ-ﾄ = TYPE B-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71072-3A530E9 |
JZS155..SED..ROY;GS151..ROY,ROYEX,SALEX;JZS151,LS151..ROY,ROYEX,ROYT;GS151,JZS155..(ROYT,SPDLX)..(LPGTE,TWC) ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71072-3A530B9 |
GS151,JZS151..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM1# |
1 | ||
| 71072-3A520E0 |
JZS151,155,LS151..ROY,ROYG,ROYT ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71072-3F370B0 |
GS151,JZS151..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM17 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3A870B0 |
JZS151,153..ROY,ROYEX;GS151,JZS155,LS151..(ROY,ROYEX,ROYG,SALEX)..(HTWC,TDE,TWC) ｼ-ﾄ = TYPE B-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71073-3A870E0 |
JZS151,153..ROY,ROYEX,ROYT;GS151,JZS155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC) ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71073-3F030B0 |
GS151..LPGTE..NOB;GS151,JZS151,153,LS151..ROYEX,SALEX ｼ-ﾄ = TYPE D-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71073-3A870B0 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM1# |
2 | ||
| 71073-3F030E0 |
GS151..LPGTE..NOB;GS151,JZS151,153,LS151..ROYEX,SALEX ｼ-ﾄ = TYPE D-*104,ANTELOPE,TRIM4# |
1 | ||
| 71073-3F530B0 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM17 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-3A870B0 |
GS151..LPGTE..NOB;GS151..ROY,ROYEX,SALEX;JZS15#,LS151..ROY,ROYEX,ROYG ｼ-ﾄ = TYPE B-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71073-3F030B0 |
GS151,JZS151,153,LS151..ROYEX,SALEX TYPE D-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71073-3A870E0 |
GS151..LPGTE..NOB;GS151..ROY,ROYEX,SALEX;JZS15#,LS151..ROY,ROYEX,ROYG,ROYT ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71073-3A870B0 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM1# |
2 | ||
| 71074-3A540B0 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM17 |
1 | ||
| 71073-3F030E0 |
GS151,JZS151,153,LS151..ROYEX,SALEX TYPE D-*104,ANTELOPE,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-3F400B0 |
JZS151,155,LS151..ROY,ROYG ***,ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ｼ-ﾄ = TYPE B-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71410-3K090E0 |
GS151..LPGTE..NOB;GS151,JZS151,LS151..ROYEX,SALEX ***,ｼ-ﾄ = TYPE D-*104,ANTELOPE,TRIM4# |
1 | ||
| 71410-3K090B0 |
GS151..LPGTE..NOB;GS151,JZS151,LS151..ROYEX,SALEX ***,ｼ-ﾄ = TYPE D-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71410-3F440E5 |
LS151..ROYEX;GS151..ROY,ROYEX,SALEX;JZS151,155,LS151..SED..ROY;GS151,JZS151,155..(ROYEX,ROYT,SPDLX)..(LPGTE,TWC) ***,ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71410-3F440B5 |
LS151..ROYEX;GS151..ROY,ROYEX,SALEX;JZS151,155,LS151..SED..ROY;GS151,JZS151..(ROYEX,SPDLX)..(LPGTE,TWC) ***,ｼ-ﾄ = TYPE B-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71410-3F400E0 |
JZS151,155,LS151..ROY,ROYG,ROYT ***,ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71410-3F440B5 |
GS151,JZS151..ROYEX ***,ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM1# |
1 | ||
| 71410-3K250B0 |
GS151,JZS151..ROYEX ***,ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM17 |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-3A580B0 |
JZS151,155,LS151..ROY,ROYG ***,ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ｼ-ﾄ = TYPE B-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71420-3A580E0 |
JZS151,155,LS151..ROY,ROYG ***,ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71420-3A590E9 |
JZS155..SED..ROY;GS151..ROY,ROYEX,SALEX;JZS151,LS151..ROY,ROYEX,ROYT;GS151,JZS155..(ROYT,SPDLX)..(LPGTE,TWC) ***,ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71420-3A590B9 |
JZS155..SED..ROY;GS151..LPGTE..NOB;GS151..ROY,ROYEX,SALEX;JZS151,LS151..ROY,ROYEX ***,ｼ-ﾄ = TYPE B-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71420-3A610E0 |
GS151..LPGTE..NOB;GS151,JZS151,LS151..ROYEX,SALEX ***,ｼ-ﾄ = TYPE D-*104,ANTELOPE,TRIM4# |
1 | ||
| 71420-3A610B0 |
GS151..LPGTE..NOB;GS151,JZS151,LS151..ROYEX,SALEX ***,ｼ-ﾄ = TYPE D-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71420-3F420B0 |
GS151,JZS151..ROYEX ***,ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM17 |
1 | ||
| 71420-3A590B9 |
GS151,JZS151..ROYEX ***,ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY |
1 | ||
| 71420-3A580E0 |
JZS151,155,LS151..ROY,ROYG,ROYT ***,ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-3F850E0 |
JZS15#,LS151..HT..(ROY,ROYG) ***,ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71430-3K410E0 |
GS151,JZS151,153,LS151..ROYEX ***,ｼ-ﾄ = TYPE D-*104,ANTELOPE,TRIM4# |
1 | ||
| 71430-3K410B0 |
GS151,JZS151,153,LS151..ROYEX ***,ｼ-ﾄ = TYPE D-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71430-3K380E3 |
JZS151,153..ROYEX;GS151,LS151..ROYEX,SALEX;JZS151,155,LS151..SED..ROY ***,ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71430-3K380B3 |
JZS151,153..ROYEX;GS151,LS151..ROYEX,SALEX;JZS151,155,LS151..SED..ROY ***,ｼ-ﾄ = TYPE B-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71430-3F850B0 |
JZS15#,LS151..HT..(ROY,ROYG) ***,ｼ-ﾄ = TYPE B-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71430-3K380B3 |
GS151,JZS151,153..ROYEX ***,ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM1# |
1 | ||
| 71040-30070E0 |
GS151,JZS151,153,LS151..ROYEX ***,ｱﾘ(*80,ｻｲﾄﾞ) & ｼ-ﾄ = TYPE D-*104,ANTELOPE,TRIM4# |
1 | ||
| 71040-30040B0 |
GS151,JZS151,153..ROYEX ***,ﾘﾐﾃﾂﾄﾞ *(L),DK. BLUE GRAY,TRIM17 |
1 | ||
| 71040-30100B0 |
JZS155..SED..ROY;JZS151,157,LS151..ROY;JZS153,155..HT..(ROY,ROYG) ***,ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ｼ-ﾄ = TYPE B-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71040-30100E0 |
JZS155..SED..ROY;JZS151,157,LS151..ROY;JZS153,155..HT..(ROY,ROYG) ***,ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71040-30070B0 |
GS151,JZS151,153,LS151..ROYEX ***,ｱﾘ(*80,ｻｲﾄﾞ) & ｼ-ﾄ = TYPE D-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71430-3K410B1 |
GS151,JZS151,153,LS151..ROYEX ***,ｼ-ﾄ = TYPE D-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71430-3K410E1 |
GS151,JZS151,153,LS151..ROYEX ***,ｼ-ﾄ = TYPE D-*104,ANTELOPE,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-3F770B7 |
JZS155..SED..ROY;JZS151,153..ROY,ROYEX;GS151,LS151..(ROY,ROYEX,SALEX)..(HTWC,TDE) ***,ｼ-ﾄ = TYPE B-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71440-3F720E0 |
JZS151,LS151..HT..ROY ***,ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71440-3F830E0 |
GS151,JZS151,153,LS151..ROYEX ***,ｼ-ﾄ = TYPE D-*104,ANTELOPE,TRIM4# |
1 | ||
| 71440-3F830B0 |
GS151,JZS151,153,LS151..ROYEX ***,ｼ-ﾄ = TYPE D-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71440-3F720B0 |
JZS151,LS151..HT..ROY ***,ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ｼ-ﾄ = TYPE B-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71440-3F770E7 |
JZS155..SED..ROY;JZS151,153..ROY,ROYEX;GS151,LS151..(ROY,ROYEX,SALEX)..(HTWC,TDE) ***,ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71440-3F770B7 |
GS151,JZS151,153..ROYEX ***,ﾘﾐﾃﾂﾄﾞ *(L),DK. BLUE GRAY,TRIM1# |
1 | ||
| 71440-3F830B2 |
GS151,JZS151,153,LS151..ROYEX ***,ｼ-ﾄ = TYPE D-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71440-3F830E2 |
GS151,JZS151,153,LS151..ROYEX ***,ｼ-ﾄ = TYPE D-*104,ANTELOPE,TRIM4# |
1 | ||
| 71440-3K700B0 |
JZS151,LS151..HT..ROY ***,ｱﾘ(*80,ｻｲﾄﾞ & ﾊﾟﾜ-ｼｰﾄ) & ｼ-ﾄ = TYPE B-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71440-3K710B0 |
GS151,JZS151,153..ROYEX ***,ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM17 |
1 | ||
| 71440-3K740E0 |
GS151,JZS151,153,LS151..ROYEX ***,ｱﾘ(*80,ｻｲﾄﾞ) & ｼ-ﾄ = TYPE D-*104,ANTELOPE,TRIM4# |
1 | ||
| 71440-3K770E0 |
JZS151,LS151..HT..ROY ***,ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71440-3K740B0 |
GS151,JZS151,153,LS151..ROYEX ***,ｱﾘ(*80,ｻｲﾄﾞ) & ｼ-ﾄ = TYPE D-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71440-3K700E0 |
JZS151,LS151..HT..ROY ***,ｱﾘ(*80,ｻｲﾄﾞ & ﾊﾟﾜ-ｼｰﾄ) & ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71440-3K770B0 |
JZS151,LS151..HT..ROY ***,ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ｼ-ﾄ = TYPE B-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-30800 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-30560 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 71512-30460 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-30720 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-30360 |
JZS151,155,LS151..HT..(ROY,ROYG,ROYT) ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71552-30360 |
JZS151,155,LS151..HT..(ROY,ROYG) ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71551-30720 |
JZS155..ROYT;JZS155..SED..ROY;GS151,JZS151,153,157,LS151 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-30630 |
GS151;JZS151,155,LS151..SED..ROY;JZS151,155,LS151..ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 71610-30630 |
GS151;JZS151,155,LS151..SED..ROY;JZS151,LS151..ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 71610-30620 |
JZS155..SED..ROYG;JZS151,155,LS151..HT..(ROY,ROYG) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-30280 |
JZS155..SED;JZS155..ROYT;JZS151,LS151..ROY,ROYT ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71620-30290 |
JZS155..ROYT;JZS155..SED..ROY;GS151,JZS151,LS151 |
1 | ||
| 71620-30280 |
JZS155..SED;JZS151,LS151..ROY ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-3A220 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC) |
1 | ||
| 71630-3A220 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-30710 |
JZS151,LS151..HT..ROY ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71630-3A060 |
JZS155..SED..ROY;GS151,JZS155..(ROYT,SPDLX)..(LPGTE,TWC);GS151,JZS151,153,157,LS151..ROY,ROYEX,ROYT,SALEX |
1 | ||
| 71630-3A060 |
JZS155..ROYT;JZS155..SED..ROY;GS151,JZS151,153,LS151 |
1 | ||
| 71640-30710 |
JZS155..ROYT;JZS151,LS151..HT..(ROY,ROYT) ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-30390B0 |
JZS155..SED..ROY;JZS151,153..ROY,ROYEX;JZS155..HT..(ROY,ROYG);GS151,LS151..(ROY,ROYEX,SALEX)..(HTWC,TDE) ｼ-ﾄ = TYPE B-*104,BLUE GRAY,TRIM1# |
1 | ||
| 71705-30390B0 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM1# |
1 | ||
| 71705-30390E0 |
JZS155..SED..ROY;JZS151,153..ROY,ROYEX,ROYT;JZS155..HT..(ROY,ROYG,ROYT);GS151,LS151..(ROY,ROYEX,SALEX)..(HTWC,TDE) ｼ-ﾄ = TYPE B-*104,QUARTZ,TRIM4# |
1 | ||
| 71705-30640B0 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),BLUE GRAY,TRIM17 |
1 | ||
| 71705-30380B0 |
GS151,JZS151,153,LS151..ROYEX,SALEX ｼ-ﾄ = TYPE D-*104,BLUE GRAY,TRIM1# |
1 | ||
| 71705-30380E0 |
GS151,JZS151,153,LS151..ROYEX,SALEX ｼ-ﾄ = TYPE D-*104,QUARTZ,TRIM4# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-30380E0 |
GS151,JZS151,153,LS151..ROYEX,SALEX ｼ-ﾄ = TYPE D-*104,QUARTZ,TRIM4# |
1 | ||
| 71705-30390B0 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM1# |
1 | ||
| 71705-30390E0 |
JZS155..SED..ROY;JZS151,153..ROY,ROYEX,ROYT;JZS155..HT..(ROY,ROYG,ROYT);GS151,LS151..(ROY,ROYEX,SALEX)..(HTWC,TDE) ｼ-ﾄ = TYPE B-*104,QUARTZ,TRIM4# |
1 | ||
| 71705-30390B0 |
JZS155..SED..ROY;JZS151,153..ROY,ROYEX;JZS155..HT..(ROY,ROYG);GS151,LS151..(ROY,ROYEX,SALEX)..(HTWC,TDE) ｼ-ﾄ = TYPE B-*104,BLUE GRAY,TRIM1# |
1 | ||
| 71705-30640B0 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),BLUE GRAY,TRIM17 |
1 | ||
| 71705-30380B0 |
GS151,JZS151,153,LS151..ROYEX,SALEX ｼ-ﾄ = TYPE D-*104,BLUE GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-30720B0 |
GS151..ROYEX,SALEX;JZS15#,LS151..HT..(ROY,ROYEX,ROYG) ｼ-ﾄ = TYPE B-*104,BLUE GRAY,TRIM1# |
2 | ||
| 71910-30720E0 |
GS151..ROYEX,SALEX;JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) ｼ-ﾄ = TYPE B-*104,QUARTZ,TRIM4# |
2 | ||
| 71910-3A090B0 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),BLUE GRAY,TRIM17 |
2 | ||
| 71910-30720B0 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM1# |
2 | ||
| 71910-3A020E0 |
GS151..LPGTE..NOB;GS151,JZS151,153,LS151..ROYEX ｼ-ﾄ = TYPE D-*104,QUARTZ,TRIM4# |
2 | ||
| 71910-3A020B0 |
GS151..LPGTE..NOB;GS151,JZS151,153,LS151..ROYEX ｼ-ﾄ = TYPE D-*104,BLUE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-30100B1 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71930-30100E0 |
GS151,JZS15#,LS151,UZS15# ﾛｯｸ付,QUARTZ,TRIM4# |
2 | ||
| 71931-30020B1 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71931-30020E0 |
GS151,JZS15#,LS151,UZS15# ﾛｯｸ無,QUARTZ,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-30100B1 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71930-30100E0 |
GS151,JZS15#,LS151,UZS15# ﾛｯｸ付,QUARTZ,TRIM4# |
2 | ||
| 71931-30020B1 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71931-30020E0 |
GS151,JZS15#,LS151,UZS15# ﾛｯｸ無,QUARTZ,TRIM4# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30190 |
JZS155..SED..ROYG;JZS15#,LS151..HT..(ROY,ROYG) |
1 | ||
| 72750-30180 |
GS151;JZS151,155,LS151..SED..ROY;JZS15#,LS151..ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 72750-30180 |
GS151;JZS151,153,155,LS151..SED..ROY;JZS151,153,LS151..ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 72750-30191 |
JZS151,153,155,LS151..ROY,ROYG,ROYT ｱﾘ(ｳﾝﾃﾝｾｷ ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30190 |
JZS155..SED..ROYG;JZS15#,LS151..HT..(ROY,ROYG) |
1 | ||
| 72750-30180 |
GS151;JZS151,155,LS151..SED..ROY;JZS15#,LS151..ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 72750-30180 |
GS151;JZS151,153,155,LS151..SED..ROY;JZS151,153,LS151..ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 72750-30191 |
JZS151,153,155,LS151..ROY,ROYG,ROYT ｱﾘ(ｳﾝﾃﾝｾｷ ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-12010B2 |
GS151;JZS151,153,155,LS151..SED..ROY;JZS151,153,LS151..ROYEX,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 72791-12010E1 |
GS151;JZS151,155,LS151..SED..ROY;JZS15#,LS151..ROYEX,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01006 |
GS151;JZS151,155,LS151..SED..ROY;JZS15#,LS151..ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 90520-01006 |
GS151;JZS151,153,155,LS151..SED..ROY;JZS151,153,LS151..ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 74617D - PLUG, ASSIST GRIP | ||||
| 74617-30020B3 |
GS151..LPGTE..NOB;GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX BLUE GRAY,TRIM1# |
4 | ||
| 74617-30020E0 |
GS151..LPGTE..NOB;GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX QUARTZ,TRIM4# |
4 | ||
| 74617-30020B3 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM1# |
4 | ||
| 74617-30020B3 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),BLUE GRAY,TRIM17 |
2 | ||
| 74617D - PLUG, ASSIST GRIP | ||||
| 74617-30020B3 |
GS151..LPGTE..NOB;GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX BLUE GRAY,TRIM1# |
4 | ||
| 74617-30020E0 |
GS151..LPGTE..NOB;GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX QUARTZ,TRIM4# |
4 | ||
| 74617-30020B3 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM1# |
4 | ||
| 74617-30020B3 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),BLUE GRAY,TRIM17 |
2 | ||
| 74620A - GRIP ASSY, ASSIST, REAR | ||||
| 74620-30050E0 |
GS151..LPGTE..NOB;GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX QUARTZ,TRIM4# |
2 | ||
| 74620-30050B2 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM1# |
2 | ||
| 74620-30050B2 |
GS151..LPGTE..NOB;GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX BLUE GRAY,TRIM1# |
2 | ||
| 74620-30050B2 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),BLUE GRAY,TRIM17 |
2 | ||
| 74671C - SUPPORT, ASSIST GRIP | ||||
| 74671-30010 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L) |
4 | ||
| 74671-30010 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L) |
2 | ||
| 74671-30010 |
GS151..LPGTE..NOB;GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX |
4 | ||
| 74671C - SUPPORT, ASSIST GRIP | ||||
| 74671-30010 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L) |
4 | ||
| 74671-30010 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L) |
2 | ||
| 74671-30010 |
GS151..LPGTE..NOB;GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX |
4 | ||
| Common parts | ||||
| 90159-60084 | ||||
| 90980-11863 | ||||
| 91116-50616 | ||||
| 93540-55016 | ||||
ILLUST NO. 2 OF 2(9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX
ﾗｲﾄ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-30250E0 |
GS151;JZS151,155,LS151..SED..ROY;JZS15#,LS151..ROYEX,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 71811-30260E0 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 71811-30260B1 |
JZS15#,LS151..ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71811-30250B1 |
GS151;JZS151,153,155,LS151..SED..ROY;JZS151,153,LS151..ROYEX,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-30250E0 |
GS151;JZS151,155,LS151..SED..ROY;JZS15#,LS151..ROYEX,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 71811-30260E0 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 71811-30260B1 |
JZS15#,LS151..ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71811-30250B1 |
GS151;JZS151,153,155,LS151..SED..ROY;JZS151,153,LS151..ROYEX,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 71819B - LABEL, SIDE AIR BAG NAME | ||||
| 71819-12020E1 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) QUARTZ,TRIM4# |
1 | ||
| 71819-12020B5 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,SALEX,SPDLX)..(HTWC,TDE,TWC) DK.CHARCOAL,TRIM1# |
1 | ||
| 71819-12020B3 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,SALEX,SPDLX)..(HTWC,TDE,TWC) BLUE GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-30050E0 |
GS151;JZS151,155,LS151..SED..ROY;JZS15#,LS151..ROYEX,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 71861-30060B1 |
JZS151,153,155,LS151..ROY,ROYG ｱﾘ(ｳﾝﾃﾝｾｷ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71861-30060E0 |
JZS151,153,155,LS151..ROY,ROYG,ROYT ｱﾘ(ｳﾝﾃﾝｾｷ ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 71861-30050B1 |
GS151;JZS151,153,155,LS151..SED..ROY;JZS151,153,LS151..ROYEX,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-30050E0 |
GS151;JZS151,155,LS151..SED..ROY;JZS15#,LS151..ROYEX,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 71861-30060B1 |
JZS151,153,155,LS151..ROY,ROYG ｱﾘ(ｳﾝﾃﾝｾｷ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71861-30060E0 |
JZS151,153,155,LS151..ROY,ROYG,ROYT ｱﾘ(ｳﾝﾃﾝｾｷ ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 71861-30050B1 |
GS151;JZS151,153,155,LS151..SED..ROY;JZS151,153,LS151..ROYEX,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-30070B1 |
GS151;JZS151,153,155,LS151..SED..ROY;JZS151,153,LS151..ROYEX,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 71867-30070E0 |
GS151;JZS151,155,LS151..SED..ROY;JZS15#,LS151..ROYEX,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 71867-30060B1 |
JZS151,153,155,LS151..ROY,ROYG ｱﾘ(ｳﾝﾃﾝｾｷ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71867-30060E0 |
JZS151,153,155,LS151..ROY,ROYG,ROYT ｱﾘ(ｳﾝﾃﾝｾｷ ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-30070B1 |
GS151;JZS151,153,155,LS151..SED..ROY;JZS151,153,LS151..ROYEX,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 71867-30070E0 |
GS151;JZS151,155,LS151..SED..ROY;JZS15#,LS151..ROYEX,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 71867-30060B1 |
JZS151,153,155,LS151..ROY,ROYG ｱﾘ(ｳﾝﾃﾝｾｷ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71867-30060E0 |
JZS151,153,155,LS151..ROY,ROYG,ROYT ｱﾘ(ｳﾝﾃﾝｾｷ ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-30060B1 |
GS151;JZS151,155,LS151..SED..ROY;JZS151,153,LS151..ROYEX,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 71875-30070B1 |
JZS155..SED..ROYG;JZS15#,LS151..HT..(ROY,ROYG) BLUE GRAY,TRIM1# |
1 | ||
| 71875-30060E0 |
GS151;JZS151,155,LS151..SED..ROY;JZS15#,LS151..ROYEX,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 71875-30070E0 |
JZS155..SED..ROYG;JZS15#,LS151..HT..(ROY,ROYG) QUARTZ,TRIM4# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-30060B1 |
GS151;JZS151,155,LS151..SED..ROY;JZS151,153,LS151..ROYEX,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 71875-30070B1 |
JZS155..SED..ROYG;JZS15#,LS151..HT..(ROY,ROYG) BLUE GRAY,TRIM1# |
1 | ||
| 71875-30060E0 |
GS151;JZS151,155,LS151..SED..ROY;JZS15#,LS151..ROYEX,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 71875-30070E0 |
JZS155..SED..ROYG;JZS15#,LS151..HT..(ROY,ROYG) QUARTZ,TRIM4# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-30120 |
GS151;JZS151,155,LS151..SED..ROY;JZS15#,LS151..ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-30010 |
JZS151,155,LS151..SED..ROY;GS151,JZS151,155,LS151..(ROYEX,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 72110 - REGULATOR ASSY, POWER SEAT, RH | ||||
| 72010-30010 |
JZS151,155,LS151..ROY,ROYG,ROYT |
1 | ||
| 72010-30030 |
JZS151,155,LS151..ROY,ROYG,ROYT |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-20130B3 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 72123-20130E2 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-20130B3 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 72123-20130E2 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-22010 |
JZS15#,LS151..ROY,ROYG,ROYT |
1 | ||
| 72126 - COVER, SEAT TRACK LOCK PLATE, NO.2 | ||||
| 72126-22010 |
JZS15#,LS151..ROY,ROYG,ROYT |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-30060B1 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 72127-30060E0 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-30060B1 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 72127-30060E0 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-30100E0 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 72137-30100B1 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-30100E0 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 72137-30100B1 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-30070B1 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 72157-30070E0 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-30070B1 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 72157-30070E0 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 72206 - HOUSING SUB-ASSY, POWER SEAT, NO.2 | ||||
| 72206-30060 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 72206-30050 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-30160 |
JZS155..ROYT;JZS155..SED..ROY;GS151,JZS151,LS151 |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-22020E3 |
GS151;JZS151,155,LS151..SED..ROY;JZS15#,LS151..ROYEX,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
2 | ||
| 72457-22020B3 |
GS151;JZS151,153,155,LS151..SED..ROY;JZS151,153,LS151..ROYEX,SALEX,SPDLX BLUE GRAY,TRIM1# |
2 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-22020E3 |
GS151;JZS151,155,LS151..SED..ROY;JZS15#,LS151..ROYEX,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
2 | ||
| 72457-22020B3 |
GS151;JZS151,153,155,LS151..SED..ROY;JZS151,153,LS151..ROYEX,SALEX,SPDLX BLUE GRAY,TRIM1# |
2 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-22030 |
JZS155..SED..ROYG;JZS15#,LS151..HT..(ROY,ROYG) |
1 | ||
| 72501-30070 |
GS151;JZS151,155,LS151..SED..ROY;JZS15#,LS151..ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-22030 |
JZS155..SED..ROYG;JZS15#,LS151..HT..(ROY,ROYG) |
1 | ||
| 72501-30070 |
GS151;JZS151,155,LS151..SED..ROY;JZS15#,LS151..ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-12110E1 |
GS151;JZS151,155,LS151..SED..ROY;JZS15#,LS151..ROYEX,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 72525-12110B2 |
GS151;JZS151,153,155,LS151..SED..ROY;JZS151,153,LS151..ROYEX,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10772 | ||||
| 90167-40044 | ||||
| 90168-40124 | ||||
| 90520-01006 | ||||
| 91511-60816 | ||||
| 91621-60814 | ||||
| 93249-54006 | ||||
| 93560-54020 | ||||
| 96160-00800 | ||||
| 96160-01200 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8513 | ||||
ILLUST NO. 2 OF 2(9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX
ﾚﾌﾄ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-30170E0 |
JZS151,155,LS151..ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 71812-30170B0 |
JZS151,155,LS151..ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71812-30160E0 |
JZS155..ROYT;JZS155..SED..ROY;GS151,JZS151,153,157,LS151 QUARTZ,TRIM4# |
1 | ||
| 71812-30160B1 |
JZS155..SED..ROY;GS151,JZS151,153,157,LS151..ROY,ROYEX,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-30170E0 |
JZS151,155,LS151..ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 71812-30170B0 |
JZS151,155,LS151..ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71812-30160E0 |
JZS155..ROYT;JZS155..SED..ROY;GS151,JZS151,153,157,LS151 QUARTZ,TRIM4# |
1 | ||
| 71812-30160B1 |
JZS155..SED..ROY;GS151,JZS151,153,157,LS151..ROY,ROYEX,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 71819B - LABEL, SIDE AIR BAG NAME | ||||
| 71819-12020E1 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) QUARTZ,TRIM4# |
1 | ||
| 71819-12020B5 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,SALEX,SPDLX)..(HTWC,TDE,TWC) DK.CHARCOAL,TRIM1# |
1 | ||
| 71819-12020B3 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,SALEX,SPDLX)..(HTWC,TDE,TWC) BLUE GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-30040B1 |
JZS155..SED..ROY;GS151,JZS151,LS151..ROY,ROYEX,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 71862-30050E0 |
JZS155..SED..ROY;JZS151,LS151..ROY ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 71862-30040E0 |
JZS155..ROYT;JZS155..SED..ROY;GS151,JZS151,LS151 QUARTZ,TRIM4# |
1 | ||
| 71862-30050B0 |
JZS155..SED..ROY;JZS151,LS151..ROY ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-30040B1 |
JZS155..SED..ROY;GS151,JZS151,LS151..ROY,ROYEX,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 71862-30050E0 |
JZS155..SED..ROY;JZS151,LS151..ROY ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 71862-30040E0 |
JZS155..ROYT;JZS155..SED..ROY;GS151,JZS151,LS151 QUARTZ,TRIM4# |
1 | ||
| 71862-30050B0 |
JZS155..SED..ROY;JZS151,LS151..ROY ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-30120E0 |
JZS155..ROYT;JZS155..SED..ROY;GS151,JZS151,LS151 QUARTZ,TRIM4# |
1 | ||
| 71868-30100B0 |
JZS155..SED..ROY;JZS151,LS151..ROY ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71868-30120B1 |
JZS155..SED..ROY;GS151,JZS151,LS151..ROY,ROYEX,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 71868-30100E0 |
JZS155..SED..ROY;JZS151,LS151..ROY ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-30120E0 |
JZS155..ROYT;JZS155..SED..ROY;GS151,JZS151,LS151 QUARTZ,TRIM4# |
1 | ||
| 71868-30100B0 |
JZS155..SED..ROY;JZS151,LS151..ROY ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71868-30120B1 |
JZS155..SED..ROY;GS151,JZS151,LS151..ROY,ROYEX,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 71868-30100E0 |
JZS155..SED..ROY;JZS151,LS151..ROY ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-30060E0 |
JZS155..ROYT;JZS155..SED..ROY;GS151,JZS151,153,LS151 QUARTZ,TRIM4# |
1 | ||
| 71876-30060B1 |
JZS155..SED..ROY;GS151,JZS151,153,LS151..ROY,ROYEX,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 71876-30070E0 |
JZS155..SED..ROY;JZS151,LS151..ROY ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 71876-30070B0 |
JZS155..SED..ROY;JZS151,LS151..ROY ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71876-30070E0 |
JZS155..ROYT;JZS155..SED..ROY;JZS151,LS151..ROY,ROYT ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-30060E0 |
JZS155..ROYT;JZS155..SED..ROY;GS151,JZS151,153,LS151 QUARTZ,TRIM4# |
1 | ||
| 71876-30060B1 |
JZS155..SED..ROY;GS151,JZS151,153,LS151..ROY,ROYEX,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 71876-30070E0 |
JZS155..SED..ROY;JZS151,LS151..ROY ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 71876-30070B0 |
JZS155..SED..ROY;JZS151,LS151..ROY ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71876-30070E0 |
JZS155..ROYT;JZS155..SED..ROY;JZS151,LS151..ROY,ROYT ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-30120 |
JZS155..ROYT;JZS155..SED..ROY;GS151,JZS151,153,LS151 |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-30010 |
JZS155..ROYT;JZS155..SED..ROY;GS151,JZS151,LS151..HTWC,TDE,TWC |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-30010 |
JZS151,155,LS151..ROY,ROYG,ROYT |
1 | ||
| 72020-30040 |
JZS151,155,LS151..ROY,ROYG,ROYT |
1 | ||
| 72020-30010 |
JZS151,155,LS151..ROY,ROYG |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-20130E2 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 72123-20130B3 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-20130E2 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 72123-20130B3 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-22010 |
JZS15#,LS151..ROY,ROYG,ROYT |
1 | ||
| 72126 - COVER, SEAT TRACK LOCK PLATE, NO.2 | ||||
| 72126-22010 |
JZS15#,LS151..ROY,ROYG,ROYT |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72127-30060E0 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 72127-30060B1 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72127-30060E0 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 72127-30060B1 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-30050E0 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 72138-30050B1 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-30050E0 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 72138-30050B1 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-30060B1 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 72158-30060E0 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-30060B1 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 72158-30060E0 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 72206C - HOUSING SUB-ASSY, POWER SEAT, NO.2 | ||||
| 72206-30050 |
JZS151,155,LS151..ROY,ROYG |
2 | ||
| 72206-30050 |
JZS151,155,LS151..ROY,ROYG,ROYT |
2 | ||
| 72206C - HOUSING SUB-ASSY, POWER SEAT, NO.2 | ||||
| 72206-30050 |
JZS151,155,LS151..ROY,ROYG |
2 | ||
| 72206-30050 |
JZS151,155,LS151..ROY,ROYG,ROYT |
2 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-30160 |
JZS155..ROYT;JZS155..SED..ROY;GS151,JZS151,LS151 |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-30070 |
JZS155..ROYT;JZS155..SED..ROY;GS151,JZS151,153,LS151 |
1 | ||
| 72501-22030 |
JZS155..ROYT;JZS155..SED..ROY;JZS151,LS151..ROY,ROYT ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 72501-22030 |
JZS155..SED..ROY;JZS151,LS151..ROY ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-30070 |
JZS155..ROYT;JZS155..SED..ROY;GS151,JZS151,153,LS151 |
1 | ||
| 72501-22030 |
JZS155..ROYT;JZS155..SED..ROY;JZS151,LS151..ROY,ROYT ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 72501-22030 |
JZS155..SED..ROY;JZS151,LS151..ROY ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-12050B2 |
JZS155..SED..ROY;GS151,JZS151,153,157,LS151..ROY,ROYEX,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 72526-12050E1 |
JZS155..ROYT;JZS155..SED..ROY;GS151,JZS151,153,157,LS151 QUARTZ,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-10772 | ||||
| 90167-40044 | ||||
| 90168-40124 | ||||
| 91511-60816 | ||||
| 91621-60814 | ||||
| 93249-54006 | ||||
| 93560-54020 | ||||
| Linked diagrams | ||||
| 8513 | ||||
ILLUST NO. 1 OF 2(9508- )
ｱﾘ(ｻｲﾄﾞ ｴｱ ﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3F220B0 |
JZS151,155,LS151..ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ｼ-ﾄ = TYPE B-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71071-3F220E0 |
JZS151,155,LS151..ROY,ROYG,ROYT ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71071-3F230B5 |
JZS151..ROYEX;GS151,LS151..ROYEX,SALEX;JZS151,155,LS151..SED..ROY ｼ-ﾄ = TYPE B-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71071-3F230E5 |
JZS151..ROYEX,ROYT;JZS151,155,LS151..SED..ROY;GS151,JZS155,LS151..ROYEX,ROYT,SALEX ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71071-3F310B0 |
GS151..LPGTE..NOB;GS151,JZS151,LS151..ROYEX,SALEX ｼ-ﾄ = TYPE D-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71071-3F310E0 |
GS151..LPGTE..NOB;GS151,JZS151,LS151..ROYEX,SALEX ｼ-ﾄ = TYPE D-*104,ANTELOPE,TRIM4# |
1 | ||
| 71071-3F230B5 |
GS151,JZS151..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM1# |
1 | ||
| 71071-3K070B0 |
GS151,JZS151..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM17 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-3A520E0 |
JZS151,155,LS151..ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71072-3A550E0 |
GS151..LPGTE..NOB;GS151,JZS151,LS151..ROYEX,SALEX ｼ-ﾄ = TYPE D-*104,ANTELOPE,TRIM4# |
1 | ||
| 71072-3A550B0 |
GS151..LPGTE..NOB;GS151,JZS151,LS151..ROYEX,SALEX ｼ-ﾄ = TYPE D-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71072-3A530B9 |
JZS155..SED..ROY;GS151..LPGTE..NOB;GS151..ROY,ROYEX,SALEX;JZS151,LS151..ROY,ROYEX ｼ-ﾄ = TYPE B-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71072-3A520B0 |
JZS151,155,LS151..ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ｼ-ﾄ = TYPE B-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71072-3A530E9 |
JZS155..SED..ROY;GS151..ROY,ROYEX,SALEX;JZS151,LS151..ROY,ROYEX,ROYT;GS151,JZS155..(ROYT,SPDLX)..(LPGTE,TWC) ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71072-3A530B9 |
GS151,JZS151..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM1# |
1 | ||
| 71072-3A520E0 |
JZS151,155,LS151..ROY,ROYG,ROYT ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71072-3F370B0 |
GS151,JZS151..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM17 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3A870B0 |
JZS151,153..ROY,ROYEX;GS151,JZS155,LS151..(ROY,ROYEX,ROYG,SALEX)..(HTWC,TDE,TWC) ｼ-ﾄ = TYPE B-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71073-3A870E0 |
JZS151,153..ROY,ROYEX,ROYT;GS151,JZS155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC) ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71073-3F030B0 |
GS151..LPGTE..NOB;GS151,JZS151,153,LS151..ROYEX,SALEX ｼ-ﾄ = TYPE D-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71073-3A870B0 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM1# |
2 | ||
| 71073-3F030E0 |
GS151..LPGTE..NOB;GS151,JZS151,153,LS151..ROYEX,SALEX ｼ-ﾄ = TYPE D-*104,ANTELOPE,TRIM4# |
1 | ||
| 71073-3F530B0 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM17 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-3A870B0 |
GS151..LPGTE..NOB;GS151..ROY,ROYEX,SALEX;JZS15#,LS151..ROY,ROYEX,ROYG ｼ-ﾄ = TYPE B-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71073-3F030B0 |
GS151,JZS151,153,LS151..ROYEX,SALEX TYPE D-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71073-3A870E0 |
GS151..LPGTE..NOB;GS151..ROY,ROYEX,SALEX;JZS15#,LS151..ROY,ROYEX,ROYG,ROYT ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71073-3A870B0 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM1# |
2 | ||
| 71074-3A540B0 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM17 |
1 | ||
| 71073-3F030E0 |
GS151,JZS151,153,LS151..ROYEX,SALEX TYPE D-*104,ANTELOPE,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-3F400B0 |
JZS151,155,LS151..ROY,ROYG ***,ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ｼ-ﾄ = TYPE B-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71410-3K090E0 |
GS151..LPGTE..NOB;GS151,JZS151,LS151..ROYEX,SALEX ***,ｼ-ﾄ = TYPE D-*104,ANTELOPE,TRIM4# |
1 | ||
| 71410-3K090B0 |
GS151..LPGTE..NOB;GS151,JZS151,LS151..ROYEX,SALEX ***,ｼ-ﾄ = TYPE D-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71410-3F440E5 |
LS151..ROYEX;GS151..ROY,ROYEX,SALEX;JZS151,155,LS151..SED..ROY;GS151,JZS151,155..(ROYEX,ROYT,SPDLX)..(LPGTE,TWC) ***,ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71410-3F440B5 |
LS151..ROYEX;GS151..ROY,ROYEX,SALEX;JZS151,155,LS151..SED..ROY;GS151,JZS151..(ROYEX,SPDLX)..(LPGTE,TWC) ***,ｼ-ﾄ = TYPE B-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71410-3F400E0 |
JZS151,155,LS151..ROY,ROYG,ROYT ***,ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71410-3F440B5 |
GS151,JZS151..ROYEX ***,ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM1# |
1 | ||
| 71410-3K250B0 |
GS151,JZS151..ROYEX ***,ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM17 |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-3A580B0 |
JZS151,155,LS151..ROY,ROYG ***,ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ｼ-ﾄ = TYPE B-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71420-3A580E0 |
JZS151,155,LS151..ROY,ROYG ***,ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71420-3A590E9 |
JZS155..SED..ROY;GS151..ROY,ROYEX,SALEX;JZS151,LS151..ROY,ROYEX,ROYT;GS151,JZS155..(ROYT,SPDLX)..(LPGTE,TWC) ***,ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71420-3A590B9 |
JZS155..SED..ROY;GS151..LPGTE..NOB;GS151..ROY,ROYEX,SALEX;JZS151,LS151..ROY,ROYEX ***,ｼ-ﾄ = TYPE B-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71420-3A610E0 |
GS151..LPGTE..NOB;GS151,JZS151,LS151..ROYEX,SALEX ***,ｼ-ﾄ = TYPE D-*104,ANTELOPE,TRIM4# |
1 | ||
| 71420-3A610B0 |
GS151..LPGTE..NOB;GS151,JZS151,LS151..ROYEX,SALEX ***,ｼ-ﾄ = TYPE D-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71420-3F420B0 |
GS151,JZS151..ROYEX ***,ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM17 |
1 | ||
| 71420-3A590B9 |
GS151,JZS151..ROYEX ***,ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY |
1 | ||
| 71420-3A580E0 |
JZS151,155,LS151..ROY,ROYG,ROYT ***,ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-3F850E0 |
JZS15#,LS151..HT..(ROY,ROYG) ***,ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71430-3K410E0 |
GS151,JZS151,153,LS151..ROYEX ***,ｼ-ﾄ = TYPE D-*104,ANTELOPE,TRIM4# |
1 | ||
| 71430-3K410B0 |
GS151,JZS151,153,LS151..ROYEX ***,ｼ-ﾄ = TYPE D-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71430-3K380E3 |
JZS151,153..ROYEX;GS151,LS151..ROYEX,SALEX;JZS151,155,LS151..SED..ROY ***,ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71430-3K380B3 |
JZS151,153..ROYEX;GS151,LS151..ROYEX,SALEX;JZS151,155,LS151..SED..ROY ***,ｼ-ﾄ = TYPE B-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71430-3F850B0 |
JZS15#,LS151..HT..(ROY,ROYG) ***,ｼ-ﾄ = TYPE B-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71430-3K380B3 |
GS151,JZS151,153..ROYEX ***,ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM1# |
1 | ||
| 71040-30070E0 |
GS151,JZS151,153,LS151..ROYEX ***,ｱﾘ(*80,ｻｲﾄﾞ) & ｼ-ﾄ = TYPE D-*104,ANTELOPE,TRIM4# |
1 | ||
| 71040-30040B0 |
GS151,JZS151,153..ROYEX ***,ﾘﾐﾃﾂﾄﾞ *(L),DK. BLUE GRAY,TRIM17 |
1 | ||
| 71040-30100B0 |
JZS155..SED..ROY;JZS151,157,LS151..ROY;JZS153,155..HT..(ROY,ROYG) ***,ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ｼ-ﾄ = TYPE B-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71040-30100E0 |
JZS155..SED..ROY;JZS151,157,LS151..ROY;JZS153,155..HT..(ROY,ROYG) ***,ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71040-30070B0 |
GS151,JZS151,153,LS151..ROYEX ***,ｱﾘ(*80,ｻｲﾄﾞ) & ｼ-ﾄ = TYPE D-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71430-3K410B1 |
GS151,JZS151,153,LS151..ROYEX ***,ｼ-ﾄ = TYPE D-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71430-3K410E1 |
GS151,JZS151,153,LS151..ROYEX ***,ｼ-ﾄ = TYPE D-*104,ANTELOPE,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-3F770B7 |
JZS155..SED..ROY;JZS151,153..ROY,ROYEX;GS151,LS151..(ROY,ROYEX,SALEX)..(HTWC,TDE) ***,ｼ-ﾄ = TYPE B-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71440-3F720E0 |
JZS151,LS151..HT..ROY ***,ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71440-3F830E0 |
GS151,JZS151,153,LS151..ROYEX ***,ｼ-ﾄ = TYPE D-*104,ANTELOPE,TRIM4# |
1 | ||
| 71440-3F830B0 |
GS151,JZS151,153,LS151..ROYEX ***,ｼ-ﾄ = TYPE D-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71440-3F720B0 |
JZS151,LS151..HT..ROY ***,ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ｼ-ﾄ = TYPE B-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71440-3F770E7 |
JZS155..SED..ROY;JZS151,153..ROY,ROYEX;GS151,LS151..(ROY,ROYEX,SALEX)..(HTWC,TDE) ***,ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71440-3F770B7 |
GS151,JZS151,153..ROYEX ***,ﾘﾐﾃﾂﾄﾞ *(L),DK. BLUE GRAY,TRIM1# |
1 | ||
| 71440-3F830B2 |
GS151,JZS151,153,LS151..ROYEX ***,ｼ-ﾄ = TYPE D-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71440-3F830E2 |
GS151,JZS151,153,LS151..ROYEX ***,ｼ-ﾄ = TYPE D-*104,ANTELOPE,TRIM4# |
1 | ||
| 71440-3K700B0 |
JZS151,LS151..HT..ROY ***,ｱﾘ(*80,ｻｲﾄﾞ & ﾊﾟﾜ-ｼｰﾄ) & ｼ-ﾄ = TYPE B-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71440-3K710B0 |
GS151,JZS151,153..ROYEX ***,ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM17 |
1 | ||
| 71440-3K740E0 |
GS151,JZS151,153,LS151..ROYEX ***,ｱﾘ(*80,ｻｲﾄﾞ) & ｼ-ﾄ = TYPE D-*104,ANTELOPE,TRIM4# |
1 | ||
| 71440-3K770E0 |
JZS151,LS151..HT..ROY ***,ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71440-3K740B0 |
GS151,JZS151,153,LS151..ROYEX ***,ｱﾘ(*80,ｻｲﾄﾞ) & ｼ-ﾄ = TYPE D-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71440-3K700E0 |
JZS151,LS151..HT..ROY ***,ｱﾘ(*80,ｻｲﾄﾞ & ﾊﾟﾜ-ｼｰﾄ) & ｼ-ﾄ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 71440-3K770B0 |
JZS151,LS151..HT..ROY ***,ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ｼ-ﾄ = TYPE B-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-30800 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-30560 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 71512-30460 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-30630 |
GS151;JZS151,155,LS151..SED..ROY;JZS151,155,LS151..ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 71610-30630 |
GS151;JZS151,155,LS151..SED..ROY;JZS151,LS151..ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 71610-30620 |
JZS155..SED..ROYG;JZS151,155,LS151..HT..(ROY,ROYG) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-30280 |
JZS155..SED;JZS155..ROYT;JZS151,LS151..ROY,ROYT ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71620-30290 |
JZS155..ROYT;JZS155..SED..ROY;GS151,JZS151,LS151 |
1 | ||
| 71620-30280 |
JZS155..SED;JZS151,LS151..ROY ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-30720B0 |
GS151..ROYEX,SALEX;JZS15#,LS151..HT..(ROY,ROYEX,ROYG) ｼ-ﾄ = TYPE B-*104,BLUE GRAY,TRIM1# |
2 | ||
| 71910-30720E0 |
GS151..ROYEX,SALEX;JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) ｼ-ﾄ = TYPE B-*104,QUARTZ,TRIM4# |
2 | ||
| 71910-3A090B0 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),BLUE GRAY,TRIM17 |
2 | ||
| 71910-30720B0 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM1# |
2 | ||
| 71910-3A020E0 |
GS151..LPGTE..NOB;GS151,JZS151,153,LS151..ROYEX ｼ-ﾄ = TYPE D-*104,QUARTZ,TRIM4# |
2 | ||
| 71910-3A020B0 |
GS151..LPGTE..NOB;GS151,JZS151,153,LS151..ROYEX ｼ-ﾄ = TYPE D-*104,BLUE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-30100B1 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71930-30100E0 |
GS151,JZS15#,LS151,UZS15# ﾛｯｸ付,QUARTZ,TRIM4# |
2 | ||
| 71931-30020B1 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71931-30020E0 |
GS151,JZS15#,LS151,UZS15# ﾛｯｸ無,QUARTZ,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-30100B1 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71930-30100E0 |
GS151,JZS15#,LS151,UZS15# ﾛｯｸ付,QUARTZ,TRIM4# |
2 | ||
| 71931-30020B1 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71931-30020E0 |
GS151,JZS15#,LS151,UZS15# ﾛｯｸ無,QUARTZ,TRIM4# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30190 |
JZS155..SED..ROYG;JZS15#,LS151..HT..(ROY,ROYG) |
1 | ||
| 72750-30180 |
GS151;JZS151,155,LS151..SED..ROY;JZS15#,LS151..ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 72750-30180 |
GS151;JZS151,153,155,LS151..SED..ROY;JZS151,153,LS151..ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 72750-30191 |
JZS151,153,155,LS151..ROY,ROYG,ROYT ｱﾘ(ｳﾝﾃﾝｾｷ ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30190 |
JZS155..SED..ROYG;JZS15#,LS151..HT..(ROY,ROYG) |
1 | ||
| 72750-30180 |
GS151;JZS151,155,LS151..SED..ROY;JZS15#,LS151..ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 72750-30180 |
GS151;JZS151,153,155,LS151..SED..ROY;JZS151,153,LS151..ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 72750-30191 |
JZS151,153,155,LS151..ROY,ROYG,ROYT ｱﾘ(ｳﾝﾃﾝｾｷ ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-12010B2 |
GS151;JZS151,153,155,LS151..SED..ROY;JZS151,153,LS151..ROYEX,SALEX,SPDLX BLUE GRAY,TRIM1# |
1 | ||
| 72791-12010E1 |
GS151;JZS151,155,LS151..SED..ROY;JZS15#,LS151..ROYEX,ROYT,SALEX,SPDLX QUARTZ,TRIM4# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01006 |
GS151;JZS151,155,LS151..SED..ROY;JZS15#,LS151..ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 90520-01006 |
GS151;JZS151,153,155,LS151..SED..ROY;JZS151,153,LS151..ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 74617D - PLUG, ASSIST GRIP | ||||
| 74617-30020B3 |
GS151..LPGTE..NOB;GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX BLUE GRAY,TRIM1# |
4 | ||
| 74617-30020E0 |
GS151..LPGTE..NOB;GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX QUARTZ,TRIM4# |
4 | ||
| 74617-30020B3 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM1# |
4 | ||
| 74617-30020B3 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),BLUE GRAY,TRIM17 |
2 | ||
| 74617D - PLUG, ASSIST GRIP | ||||
| 74617-30020B3 |
GS151..LPGTE..NOB;GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX BLUE GRAY,TRIM1# |
4 | ||
| 74617-30020E0 |
GS151..LPGTE..NOB;GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX QUARTZ,TRIM4# |
4 | ||
| 74617-30020B3 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM1# |
4 | ||
| 74617-30020B3 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),BLUE GRAY,TRIM17 |
2 | ||
| 74620A - GRIP ASSY, ASSIST, REAR | ||||
| 74620-30050E0 |
GS151..LPGTE..NOB;GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX QUARTZ,TRIM4# |
2 | ||
| 74620-30050B2 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),DK.BLUE GRAY,TRIM1# |
2 | ||
| 74620-30050B2 |
GS151..LPGTE..NOB;GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX BLUE GRAY,TRIM1# |
2 | ||
| 74620-30050B2 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),BLUE GRAY,TRIM17 |
2 | ||
| 74671C - SUPPORT, ASSIST GRIP | ||||
| 74671-30010 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L) |
4 | ||
| 74671-30010 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L) |
2 | ||
| 74671-30010 |
GS151..LPGTE..NOB;GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX |
4 | ||
| 74671C - SUPPORT, ASSIST GRIP | ||||
| 74671-30010 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L) |
4 | ||
| 74671-30010 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L) |
2 | ||
| 74671-30010 |
GS151..LPGTE..NOB;GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX |
4 | ||
| Common parts | ||||
| 90159-60084 | ||||
| 90980-11863 | ||||
| 91116-50616 | ||||
| 93540-55016 | ||||
(9508- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
