JZS151-ATPSF (1995)
Toyota Crown/Crown Majesta

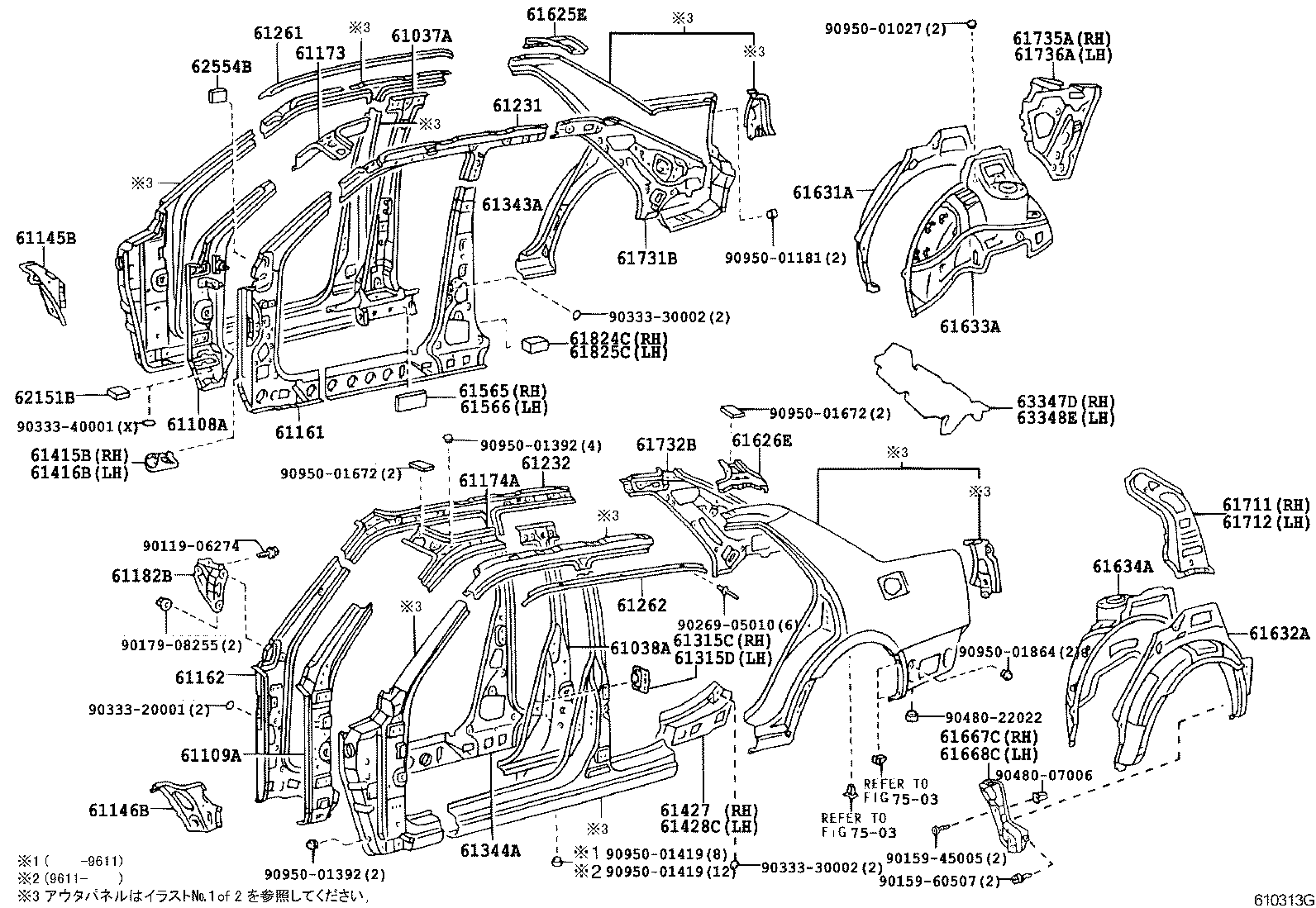

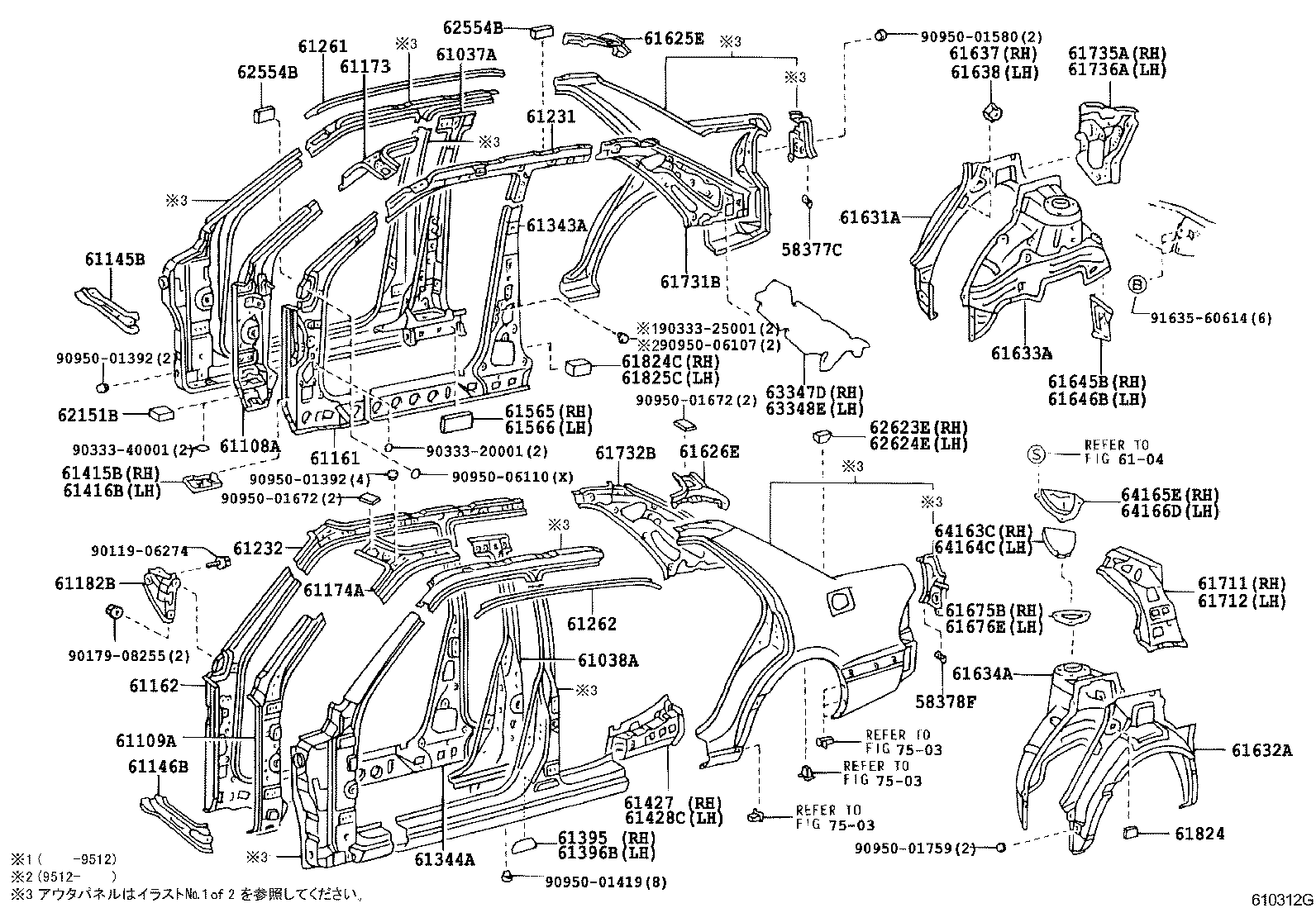

ILLUST NO. 2 OF 2(9508-9707)HT..ROY,ROYEX,ROYG,ROYT
ｲﾝﾅﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58377C - RETAINER, LOWER BACK TRIM, RH | ||||
| 58377-22020 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 58377-22020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58378F - RETAINER, LOWER BACK TRIM, LH | ||||
| 58377-22020 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 58377-22020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-30050 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61037-30051 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-30050 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61038-30051 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-30901 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61108-30070 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-30070 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61109-30901 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61146-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-30220 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61161-30250 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-30210 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61162-30240 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61173 - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER | ||||
| 61173-30090 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61173-30110 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61174A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH | ||||
| 61174-30090 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61174-30110 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61182B - BRACKET, INSTRUMENT PANEL SIDE, NO.1 LH | ||||
| 61182-30040 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-30310 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61231-30330 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-30310 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61232-30330 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-30190 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-30190 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-30150 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61343-30170 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-30160 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61344-30180 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61395 - SEAL, CENTER BODY PILLAR, RH | ||||
| 61395-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61395-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61396B - SEAL, CENTER BODY PILLAR, LH | ||||
| 61395-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61395-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61415B - EXTENSION, ROCKER, OUTER RH | ||||
| 61415-30050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61416B - EXTENSION, ROCKER, OUTER LH | ||||
| 61416-30040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61427 - REINFORCEMENT, ROCKER PANEL, NO.5 RH | ||||
| 61427-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61427-30040 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61428C - REINFORCEMENT, ROCKER PANEL, NO.5 LH | ||||
| 61428-30090 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61428-30070 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61565 - PLATE, NO.5 PILLAR, OUTER RH | ||||
| 61565-30010 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61566 - PLATE, NO.5 PILLAR, OUTER LH | ||||
| 61565-30010 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61625E - EXTENSION, QUARTER PANEL, INNER REAR RH | ||||
| 61625-30020 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61626E - EXTENSION, QUARTER PANEL, INNER REAR LH | ||||
| 61626-30020 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-30130 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-30130 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-30900 |
JZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG ｱﾘ(ﾘﾔ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 61607-30902 |
GS151,JZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(ROY,ROYEX,ROYT) |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-30902 |
GS151,JZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(ROY,ROYEX,ROYT) |
1 | ||
| 61608-30900 |
JZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG ｱﾘ(ﾘﾔ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 61637 - BRACE, QUARTER WHEEL HOUSE, RH | ||||
| 61637-30110 |
JZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG |
1 | ||
| 61638 - BRACE, QUARTER WHEEL HOUSE, LH | ||||
| 61637-30110 |
JZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-30040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-30040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61675B - REINFORCEMENT, REAR SUSPENSION SPRING SUPPORT | ||||
| 61675-22040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61676E - REINFORCEMENT, REAR SUSPENSION SPRING SUPPORT | ||||
| 61675-22040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-30070 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-30070 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-30150 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-30160 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-30010 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-30010 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61825-22050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 61825-22050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
8 | ||
| 61824C - PAD, NOISE SHUTTER, NO.1 | ||||
| 61824-30060 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61824-30050 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61825C - PAD, NOISE SHUTTER, NO.2 | ||||
| 61824-30060 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61824-30050 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-30070 |
GS151,JZS15#,LS151,UZS15# |
4 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-30010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 62554-30010 |
GS151,JZS15#,LS151,UZS15#..HT |
2 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-30010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 62554-30010 |
GS151,JZS15#,LS151,UZS15#..HT |
2 | ||
| 62623E - PAD, QUARTER WHEEL HOUSE, INNER REAR RH | ||||
| 62623-30010 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 62624E - PAD, QUARTER WHEEL HOUSE, INNER REAR LH | ||||
| 62624-30010 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 63347D - PAD, ROOF SIDE RAIL SILENCER, RH | ||||
| 63347-30020 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 63348E - PAD, ROOF SIDE RAIL SILENCER, LH | ||||
| 63348-30030 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 64163C - COVER, BACK CORNER, RH | ||||
| 64163-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 64164C - COVER, BACK CORNER, LH | ||||
| 64164-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 64165E - COVER, UPPER BACK PANEL HOLE, NO.1 | ||||
| 64165-30050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 64166D - COVER, UPPER BACK PANEL HOLE, NO.2 | ||||
| 64166-30040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| Common parts | ||||
| 90119-06274 | ||||
| 90179-08255 | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90333-40001 | ||||
| 90950-01392 | ||||
| 90950-01419 | ||||
| 90950-01580 | ||||
| 90950-01672 | ||||
| 90950-01759 | ||||
| 90950-06107 | ||||
| 90950-06110 | ||||
| 91635-60614 | ||||
| Linked diagrams | ||||
| 6104 | ||||
| 7503 | ||||

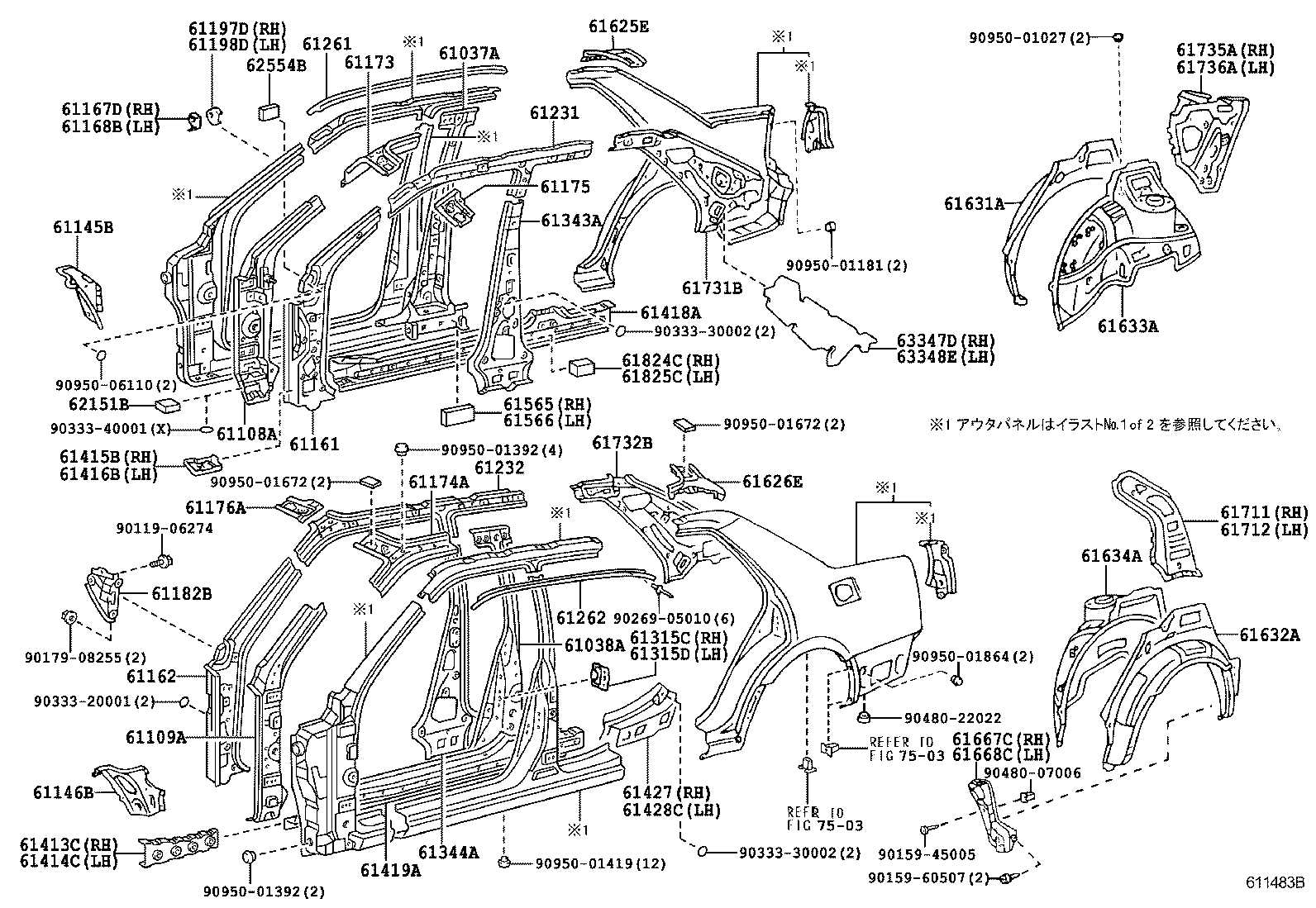

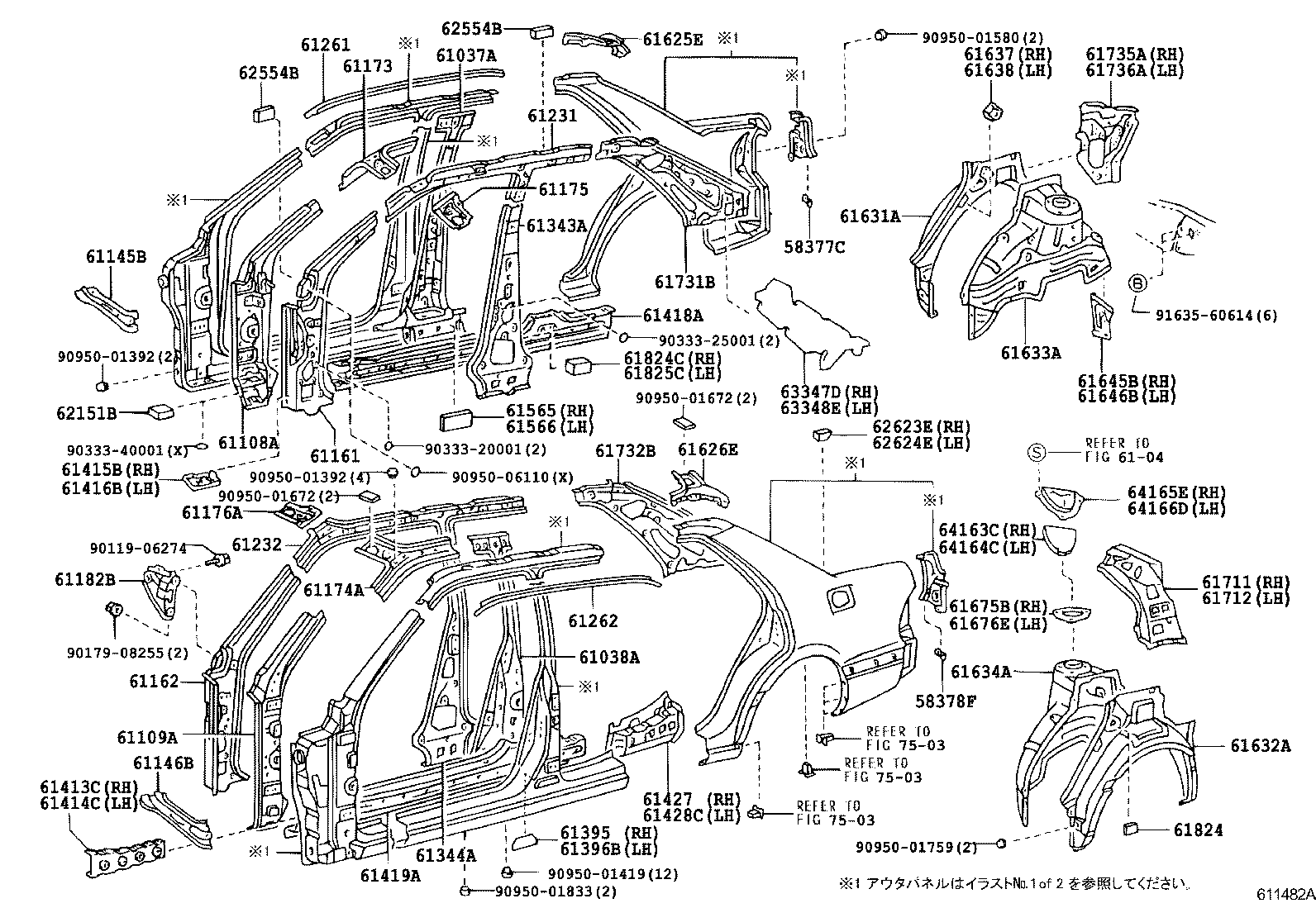

ILLUST NO. 2 OF 2(9508-9707)A,C,E,F
ｲﾝﾅﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-30050 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61037-30051 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-30050 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61038-30051 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-30901 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61108-30070 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-30070 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61109-30901 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61146-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-30220 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61161-30250 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-30210 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61162-30240 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61173 - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER | ||||
| 61173-30090 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61173-30110 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61174A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH | ||||
| 61174-30090 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61174-30110 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61182B - BRACKET, INSTRUMENT PANEL SIDE, NO.1 LH | ||||
| 61182-30040 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-30310 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61231-30330 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-30310 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61232-30330 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-30190 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-30190 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-30150 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61343-30170 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-30160 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61344-30180 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61415B - EXTENSION, ROCKER, OUTER RH | ||||
| 61415-30050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61416B - EXTENSION, ROCKER, OUTER LH | ||||
| 61416-30040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61427 - REINFORCEMENT, ROCKER PANEL, NO.5 RH | ||||
| 61427-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61427-30040 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61428C - REINFORCEMENT, ROCKER PANEL, NO.5 LH | ||||
| 61428-30090 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61428-30070 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61565 - PLATE, NO.5 PILLAR, OUTER RH | ||||
| 61565-30010 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61566 - PLATE, NO.5 PILLAR, OUTER LH | ||||
| 61565-30010 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61625E - EXTENSION, QUARTER PANEL, INNER REAR RH | ||||
| 61625-30020 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61626E - EXTENSION, QUARTER PANEL, INNER REAR LH | ||||
| 61626-30020 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-30130 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-30130 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-30900 |
JZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG ｱﾘ(ﾘﾔ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 61607-30902 |
GS151,JZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(ROY,ROYEX,ROYT) |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-30902 |
GS151,JZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(ROY,ROYEX,ROYT) |
1 | ||
| 61608-30900 |
JZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG ｱﾘ(ﾘﾔ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-30070 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-30070 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-30150 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-30160 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-30010 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-30010 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61824C - PAD, NOISE SHUTTER, NO.1 | ||||
| 61824-30060 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61824-30050 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61825C - PAD, NOISE SHUTTER, NO.2 | ||||
| 61824-30060 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61824-30050 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-30070 |
GS151,JZS15#,LS151,UZS15# |
4 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-30010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 62554-30010 |
GS151,JZS15#,LS151,UZS15#..HT |
2 | ||
| 63347D - PAD, ROOF SIDE RAIL SILENCER, RH | ||||
| 63347-30020 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 63348E - PAD, ROOF SIDE RAIL SILENCER, LH | ||||
| 63348-30030 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| Common parts | ||||
| 90119-06274 | ||||
| 90159-45005 | ||||
| 90159-60507 | ||||
| 90179-08255 | ||||
| 90269-05010 | ||||
| 90333-20001 | ||||
| 90333-30002 | ||||
| 90333-40001 | ||||
| 90480-07006 | ||||
| 90480-22022 | ||||
| 90950-01027 | ||||
| 90950-01181 | ||||
| 90950-01392 | ||||
| 90950-01419 | ||||
| 90950-01672 | ||||
| 90950-01864 | ||||
| Linked diagrams | ||||
| 7503 | ||||
ILLUST NO. 2 OF 2(9707- )HT..ROY,ROYEX,ROYG,ROYT
ｲﾝﾅﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58377C - RETAINER, LOWER BACK TRIM, RH | ||||
| 58377-22020 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 58377-22020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58378F - RETAINER, LOWER BACK TRIM, LH | ||||
| 58377-22020 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 58377-22020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-30050 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61037-30051 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-30050 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61038-30051 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-30901 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61108-30070 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-30070 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61109-30901 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61146-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-30220 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61161-30250 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-30210 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61162-30240 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61173 - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER | ||||
| 61173-30090 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61173-30110 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61174A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH | ||||
| 61174-30090 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61174-30110 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61175 - REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH | ||||
| 61175-30070 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61176A - REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH | ||||
| 61176-30060 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61182B - BRACKET, INSTRUMENT PANEL SIDE, NO.1 LH | ||||
| 61182-30040 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-30310 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61231-30330 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-30310 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61232-30330 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-30190 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-30190 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-30150 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61343-30170 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-30160 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61344-30180 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61395 - SEAL, CENTER BODY PILLAR, RH | ||||
| 61395-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61395-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61396B - SEAL, CENTER BODY PILLAR, LH | ||||
| 61395-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61395-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61413-30030 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH | ||||
| 61414-30030 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61415B - EXTENSION, ROCKER, OUTER RH | ||||
| 61415-30050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61416B - EXTENSION, ROCKER, OUTER LH | ||||
| 61416-30040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61418A - REINFORCEMENT, ROCKER PANEL, RH | ||||
| 61418-30060 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61419A - REINFORCEMENT, ROCKER PANEL, LH | ||||
| 61419-30060 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61427 - REINFORCEMENT, ROCKER PANEL, NO.5 RH | ||||
| 61427-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61427-30040 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61428C - REINFORCEMENT, ROCKER PANEL, NO.5 LH | ||||
| 61428-30090 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61428-30070 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61565 - PLATE, NO.5 PILLAR, OUTER RH | ||||
| 61565-30010 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61566 - PLATE, NO.5 PILLAR, OUTER LH | ||||
| 61565-30010 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61625E - EXTENSION, QUARTER PANEL, INNER REAR RH | ||||
| 61625-30020 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61626E - EXTENSION, QUARTER PANEL, INNER REAR LH | ||||
| 61626-30020 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-30130 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-30130 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-30900 |
JZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG ｱﾘ(ﾘﾔ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 61607-30902 |
GS151,JZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(ROY,ROYEX,ROYT) |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-30902 |
GS151,JZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(ROY,ROYEX,ROYT) |
1 | ||
| 61608-30900 |
JZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG ｱﾘ(ﾘﾔ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 61637 - BRACE, QUARTER WHEEL HOUSE, RH | ||||
| 61637-30110 |
JZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG |
1 | ||
| 61638 - BRACE, QUARTER WHEEL HOUSE, LH | ||||
| 61637-30110 |
JZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-30040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-30040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61675B - REINFORCEMENT, REAR SUSPENSION SPRING SUPPORT | ||||
| 61675-22040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61676E - REINFORCEMENT, REAR SUSPENSION SPRING SUPPORT | ||||
| 61675-22040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-30070 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-30070 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-30150 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-30160 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-30010 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-30010 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61825-22050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 61825-22050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
8 | ||
| 61824C - PAD, NOISE SHUTTER, NO.1 | ||||
| 61824-30060 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61824-30050 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61825C - PAD, NOISE SHUTTER, NO.2 | ||||
| 61824-30060 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61824-30050 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-30070 |
GS151,JZS15#,LS151,UZS15# |
4 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-30010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 62554-30010 |
GS151,JZS15#,LS151,UZS15#..HT |
2 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-30010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 62554-30010 |
GS151,JZS15#,LS151,UZS15#..HT |
2 | ||
| 62623E - PAD, QUARTER WHEEL HOUSE, INNER REAR RH | ||||
| 62623-30010 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 62624E - PAD, QUARTER WHEEL HOUSE, INNER REAR LH | ||||
| 62624-30010 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 63347D - PAD, ROOF SIDE RAIL SILENCER, RH | ||||
| 63347-30020 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 63348E - PAD, ROOF SIDE RAIL SILENCER, LH | ||||
| 63348-30030 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 64163C - COVER, BACK CORNER, RH | ||||
| 64163-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 64164C - COVER, BACK CORNER, LH | ||||
| 64164-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 64165E - COVER, UPPER BACK PANEL HOLE, NO.1 | ||||
| 64165-30050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 64166D - COVER, UPPER BACK PANEL HOLE, NO.2 | ||||
| 64166-30040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| Common parts | ||||
| 90119-06274 | ||||
| 90179-08255 | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90333-40001 | ||||
| 90950-01392 | ||||
| 90950-01419 | ||||
| 90950-01580 | ||||
| 90950-01672 | ||||
| 90950-01759 | ||||
| 90950-01833 | ||||
| 90950-06110 | ||||
| 91635-60614 | ||||
| Linked diagrams | ||||
| 6104 | ||||
| 7503 | ||||
ILLUST NO. 2 OF 2(9707- )A,C,E,F
ｲﾝﾅﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-30050 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61037-30051 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-30050 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61038-30051 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-30901 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61108-30070 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-30070 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61109-30901 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61146-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-30220 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61161-30250 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-30210 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61162-30240 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61173 - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER | ||||
| 61173-30090 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61173-30110 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61174A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH | ||||
| 61174-30090 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61174-30110 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61175 - REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH | ||||
| 61175-30070 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61176A - REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH | ||||
| 61176-30060 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61182B - BRACKET, INSTRUMENT PANEL SIDE, NO.1 LH | ||||
| 61182-30040 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-30310 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61231-30330 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-30310 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61232-30330 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-30190 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-30190 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-30150 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61343-30170 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-30160 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61344-30180 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61413-30030 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH | ||||
| 61414-30030 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61415B - EXTENSION, ROCKER, OUTER RH | ||||
| 61415-30050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61416B - EXTENSION, ROCKER, OUTER LH | ||||
| 61416-30040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61418A - REINFORCEMENT, ROCKER PANEL, RH | ||||
| 61418-30060 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61419A - REINFORCEMENT, ROCKER PANEL, LH | ||||
| 61419-30060 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61427 - REINFORCEMENT, ROCKER PANEL, NO.5 RH | ||||
| 61427-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61427-30040 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61428C - REINFORCEMENT, ROCKER PANEL, NO.5 LH | ||||
| 61428-30090 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61428-30070 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61565 - PLATE, NO.5 PILLAR, OUTER RH | ||||
| 61565-30010 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61566 - PLATE, NO.5 PILLAR, OUTER LH | ||||
| 61565-30010 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61625E - EXTENSION, QUARTER PANEL, INNER REAR RH | ||||
| 61625-30020 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61626E - EXTENSION, QUARTER PANEL, INNER REAR LH | ||||
| 61626-30020 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-30130 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-30130 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-30900 |
JZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG ｱﾘ(ﾘﾔ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 61607-30902 |
GS151,JZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(ROY,ROYEX,ROYT) |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-30902 |
GS151,JZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(ROY,ROYEX,ROYT) |
1 | ||
| 61608-30900 |
JZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG ｱﾘ(ﾘﾔ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-30070 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-30070 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-30150 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-30160 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-30010 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-30010 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61824C - PAD, NOISE SHUTTER, NO.1 | ||||
| 61824-30060 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61824-30050 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61825C - PAD, NOISE SHUTTER, NO.2 | ||||
| 61824-30060 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 61824-30050 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-30070 |
GS151,JZS15#,LS151,UZS15# |
4 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-30010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 62554-30010 |
GS151,JZS15#,LS151,UZS15#..HT |
2 | ||
| 63347D - PAD, ROOF SIDE RAIL SILENCER, RH | ||||
| 63347-30020 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 63348E - PAD, ROOF SIDE RAIL SILENCER, LH | ||||
| 63348-30030 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| Common parts | ||||
| 90119-06274 | ||||
| 90159-45005 | ||||
| 90159-60507 | ||||
| 90179-08255 | ||||
| 90269-05010 | ||||
| 90333-20001 | ||||
| 90333-30002 | ||||
| 90333-40001 | ||||
| 90480-07006 | ||||
| 90480-22022 | ||||
| 90950-01027 | ||||
| 90950-01181 | ||||
| 90950-01392 | ||||
| 90950-01419 | ||||
| 90950-01672 | ||||
| 90950-01864 | ||||
| 90950-06110 | ||||
| Linked diagrams | ||||
| 7503 | ||||

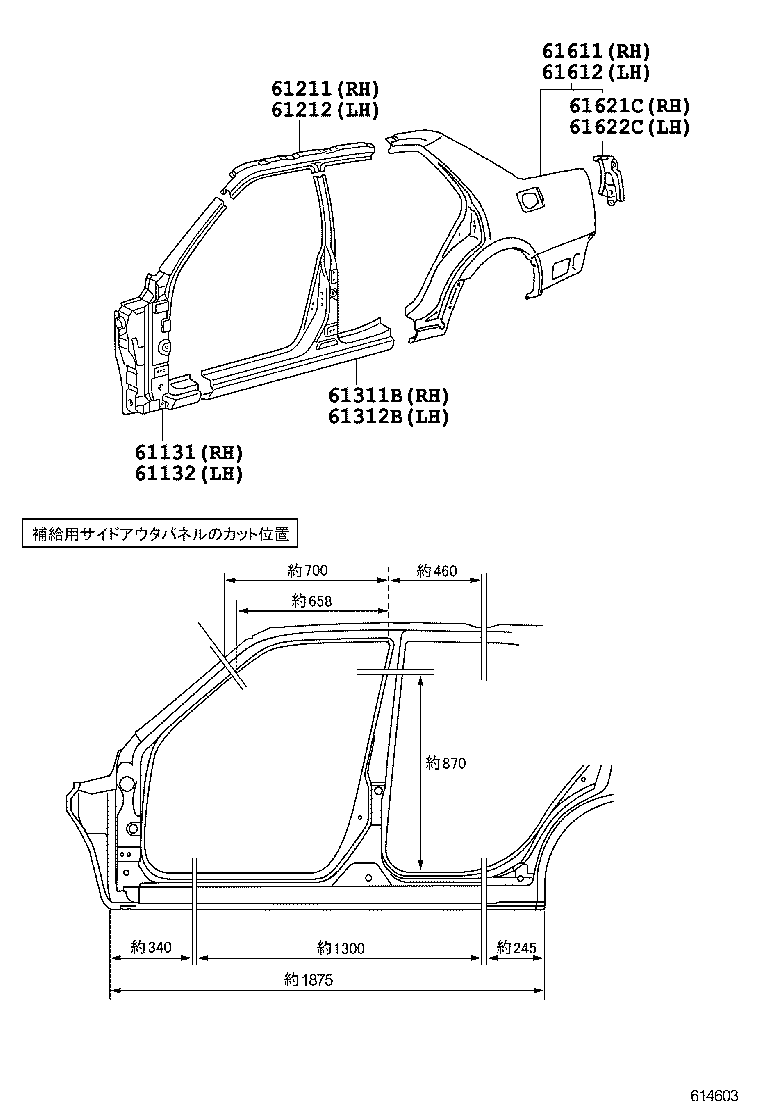

ILLUST NO. 1 OF 2(9508- )
ｱｳﾀﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-30210 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61131-30211 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-30230 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61132-30231 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-30200 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61211-30201 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-30201 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61212-30200 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-30180 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61311-30181 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-30250 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61312-30251 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-30761 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61611-30760 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-3A170 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61612-3A171 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-30160 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-30150 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
