Toyota Crown/crown majesta JZS151 BRAKE MASTER CYLINDER

JZS151-ATPSF (1995)

Toyota Crown/Crown Majesta

Production Aug 1995 - Sep 1999

Engine 1JZGE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

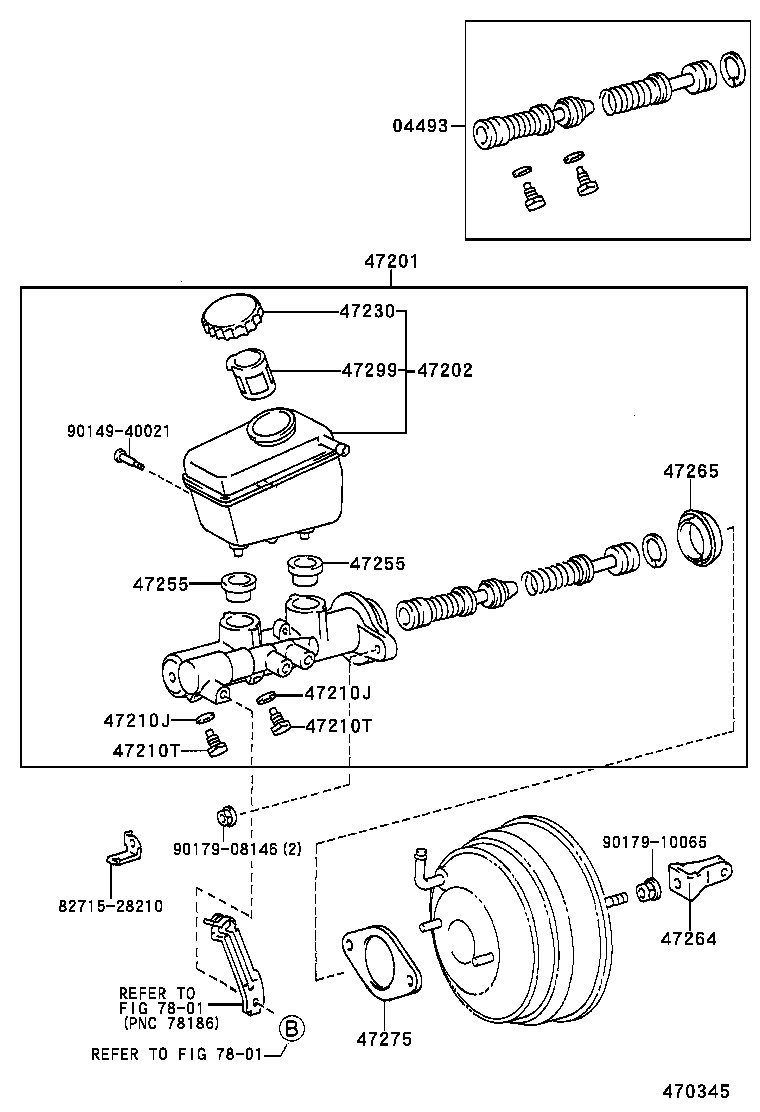

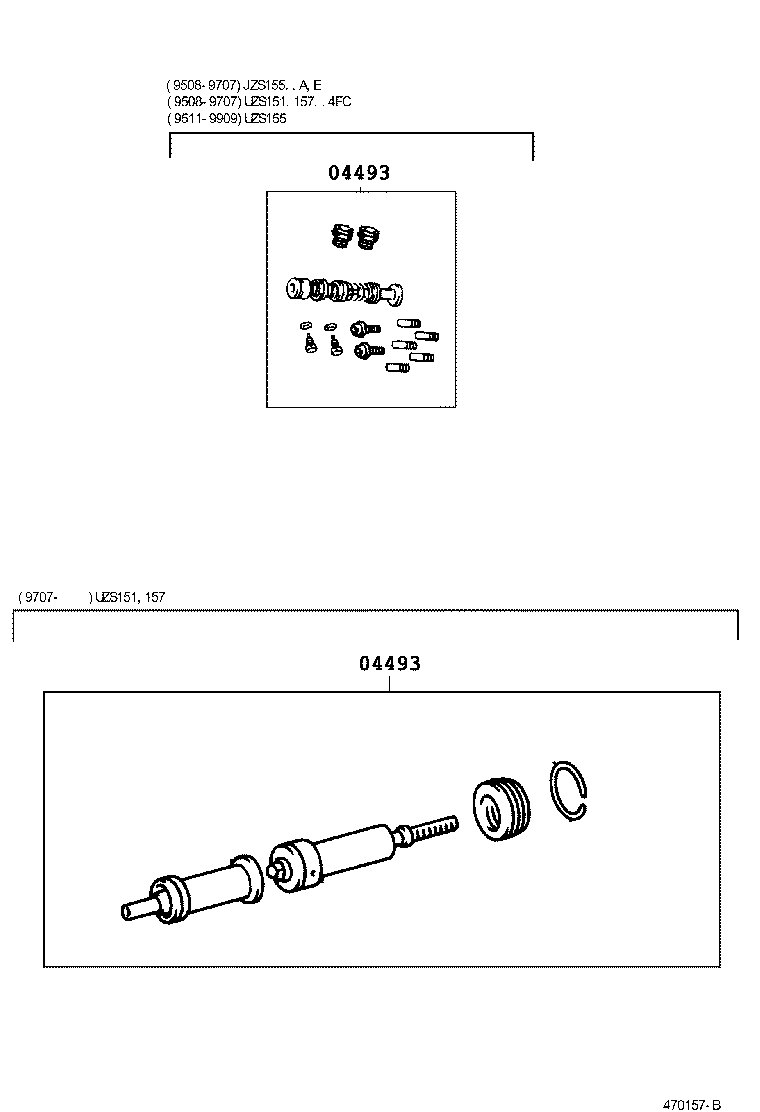

ILLUST NO. 1 OF 2(9508-9707)A,C,E,F ; (9707- )UZS15#

Click highlighted areas on diagram

Part #	Description	Period	Qty
04493 - CYLINDER KIT, BRAKE MASTER
04493-30232	GS151,JZS15#	08/1995 - 07/1997	1
04493-30232	GS151,JZS151,153,157	07/1997 - 09/1999	1
04493 - CYLINDER KIT, BRAKE MASTER
04493-30232	GS151,JZS15#	08/1995 - 07/1997	1
04493-30232	GS151,JZS151,153,157	07/1997 - 09/1999	1

(9508-9707)JZS151,155..ROY,ROYEX,ROYG,ROYT

Click highlighted areas on diagram

ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)

Part #	Description	Period	Qty
04493 - CYLINDER KIT, BRAKE MASTER
04493-30232	GS151,JZS15#	08/1995 - 07/1997	1
04493-30232	GS151,JZS151,153,157	07/1997 - 09/1999	1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-30490	JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	08/1995 - 09/1996	1
47201-30500	GS151,JZS15#..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TWC)	08/1995 - 07/1997	1
47201-30720	GS151,JZS151,153,157..HTWC,TWC	08/1998 - 12/2999	1
47201-30720	JZS151,153	07/1997 - 08/1998	1
47201-30681	JZS151 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	07/1997 - 12/2999	1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-30140	GS151,JZS151,153,157	05/1998 - 12/2999	1
47220-22010	JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	08/1995 - 09/1996	1
47202-30130	GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	09/1996 - 07/1997	1
47202-30130	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 09/1996	1
47202-30130	GS151,JZS151,153	07/1997 - 05/1998	1
47220-22080	JZS151 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	09/1996 - 12/2999	1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104	JZS151,155 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	08/1995 - 09/1996	2
90430-06104	GS151,JZS15#,LS151	08/1995 - 07/1997	1
90029-43001	JZS151,153	07/1997 - 08/1997	1
90029-43001	GS151,JZS151,153,157	08/1997 - 12/2999	1
90029-43001	JZS151 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	07/1997 - 12/2999	2
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104	JZS151,155 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	08/1995 - 09/1996	2
90430-06104	GS151,JZS15#,LS151	08/1995 - 07/1997	1
90029-43001	JZS151,153	07/1997 - 08/1997	1
90029-43001	GS151,JZS151,153,157	08/1997 - 12/2999	1
90029-43001	JZS151 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	07/1997 - 12/2999	2
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077	JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	08/1995 - 09/1996	2
90109-06077	GS151,JZS151,153,157	07/1997 - 12/2999	1
90109-06077	JZS151,LS151 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	07/1997 - 12/2999	2
90109-06077	GS151,JZS15#,LS151	08/1995 - 07/1997	1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077	JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	08/1995 - 09/1996	2
90109-06077	GS151,JZS151,153,157	07/1997 - 12/2999	1
90109-06077	JZS151,LS151 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	07/1997 - 12/2999	2
90109-06077	GS151,JZS15#,LS151	08/1995 - 07/1997	1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-24010	JZS151 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	07/1997 - 12/2999	1
47230-24010	GS151,JZS15#,LS151	08/1995 - 07/1998	1
47230-24010	GS151,JZS15#,LS151	07/1998 - 09/1999	1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010	GS151,JZS15#,LS151,UZS15#	08/1995 - 12/2999	2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010	GS151,JZS15#,LS151,UZS15#	08/1995 - 12/2999	2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-30050	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
47265 - BOOT, MASTER CYLINDER
47265-20050	GS151,JZS15#,LS151	08/1995 - 12/2999	1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-12020	GS151,JZS15#,LS151	08/1995 - 12/2999	1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-24010	GS151,JZS151,153,157	07/1997 - 12/2999	1
47299-20060	JZS151,155,LS151 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	07/1997 - 12/2999	1
47299-24010	GS151,JZS15#,LS151	08/1995 - 09/1996	1
47299-24010	GS151,JZS15#	09/1996 - 07/1997	1
Common parts
82715-28210
90149-40021
90179-08146
90179-10065
Linked diagrams
7801

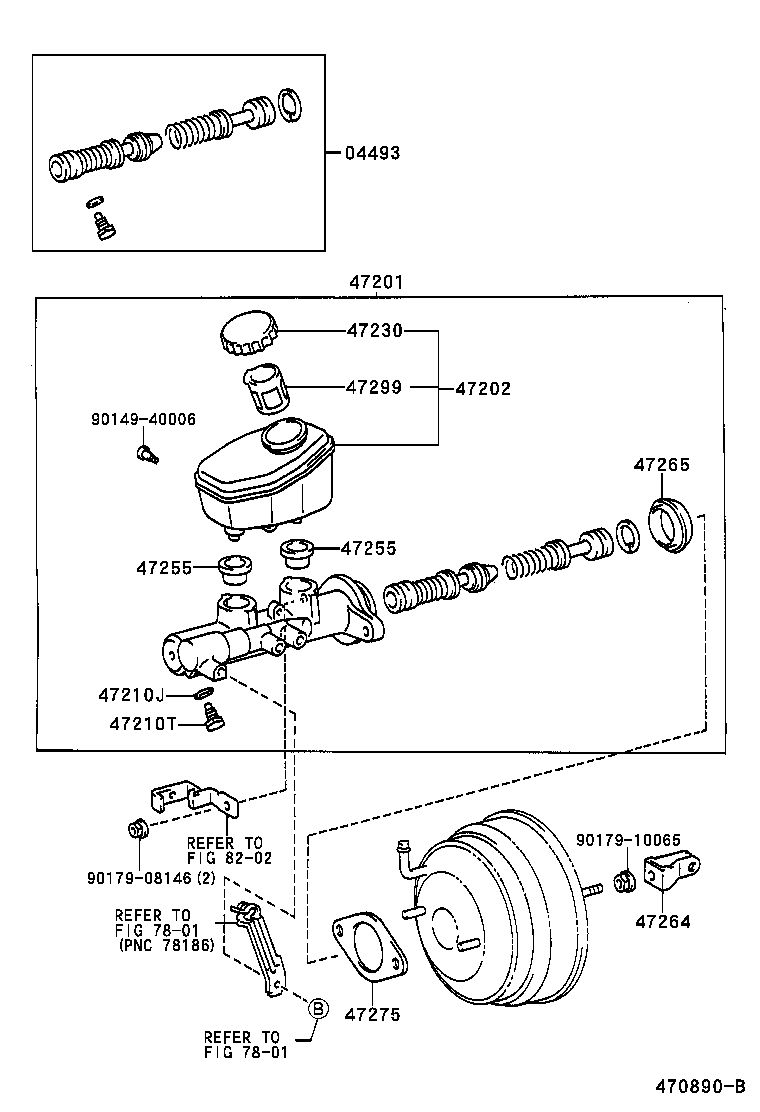

(9508-9707)JZS151,155 ; (9707- )JZS151

Click highlighted areas on diagram

Part #	Description	Period	Qty
04493 - CYLINDER KIT, BRAKE MASTER
04493-30232	GS151,JZS15#	08/1995 - 07/1997	1
04493-30232	GS151,JZS151,153,157	07/1997 - 09/1999	1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-30490	JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	08/1995 - 09/1996	1
47201-30500	GS151,JZS15#..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TWC)	08/1995 - 07/1997	1
47201-30720	GS151,JZS151,153,157..HTWC,TWC	08/1998 - 12/2999	1
47201-30720	JZS151,153	07/1997 - 08/1998	1
47201-30681	JZS151 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	07/1997 - 12/2999	1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-22010	JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	08/1995 - 09/1996	1
47202-30130	GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	09/1996 - 07/1997	1
47202-30130	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 09/1996	1
47202-30130	GS151,JZS151,153	07/1997 - 05/1998	1
47220-22080	JZS151 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	09/1996 - 12/2999	1
47220-30140	GS151,JZS151,153,157	05/1998 - 12/2999	1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104	JZS151,155 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	08/1995 - 09/1996	2
90430-06104	GS151,JZS15#,LS151	08/1995 - 07/1997	1
90029-43001	JZS151,153	07/1997 - 08/1997	1
90029-43001	GS151,JZS151,153,157	08/1997 - 12/2999	1
90029-43001	JZS151 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	07/1997 - 12/2999	2
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077	JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	08/1995 - 09/1996	2
90109-06077	GS151,JZS151,153,157	07/1997 - 12/2999	1
90109-06077	JZS151,LS151 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	07/1997 - 12/2999	2
90109-06077	GS151,JZS15#,LS151	08/1995 - 07/1997	1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-24010	JZS151 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	07/1997 - 12/2999	1
47230-24010	GS151,JZS15#,LS151	08/1995 - 07/1998	1
47230-24010	GS151,JZS15#,LS151	07/1998 - 09/1999	1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010	GS151,JZS15#,LS151,UZS15#	08/1995 - 12/2999	2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010	GS151,JZS15#,LS151,UZS15#	08/1995 - 12/2999	2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-30050	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
47265 - BOOT, MASTER CYLINDER
47265-20050	GS151,JZS15#,LS151	08/1995 - 12/2999	1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-12020	GS151,JZS15#,LS151	08/1995 - 12/2999	1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-24010	GS151,JZS151,153,157	07/1997 - 12/2999	1
47299-20060	JZS151,155,LS151 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	07/1997 - 12/2999	1
47299-24010	GS151,JZS15#,LS151	08/1995 - 09/1996	1
47299-24010	GS151,JZS15#	09/1996 - 07/1997	1
Common parts
90149-40006
90179-08146
90179-10065
Linked diagrams
7801
8202

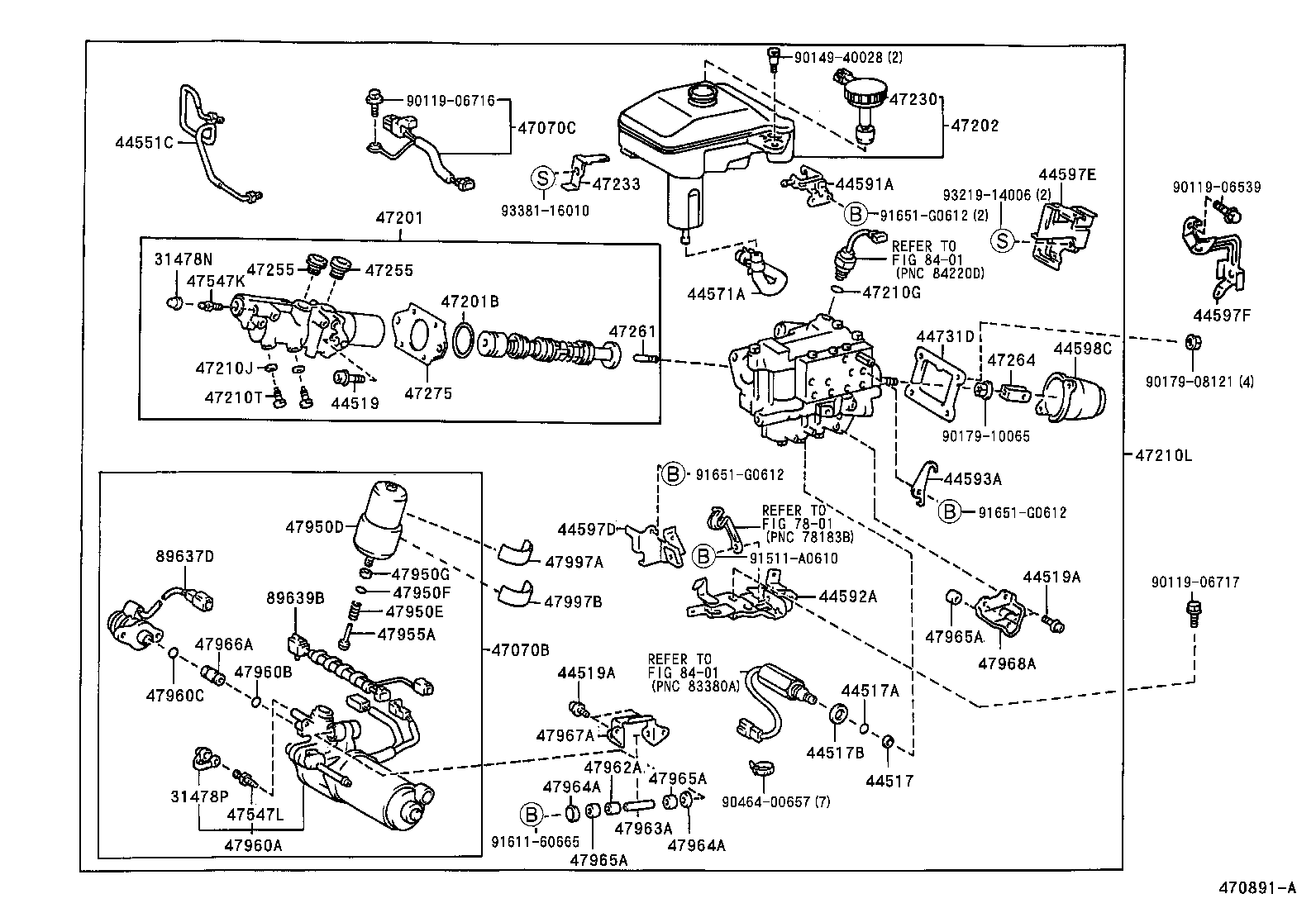

ILLUST NO. 2 OF 2(9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-9707)A,E

Click highlighted areas on diagram

ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)

Part #	Description	Period	Qty
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-30490	JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	08/1995 - 09/1996	1
47201-30500	GS151,JZS15#..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TWC)	08/1995 - 07/1997	1
47201-30720	GS151,JZS151,153,157..HTWC,TWC	08/1998 - 12/2999	1
47201-30720	JZS151,153	07/1997 - 08/1998	1
47201-30681	JZS151 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	07/1997 - 12/2999	1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-30140	GS151,JZS151,153,157	05/1998 - 12/2999	1
47220-22010	JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	08/1995 - 09/1996	1
47202-30130	GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	09/1996 - 07/1997	1
47202-30130	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 09/1996	1
47202-30130	GS151,JZS151,153	07/1997 - 05/1998	1
47220-22080	JZS151 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	09/1996 - 12/2999	1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104	JZS151,155 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	08/1995 - 09/1996	2
90430-06104	GS151,JZS15#,LS151	08/1995 - 07/1997	1
90029-43001	JZS151,153	07/1997 - 08/1997	1
90029-43001	GS151,JZS151,153,157	08/1997 - 12/2999	1
90029-43001	JZS151 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	07/1997 - 12/2999	2
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077	JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	08/1995 - 09/1996	2
90109-06077	GS151,JZS151,153,157	07/1997 - 12/2999	1
90109-06077	JZS151,LS151 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	07/1997 - 12/2999	2
90109-06077	GS151,JZS15#,LS151	08/1995 - 07/1997	1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-24010	JZS151 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	07/1997 - 12/2999	1
47230-24010	GS151,JZS15#,LS151	08/1995 - 07/1998	1
47230-24010	GS151,JZS15#,LS151	07/1998 - 09/1999	1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010	GS151,JZS15#,LS151,UZS15#	08/1995 - 12/2999	2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010	GS151,JZS15#,LS151,UZS15#	08/1995 - 12/2999	2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-30050	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-12020	GS151,JZS15#,LS151	08/1995 - 12/2999	1
Common parts
90119-06539
90119-06716
90119-06717
90149-40028
90179-08121
90179-10065
90464-00657
91511-A0610
91611-60665
91651-G0612
93219-14006
93381-16010
Linked diagrams
7801
8401
