JZS151-ATPSF (1995)

Toyota Crown/Crown Majesta

Production Aug 1995 - Sep 1999
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )1JZGE,2JZGE

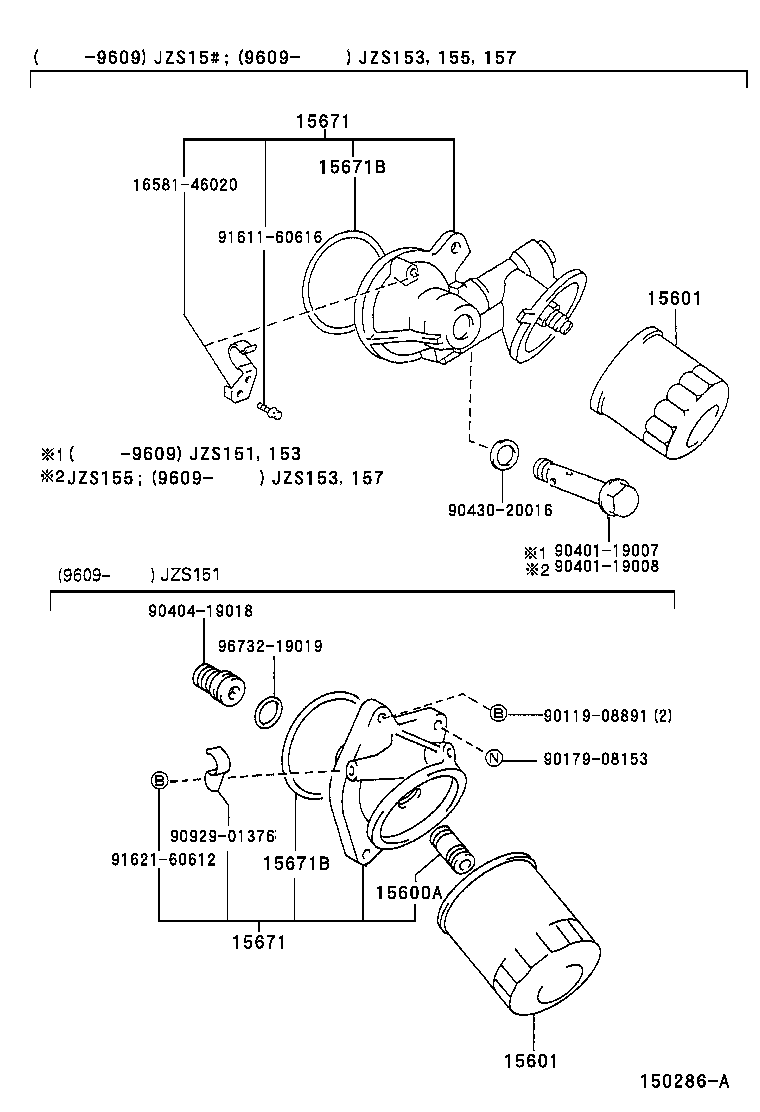

Click highlighted areas on diagram

diagram 15600A 15601 15601 15671 15671 15671B 15671B 1658146020 9011908891 9017908153 9040119007 9040119008 9040419018 9043020016 9092901376 9161160616 9162160612 9673219019
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90404-19019

1JZGE..JZS151

 1
15601 - FILTER SUB-ASSY, OIL
90915-20001

1JZGE,2JZGE..JZS15#

 1
90915-20003

1JZGE,2JZGE..JZS15#

 1
15601 - FILTER SUB-ASSY, OIL
90915-20001

1JZGE,2JZGE..JZS15#

 1
90915-20003

1JZGE,2JZGE..JZS15#

 1
15671 - BRACKET, OIL FILTER
15670-46070

1JZGE,2JZGE..JZS15#

 1
15670-46040

1JZGE..JZS151

 1
15671 - BRACKET, OIL FILTER
15670-46070

1JZGE,2JZGE..JZS15#

 1
15670-46040

1JZGE..JZS151

 1
15671B - GASKET, OIL FILTER BRACKET
90301-68004

1JZGE,2JZGE..JZS15#

 1
15671B - GASKET, OIL FILTER BRACKET
90301-68004

1JZGE,2JZGE..JZS15#

 1
Common parts
16581-46020
90119-08891
90179-08153
90401-19007
90401-19008
90404-19018
90430-20016
90929-01376
91611-60616
91621-60612
96732-19019
