JZS151-ATPQF (1995)
Toyota Crown/Crown Majesta

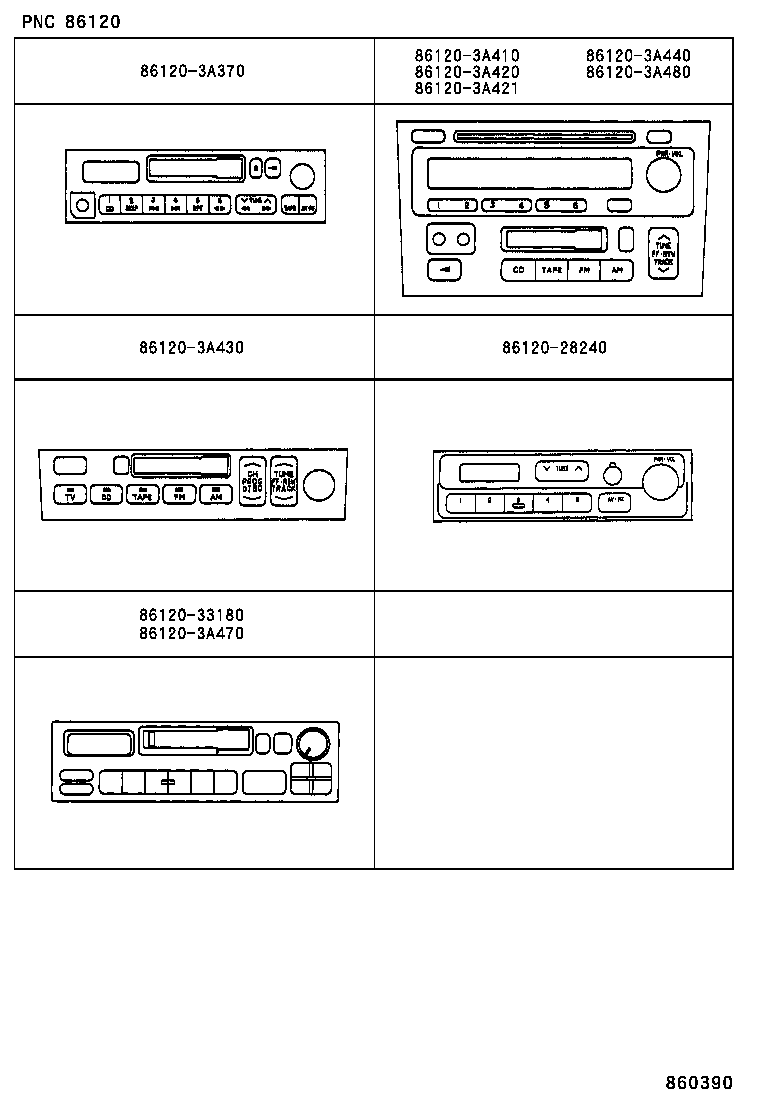

ILLUST NO. 1 OF 5(9508- )
ﾗｼﾞｵﾚｼ-ﾊﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-3A410 |
JZS155..E,ROYT;GS151,JZS151,153,LS151,UZS157..HT AM/FMｶｾﾂﾄCDｲﾂﾀｲｷ(ｱﾝﾌﾟ ﾅｲｿﾞｳ) 6ｽﾋﾟ-ｶ ﾖｳ |
1 | ||
| 86120-3A420 |
JZS155..E,ROYT;JZS151,153,LS151,UZS157..F,ROY,ROYT AM/FMｶｾﾂﾄCDｲﾂﾀｲｷ(ｱﾝﾌﾟ ﾍﾞﾂﾁ) 7ｽﾋﾟ-ｶ ﾖｳ |
1 | ||
| 86120-3A421 |
JZS155..E,ROYT;JZS151,153,LS151,UZS157..F,ROY,ROYT AM/FMｶｾﾂﾄCDｲﾂﾀｲｷ(ｱﾝﾌﾟ ﾍﾞﾂﾁ) 7ｽﾋﾟ-ｶ ﾖｳ |
1 | ||
| 86120-3A430 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT AM/FMｶｾﾂﾄCDｵ-ﾄﾁｴﾝｼﾞﾔｺﾝﾄﾛ-ﾗ |
1 | ||
| 86120-3A770 |
JZS151,157..HT..ROY FUJITSU TEN,ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 86120-3A660 |
JZS151,155,157..HT..ROY FUJITSU TEN,ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) & "ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 7 ｽﾋﾟ-ｶ |
1 | ||
| 86120-3A510 |
JZS15#,LS151..ROY,ROYG,ROYT "ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 7 ｽﾋﾟ-ｶ |
1 | ||
| 86120-3A480 |
JZS155..ROYT;GS151,JZS151,153,157,LS151..HT AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ ｶｾﾂﾄ 6 ｽﾋﾟ-ｶ |
1 | ||
ILLUST NO. 4 OF 5(9707- )A,C,ROYG
ｽﾃｱﾘﾝｸﾞ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8615 | ||||

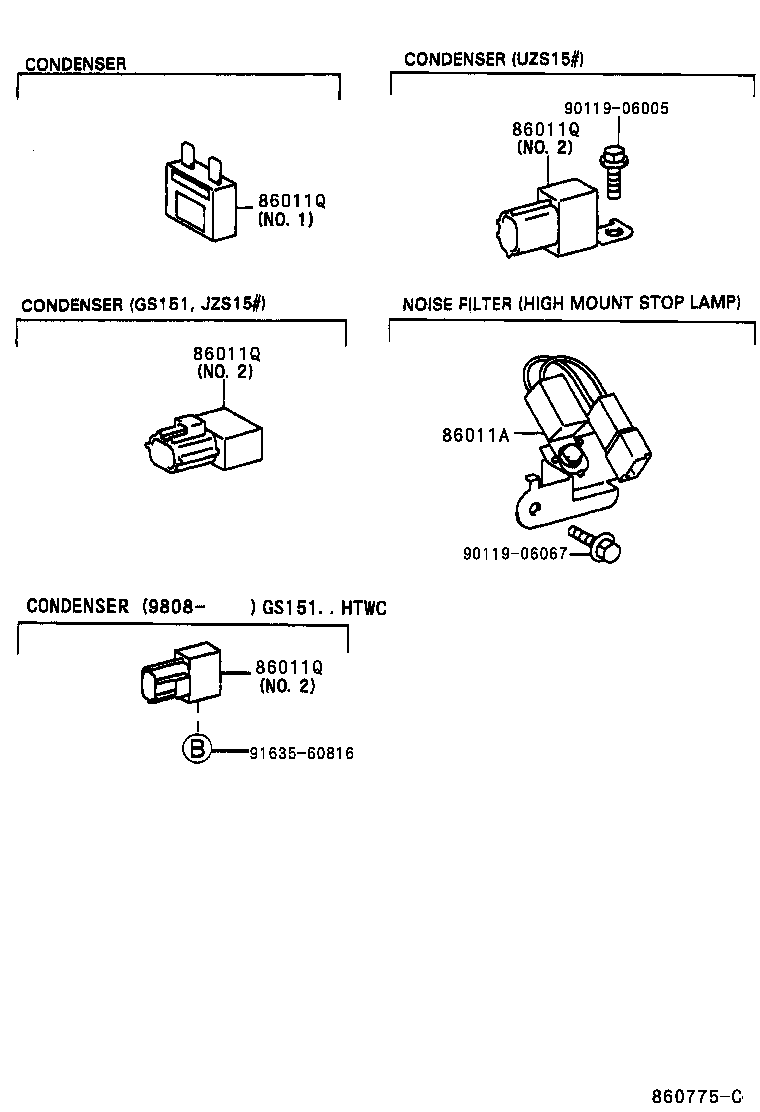

ILLUST NO. 5 OF 5(9508- )
ｺﾝﾃﾞﾝｻ & ﾉｲｽﾞﾌｲﾙﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04066 |
GS151,JZS15#,LS151,UZS15# NO.1 |
2 | ||
| 90980-04083 |
GS151,JZS15# NO.2 |
1 | ||
| 90980-04083 |
GS151,JZS15#..LPGTE,TWC NO.2 |
1 | ||
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04066 |
GS151,JZS15#,LS151,UZS15# NO.1 |
2 | ||
| 90980-04083 |
GS151,JZS15# NO.2 |
1 | ||
| 90980-04083 |
GS151,JZS15#..LPGTE,TWC NO.2 |
1 | ||
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04066 |
GS151,JZS15#,LS151,UZS15# NO.1 |
2 | ||
| 90980-04083 |
GS151,JZS15# NO.2 |
1 | ||
| 90980-04083 |
GS151,JZS15#..LPGTE,TWC NO.2 |
1 | ||
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04066 |
GS151,JZS15#,LS151,UZS15# NO.1 |
2 | ||
| 90980-04083 |
GS151,JZS15# NO.2 |
1 | ||
| 90980-04083 |
GS151,JZS15#..LPGTE,TWC NO.2 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06067 | ||||
| 91635-60816 | ||||

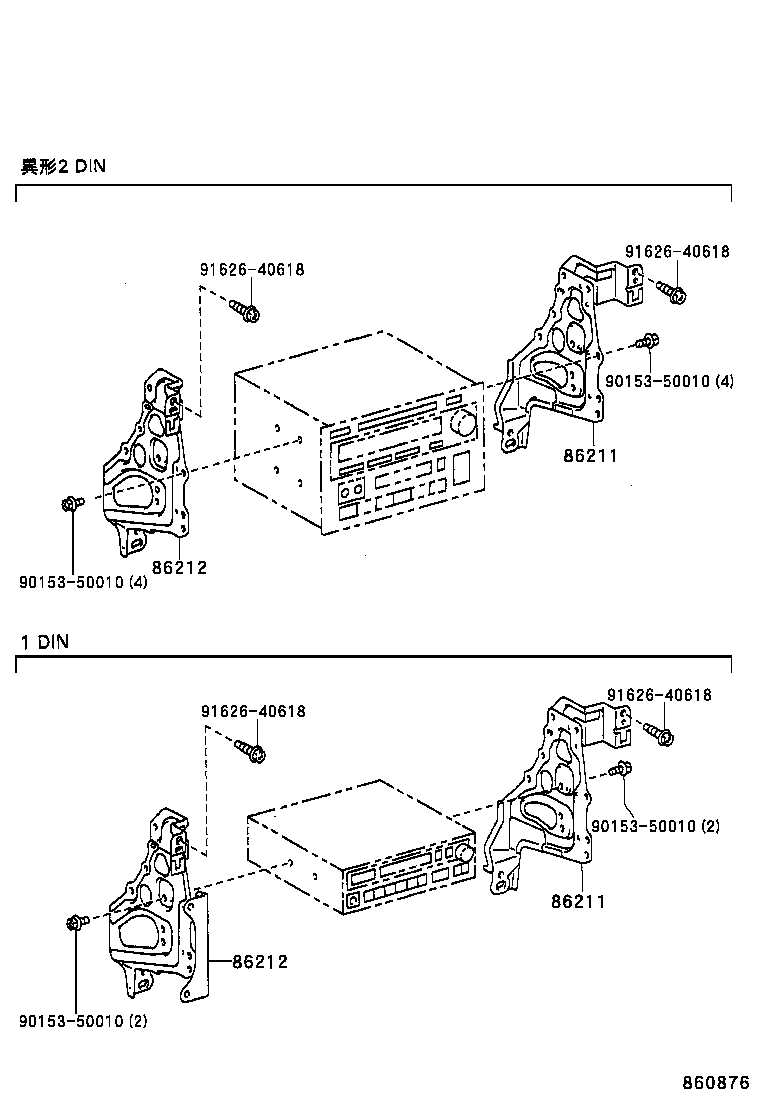

ILLUST NO. 2 OF 5(9508- )
ﾗｼﾞｵﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-30210 |
JZS155;JZS151,LS151,UZS15#..C,F,ROY |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-30210 |
JZS155;JZS151,LS151,UZS15#..C,F,ROY |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-30180 |
JZS155;JZS151,LS151,UZS15#..C,F,ROY |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-30180 |
JZS155;JZS151,LS151,UZS15#..C,F,ROY |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 91626-40618 | ||||

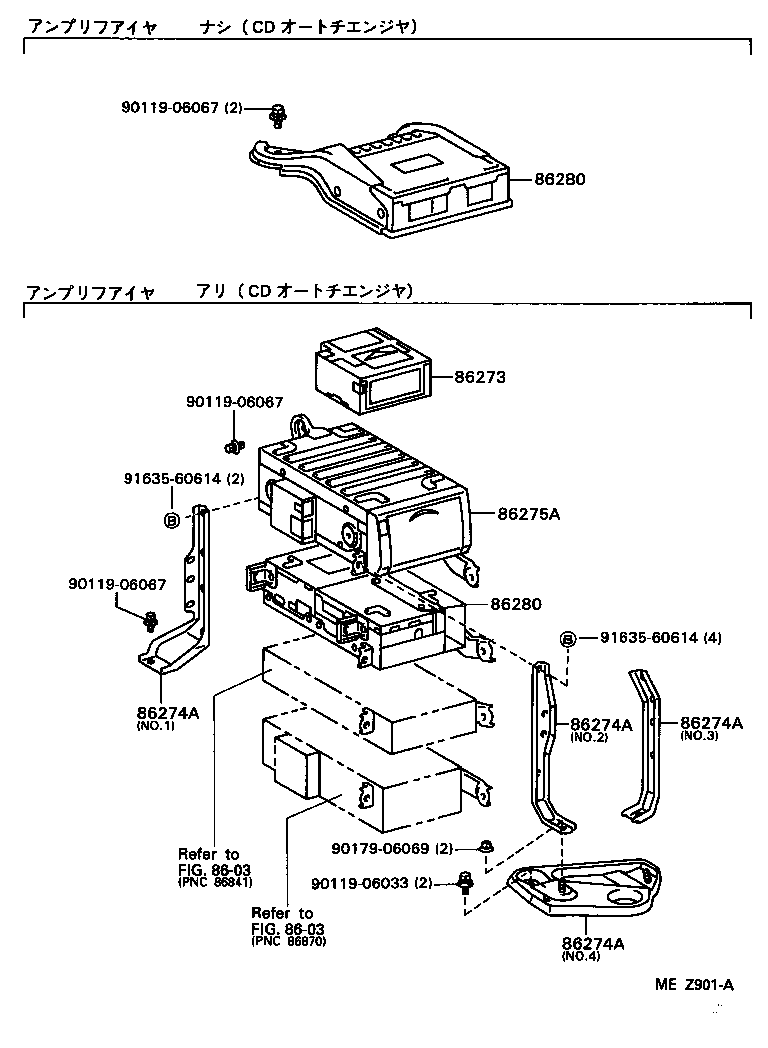

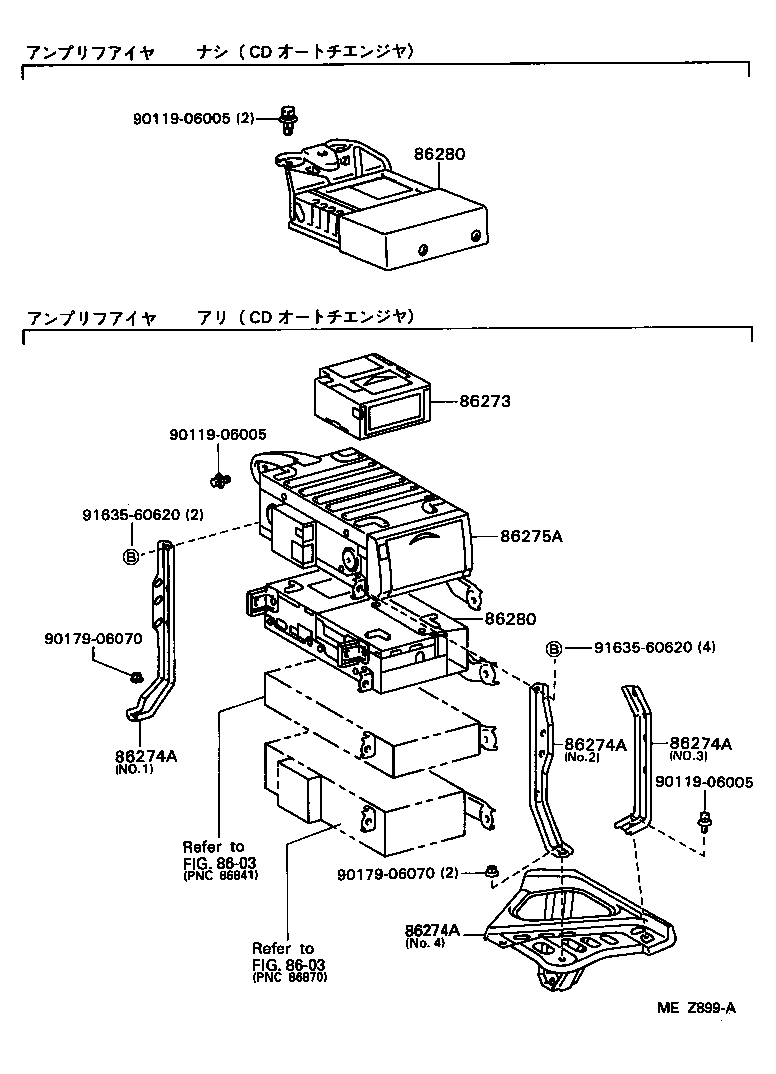

ILLUST NO. 3 OF 5(9508- )JZS15#,LS151..ROY,ROYG,ROYT
ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ EMV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86273 - MAGAZINE, DISC PLAYER | ||||
| 86273-30010 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 86274A - BRACKET, DISC PLAYER | ||||
| 86274-30180 |
JZS153..HT..ROY;JZS151,155,157,LS151..ROY,ROYG,ROYT ｱﾘ(CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.4 |
1 | ||
| 86274-30110 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.2 |
1 | ||
| 86274-30240 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.1 |
1 | ||
| 86274-30180 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.4 |
1 | ||
| 86274-30060 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.1 |
1 | ||
| 86274-30250 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.2 |
1 | ||
| 86274-30260 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.3 |
1 | ||
| 86274-30120 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.3 |
1 | ||
| 86274A - BRACKET, DISC PLAYER | ||||
| 86274-30180 |
JZS153..HT..ROY;JZS151,155,157,LS151..ROY,ROYG,ROYT ｱﾘ(CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.4 |
1 | ||
| 86274-30110 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.2 |
1 | ||
| 86274-30240 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.1 |
1 | ||
| 86274-30180 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.4 |
1 | ||
| 86274-30060 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.1 |
1 | ||
| 86274-30250 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.2 |
1 | ||
| 86274-30260 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.3 |
1 | ||
| 86274-30120 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.3 |
1 | ||
| 86274A - BRACKET, DISC PLAYER | ||||
| 86274-30180 |
JZS153..HT..ROY;JZS151,155,157,LS151..ROY,ROYG,ROYT ｱﾘ(CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.4 |
1 | ||
| 86274-30110 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.2 |
1 | ||
| 86274-30240 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.1 |
1 | ||
| 86274-30180 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.4 |
1 | ||
| 86274-30060 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.1 |
1 | ||
| 86274-30250 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.2 |
1 | ||
| 86274-30260 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.3 |
1 | ||
| 86274-30120 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.3 |
1 | ||
| 86274A - BRACKET, DISC PLAYER | ||||
| 86274-30180 |
JZS153..HT..ROY;JZS151,155,157,LS151..ROY,ROYG,ROYT ｱﾘ(CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.4 |
1 | ||
| 86274-30110 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.2 |
1 | ||
| 86274-30240 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.1 |
1 | ||
| 86274-30180 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.4 |
1 | ||
| 86274-30060 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.1 |
1 | ||
| 86274-30250 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.2 |
1 | ||
| 86274-30260 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.3 |
1 | ||
| 86274-30120 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.3 |
1 | ||
| 86275A - CHANGER, DISC PLAYER | ||||
| 86270-30100 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 86270-30120 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 86270-30200 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 86270-30190 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-30270 |
JZS15#,LS151,UZS15#..HT..(A,C,E,F,ROY,ROYG,ROYT) AM/FMｶｾﾂﾄCDｵ-ﾄﾁｴﾝｼﾞﾔｺﾝﾄﾛ-ﾗ ﾖｳ |
1 | ||
| 86280-30260 |
JZS15#,LS151..HT..(ROY,ROYG,ROYT) AM/FMｶｾﾂﾄCDｲﾂﾀｲｷ(ｱﾝﾌﾟ ﾍﾞﾂﾁ) 7ｽﾋﾟ-ｶ ﾖｳ |
1 | ||
| 86280-30271 |
JZS15#,LS151,UZS15#..HT..(A,C,E,F,ROY,ROYG,ROYT) AM/FMｶｾﾂﾄCDｵ-ﾄﾁｴﾝｼﾞﾔｺﾝﾄﾛ-ﾗ ﾖｳ |
1 | ||
| 86280-30330 |
JZS15#,LS151..HT..(ROY,ROYG,ROYT) "ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 7 ｽﾋﾟ-ｶ |
1 | ||
| 86280-30331 |
JZS15#,LS151..HT..(ROY,ROYG,ROYT) "ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 7 ｽﾋﾟ-ｶ |
1 | ||
| 86280-30332 |
JZS15#,LS151..HT..(ROY,ROYG,ROYT) "ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 7 ｽﾋﾟ-ｶ |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-30270 |
JZS15#,LS151,UZS15#..HT..(A,C,E,F,ROY,ROYG,ROYT) AM/FMｶｾﾂﾄCDｵ-ﾄﾁｴﾝｼﾞﾔｺﾝﾄﾛ-ﾗ ﾖｳ |
1 | ||
| 86280-30260 |
JZS15#,LS151..HT..(ROY,ROYG,ROYT) AM/FMｶｾﾂﾄCDｲﾂﾀｲｷ(ｱﾝﾌﾟ ﾍﾞﾂﾁ) 7ｽﾋﾟ-ｶ ﾖｳ |
1 | ||
| 86280-30271 |
JZS15#,LS151,UZS15#..HT..(A,C,E,F,ROY,ROYG,ROYT) AM/FMｶｾﾂﾄCDｵ-ﾄﾁｴﾝｼﾞﾔｺﾝﾄﾛ-ﾗ ﾖｳ |
1 | ||
| 86280-30330 |
JZS15#,LS151..HT..(ROY,ROYG,ROYT) "ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 7 ｽﾋﾟ-ｶ |
1 | ||
| 86280-30331 |
JZS15#,LS151..HT..(ROY,ROYG,ROYT) "ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 7 ｽﾋﾟ-ｶ |
1 | ||
| 86280-30332 |
JZS15#,LS151..HT..(ROY,ROYG,ROYT) "ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 7 ｽﾋﾟ-ｶ |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90179-06070 | ||||
| 91635-60620 | ||||
| Linked diagrams | ||||
| 8603 | ||||

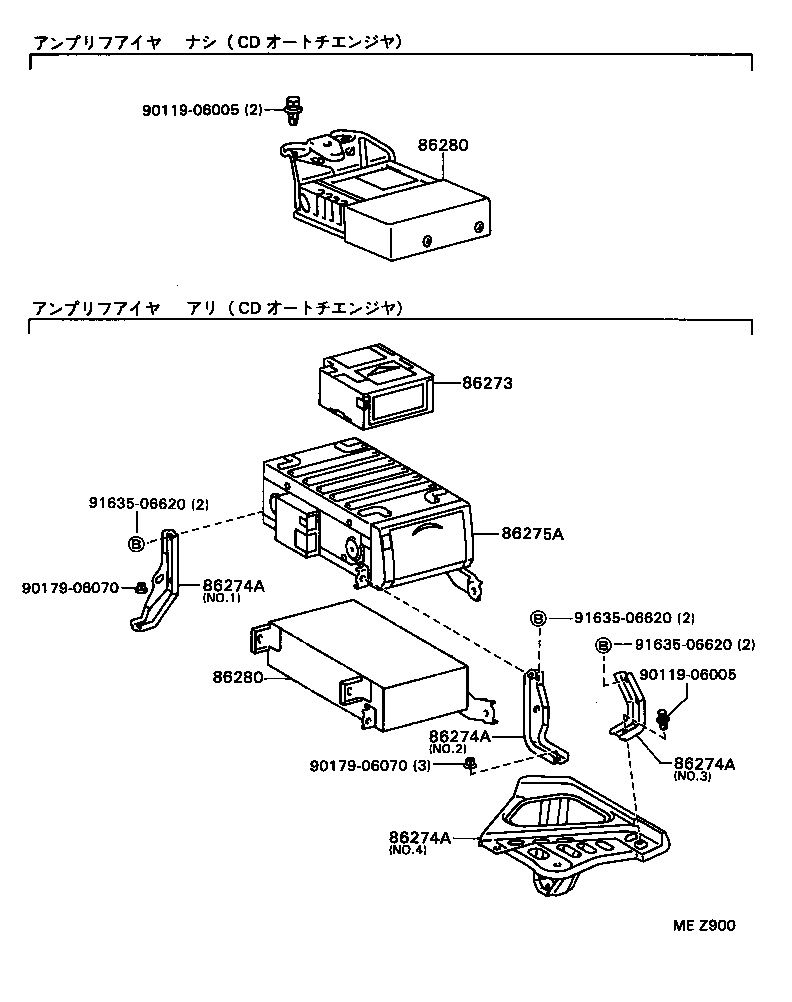

ILLUST NO. 3 OF 5(9508- )JZS15#,LS151..ROY,ROYG,ROYT
ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86273 - MAGAZINE, DISC PLAYER | ||||
| 86273-30010 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 86274A - BRACKET, DISC PLAYER | ||||
| 86274-30180 |
JZS153..HT..ROY;JZS151,155,157,LS151..ROY,ROYG,ROYT ｱﾘ(CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.4 |
1 | ||
| 86274-30110 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.2 |
1 | ||
| 86274-30240 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.1 |
1 | ||
| 86274-30180 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.4 |
1 | ||
| 86274-30060 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.1 |
1 | ||
| 86274-30250 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.2 |
1 | ||
| 86274-30260 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.3 |
1 | ||
| 86274-30120 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.3 |
1 | ||
| 86274A - BRACKET, DISC PLAYER | ||||
| 86274-30180 |
JZS153..HT..ROY;JZS151,155,157,LS151..ROY,ROYG,ROYT ｱﾘ(CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.4 |
1 | ||
| 86274-30110 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.2 |
1 | ||
| 86274-30240 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.1 |
1 | ||
| 86274-30180 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.4 |
1 | ||
| 86274-30060 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.1 |
1 | ||
| 86274-30250 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.2 |
1 | ||
| 86274-30260 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.3 |
1 | ||
| 86274-30120 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.3 |
1 | ||
| 86274A - BRACKET, DISC PLAYER | ||||
| 86274-30180 |
JZS153..HT..ROY;JZS151,155,157,LS151..ROY,ROYG,ROYT ｱﾘ(CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.4 |
1 | ||
| 86274-30110 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.2 |
1 | ||
| 86274-30240 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.1 |
1 | ||
| 86274-30180 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.4 |
1 | ||
| 86274-30060 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.1 |
1 | ||
| 86274-30250 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.2 |
1 | ||
| 86274-30260 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.3 |
1 | ||
| 86274-30120 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.3 |
1 | ||
| 86274A - BRACKET, DISC PLAYER | ||||
| 86274-30180 |
JZS153..HT..ROY;JZS151,155,157,LS151..ROY,ROYG,ROYT ｱﾘ(CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.4 |
1 | ||
| 86274-30110 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.2 |
1 | ||
| 86274-30240 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.1 |
1 | ||
| 86274-30180 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.4 |
1 | ||
| 86274-30060 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.1 |
1 | ||
| 86274-30250 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.2 |
1 | ||
| 86274-30260 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.3 |
1 | ||
| 86274-30120 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.3 |
1 | ||
| 86275A - CHANGER, DISC PLAYER | ||||
| 86270-30100 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 86270-30120 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 86270-30200 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 86270-30190 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-30270 |
JZS15#,LS151,UZS15#..HT..(A,C,E,F,ROY,ROYG,ROYT) AM/FMｶｾﾂﾄCDｵ-ﾄﾁｴﾝｼﾞﾔｺﾝﾄﾛ-ﾗ ﾖｳ |
1 | ||
| 86280-30260 |
JZS15#,LS151..HT..(ROY,ROYG,ROYT) AM/FMｶｾﾂﾄCDｲﾂﾀｲｷ(ｱﾝﾌﾟ ﾍﾞﾂﾁ) 7ｽﾋﾟ-ｶ ﾖｳ |
1 | ||
| 86280-30271 |
JZS15#,LS151,UZS15#..HT..(A,C,E,F,ROY,ROYG,ROYT) AM/FMｶｾﾂﾄCDｵ-ﾄﾁｴﾝｼﾞﾔｺﾝﾄﾛ-ﾗ ﾖｳ |
1 | ||
| 86280-30330 |
JZS15#,LS151..HT..(ROY,ROYG,ROYT) "ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 7 ｽﾋﾟ-ｶ |
1 | ||
| 86280-30331 |
JZS15#,LS151..HT..(ROY,ROYG,ROYT) "ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 7 ｽﾋﾟ-ｶ |
1 | ||
| 86280-30332 |
JZS15#,LS151..HT..(ROY,ROYG,ROYT) "ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 7 ｽﾋﾟ-ｶ |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-30270 |
JZS15#,LS151,UZS15#..HT..(A,C,E,F,ROY,ROYG,ROYT) AM/FMｶｾﾂﾄCDｵ-ﾄﾁｴﾝｼﾞﾔｺﾝﾄﾛ-ﾗ ﾖｳ |
1 | ||
| 86280-30260 |
JZS15#,LS151..HT..(ROY,ROYG,ROYT) AM/FMｶｾﾂﾄCDｲﾂﾀｲｷ(ｱﾝﾌﾟ ﾍﾞﾂﾁ) 7ｽﾋﾟ-ｶ ﾖｳ |
1 | ||
| 86280-30271 |
JZS15#,LS151,UZS15#..HT..(A,C,E,F,ROY,ROYG,ROYT) AM/FMｶｾﾂﾄCDｵ-ﾄﾁｴﾝｼﾞﾔｺﾝﾄﾛ-ﾗ ﾖｳ |
1 | ||
| 86280-30330 |
JZS15#,LS151..HT..(ROY,ROYG,ROYT) "ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 7 ｽﾋﾟ-ｶ |
1 | ||
| 86280-30331 |
JZS15#,LS151..HT..(ROY,ROYG,ROYT) "ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 7 ｽﾋﾟ-ｶ |
1 | ||
| 86280-30332 |
JZS15#,LS151..HT..(ROY,ROYG,ROYT) "ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 7 ｽﾋﾟ-ｶ |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90179-06070 | ||||
| 91635-06620 | ||||
ILLUST NO. 3 OF 5(9508- )A,C,E,F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86273 - MAGAZINE, DISC PLAYER | ||||
| 86273-30010 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 86274A - BRACKET, DISC PLAYER | ||||
| 86274-30180 |
JZS153..HT..ROY;JZS151,155,157,LS151..ROY,ROYG,ROYT ｱﾘ(CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.4 |
1 | ||
| 86274-30110 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.2 |
1 | ||
| 86274-30240 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.1 |
1 | ||
| 86274-30180 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.4 |
1 | ||
| 86274-30060 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.1 |
1 | ||
| 86274-30250 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.2 |
1 | ||
| 86274-30260 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.3 |
1 | ||
| 86274-30120 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.3 |
1 | ||
| 86274A - BRACKET, DISC PLAYER | ||||
| 86274-30180 |
JZS153..HT..ROY;JZS151,155,157,LS151..ROY,ROYG,ROYT ｱﾘ(CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.4 |
1 | ||
| 86274-30110 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.2 |
1 | ||
| 86274-30240 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.1 |
1 | ||
| 86274-30180 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.4 |
1 | ||
| 86274-30060 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.1 |
1 | ||
| 86274-30250 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.2 |
1 | ||
| 86274-30260 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.3 |
1 | ||
| 86274-30120 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.3 |
1 | ||
| 86274A - BRACKET, DISC PLAYER | ||||
| 86274-30180 |
JZS153..HT..ROY;JZS151,155,157,LS151..ROY,ROYG,ROYT ｱﾘ(CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.4 |
1 | ||
| 86274-30110 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.2 |
1 | ||
| 86274-30240 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.1 |
1 | ||
| 86274-30180 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.4 |
1 | ||
| 86274-30060 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.1 |
1 | ||
| 86274-30250 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.2 |
1 | ||
| 86274-30260 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.3 |
1 | ||
| 86274-30120 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.3 |
1 | ||
| 86274A - BRACKET, DISC PLAYER | ||||
| 86274-30180 |
JZS153..HT..ROY;JZS151,155,157,LS151..ROY,ROYG,ROYT ｱﾘ(CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.4 |
1 | ||
| 86274-30110 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.2 |
1 | ||
| 86274-30240 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.1 |
1 | ||
| 86274-30180 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.4 |
1 | ||
| 86274-30060 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.1 |
1 | ||
| 86274-30250 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.2 |
1 | ||
| 86274-30260 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & CDｵ-ﾄﾁｴﾝｼﾞﾔ),NO.3 |
1 | ||
| 86274-30120 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.3 |
1 | ||
| 86275A - CHANGER, DISC PLAYER | ||||
| 86270-30100 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 86270-30120 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 86270-30200 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 86270-30190 |
JZS15#,LS151..ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-30270 |
JZS15#,LS151,UZS15#..HT..(A,C,E,F,ROY,ROYG,ROYT) AM/FMｶｾﾂﾄCDｵ-ﾄﾁｴﾝｼﾞﾔｺﾝﾄﾛ-ﾗ ﾖｳ |
1 | ||
| 86280-30260 |
JZS15#,LS151..HT..(ROY,ROYG,ROYT) AM/FMｶｾﾂﾄCDｲﾂﾀｲｷ(ｱﾝﾌﾟ ﾍﾞﾂﾁ) 7ｽﾋﾟ-ｶ ﾖｳ |
1 | ||
| 86280-30271 |
JZS15#,LS151,UZS15#..HT..(A,C,E,F,ROY,ROYG,ROYT) AM/FMｶｾﾂﾄCDｵ-ﾄﾁｴﾝｼﾞﾔｺﾝﾄﾛ-ﾗ ﾖｳ |
1 | ||
| 86280-30330 |
JZS15#,LS151..HT..(ROY,ROYG,ROYT) "ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 7 ｽﾋﾟ-ｶ |
1 | ||
| 86280-30331 |
JZS15#,LS151..HT..(ROY,ROYG,ROYT) "ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 7 ｽﾋﾟ-ｶ |
1 | ||
| 86280-30332 |
JZS15#,LS151..HT..(ROY,ROYG,ROYT) "ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 7 ｽﾋﾟ-ｶ |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-30270 |
JZS15#,LS151,UZS15#..HT..(A,C,E,F,ROY,ROYG,ROYT) AM/FMｶｾﾂﾄCDｵ-ﾄﾁｴﾝｼﾞﾔｺﾝﾄﾛ-ﾗ ﾖｳ |
1 | ||
| 86280-30260 |
JZS15#,LS151..HT..(ROY,ROYG,ROYT) AM/FMｶｾﾂﾄCDｲﾂﾀｲｷ(ｱﾝﾌﾟ ﾍﾞﾂﾁ) 7ｽﾋﾟ-ｶ ﾖｳ |
1 | ||
| 86280-30271 |
JZS15#,LS151,UZS15#..HT..(A,C,E,F,ROY,ROYG,ROYT) AM/FMｶｾﾂﾄCDｵ-ﾄﾁｴﾝｼﾞﾔｺﾝﾄﾛ-ﾗ ﾖｳ |
1 | ||
| 86280-30330 |
JZS15#,LS151..HT..(ROY,ROYG,ROYT) "ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 7 ｽﾋﾟ-ｶ |
1 | ||
| 86280-30331 |
JZS15#,LS151..HT..(ROY,ROYG,ROYT) "ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 7 ｽﾋﾟ-ｶ |
1 | ||
| 86280-30332 |
JZS15#,LS151..HT..(ROY,ROYG,ROYT) "ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 7 ｽﾋﾟ-ｶ |
1 | ||
| Common parts | ||||
| 90119-06033 | ||||
| 90119-06067 | ||||
| 90179-06069 | ||||
| 91635-60614 | ||||
| Linked diagrams | ||||
| 8603 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
