JZS151-ATPQF (1995)
Toyota Crown/Crown Majesta
Production
Aug 1995
-
Sep 1999
Engine
1JZGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9707- )HT..ROY,ROYEX,ROYG

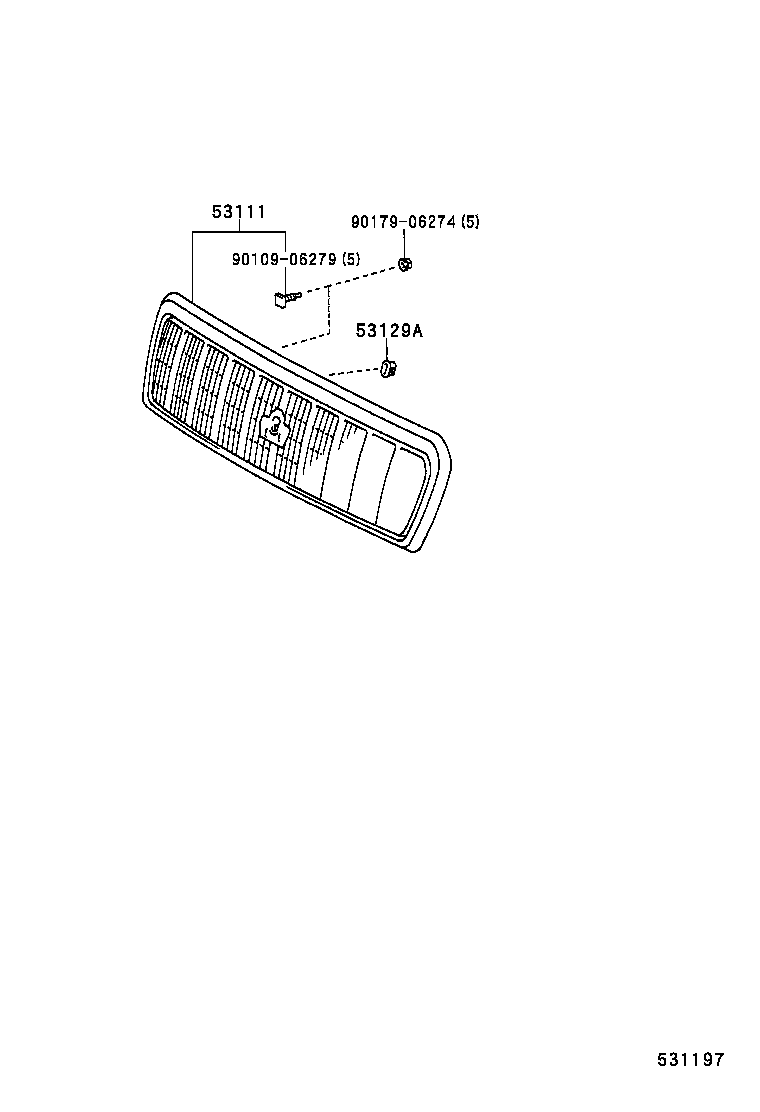

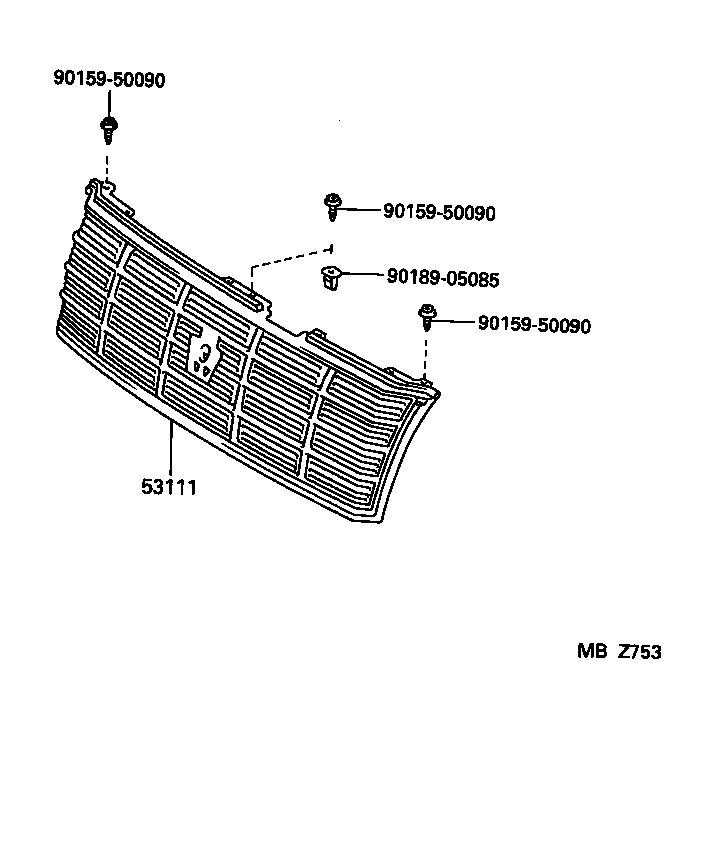

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53111-30670 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 53111-30720 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG) |
1 | ||
| Common parts | ||||
| 90159-50090 | ||||
| 90189-05085 | ||||
(9707- )A,C,E,F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53111-30670 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 53111-30720 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG) |
1 | ||
| Common parts | ||||
| 90109-06279 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 7501 | ||||
(9508-9707)A,C,E,F

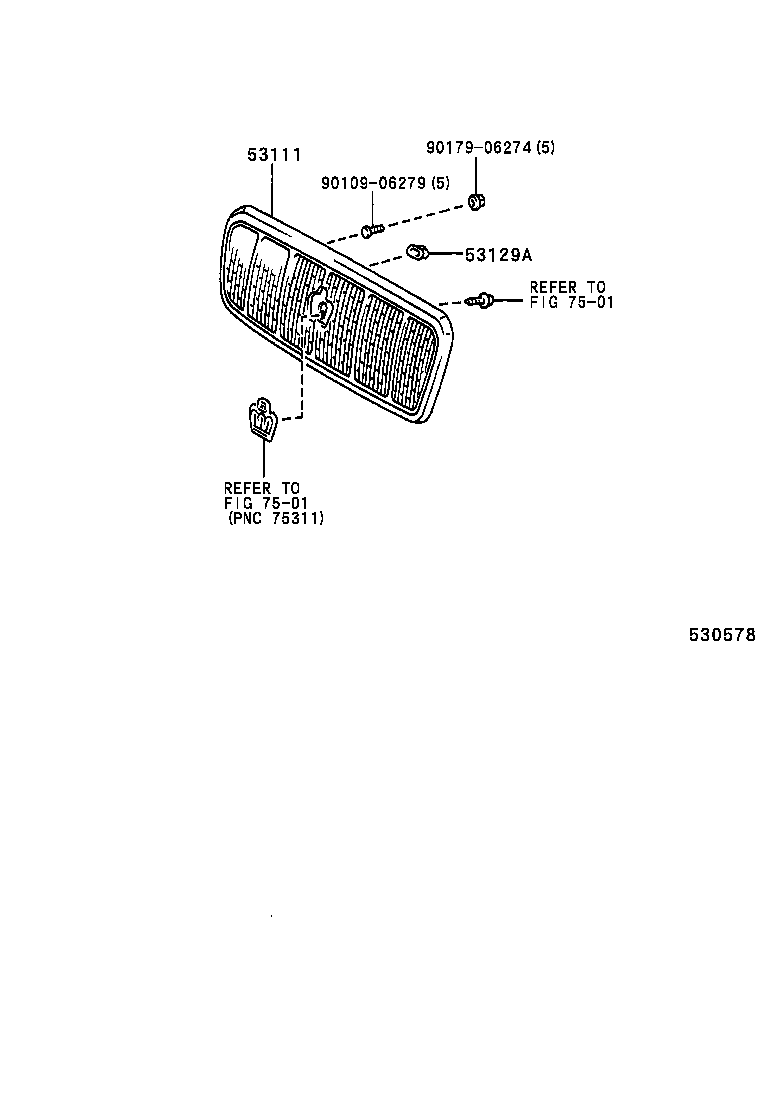

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53111-30670 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 53111-30720 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG) |
1 | ||
| Common parts | ||||
| 90109-06279 | ||||
| 90179-06274 | ||||
(9508-9707)HT..ROY,ROYEX,ROYG,ROYT

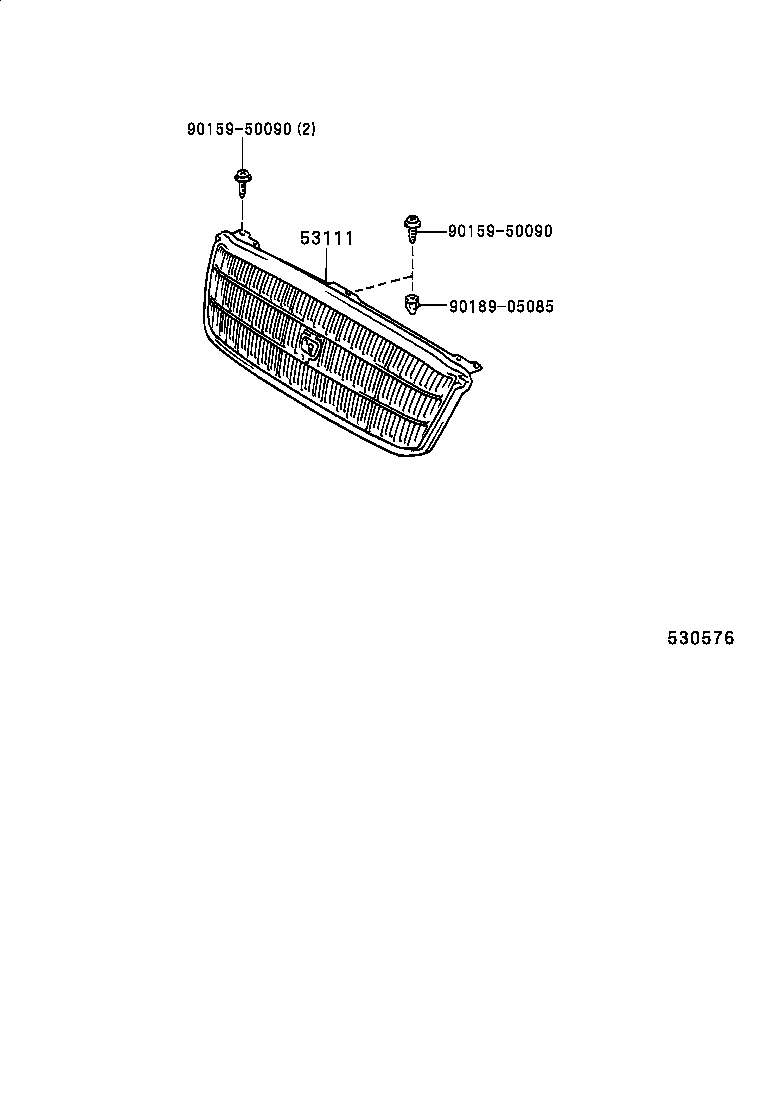

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53111-30670 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 53111-30720 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG) |
1 | ||
| Common parts | ||||
| 90159-50090 | ||||
| 90189-05085 | ||||
