JZS151-AEPQF (1995)
Toyota Crown/Crown Majesta

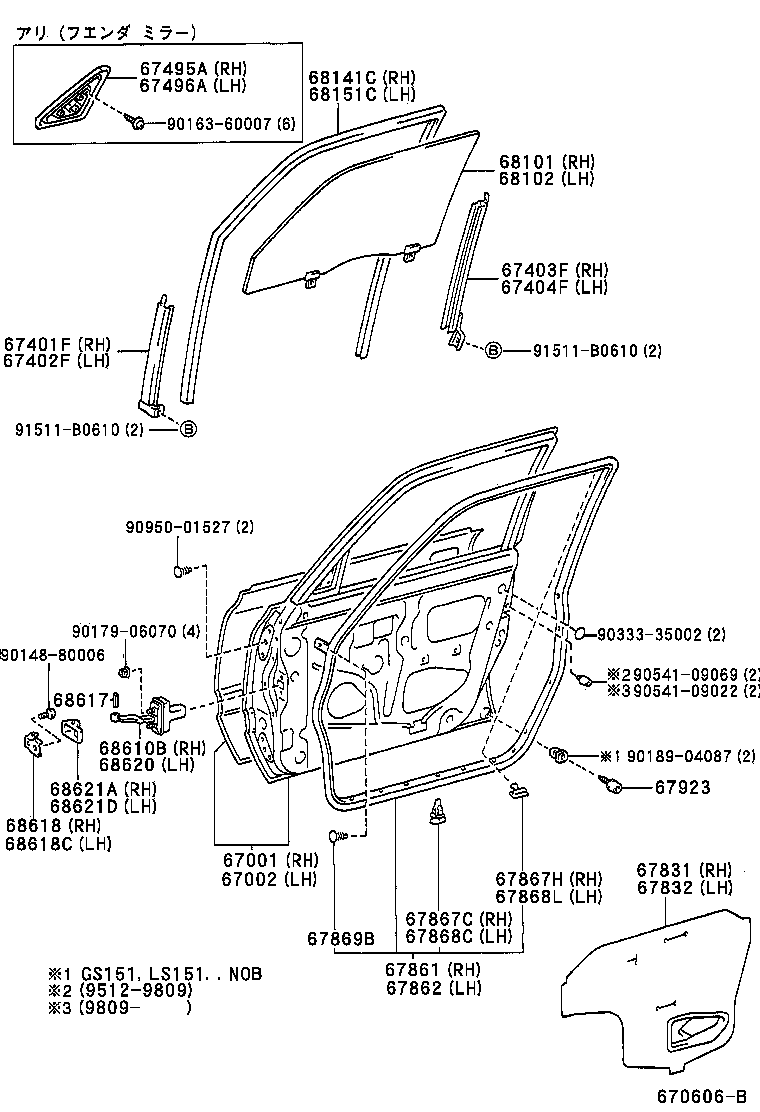

ILLUST NO. 2 OF 3(9512- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-30770 |
GS151,JZS15#,LS151..SED |
1 | ||
| 67001-30771 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-30850 |
GS151,JZS15#,LS151..SED |
1 | ||
| 67002-30851 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-30231 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 67401-30230 |
GS151,JZS15#,LS151..SED |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-30231 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 67402-30230 |
GS151,JZS15#,LS151..SED |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-30140 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-30140 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-30080 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-30070 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-30370 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-30230 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-30290 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-30290 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
GS151,JZS151,153,155,LS151..SED |
17 | ||
| 67867H - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-30070 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
GS151,JZS151,153,155,LS151..SED |
17 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-30070 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-32020 |
GS151,JZS151,153,155,LS151..SED |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-30420 |
GS151,JZS15#,LS151..SED..(ROY,ROYG,SALEX) *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68101-30450 |
GS151,JZS15#,LS151..SED *TT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68101-30680 |
GS151,JZS151,153,155,LS151..SED..(ROY,ROYG,SALEX) *UVCTT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68101-30650 |
GS151,JZS151,153,155,LS151..SED..(ROY,ROYG,SALEX) *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68101-30660 |
GS151,JZS151,153,155,LS151..SED..(ROY,ROYG,SALEX) *UVCTT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68101-30670 |
GS151,JZS151,153,155,LS151..SED..(ROY,ROYG,SALEX) *UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-30420 |
GS151,JZS15#,LS151..SED..(ROY,ROYG,SALEX) *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102-30450 |
GS151,JZS15#,LS151..SED *TT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102-30650 |
GS151,JZS151,153,155,LS151..SED..(ROY,ROYG,SALEX) *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102-30660 |
GS151,JZS151,153,155,LS151..SED..(ROY,ROYG,SALEX) *UVCTT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102-30680 |
GS151,JZS151,153,155,LS151..SED..(ROY,ROYG,SALEX) *UVCTT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102-30670 |
GS151,JZS151,153,155,LS151..SED..(ROY,ROYG,SALEX) *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-30270 |
GS151,JZS15#,LS151..SED |
1 | ||
| 68141-30280 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 68141-30281 |
GS151,JZS15# |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-30120 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 68151-30110 |
GS151,JZS15#,LS151..SED |
1 | ||
| 68151-30121 |
GS151,JZS15# |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-30130 |
GS151,JZS151,153,155,LS151..SED..(HTWC,TDE,TWC) |
1 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-50010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 68618 - BRACKET, FRONT DOOR CHECK ARM, RH | ||||
| 68618-50010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 68618C - BRACKET, FRONT DOOR CHECK ARM, LH | ||||
| 68618-50010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-30060 |
GS151,JZS151,153,155,LS151..SED..(HTWC,TDE,TWC) |
1 | ||
| 68621A - COVER, FRONT DOOR CHECK, RH | ||||
| 68621-50030 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 68621D - COVER, FRONT DOOR CHECK, LH | ||||
| 68621-50030 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| Common parts | ||||
| 90148-80006 | ||||
| 90163-60007 | ||||
| 90179-06070 | ||||
| 90189-04087 | ||||
| 90333-35002 | ||||
| 90541-09022 | ||||
| 90541-09069 | ||||
| 90950-01527 | ||||
| 91511-B0610 | ||||
ILLUST NO. 1 OF 3(9512- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-30140 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-30140 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-3F390B0 |
LS151..SED..WIB;GS151,JZS151,155..SED..(ROY,ROYG,SPDLX)..(LPGTE,TWC) ﾄﾘﾑ = TYPE F-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 67610-3F390E0 |
LS151..SED..WIB;GS151,JZS151,155..SED..(ROY,ROYG,SPDLX)..(LPGTE,TWC) ﾄﾘﾑ = TYPE F-*104,ANTELOPE,TRIM4# |
1 | ||
| 67610-3F550B0 |
LS151..SED..WIB;GS151,JZS151,153,155..SED..(ROY,ROYG,SPDLX)..(LPGTE,TWC) ﾄﾘﾑ = TYPE F-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 67610-3F550E0 |
LS151..SED..WIB;GS151,JZS151,153,155..SED..(ROY,ROYG,SPDLX)..(LPGTE,TWC) ﾄﾘﾑ = TYPE F-*104,ANTELOPE,TRIM4# |
1 | ||
| 67610-3F551B0 |
GS151,JZS15#..(ROY,ROYG,SPDLX)..(LPGTE,TWC) ﾄﾘﾑ = TYPE F-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 67610-3F551E0 |
GS151,JZS15#..(ROY,ROYG,SPDLX)..(LPGTE,TWC) ﾄﾘﾑ = TYPE F-*104,ANTELOPE,TRIM4# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-07066B2 |
GS151,JZS151,153,155,LS151..SED DK.BLUE GRAY,TRIM1# |
6 | ||
| 90467-07066E5 |
GS151,JZS151,153,155,LS151..SED ANTELOPE,TRIM4# |
6 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-01800B1 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX DK.BLUE GRAY,TRIM1# |
4 | ||
| 90950-01800E3 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX ANTELOPE,TRIM4# |
4 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3K030B0 |
JZS151,155,LS151..SED..(ROY,ROYG) ﾄﾘﾑ = TYPE F-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 67620-3K030E0 |
JZS151,155,LS151..SED..(ROY,ROYG) ﾄﾘﾑ = TYPE F-*104,ANTELOPE,TRIM4# |
1 | ||
| 67050-30110E0 |
JZS151,153,155,LS151..SED..(ROY,ROYG) ﾄﾘﾑ = TYPE F-*104,ANTELOPE,TRIM4# |
1 | ||
| 67050-30110B0 |
JZS151,153,155,LS151..SED..(ROY,ROYG) ﾄﾘﾑ = TYPE F-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 67050-30111E0 |
JZS15#..ROY,ROYG ﾄﾘﾑ = TYPE F-*104,ANTELOPE,TRIM4# |
1 | ||
| 67050-30111B0 |
JZS15#..ROY,ROYG ﾄﾘﾑ = TYPE F-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68172-30071 |
GS151,JZS15#,LS151..SED |
1 | ||
| 68171-30100 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-30080 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 68172-30071 |
GS151,JZS15#,LS151..SED |
1 | ||
| 74237C - CAP, FRONT DOOR ARMREST BASE | ||||
| 74237-30040E0 |
GS151,JZS151,153,155,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 74237-30040B0 |
GS151,JZS151,153,155,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90159-40141 | ||||
| 90159-40223 | ||||
| 90159-60281 | ||||
| 90168-40100 | ||||
| 90189-04200 | ||||
| 90189-06030 | ||||
| 90467-09177 | ||||
| 90468-04181 | ||||
| 90904-67028 | ||||
| Linked diagrams | ||||
| 7401 | ||||

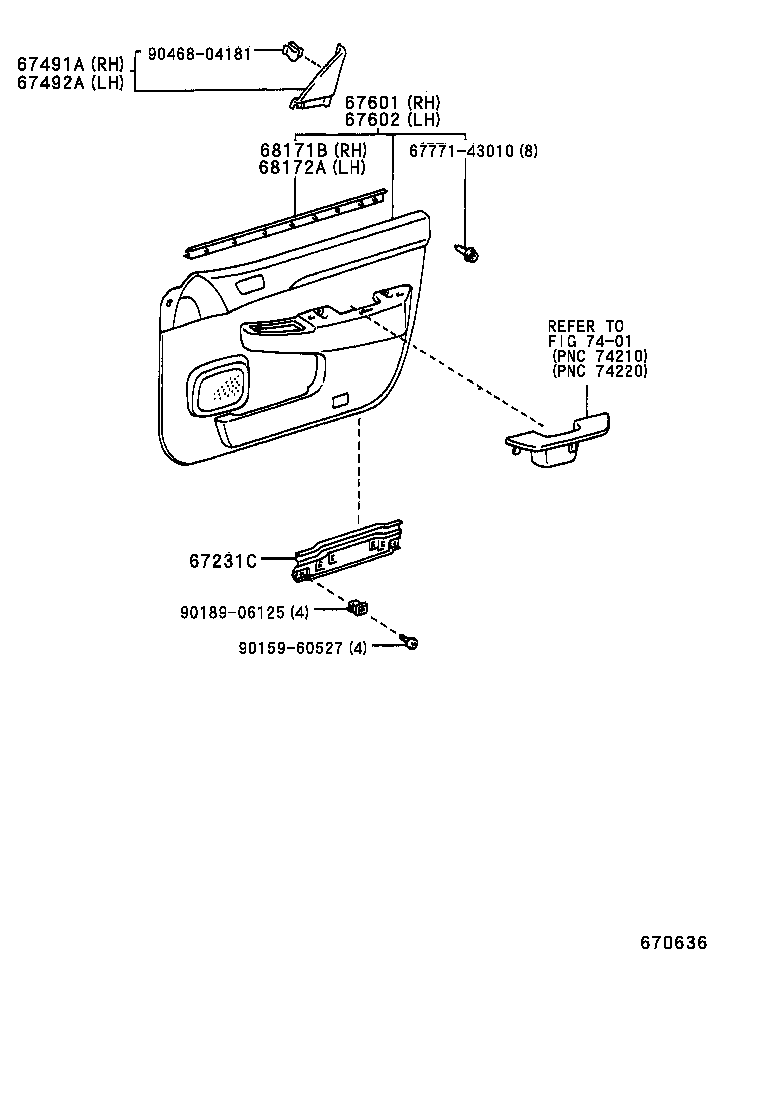

ILLUST NO. 1 OF 3(9512- )SED
D ﾊﾟﾂｹ-ｼﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-30140 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-30140 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-3F390B0 |
LS151..SED..WIB;GS151,JZS151,155..SED..(ROY,ROYG,SPDLX)..(LPGTE,TWC) ﾄﾘﾑ = TYPE F-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 67610-3F390E0 |
LS151..SED..WIB;GS151,JZS151,155..SED..(ROY,ROYG,SPDLX)..(LPGTE,TWC) ﾄﾘﾑ = TYPE F-*104,ANTELOPE,TRIM4# |
1 | ||
| 67610-3F550B0 |
LS151..SED..WIB;GS151,JZS151,153,155..SED..(ROY,ROYG,SPDLX)..(LPGTE,TWC) ﾄﾘﾑ = TYPE F-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 67610-3F550E0 |
LS151..SED..WIB;GS151,JZS151,153,155..SED..(ROY,ROYG,SPDLX)..(LPGTE,TWC) ﾄﾘﾑ = TYPE F-*104,ANTELOPE,TRIM4# |
1 | ||
| 67610-3F551B0 |
GS151,JZS15#..(ROY,ROYG,SPDLX)..(LPGTE,TWC) ﾄﾘﾑ = TYPE F-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 67610-3F551E0 |
GS151,JZS15#..(ROY,ROYG,SPDLX)..(LPGTE,TWC) ﾄﾘﾑ = TYPE F-*104,ANTELOPE,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3K030B0 |
JZS151,155,LS151..SED..(ROY,ROYG) ﾄﾘﾑ = TYPE F-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 67620-3K030E0 |
JZS151,155,LS151..SED..(ROY,ROYG) ﾄﾘﾑ = TYPE F-*104,ANTELOPE,TRIM4# |
1 | ||
| 67050-30110E0 |
JZS151,153,155,LS151..SED..(ROY,ROYG) ﾄﾘﾑ = TYPE F-*104,ANTELOPE,TRIM4# |
1 | ||
| 67050-30110B0 |
JZS151,153,155,LS151..SED..(ROY,ROYG) ﾄﾘﾑ = TYPE F-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 67050-30111E0 |
JZS15#..ROY,ROYG ﾄﾘﾑ = TYPE F-*104,ANTELOPE,TRIM4# |
1 | ||
| 67050-30111B0 |
JZS15#..ROY,ROYG ﾄﾘﾑ = TYPE F-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68172-30071 |
GS151,JZS15#,LS151..SED |
1 | ||
| 68171-30100 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-30080 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 68172-30071 |
GS151,JZS15#,LS151..SED |
1 | ||
| Common parts | ||||
| 67771-43010 | ||||
| 90159-60527 | ||||
| 90189-06125 | ||||
| 90468-04181 | ||||
| Linked diagrams | ||||
| 7401 | ||||

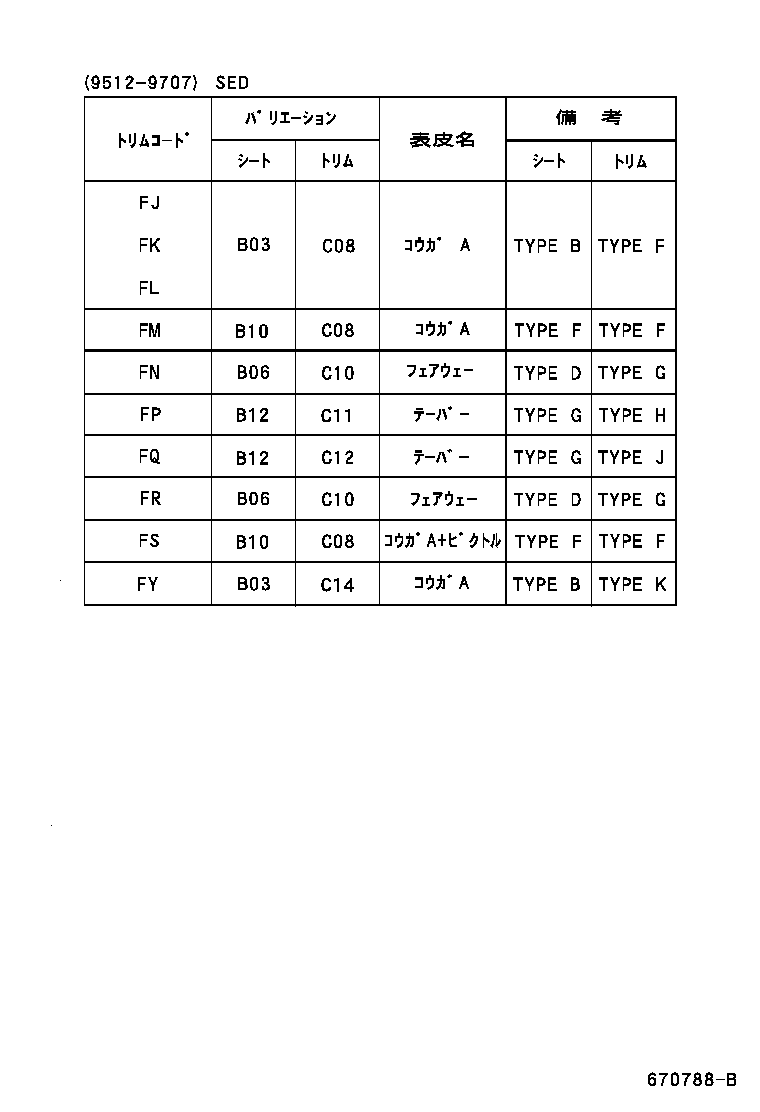

ILLUST NO. 3 OF 3(9512-9707)SED
| Part # | Description | Qty | Price |
|---|

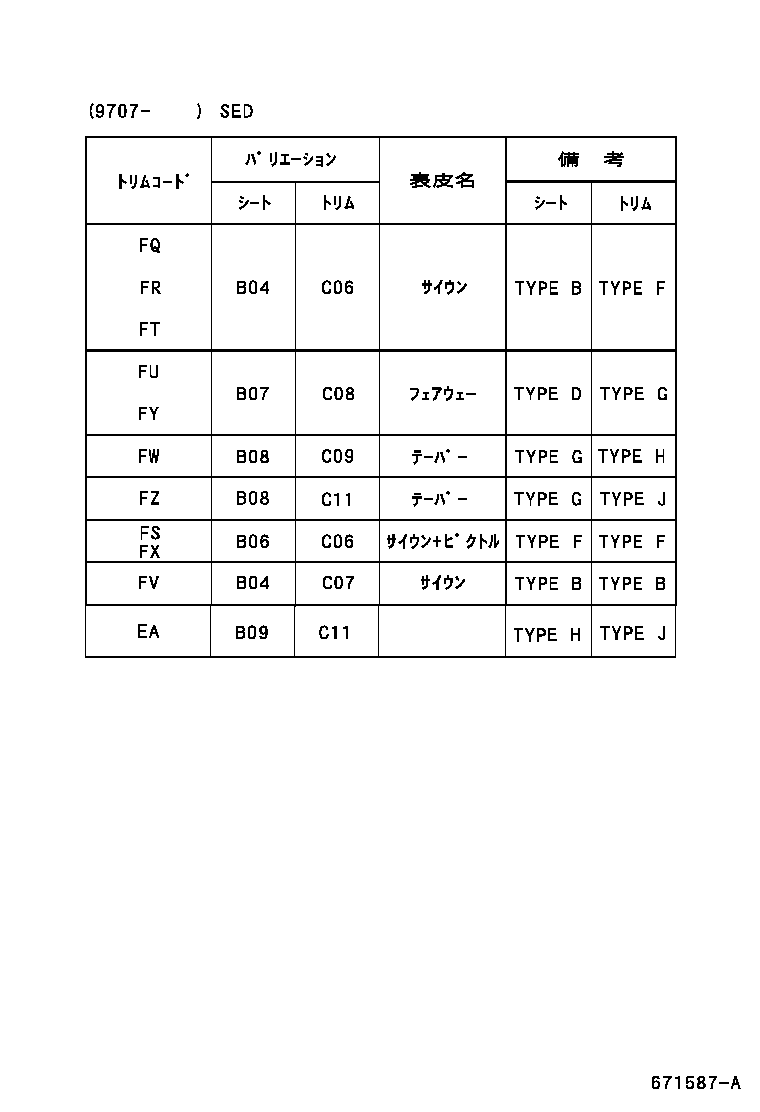

ILLUST NO. 3 OF 3(9707- )SED
| Part # | Description | Qty | Price |
|---|
