JZS151-AEPQF (1995)
Toyota Crown/Crown Majesta

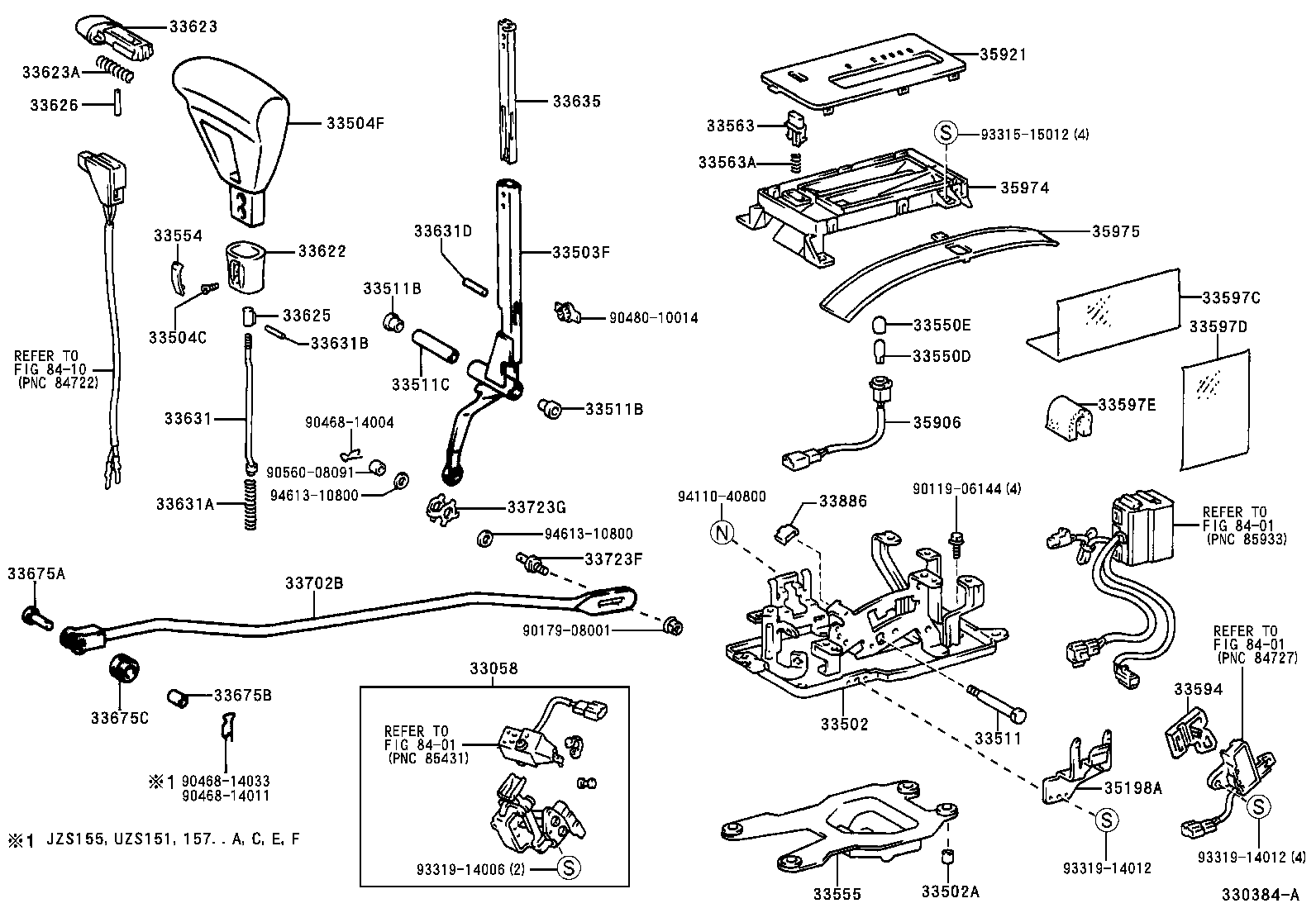

(9508-9707)JZS151,155,UZS151,157..C,F,ROYT ; (9508- )GS151,JZS151,155,LS151..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID | ||||
| 33058-30080 |
GS151,JZS15#,LS151,UZS151,157..ATM |
1 | ||
| 33058-30080 |
GS151,JZS15#,LS151,UZS151..ATM..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-30380 |
GS151,JZS151,155,LS151..4FC..(ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 33521-30270 |
JZS151,155,UZS151,157..C,F,ROYT |
1 | ||
| 33502-30380 |
GS151,JZS151,155,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) |
1 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06061 |
GS151,JZS15#,LS151,UZS155..4FC..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) 外径=10.8,内径=6.8 |
4 | ||
| 90387-06061 |
GS151,JZS15#,LS151,UZS15#..ATM 外径=10.8,内径=6.8 |
4 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-30090 |
GS151,JZS151,155,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) |
1 | ||
| 33055-30150 |
JZS151,155,UZS157..F,ROYT |
1 | ||
| 33055-30090 |
GS151,JZS151,155,LS151..4FC..(ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
GS151,JZS15#,LS151,UZS15#..ATM |
2 | ||
| 90159-40109 |
GS151,JZS15#,LS151,UZS151,155..ATM..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-30280E0 |
JZS151,155,UZS15#..A,C,E,F,ROYG,ROYT ANTELOPE,TRIM4# |
1 | ||
| 33542-30280B0 |
JZS151,155..ROY;JZS153..HT..ROY ｶﾜﾏｷ,DK. BLUE GRAY,TRIM1# |
1 | ||
| 33542-30270E1 |
GS151,JZS15#,LS151..4FC..(ROY,ROYEX,SALEX,SPDLX) ANTELOPE,TRIM4# |
1 | ||
| 33542-50040B0 |
JZS151,155,UZS157..F,ROYT DK. BLUE GRAY,TRIM1# |
1 | ||
| 33542-30270B1 |
GS151,JZS15#,LS151..4FC..(ROY,ROYEX,SALEX,SPDLX) DK.BLUE GRAY,TRIM1# |
1 | ||
| 33542-30280B0 |
JZS151,155,UZS15#..A,C,E,F,ROYG,ROYT DK. BLUE GRAY,TRIM1# |
1 | ||
| 33542-50040B1 |
JZS151,155,UZS157..F,ROYT SHADOW GRAY,TRIM1# |
1 | ||
| 33542-30280E0 |
JZS15#..ROY;UZS151..5FC ﾎﾝｶﾞﾜ,ANTELOPE,TRIM4# |
1 | ||
| 33542-50040E3 |
JZS151,155,UZS157..F,ROYT ANTELOPE,TRIM4# |
1 | ||
| 33542-50040E1 |
JZS151,155,UZS157..F,ROYT ORCHID BROWN,TRIM4# |
1 | ||
| 33542-30280E2 |
JZS151,155..ROY;JZS153..HT..ROY ｶﾜﾏｷ,ORCHID BROWN,TRIM4# |
1 | ||
| 33542-30280B2 |
JZS151,155..ROY;JZS153..HT..ROY ｶﾜﾏｷ,SHADOW GRAY,TRIM1# |
1 | ||
| 33542-30270B2 |
GS151,JZS151,153,155,LS151..4FC..(ROY,ROYEX,SALEX,SPDLX) SHADOW GRAY,TRIM1# |
1 | ||
| 33542-30270E2 |
GS151,JZS151,153,155,LS151..4FC..(ROY,ROYEX,SALEX,SPDLX) ORCHID BROWN,TRIM4# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-22170 |
GS151,JZS15#,LS151,UZS151,157..ATM |
1 | ||
| 33511-22170 |
GS151,JZS15#,LS151..4FC..(A,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90386-11019 |
GS151,JZS15#,LS151,UZS15#..ATM |
2 | ||
| 90386-11019 |
GS151,JZS15#,LS151,UZS151,155..ATM..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
2 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90386-11019 |
GS151,JZS15#,LS151,UZS15#..ATM |
2 | ||
| 90386-11019 |
GS151,JZS15#,LS151,UZS151,155..ATM..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
2 | ||
| 33511C - COLLAR (FOR CONTROL SHAFT) | ||||
| 90387-08139 |
GS151,JZS15#,LS151,UZS151,157..ATM |
1 | ||
| 90387-08139 |
GS151,JZS15#,LS151..4FC..(A,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
JZS151,155,UZS151,157..C,F,ROYT 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11036 |
GS151,JZS15#,LS151,UZS15#..ATM 12V 1.7W |
1 | ||
| 90981-11036 |
GS151,JZS15#,LS151,UZS155..4FC..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) 12V 1.7W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-09001 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 90339-04049 |
JZS151,155,UZS151,157..C,F,ROYT |
1 | ||
| 90339-09001 |
GS151,JZS15#,LS151,UZS155..4FC..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 33554 - CAP, SHIFT LEVER | ||||
| 33554-30040 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 33554-30040 |
GS151,JZS15#,LS151,UZS151,155..ATM..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-30240 |
GS151,JZS151,155,LS151..4FC..(ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 33555-30240 |
GS151,JZS151,155,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-30070 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 33563-30070 |
GS151,JZS15#,LS151,UZS155..4FC..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 33563-30080 |
JZS151,155,UZS157..F,ROYT |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-07105 |
GS151,JZS15#,LS151,UZS151,155..ATM..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 90501-06086 |
JZS151,155,UZS157..F,ROYT |
1 | ||
| 90501-07105 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 33594 - PLATE, SHIFT LOCK (FOR FLOOR SHIFT) | ||||
| 33594-22030 |
GS151,JZS151,155,LS151,UZS151,155..ATM..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 33594-22030 |
GS151,JZS151,155,LS151,UZS15#..ATM |
1 | ||
| 33597C - SEAT, SHIFT LEVER NO.2 (FOR FLOOR SHIFT) | ||||
| 33597-30040 |
GS151,JZS15#,LS151..4FC..(A,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 33597D - SEAT, SHIFT LEVER, NO.3 (FOR FLOOR SHIFT) | ||||
| 33597-30050 |
GS151,JZS15#,LS151,UZS155..4FC..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 33597E - SEAT, SHIFT LEVER, NO.4 (FOR FLOOR SHIFT) | ||||
| 33597-30070 |
GS151,JZS15#,LS151,UZS155..4FC..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 33622 - COVER, SHIFT LEVER KNOB, NO.1 | ||||
| 33622-50060 |
JZS151,155,UZS157..F,ROYT |
1 | ||
| 33622-30120 |
GS151,JZS15#,LS151,UZS151,155..ATM..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 33622-30120 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-30130B1 |
GS151,JZS15#,LS151,UZS15#..ATM DK.BLUE GRAY,TRIM1# |
1 | ||
| 33623-30130B1 |
GS151,JZS15#,LS151,UZS151,155..ATM..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) DK.BLUE GRAY,TRIM1# |
1 | ||
| 33623-30130E1 |
GS151,JZS15#,LS151,UZS15#..ATM ANTELOPE,TRIM4# |
1 | ||
| 33623-30130E1 |
GS151,JZS15#,LS151,UZS151,155..ATM..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) ANTELOPE,TRIM4# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 90501-07009 |
GS151,JZS15#,LS151,UZS151,155..ATM..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-30050 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 33625-30050 |
GS151,JZS15#,LS151,UZS151,155..ATM..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 33626 - STOPPER, SHIFT LEVER BUTTON | ||||
| 90256-02004 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 90256-02004 |
GS151,JZS15#,LS151,UZS151,155..ATM..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-30150 |
GS151,JZS15#,LS151,UZS151..ATM..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 33631-30150 |
GS151,JZS15#,LS151,UZS151,157..ATM |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-08152 |
GS151,JZS15#,LS151,UZS151,155..ATM..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 90501-08152 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 33631B - PIN, SLOTTED SPRING (FOR DETENT ROD) | ||||
| 90256-02003 |
GS151,JZS15#,LS151,UZS155..4FC..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 90256-02001 |
JZS151,155,UZS157..F,ROYT |
1 | ||
| 90256-02003 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04003 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 90256-04003 |
GS151,JZS15#,LS151,UZS155..4FC..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 33635 - GUIDE, WIRE (FOR SHIFT LEVER) | ||||
| 33635-30120 |
GS151,JZS15#,LS151,UZS151,157..ATM |
1 | ||
| 33635-30120 |
GS151,JZS15#,LS151,UZS151..ATM..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) | ||||
| 33726-35010 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 33675B - BUSH (FOR TRANSMISSION CONTROL ROD) | ||||
| 90560-08091 |
GS151,JZS151,155,LS151,UZS151,157..ATM |
1 | ||
| 33675C - GROMMET (FOR TRANSMISSION CONTROL ROD) | ||||
| 90480-17013 |
GS151,JZS151,155,LS151,UZS151,157..ATM |
1 | ||
| 33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) | ||||
| 33702-30380 |
JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 33702-30381 |
JZS151,155..ROY,ROYEX,ROYG,SALEX |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-30080 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 33723-30080 |
GS151,JZS15#,LS151,UZS15#..4FC..(A,C,E,F,ROY,ROYEX,SALEX,SPDLX) ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ) |
1 | ||
| 33723-22020 |
JZS151,155..ROY,ROYG,ROYT |
1 | ||
| 33723-22020 |
GS151,JZS151,155..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) |
1 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 33572-30050 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 33886 - STOPPER, SHIFT LEVER | ||||
| 33886-22010 |
GS151,JZS15#,LS151,UZS155..4FC..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 33886-22010 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 35198A - BRACKET, WIRE HARNESS CLAMP, NO.4 | ||||
| 35198-30110 |
GS151,JZS15#,LS151,UZS151,157..ATM |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-12130 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 35906-30060 |
JZS151,155,UZS157..F,ROYT |
1 | ||
| 35906-12130 |
GS151,JZS15#,LS151,UZS155..4FC..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-30370 |
GS151,JZS151,155,LS151..4FC..(ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 35921-30370 |
GS151,JZS151,155,LS151..4FC..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-30090 |
GS151,JZS15#,LS151,UZS155..4FC..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 35974-30090 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-30230 |
JZS151,155,UZS157..F,ROYT |
1 | ||
| 35975-30210 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 35975-30210 |
GS151,JZS15#,LS151,UZS155..4FC..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| Common parts | ||||
| 90119-06144 | ||||
| 90179-08001 | ||||
| 90468-14004 | ||||
| 90468-14011 | ||||
| 90468-14033 | ||||
| 90480-10014 | ||||
| 90560-08091 | ||||
| 93315-15012 | ||||
| 93319-14006 | ||||
| 93319-14012 | ||||
| 94110-40800 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8410 | ||||

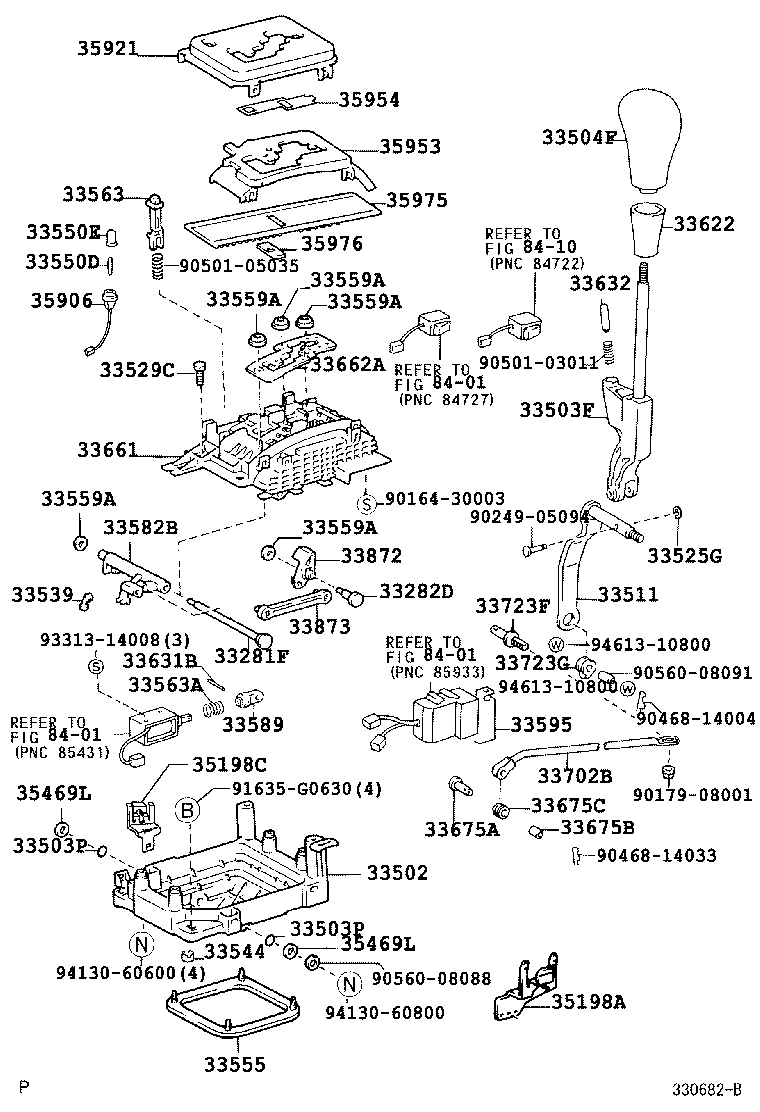

(9707- )F,ROYT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33281F - PIN, LEVER LOCK (FOR FLOOR SHIFT) | ||||
| 33281-50010 |
JZS151,155,UZS157..F,ROYT |
1 | ||
| 33282D - PIN, LEVER LOCK, NO.2 | ||||
| 33282-50010 |
JZS151,155,UZS157..F,ROYT |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-30380 |
GS151,JZS151,155,LS151..4FC..(ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 33521-30270 |
JZS151,155,UZS151,157..C,F,ROYT |
1 | ||
| 33502-30380 |
GS151,JZS151,155,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-30090 |
GS151,JZS151,155,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) |
1 | ||
| 33055-30150 |
JZS151,155,UZS157..F,ROYT |
1 | ||
| 33055-30090 |
GS151,JZS151,155,LS151..4FC..(ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 33503P - RING, O(FOR SHIFT LEVER) | ||||
| 96711-24014 |
JZS151,155,UZS151,157..C,F,ROYT |
2 | ||
| 33503P - RING, O(FOR SHIFT LEVER) | ||||
| 96711-24014 |
JZS151,155,UZS151,157..C,F,ROYT |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-30280E0 |
JZS151,155,UZS15#..A,C,E,F,ROYG,ROYT ANTELOPE,TRIM4# |
1 | ||
| 33542-30280B0 |
JZS151,155..ROY;JZS153..HT..ROY ｶﾜﾏｷ,DK. BLUE GRAY,TRIM1# |
1 | ||
| 33542-30270E1 |
GS151,JZS15#,LS151..4FC..(ROY,ROYEX,SALEX,SPDLX) ANTELOPE,TRIM4# |
1 | ||
| 33542-50040B0 |
JZS151,155,UZS157..F,ROYT DK. BLUE GRAY,TRIM1# |
1 | ||
| 33542-30270B1 |
GS151,JZS15#,LS151..4FC..(ROY,ROYEX,SALEX,SPDLX) DK.BLUE GRAY,TRIM1# |
1 | ||
| 33542-30280B0 |
JZS151,155,UZS15#..A,C,E,F,ROYG,ROYT DK. BLUE GRAY,TRIM1# |
1 | ||
| 33542-50040B1 |
JZS151,155,UZS157..F,ROYT SHADOW GRAY,TRIM1# |
1 | ||
| 33542-30280E0 |
JZS15#..ROY;UZS151..5FC ﾎﾝｶﾞﾜ,ANTELOPE,TRIM4# |
1 | ||
| 33542-50040E3 |
JZS151,155,UZS157..F,ROYT ANTELOPE,TRIM4# |
1 | ||
| 33542-50040E1 |
JZS151,155,UZS157..F,ROYT ORCHID BROWN,TRIM4# |
1 | ||
| 33542-30280E2 |
JZS151,155..ROY;JZS153..HT..ROY ｶﾜﾏｷ,ORCHID BROWN,TRIM4# |
1 | ||
| 33542-30280B2 |
JZS151,155..ROY;JZS153..HT..ROY ｶﾜﾏｷ,SHADOW GRAY,TRIM1# |
1 | ||
| 33542-30270B2 |
GS151,JZS151,153,155,LS151..4FC..(ROY,ROYEX,SALEX,SPDLX) SHADOW GRAY,TRIM1# |
1 | ||
| 33542-30270E2 |
GS151,JZS151,153,155,LS151..4FC..(ROY,ROYEX,SALEX,SPDLX) ORCHID BROWN,TRIM4# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-22170 |
GS151,JZS15#,LS151,UZS151,157..ATM |
1 | ||
| 33511-22170 |
GS151,JZS15#,LS151..4FC..(A,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 33525G - RING, SHIFT LEVER | ||||
| 33525-50010 |
JZS151,155,UZS151,157..C,F,ROYT |
1 | ||
| 33529C - BOLT, SHIFT LEVER | ||||
| 33529-50010 |
JZS151,155,UZS151,157..C,F,ROYT |
4 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-14010 |
JZS151,155,UZS157..F,ROYT |
1 | ||
| 33544 - INSERT, SHIFT LEVER, NO.1 | ||||
| 33544-50010 |
JZS151,155,UZS151,157..C,F,ROYT |
4 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
JZS151,155,UZS151,157..C,F,ROYT 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11036 |
GS151,JZS15#,LS151,UZS15#..ATM 12V 1.7W |
1 | ||
| 90981-11036 |
GS151,JZS15#,LS151,UZS155..4FC..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) 12V 1.7W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-09001 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 90339-04049 |
JZS151,155,UZS151,157..C,F,ROYT |
1 | ||
| 90339-09001 |
GS151,JZS15#,LS151,UZS155..4FC..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-30240 |
GS151,JZS151,155,LS151..4FC..(ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 33555-30240 |
GS151,JZS151,155,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) |
1 | ||
| 33559A - NUT, SHIFT LEVER, NO.1 | ||||
| 33559-50010 |
JZS151,155,UZS157..F,ROYT |
5 | ||
| 33559A - NUT, SHIFT LEVER, NO.1 | ||||
| 33559-50010 |
JZS151,155,UZS157..F,ROYT |
5 | ||
| 33559A - NUT, SHIFT LEVER, NO.1 | ||||
| 33559-50010 |
JZS151,155,UZS157..F,ROYT |
5 | ||
| 33559A - NUT, SHIFT LEVER, NO.1 | ||||
| 33559-50010 |
JZS151,155,UZS157..F,ROYT |
5 | ||
| 33559A - NUT, SHIFT LEVER, NO.1 | ||||
| 33559-50010 |
JZS151,155,UZS157..F,ROYT |
5 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-30070 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 33563-30070 |
GS151,JZS15#,LS151,UZS155..4FC..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 33563-30080 |
JZS151,155,UZS157..F,ROYT |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-07105 |
GS151,JZS15#,LS151,UZS151,155..ATM..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 90501-06086 |
JZS151,155,UZS157..F,ROYT |
1 | ||
| 90501-07105 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 33582B - STOPPER, SHIFT LOCK PLATE (FOR FLOOR SHIFT) | ||||
| 33582-30050 |
JZS151,155,UZS157..F,ROYT |
1 | ||
| 33589 - LINK, SHIFT LOCK SOLENOID | ||||
| 33589-24010 |
JZS151,155,UZS157..F,ROYT |
1 | ||
| 33595 - BRACKET, SHIFT LOCK COMPUTER | ||||
| 33595-30100 |
JZS151,155,UZS157..F,ROYT |
1 | ||
| 33622 - COVER, SHIFT LEVER KNOB, NO.1 | ||||
| 33622-50060 |
JZS151,155,UZS157..F,ROYT |
1 | ||
| 33622-30120 |
GS151,JZS15#,LS151,UZS151,155..ATM..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 33622-30120 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 33631B - PIN, SLOTTED SPRING (FOR DETENT ROD) | ||||
| 90256-02003 |
GS151,JZS15#,LS151,UZS155..4FC..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 90256-02001 |
JZS151,155,UZS157..F,ROYT |
1 | ||
| 90256-02003 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 33632 - ROD, DETENT, NO.2 | ||||
| 33632-50010 |
JZS151,155,UZS157..F,ROYT |
1 | ||
| 33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) | ||||
| 33726-35010 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 33675B - BUSH (FOR TRANSMISSION CONTROL ROD) | ||||
| 90560-08091 |
GS151,JZS151,155,LS151,UZS151,157..ATM |
1 | ||
| 33675C - GROMMET (FOR TRANSMISSION CONTROL ROD) | ||||
| 90480-17013 |
GS151,JZS151,155,LS151,UZS151,157..ATM |
1 | ||
| 33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) | ||||
| 33702-30380 |
JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 33702-30381 |
JZS151,155..ROY,ROYEX,ROYG,SALEX |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-30080 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 33723-30080 |
GS151,JZS15#,LS151,UZS15#..4FC..(A,C,E,F,ROY,ROYEX,SALEX,SPDLX) ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ) |
1 | ||
| 33723-22020 |
JZS151,155..ROY,ROYG,ROYT |
1 | ||
| 33723-22020 |
GS151,JZS151,155..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) |
1 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 33572-30050 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 33872 - LINK, SHIFT LOCK RELEASE, NO.2 | ||||
| 33872-22010 |
JZS151,155,UZS157..F,ROYT |
1 | ||
| 33873 - LINK, SHIFT LOCK RELEASE, NO.3 | ||||
| 33873-50011 |
JZS151,155,UZS157..F,ROYT |
1 | ||
| 35198A - BRACKET, WIRE HARNESS CLAMP, NO.4 | ||||
| 35198-30110 |
GS151,JZS15#,LS151,UZS151,157..ATM |
1 | ||
| 35198C - BRACKET, WIRE HARNESS CLAMP | ||||
| 35198-30130 |
JZS151,155,UZS157..F,ROYT |
1 | ||
| 35469L - SPACER, SHIFT LEVER | ||||
| 35469-50010 |
JZS151,155,UZS151,157..C,F,ROYT |
2 | ||
| 35469L - SPACER, SHIFT LEVER | ||||
| 35469-50010 |
JZS151,155,UZS151,157..C,F,ROYT |
2 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-12130 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 35906-30060 |
JZS151,155,UZS157..F,ROYT |
1 | ||
| 35906-12130 |
GS151,JZS15#,LS151,UZS155..4FC..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-30370 |
GS151,JZS151,155,LS151..4FC..(ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 35921-30370 |
GS151,JZS151,155,LS151..4FC..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) |
1 | ||
| 35954 - SHEET, POSITION INDICATOR | ||||
| 35954-30010 |
JZS151,155,UZS157..F,ROYT |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-30230 |
JZS151,155,UZS157..F,ROYT |
1 | ||
| 35975-30210 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 35975-30210 |
GS151,JZS15#,LS151,UZS155..4FC..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-22060 |
JZS151,155,UZS157..F,ROYT |
1 | ||
| Common parts | ||||
| 90164-30003 | ||||
| 90179-08001 | ||||
| 90249-05094 | ||||
| 90468-14004 | ||||
| 90468-14033 | ||||
| 90501-03011 | ||||
| 90501-05035 | ||||
| 90560-08088 | ||||
| 90560-08091 | ||||
| 91635-G0630 | ||||
| 93313-14008 | ||||
| 94130-60600 | ||||
| 94130-60800 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8410 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
