JZS149-ATPVF (1991)

Toyota Crown/Crown Majesta

Production Oct 1991 - Aug 1995
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9110-9508)

Click highlighted areas on diagram

diagram 9009914044 9009914045 9009914046 9009914056 9009914067 9009914119 9009914120 9009914121 9009914122 9009914125
Part # Description Qty Price
Common parts
90099-14044
90099-14045
90099-14046
90099-14056
90099-14067
90099-14119
90099-14120
90099-14121
90099-14122
90099-14125

(9110-9508)JZS147,149

Click highlighted areas on diagram

ﾌﾛﾝﾄ

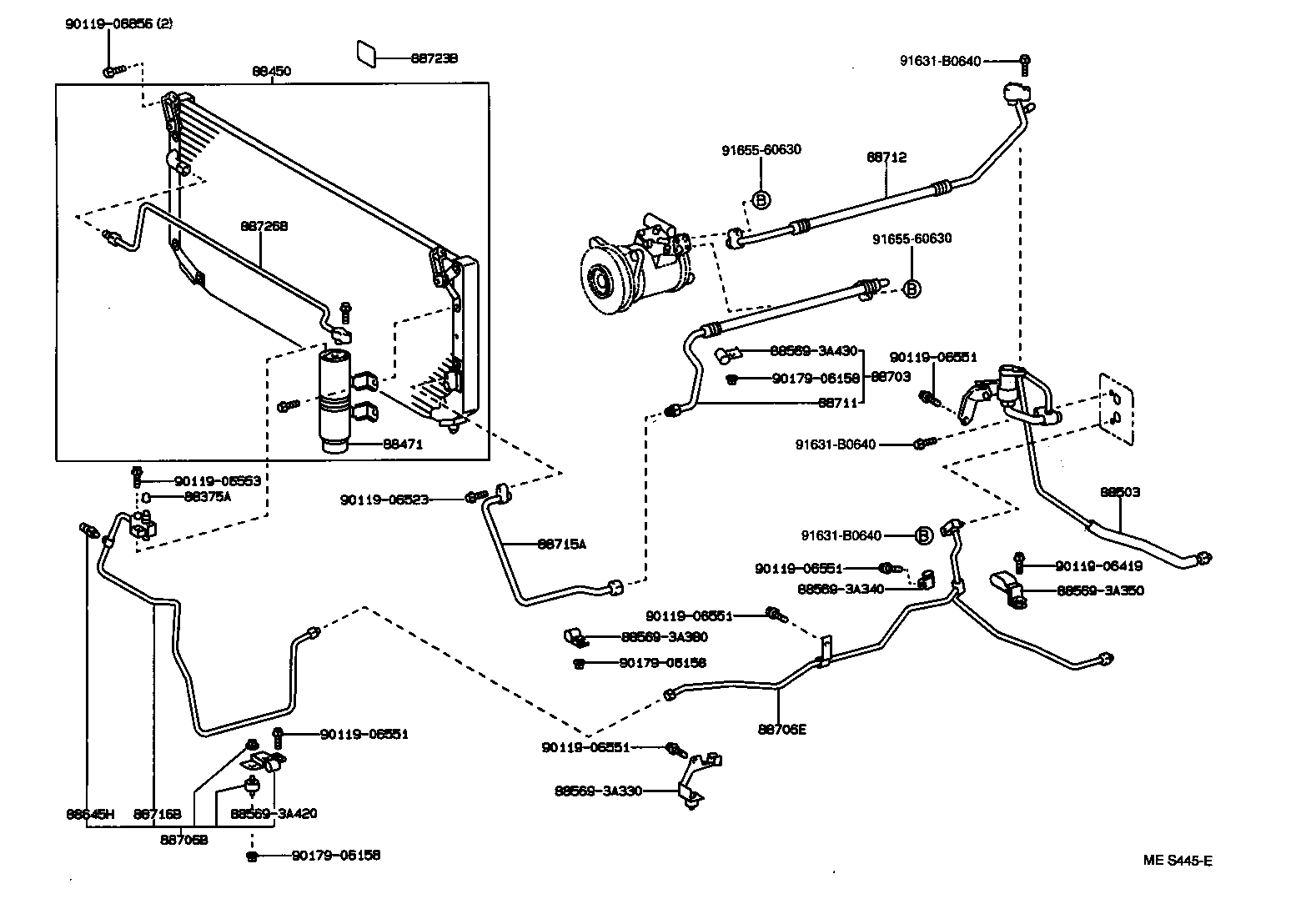

diagram 88375A 88450 88471 88503 885693A330 885693A340 885693A350 885693A380 885693A420 885693A430 88645H 88703 88706B 88706E 88711 88712 88715A 88716B 88723B 88726B 9011906419 9011906523 9011906551 9011906551 9011906551 9011906551 9011906551 9011906553 9011908856 9017906158 9017906158 9017906158 91631B0640 91631B0640 91631B0640 9165560630 9165560630
Part # Description Qty Price
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

GS141,JZS14#,LS141,UZS14#

 1
88375-20010

JZS147,149,UZS14#

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-30250

JZS147,149,UZS14#

 1
88450-30240

JZS147,149,UZS14#

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-30370

GS141,JZS14#,LS141,UZS14#

 1
88471-30350

JZS14#,LS141,UZS14#

 1
88503 - REGULATOR ASSY, PRESSURE
88503-30620

JZS149

 1
88503-30530

JZS149

 1
88645H - SWITCH, PRESSURE NO.1
88645-20040

JZS147,149

 1
88645-30340

JZS147,149

 1
88645-30340

GS141,JZS14#

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-30390

JZS147,149

 1
88703-30420

JZS147,149

 1
88706B - TUBE SUB-ASSY, LIQUID, B
88706-30470

JZS147,149

 1
88706-30490

JZS147,149

 1
88706E - TUBE SUB-ASSY, LIQUID, E
88706-30500

JZS149,UZS141

 1
88706-30570

JZS149,UZS141

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-30770

JZS147,149

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-3A230

JZS147,149

 1
88712-3A570

JZS147,149

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-30440

JZS147,149,UZS14#

 1
88715-30450

JZS147,149,UZS14#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-3A460

JZS147,149,UZS14#

 1
88726-3A450

JZS147,149,UZS14#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-28120

JZS141,143,145,149,UZS14#..A,B,C,ROY,ROYG

 1
88723-20030

GS141,JZS14#,LS141,UZS14#

 1
88723-50140

GS141,JZS14#,LS141,UZS14#

 1
88726B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-3A510

JZS147,149,UZS14#

 1
88726-3A500

JZS147,149,UZS14#

 1
Common parts
88569-3A330
88569-3A340
88569-3A350
88569-3A380
88569-3A420
88569-3A430
90119-06419
90119-06523
90119-06551
90119-06553
90119-08856
90179-06158
91631-B0640
91655-60630

(9110-9508)JZS147,149,UZS14#

Click highlighted areas on diagram

ﾘﾔ

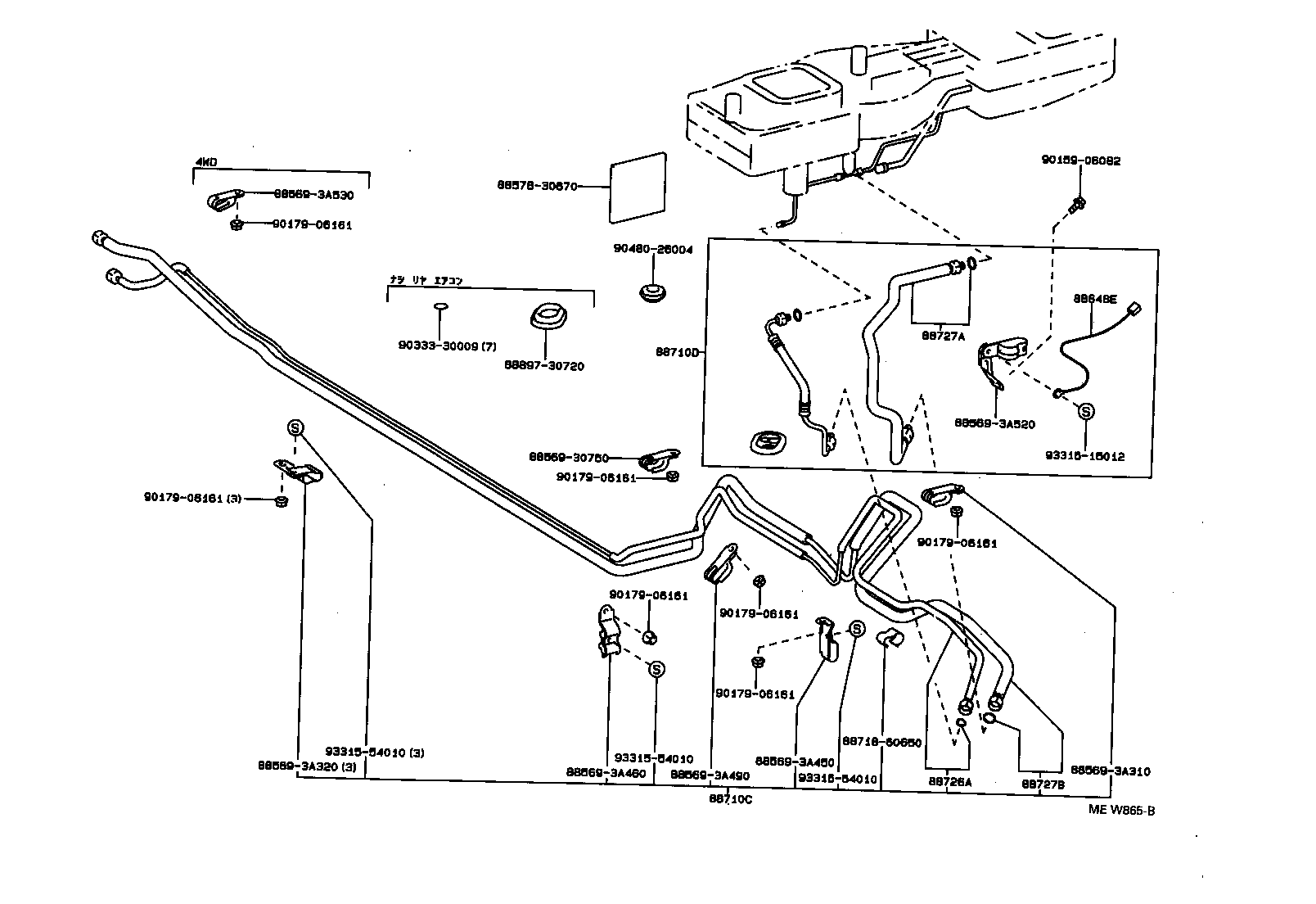

diagram 8856930750 885693A310 885693A320 885693A450 885693A460 885693A490 885693A520 885693A530 8857830670 88648E 88710C 88710D 8871860650 88726A 88727A 88727B 8889730720 9015906082 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9033330009 9048026004 9331515012 9331554010 9331554010 9331554010
Part # Description Qty Price
88648E - WIRING, COOLER
88648-30830

JZS147,149,UZS141

 1
88648-30870

JZS147,149,UZS14#

 1
88710C - TUBE ASSY, AIR CONDITIONER
88710-30560

JZS147,149,UZS141

 1
88710-30710

JZS147,149,UZS141,147

 1
88710D - TUBE ASSY, AIR CONDITIONER
88710-30780

JZS147,149,UZS14#

 1
88710-30620

JZS147,149,UZS14#

 1
88710-30550

JZS147,149,UZS141

 1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-3A480

JZS147,149,UZS141

 1
88726-3A830

JZS147,149,UZS141,147

 1
88727B - PIPE, COOLER REFRIGERANT SUCTION, B
88727-3A490

JZS147,149,UZS141,147

 1
88727-3A240

JZS147,149,UZS141

 1
Common parts
88569-30750
88569-3A310
88569-3A320
88569-3A450
88569-3A460
88569-3A490
88569-3A520
88569-3A530
88578-30670
88718-60650
88897-30720
90159-06082
90179-06161
90333-30009
90480-26004
93315-15012
93315-54010
