JZS149-ATPVF (1991)

Toyota Crown/Crown Majesta

Production Oct 1991 - Aug 1995
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9110-9508)JZS147,149,UZS14#

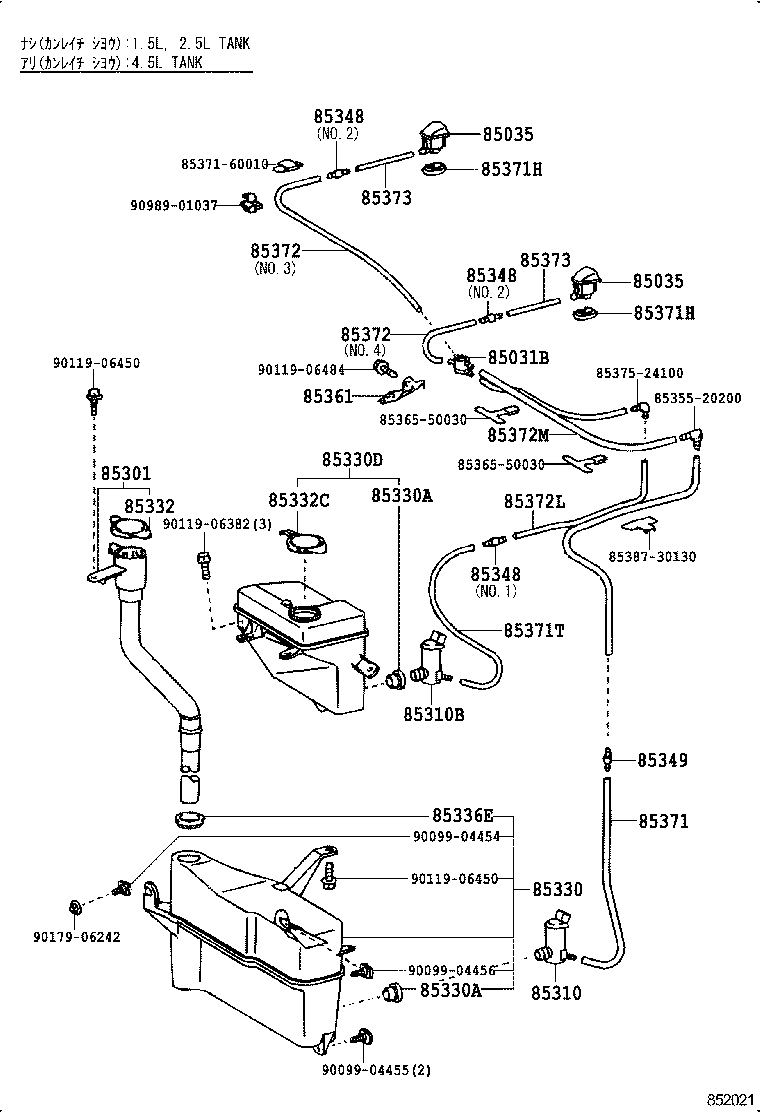

Click highlighted areas on diagram

diagram 85031B 85035 85035 85301 85310 85310B 85330 85330A 85330A 85330D 85332 85332C 85336E 85348 85348 85348 85349 8535520200 85361 8536550030 8536550030 85371 8537160010 85371H 85371H 85371T 85372 85372 85372L 85372M 85373 85373 8537524100 8538730130 9009904454 9009904455 9009904456 9011906382 9011906450 9011906450 9011906484 9017906242 9098901037
Part # Description Qty Price
85031B - VALVE SUB-ASSY, WASHER
85375-50040

JZS147,149,UZS14#

 1
85035 - NOZZLE SUB-ASSY, WASHER
85385-30010G0

JZS147,149,UZS14#

DK.GREEN M,6K2

 2
85385-30010D0

JZS147,149,UZS14#

DK.MAOVE MIO,3K8

 2
85385-30010J0

JZS147,149,UZS14#

DK.BLUE MCFP,8J5

 2
85385-30010B0

JZS147,149,UZS14#

DK.BL.GRAY ME,183

 2
85385-30010G1

JZS147,149,UZS14#

BL.GREEN MIO.,6M2

 2
85385-30010B1

JZS147,149,UZS14#

SILVER ME,199

 2
85385-30010C0

JZS147,149,UZS14#

BLACK,202

 2
85385-30010A0

JZS147,149,UZS14#

WARM GRAY PM,046

 2
85035 - NOZZLE SUB-ASSY, WASHER
85385-30010G0

JZS147,149,UZS14#

DK.GREEN M,6K2

 2
85385-30010D0

JZS147,149,UZS14#

DK.MAOVE MIO,3K8

 2
85385-30010J0

JZS147,149,UZS14#

DK.BLUE MCFP,8J5

 2
85385-30010B0

JZS147,149,UZS14#

DK.BL.GRAY ME,183

 2
85385-30010G1

JZS147,149,UZS14#

BL.GREEN MIO.,6M2

 2
85385-30010B1

JZS147,149,UZS14#

SILVER ME,199

 2
85385-30010C0

JZS147,149,UZS14#

BLACK,202

 2
85385-30010A0

JZS147,149,UZS14#

WARM GRAY PM,046

 2
85301 - INLET SUB-ASSY, WASHER
85301-30011

JZS147,149,UZS14#

 1
85301-30010

JZS147,149,UZS14#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-20210

JZS147,149,UZS14#

 1
85310B - MOTOR & PUMP ASSY, WINDSHIELD WASHER
85310-20190

GS141,JZS14#,LS141,UZS14#

 1
85310-20190

JZS147,149,UZS14#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-30160

JZS147,149,UZS14#

 1
85315-30170

JZS147,149,UZS14#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

GS141,JZS14#,LS141,UZS14#

 2
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

GS141,JZS14#,LS141,UZS14#

 2
85330D - JAR ASSY, WASHER
85315-30180

JZS147,149,UZS14#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-22031

JZS147,149,UZS14#

 1
85332C - CAP, FRONT WASHER TANK
85332-30180

JZS147,149,UZS14#

 1
85332-30180

JZS147,149,UZS14#

 1
85336E - PACKING, WINDSHIELD WASHER INLET HOSE
85336-30160

JZS147,149,UZS14#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-10260

JZS147,149,UZS14#

NO.2

 2
85334-22470

GS141,JZS14#,LS141,UZS14#

NO.1

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-10260

JZS147,149,UZS14#

NO.2

 2
85334-22470

GS141,JZS14#,LS141,UZS14#

NO.1

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-10260

JZS147,149,UZS14#

NO.2

 2
85334-22470

GS141,JZS14#,LS141,UZS14#

NO.1

 1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85334-22470

JZS147,149,UZS14#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
85334-22470

GS141,JZS14#,LS141,UZS14#

 1
85334-22470

JZS147,149,UZS14#

 2
85361 - HOLDER, WINDSHIELD WASHER
85361-30300

JZS147,149,UZS14#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-07001

JZS147,149,UZS14#

 1
90099-33299

JZS149,UZS141

長さ=1000

 1
85371H - COVER, WASHER NOZZLE SERVICE HOLE
85371-50010

JZS147,149,UZS14#

 2
85371H - COVER, WASHER NOZZLE SERVICE HOLE
85371-50010

JZS147,149,UZS14#

 2
85371T - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)
90099-33334

JZS147,149,UZS14#

長さ=1160

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

JZS147,149,UZS14#

L=1450,NO.3,NO.4

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

JZS147,149,UZS14#

L=1450,NO.3,NO.4

 1
85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
85359-30130

JZS147,149,UZS14#

 1
85372M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7
85329-30130

JZS147,149,UZS14#

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

JZS147,149,UZS14#

L=1450

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

JZS147,149,UZS14#

L=1450

 2
Common parts
85355-20200
85365-50030
85371-60010
85375-24100
85387-30130
90099-04454
90099-04455
90099-04456
90119-06382
90119-06450
90119-06484
90179-06242
90989-01037
