JZS149-ATPVF (1991)

Toyota Crown/Crown Majesta

Production Oct 1991 - Aug 1995
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9110-9508)JZS147,149,UZS14#

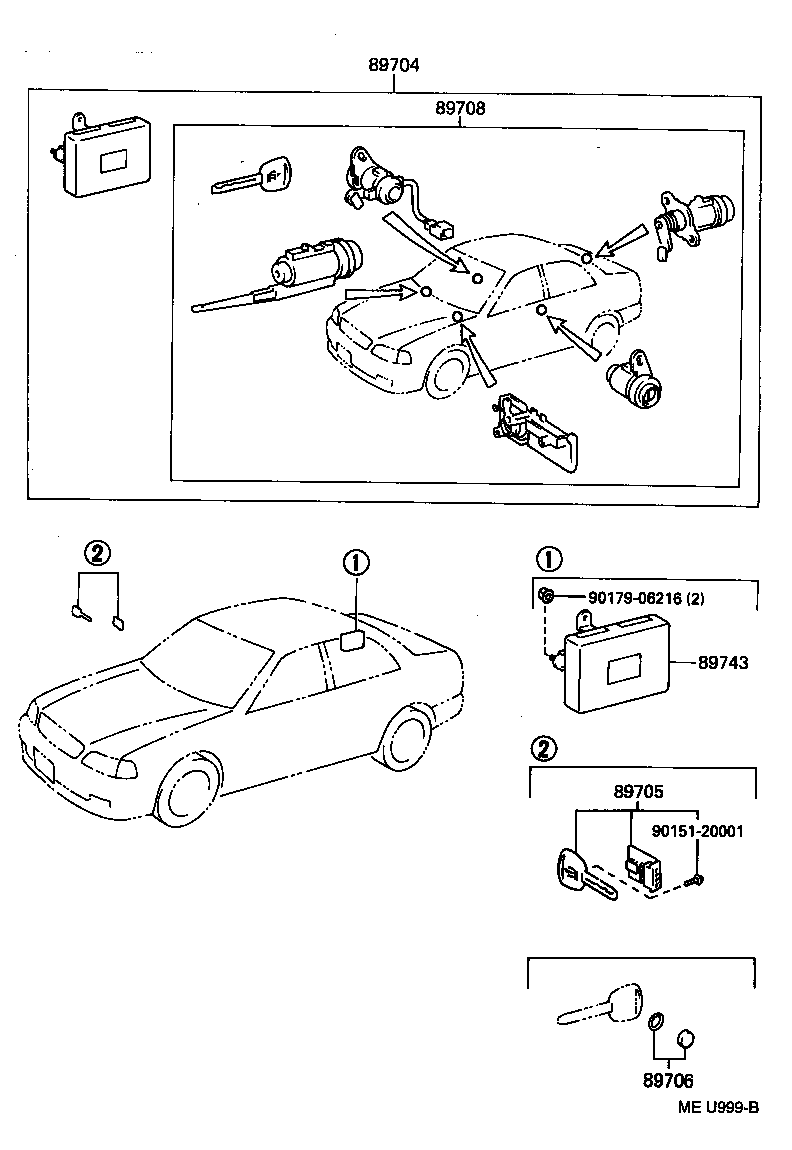

Click highlighted areas on diagram

diagram 89704 89705 89706 89708 89743 9015120001 9017906216
Part # Description Qty Price
89704 - CONTROL SET, WIRELESS DOOR LOCK
89704-30051

JZS147,149,UZS141,143,147

 1
89704-30050

JZS149,UZS141

 1
89705 - TRANSMITTER, DOOR CONTROL
89705-30031

JZS147,149,UZS14#

 1
89705-30030

JZS149,UZS141

 1
89706 - BATTERY SET, TRANSMITTER
89706-50010

JZS141..ROY,ROYT;GS141,JZS143,145,147,149,UZS14#

 1
89706-50010

JZS14#,UZS14#..A,B,C,ROY,ROYG,ROYT

 1
89708 - CYLINDER SET, WIRELESS DOOR LOCK
89708-30020

JZS147,149,UZS14#

 1
89743 - RECEIVER, DOOR CONTROL
89743-30020

JZS147,149,UZS141,143,147

 1
Common parts
90151-20001
90179-06216
