JZS149-ATPVF (1991)

Toyota Crown/Crown Majesta

Production Oct 1991 - Aug 1995
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )JZS147,149,UZS14#

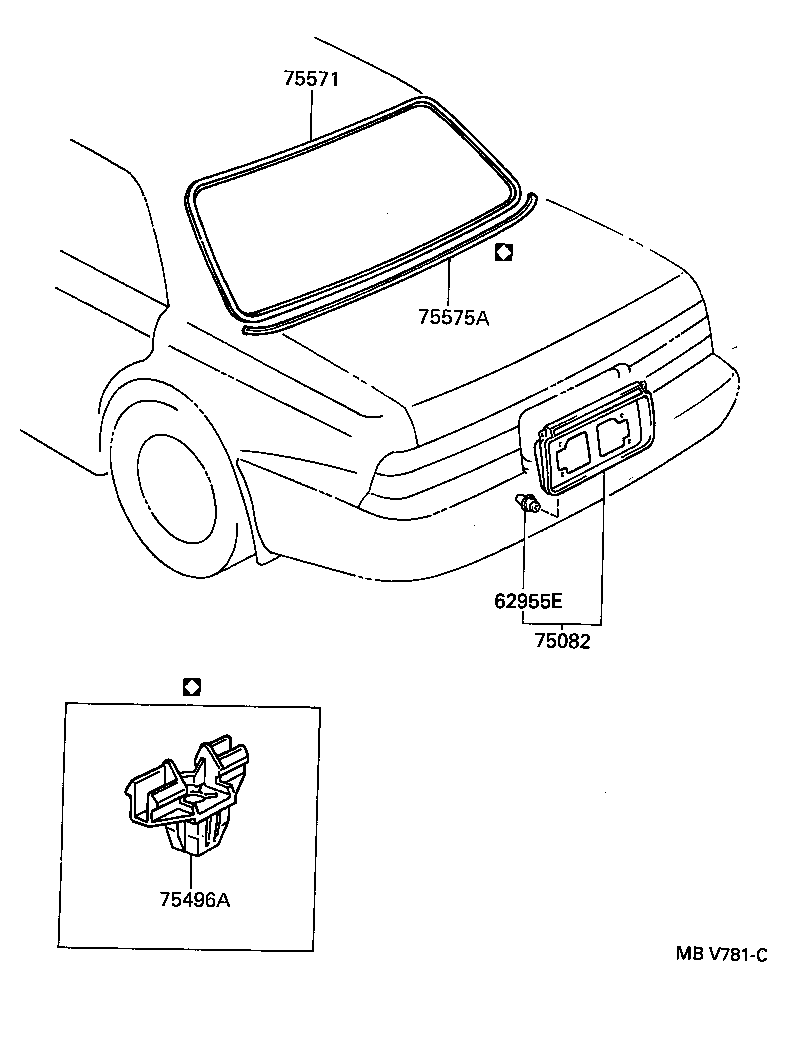

Click highlighted areas on diagram

diagram 62955E 75082 75496A 75571 75575A
Part # Description Qty Price
62955E - RETAINER, LOWER BACK FINISH PANEL
62955-20040

JZS147,149,UZS14#

 5
62955-20040

GS141,JZS14#,LS141,UZS14#

 5
75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
75082-30270

JZS147,149,UZS14#

 1
75082-30210

JZS147,149,UZS14#

 1
75496A - CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1
75496-30060

JZS147,149,UZS14#

 6
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-30320

JZS147,149,UZS143,145

ｷﾖｳｶ ｶﾞﾗｽ ﾖｳ

 1
75571-30320

JZS149,UZS141

ｷﾖｳｶ ｶﾞﾗｽ ﾖｳ

 1
75571-30330

JZS149..B

ｱﾜｾ ｶﾞﾗｽ ﾖｳ

 1
75571-30330

JZS149..B

ｱﾜｾ ｶﾞﾗｽ ﾖｳ

 1
75571-30320

JZS147,149,UZS143,145,147

ｷﾖｳｶ ｶﾞﾗｽ ﾖｳ

 1
75571-30330

JZS147,149,UZS141,147

ｱﾜｾ ｶﾞﾗｽ ｼﾖｳ

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75575-30210

JZS147,149,UZS14#

 1
