JZS149-ATPVF (1991)
Toyota Crown/Crown Majesta

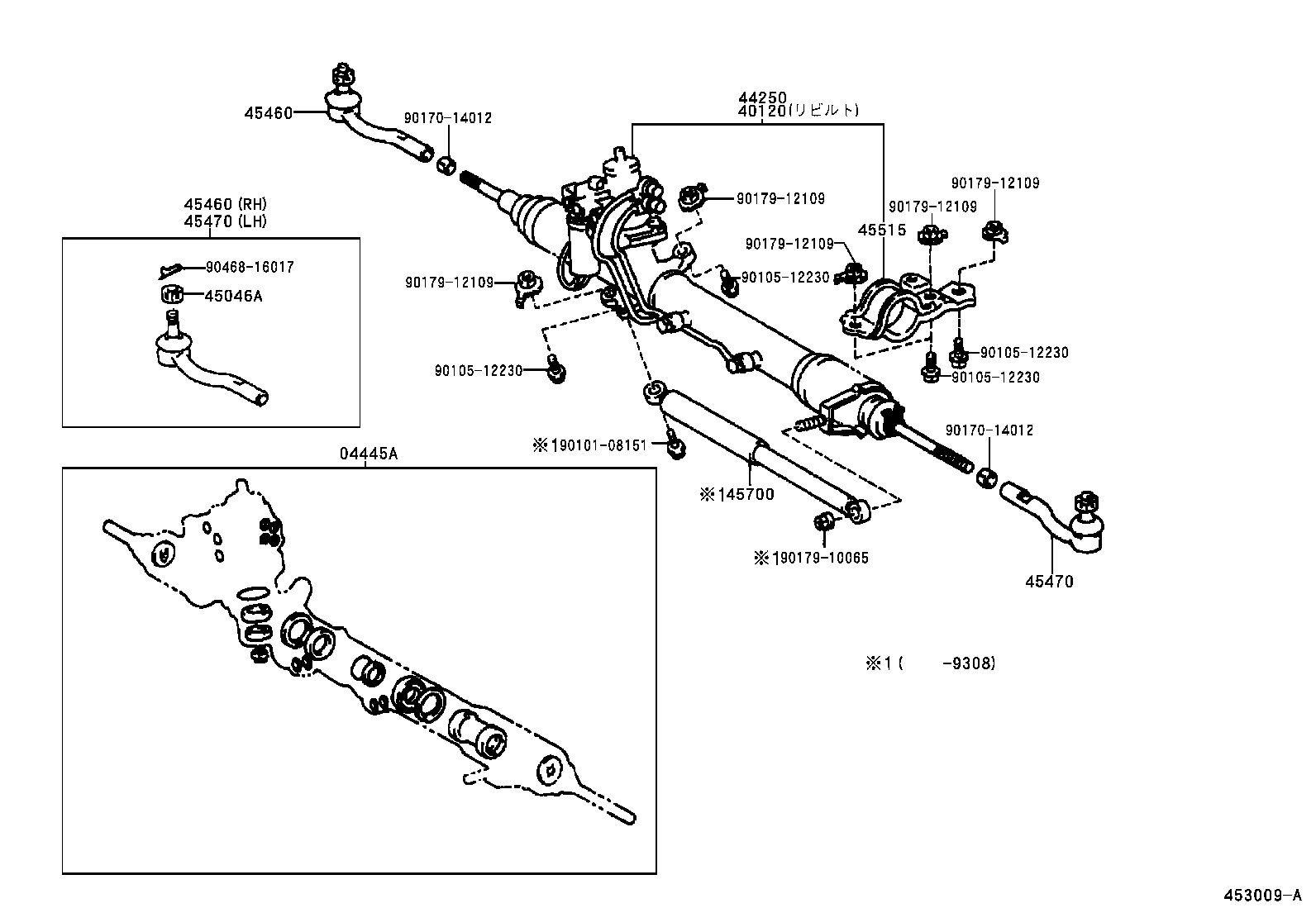

ILLUST NO. 1 OF 2(9110- )JZS147,149,UZS141 ; (9308- )UZS147
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-30140 |
JZS147,149,UZS141,147 |
1 | ||
| 40120 - GEAR ASSY,POWER STEERING,REBUILT | ||||
| 40120-30010 |
JZS147,149,UZS141,147 |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-30010 |
JZS147,149,UZS141,147 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12002 |
GS141,JZS14#,LS141,UZS14# |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39365 |
JZS147,149,UZS14# |
1 | ||
| 45460-39395 |
JZS147,149,UZS14# |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39365 |
JZS147,149,UZS14# |
1 | ||
| 45460-39395 |
JZS147,149,UZS14# |
1 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45470-39125 |
JZS147,149,UZS14# |
1 | ||
| 45470-39145 |
JZS147,149,UZS14# |
1 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45470-39125 |
JZS147,149,UZS14# |
1 | ||
| 45470-39145 |
JZS147,149,UZS14# |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-30010 |
JZS147,149,UZS141,147 |
1 | ||
| 45700 - DAMPER ASSY, STEERING | ||||
| 45700-30020 |
JZS147,149,UZS141,143 |
1 | ||
| Common parts | ||||
| 90101-08151 | ||||
| 90105-12230 | ||||
| 90170-14012 | ||||
| 90179-10065 | ||||
| 90179-12109 | ||||
| 90468-16017 | ||||

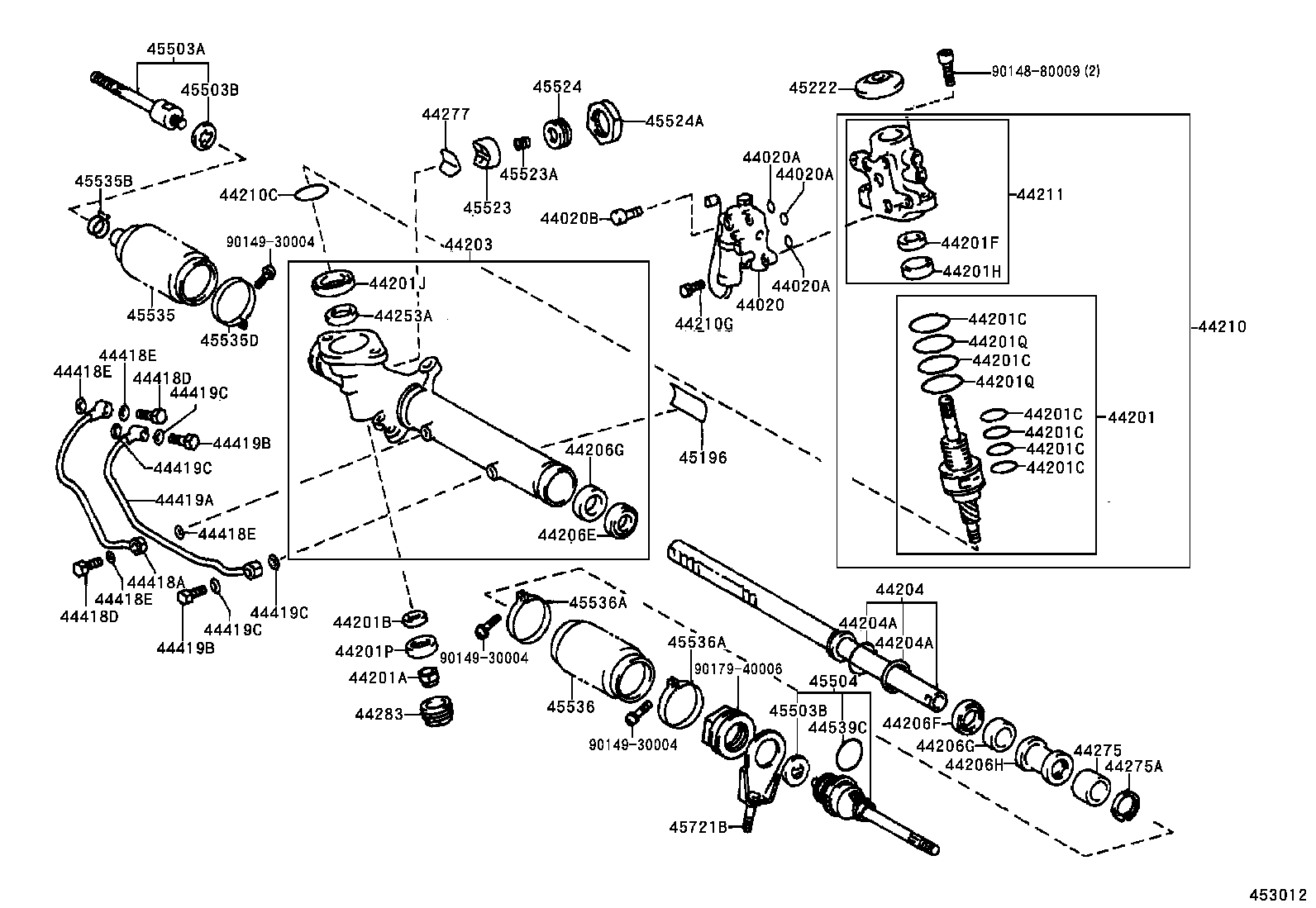

ILLUST NO. 2 OF 2(9110- )JZS147,149,UZS141 ; (9308- )UZS147
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44020 - VALVE ASSY, PRESSURE CONTROL W/SOLENOID VALVE | ||||
| 44020-30030 |
JZS147,149,UZS141,147 |
1 | ||
| 44020A - RING, O(FOR POWER STEERING PRESSURE CONTROL VALVE) | ||||
| 90301-11009 |
JZS147,149,UZS141,147 |
3 | ||
| 44020A - RING, O(FOR POWER STEERING PRESSURE CONTROL VALVE) | ||||
| 90301-11009 |
JZS147,149,UZS141,147 |
3 | ||
| 44020A - RING, O(FOR POWER STEERING PRESSURE CONTROL VALVE) | ||||
| 90301-11009 |
JZS147,149,UZS141,147 |
3 | ||
| 44020B - BOLT(FOR POWER STEERING PRESSURE CONTROL VALVE) | ||||
| 90110-08012 |
JZS147,149,UZS141,147 *8−1.25PX29−26 |
2 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-30030 |
JZS147,149,UZS141,147 |
1 | ||
| 44201A - NUT, LOCK(FOR POWER STEERING CONTROL VALVE) | ||||
| 94184-61200 |
JZS147,149,UZS141,147 |
1 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-12030 |
JZS147,149,UZS141,147 |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-50001 |
JZS147,149,UZS141,147 上側 |
2 | ||
| 90562-33005 |
JZS147,149,UZS141,147 下側 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-50001 |
JZS147,149,UZS141,147 上側 |
2 | ||
| 90562-33005 |
JZS147,149,UZS141,147 下側 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-50001 |
JZS147,149,UZS141,147 上側 |
2 | ||
| 90562-33005 |
JZS147,149,UZS141,147 下側 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-50001 |
JZS147,149,UZS141,147 上側 |
2 | ||
| 90562-33005 |
JZS147,149,UZS141,147 下側 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-50001 |
JZS147,149,UZS141,147 上側 |
2 | ||
| 90562-33005 |
JZS147,149,UZS141,147 下側 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-50001 |
JZS147,149,UZS141,147 上側 |
2 | ||
| 90562-33005 |
JZS147,149,UZS141,147 下側 |
4 | ||
| 44201F - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19006 |
JZS147,149,UZS141,147 |
1 | ||
| 44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER) | ||||
| 90363-19002 |
JZS147,149,UZS141,147 |
1 | ||
| 44201J - BEARING(FOR POWER STEERING CONTROL VALVE CENTER) | ||||
| 90363-30054 |
JZS147,149,UZS141,147 |
1 | ||
| 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) | ||||
| 90363-12008 |
JZS147,149,UZS141,147 |
1 | ||
| 44201Q - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-45002 |
JZS147,149,UZS141 |
2 | ||
| 90301-45002 |
JZS147,149,UZS141,147 |
2 | ||
| 44201Q - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-45002 |
JZS147,149,UZS141 |
2 | ||
| 90301-45002 |
JZS147,149,UZS141,147 |
2 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-30010 |
JZS149,UZS141 |
1 | ||
| 44203-30011 |
JZS147,149,UZS141,147 |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-30010 |
JZS147,149,UZS141,147 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-36004 |
JZS147,149,UZS141,147 内側 |
1 | ||
| 90562-40002 |
JZS147,149,UZS141,147 外側 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-36004 |
JZS147,149,UZS141,147 内側 |
1 | ||
| 90562-40002 |
JZS147,149,UZS141,147 外側 |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-26016 |
JZS147,149,UZS141,147 |
1 | ||
| 90310-26011 |
JZS147,149,UZS141,147 |
1 | ||
| 44206F - SEAL, OIL, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-26011 |
JZS147,149,UZS141,147 |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-27015 |
JZS147,149,UZS141,147 |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-27015 |
JZS147,149,UZS141,147 |
1 | ||
| 44206H - SPACER, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90561-28004 |
JZS147,149,UZS141,147 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-30010 |
JZS147,149,UZS141,147 |
1 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-57003 |
JZS147,149,UZS141,147 |
1 | ||
| 44210G - BOLT(FOR POWER STEERING CONTROL VALVE) | ||||
| 90110-08012 |
JZS147,149,UZS141,147 |
2 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44022-24010 |
JZS147,149,UZS141,147 |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-30005 |
JZS147,149,UZS141,147 |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-50010 |
JZS147,149,UZS141,147 |
1 | ||
| 44275A - RING, HOLE SNAP(FOR CYLINDER END STOPPER) | ||||
| 90521-50003 |
JZS147,149,UZS141,147 |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-20020 |
JZS149,UZS141 |
1 | ||
| 44277-50011 |
JZS147,149,UZS141,147 |
1 | ||
| 44283 - CAP, RACK HOUSING | ||||
| 44283-12010 |
JZS147,149,UZS141,147 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-30010 |
JZS147,149,UZS141,147 |
1 | ||
| 44418D - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90401-12017 |
JZS147,149,UZS141,147 CONTROL VALVE SIDE |
1 | ||
| 90401-10021 |
JZS147,149,UZS141,147 HOUSING SIDE |
1 | ||
| 44418D - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90401-12017 |
JZS147,149,UZS141,147 CONTROL VALVE SIDE |
1 | ||
| 90401-10021 |
JZS147,149,UZS141,147 HOUSING SIDE |
1 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
JZS147,149,UZS141,147 HOUSING SIDE |
2 | ||
| 90430-12013 |
JZS147,149,UZS141,147 CONTROL VALVE SIDE |
2 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
JZS147,149,UZS141,147 HOUSING SIDE |
2 | ||
| 90430-12013 |
JZS147,149,UZS141,147 CONTROL VALVE SIDE |
2 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
JZS147,149,UZS141,147 HOUSING SIDE |
2 | ||
| 90430-12013 |
JZS147,149,UZS141,147 CONTROL VALVE SIDE |
2 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
JZS147,149,UZS141,147 HOUSING SIDE |
2 | ||
| 90430-12013 |
JZS147,149,UZS141,147 CONTROL VALVE SIDE |
2 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-30010 |
JZS147,149,UZS141,147 |
1 | ||
| 44419B - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90401-12017 |
JZS147,149,UZS141,147 CONTROL VALVE SIDE |
1 | ||
| 90401-10021 |
JZS147,149,UZS141,147 HOUSING SIDE |
1 | ||
| 44419B - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90401-12017 |
JZS147,149,UZS141,147 CONTROL VALVE SIDE |
1 | ||
| 90401-10021 |
JZS147,149,UZS141,147 HOUSING SIDE |
1 | ||
| 44419C - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-12013 |
JZS147,149,UZS141,147 CONTROL VALVE SIDE |
2 | ||
| 90430-10008 |
JZS147,149,UZS141,147 HOUSING SIDE |
2 | ||
| 44419C - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-12013 |
JZS147,149,UZS141,147 CONTROL VALVE SIDE |
2 | ||
| 90430-10008 |
JZS147,149,UZS141,147 HOUSING SIDE |
2 | ||
| 44419C - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-12013 |
JZS147,149,UZS141,147 CONTROL VALVE SIDE |
2 | ||
| 90430-10008 |
JZS147,149,UZS141,147 HOUSING SIDE |
2 | ||
| 44419C - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-12013 |
JZS147,149,UZS141,147 CONTROL VALVE SIDE |
2 | ||
| 90430-10008 |
JZS147,149,UZS141,147 HOUSING SIDE |
2 | ||
| 44539C - RING, SET(FOR POWER STEERING RACK END DUST SEAL) | ||||
| 90522-30002 |
JZS147,149,UZS141,147 |
1 | ||
| 45196 - LABEL, STEERING SHAFT INSTALLATION CAUTION | ||||
| 45196-50020 |
JZS147,149,UZS14# |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-50010 |
JZS147,149,UZS141,147 |
1 | ||
| 45503A - END SUB-ASSY, STEERING RACK, NO.1 | ||||
| 45503-59015 |
JZS147,149,UZS141,147 |
1 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14007 |
JZS147,149,UZS141,147 外径=38 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14007 |
JZS147,149,UZS141,147 外径=38 |
2 | ||
| 45504 - END SUB-ASSY, STEERING RACK, NO.2 | ||||
| 45504-59015 |
JZS147,149,UZS141,147 |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-50011 |
JZS147,149,UZS141,147 |
1 | ||
| 45523-20020 |
JZS149,UZS141 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-34005 |
JZS149,UZS141 |
1 | ||
| 90501-26038 |
JZS149,UZS141 |
1 | ||
| 90501-34006 |
JZS147,149,UZS141,147 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-50010 |
JZS147,149,UZS141,147 |
1 | ||
| 45524-16010 |
JZS149,UZS141 |
1 | ||
| 45524-20030 |
JZS149,UZS141 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
JZS147,149,UZS14# |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-30010 |
JZS147,149,UZS14# |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19012 |
JZS147,149,UZS14# |
1 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-49002 |
JZS147,149,UZS14# |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-30010 |
JZS147,149,UZS14# |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-52001 |
JZS147,149,UZS14# 内側 |
1 | ||
| 90460-55010 |
JZS147,149,UZS14# 外側 |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-52001 |
JZS147,149,UZS14# 内側 |
1 | ||
| 90460-55010 |
JZS147,149,UZS14# 外側 |
1 | ||
| 45721B - BRACKET, STEERING DAMPER, NO.3 | ||||
| 45721-30020 |
JZS147,149,UZS141,143,147 |
1 | ||
| Common parts | ||||
| 90148-80009 | ||||
| 90149-30004 | ||||
| 90179-40006 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
