JZS149-ATPQF (1991)

Toyota Crown/Crown Majesta

Production Oct 1991 - Aug 1995
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9110-9508)JZS14#

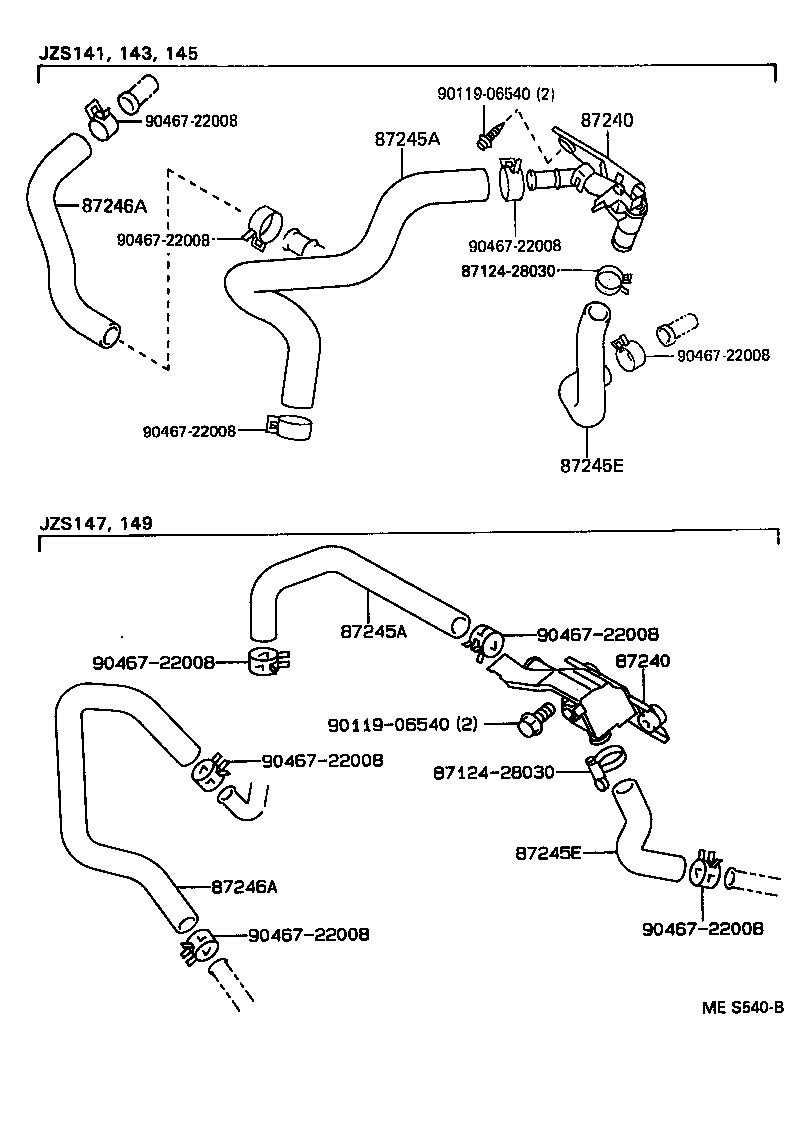

Click highlighted areas on diagram

diagram 8712428030 8712428030 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 9011906540 9011906540 9046722008 9046722008 9046722008 9046722008 9046722008 9046722008 9046722008 9046722008 9046722008 9046722008
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-30560

JZS149,UZS141

 1
87240-30560

JZS147,149

 1
87240-30570

JZS149,UZS141

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87240-30570

JZS147,149

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87240 - VALVE ASSY, HEATER WATER
87240-30560

JZS149,UZS141

 1
87240-30560

JZS147,149

 1
87240-30570

JZS149,UZS141

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87240-30570

JZS147,149

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87245A - HOSE, HEATER WATER, INLET A
87245-3A490

JZS149

 1
87245-3A840

JZS147,149

 1
87245A - HOSE, HEATER WATER, INLET A
87245-3A490

JZS149

 1
87245-3A840

JZS147,149

 1
87245E - HOSE, HEATER WATER, INLET E
87245-3A830

JZS147,149,UZS14#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87245-3A700

JZS147,149,UZS14#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-3A830

JZS147,149,UZS14#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87245-3A700

JZS147,149,UZS14#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87209-30330

JZS147,149

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87245-3A500

JZS147,149

 1
87246A - HOSE, HEATER WATER, OUTLET A
87209-30330

JZS147,149

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87245-3A500

JZS147,149

 1
Common parts
87124-28030
90119-06540
90467-22008

(9110-9508)JZS147,149

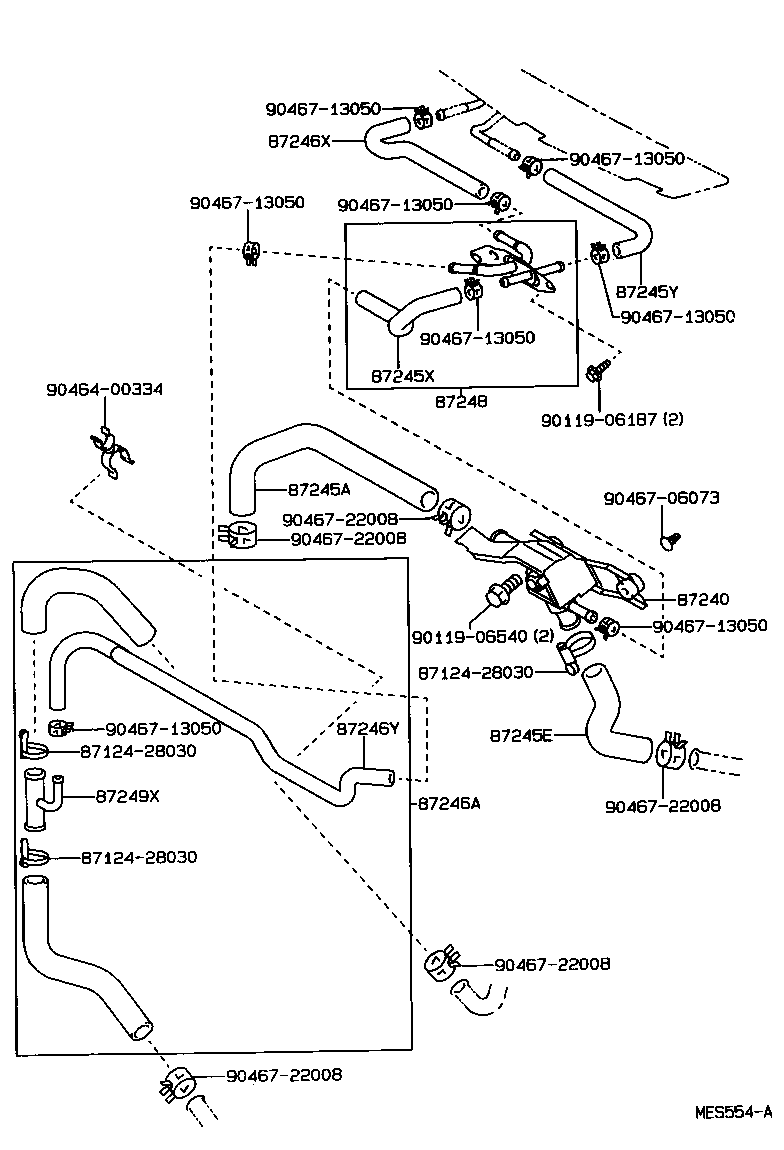

Click highlighted areas on diagram

ｶﾝﾚｲﾁ ｼﾖｳ

diagram 8712428030 8712428030 8712428030 87240 87245A 87245E 87245X 87245Y 87246A 87246X 87246Y 87248 87249X 9011906187 9011906540 9046400334 9046706073 9046713050 9046713050 9046713050 9046713050 9046713050 9046713050 9046713050 9046713050 9046722008 9046722008 9046722008 9046722008 9046722008
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-30560

JZS149,UZS141

 1
87240-30560

JZS147,149

 1
87240-30570

JZS149,UZS141

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87240-30570

JZS147,149

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87245A - HOSE, HEATER WATER, INLET A
87245-3A490

JZS149

 1
87245-3A840

JZS147,149

 1
87245E - HOSE, HEATER WATER, INLET E
87245-3A830

JZS147,149,UZS14#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87245-3A700

JZS147,149,UZS14#

 1
87245X - HOSE, HEATER WATER
87245-3A620

JZS147,149,UZS14#

 1
87245Y - HOSE, HEATER WATER
87245-3A610

JZS147,149,UZS14#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87246A - HOSE, HEATER WATER, OUTLET A
87209-30330

JZS147,149

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87245-3A500

JZS147,149

 1
87246X - HOSE, HEATER WATER
87245-3A630

JZS147,149,UZS14#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87246Y - HOSE, HEATER WATER
87245-3A560

JZS147,149

 1
87248 - PIPE SUB-ASSY, WATER
87248-30290

JZS147,149,UZS14#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87249X - PIPE, WATER
87248-30260

JZS147,149

 1
Common parts
87124-28030
90119-06187
90119-06540
90464-00334
90467-06073
90467-13050
90467-22008
