JZS149-ATPQF (1991)

Toyota Crown/Crown Majesta

Production Oct 1991 - Aug 1995
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )JZS147,149

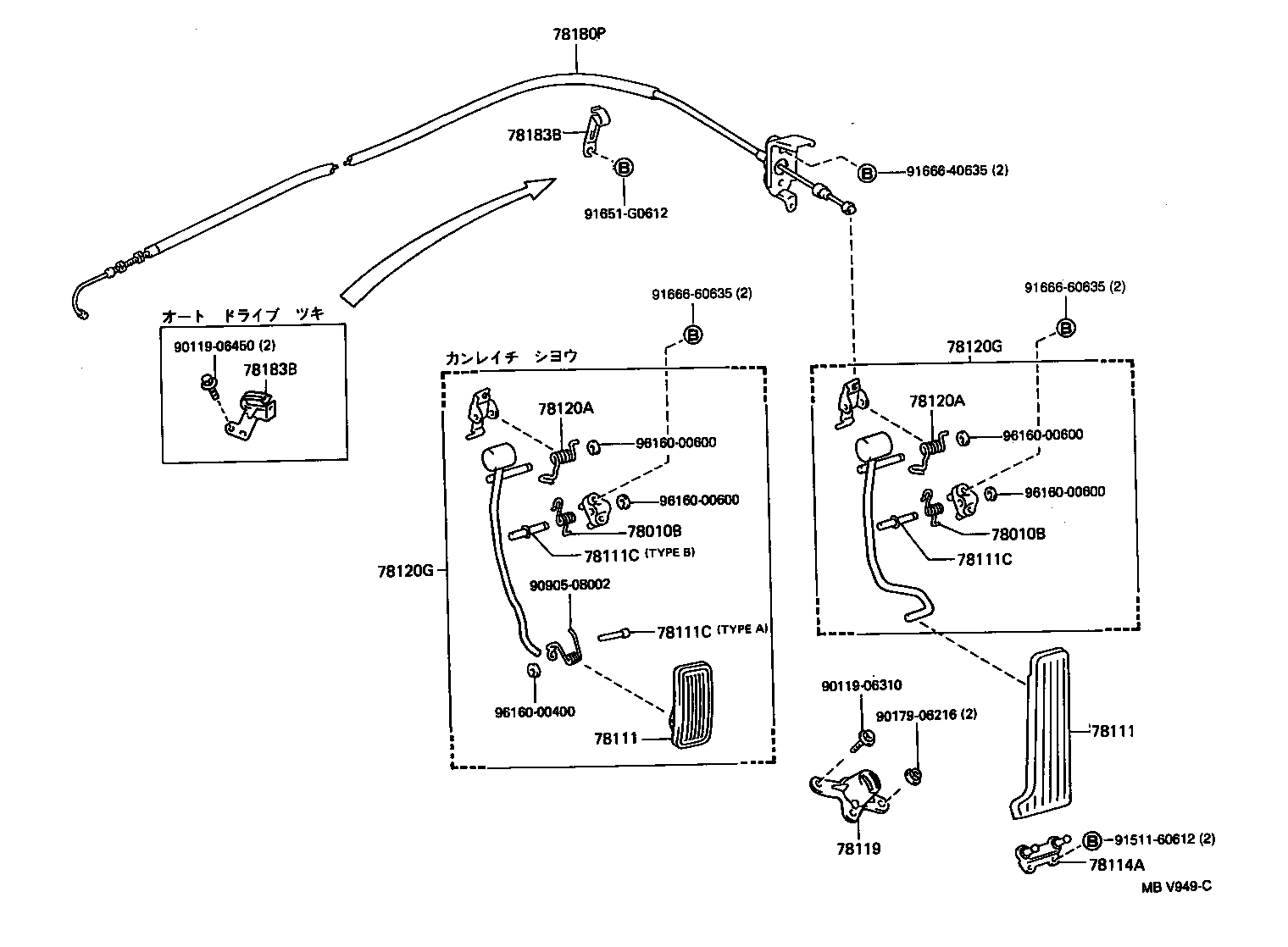

Click highlighted areas on diagram

diagram 78010B 78010B 78111 78111 78111C 78111C 78111C 78114A 78119 78120A 78120A 78120G 78120G 78180P 78183B 78183B 9011906310 9011906450 9017906216 9090508002 9151160612 91651G0612 9166640635 9166660635 9166660635 9616000400 9616000600 9616000600 9616000600 9616000600
Part # Description Qty Price
78010B - SPRING, TORSION (FOR ACCELERATOR LINK)
90508-18103

JZS147,149,UZS14#

 1
78010B - SPRING, TORSION (FOR ACCELERATOR LINK)
90508-18103

JZS147,149,UZS14#

 1
78111 - PEDAL, ACCELERATOR
78111-30110

JZS147,149,UZS14#

 1
78111-30100

JZS147,149,UZS14#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78111 - PEDAL, ACCELERATOR
78111-30110

JZS147,149,UZS14#

 1
78111-30100

JZS147,149,UZS14#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-08116

JZS147,149,UZS14#

ｶﾝﾚｲﾁ ｼﾖｳ,ﾀｲﾌﾟ B

 1
90249-05043

JZS147,149,UZS14#

ｶﾝﾚｲﾁ ｼﾖｳ,ﾀｲﾌﾟ A

 1
90249-08116

JZS147,149,UZS14#

ﾀｲﾌﾟ B

 1
90249-08116

JZS147,149,UZS14#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-08116

JZS147,149,UZS14#

ｶﾝﾚｲﾁ ｼﾖｳ,ﾀｲﾌﾟ B

 1
90249-05043

JZS147,149,UZS14#

ｶﾝﾚｲﾁ ｼﾖｳ,ﾀｲﾌﾟ A

 1
90249-08116

JZS147,149,UZS14#

ﾀｲﾌﾟ B

 1
90249-08116

JZS147,149,UZS14#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-08116

JZS147,149,UZS14#

ｶﾝﾚｲﾁ ｼﾖｳ,ﾀｲﾌﾟ B

 1
90249-05043

JZS147,149,UZS14#

ｶﾝﾚｲﾁ ｼﾖｳ,ﾀｲﾌﾟ A

 1
90249-08116

JZS147,149,UZS14#

ﾀｲﾌﾟ B

 1
90249-08116

JZS147,149,UZS14#

 1
78114A - BRACKET, ACCELERATOR PEDAL SUPPORT
78114-30060

JZS147,149,UZS14#

 1
78119 - STOPPER, ACCELERATOR PEDAL ROD
78119-30070

JZS147,149,UZS14#

 1
78119-30070

JZS147,149

 1
78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)
90508-29022

JZS143,147,149,UZS14#..A,B,C,ROYT

 1
78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)
90508-29022

JZS143,147,149,UZS14#..A,B,C,ROYT

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-30760

JZS147,149,UZS14#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78120-30750

JZS147,149,UZS14#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-30760

JZS147,149,UZS14#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78120-30750

JZS147,149,UZS14#

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-3A320

JZS147,149

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-30100

JZS149,UZS141..B,C

 1
78183-30100

JZS149..A

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
78183-30100

JZS147,149

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
78183-30100

JZS149,UZS14#..B,C

 1
78183-30110

JZS149..A

 1
78183-30110

JZS147,149

 1
78183-30100

JZS147,149..A

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
78183-30110

JZS147,149..A

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-30100

JZS149,UZS141..B,C

 1
78183-30100

JZS149..A

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
78183-30100

JZS147,149

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
78183-30100

JZS149,UZS14#..B,C

 1
78183-30110

JZS149..A

 1
78183-30110

JZS147,149

 1
78183-30100

JZS147,149..A

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
78183-30110

JZS147,149..A

 1
Common parts
90119-06310
90119-06450
90179-06216
90905-08002
91511-60612
91651-G0612
91666-40635
91666-60635
96160-00400
96160-00600
