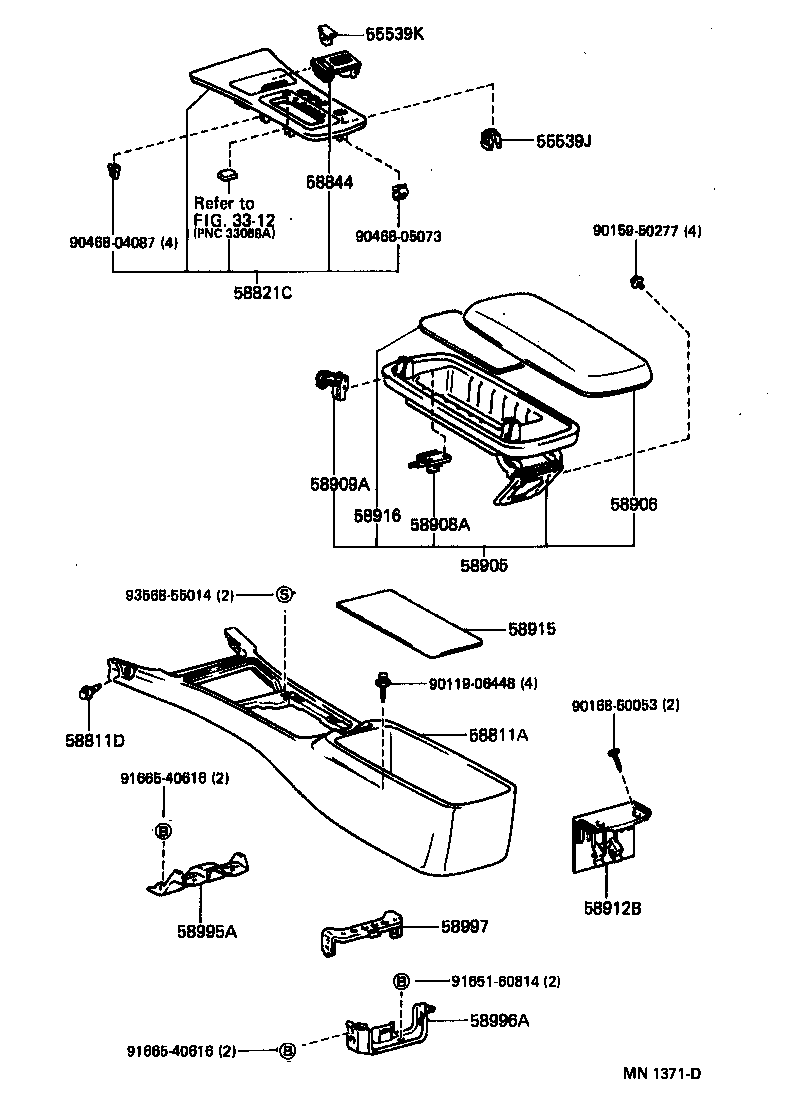

JZS149-ATPQF (1991)
Toyota Crown/Crown Majesta
(9110- )JZS147,149,UZS14#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539J - COVER, SPARE SWITCH HOLE | ||||
| 55548-30100 |
JZS149..A |
1 | ||
| 55548-30100 |
JZS147,149..A |
1 | ||
| 55548-30100 |
JZS147,149 |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58811-30260B0 |
JZS147,149,UZS14# SHADOW GRAY,TRIM1# |
1 | ||
| 58811-30260B0 |
JZS147,149,UZS14# SHADOW GRAY,TRIM1# |
1 | ||
| 58811-30260B0 |
JZS147,149,UZS14# SHADOW GRAY,TRIM1# |
1 | ||
| 58811-30260J0 |
JZS149,UZS14# DK.BLUE,TRIM8# |
1 | ||
| 58811-30260E0 |
JZS147,149,UZS14# QUARTZ,TRIM4# |
1 | ||
| 58811-30260J0 |
JZS149,UZS141,143,145 DK.BLUE,TRIM8# |
1 | ||
| 58811-30260E0 |
JZS147,149,UZS14# QUARTZ,TRIM4# |
1 | ||
| 58811-30260J0 |
JZS147,149,UZS14# DK.BLUE,TRIM8# |
1 | ||
| 58811-30260E0 |
JZS147,149,UZS14# QUARTZ,TRIM4# |
1 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-08175 |
JZS147,149,UZS14# |
2 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58804-30090 |
JZS149,UZS141..B,C V ﾊﾟﾂｹ-ｼﾞ-*99 |
1 | ||
| 58804-30080 |
JZS147,149,UZS141 |
1 | ||
| 58804-30081 |
JZS147,149,UZS141,147 |
1 | ||
| 58844 - BEZEL, CONSOLE BOX | ||||
| 58844-30060 |
JZS149,UZS14#..B,C V ﾊﾟﾂｹ-ｼﾞ-*99 |
1 | ||
| 58844-30080 |
GS141,JZS141,143,147,149,LS141,UZS14# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-30240E0 |
JZS149,UZS141 QUARTZ,TRIM4# |
1 | ||
| 58905-30240B0 |
JZS149,UZS141 SHADOW GRAY,TRIM1# |
1 | ||
| 58905-30250E0 |
JZS149,UZS14#..B,C L-2 ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,TRIM4# |
1 | ||
| 58905-30250B0 |
JZS149,UZS14#..B,C L-2 ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 58905-30260J0 |
JZS149,UZS143,145..B,C L-1 ﾊﾟﾂｹ-ｼﾞ OR V ﾊﾟﾂｹ-ｼﾞ-*99,DK.BLUE,TRIM8# |
1 | ||
| 58905-30240J0 |
JZS149,UZS141 DK.BLUE,TRIM8# |
1 | ||
| 58905-30260B0 |
JZS149,UZS143,145..B,C L-1 ﾊﾟﾂｹ-ｼﾞ OR V ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 58905-30240J0 |
JZS149,UZS143,145 DK.BLUE,TRIM8# |
1 | ||
| 58905-30260E0 |
JZS149,UZS143,145..B,C L-1 ﾊﾟﾂｹ-ｼﾞ OR V ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,TRIM4# |
1 | ||
| 58905-30240E0 |
JZS147,149,UZS143,145 QUARTZ,TRIM4# |
1 | ||
| 58905-30240B0 |
JZS147,149,UZS143,145 SHADOW GRAY,TRIM1# |
1 | ||
| 58905-30241E0 |
JZS147,149,UZS147 QUARTZ,TRIM4# |
1 | ||
| 58905-30241J0 |
JZS149 DK. BLUE,TRIM8# |
1 | ||
| 58905-30241B0 |
JZS147,149,UZS147 SHADOW GRAY,TRIM1# |
1 | ||
| 58905-30251B0 |
JZS149,UZS141,143,145..B,C L-2 ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 58905-30251E0 |
JZS149,UZS141,143,145..B,C L-2 ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,TRIM4# |
1 | ||
| 58905-30261E0 |
JZS147,149,UZS141,147 QUARTZ,TRIM4# |
1 | ||
| 58905-30261J0 |
JZS147,149,UZS141,147 DK. BLUE,TRIM8# |
1 | ||
| 58905-30261B0 |
JZS147,149,UZS141,147 SHADOW GRAY,TRIM1# |
1 | ||
| 58906 - DOOR SUB-ASSY, UPPER CONSOLE | ||||
| 58906-30020B0 |
JZS149,UZS141 SHADOW GRAY,TRIM1# |
1 | ||
| 58906-30020E0 |
JZS149,UZS141 QUARTZ,TRIM4# |
1 | ||
| 58906-30040J0 |
JZS149,UZS143,145..B,C L-1 ﾊﾟﾂｹ-ｼﾞ OR V ﾊﾟﾂｹ-ｼﾞ-*99,DK.BLUE,TRIM8# |
1 | ||
| 58906-30020J0 |
JZS149,UZS141 DK.BLUE,TRIM8# |
1 | ||
| 58906-30040B0 |
JZS149,UZS143,145..B,C L-1 ﾊﾟﾂｹ-ｼﾞ OR V ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 58906-30020E0 |
JZS147,149,UZS143,145 QUARTZ,TRIM4# |
1 | ||
| 58906-30020B0 |
JZS147,149,UZS143,145 SHADOW GRAY,TRIM1# |
1 | ||
| 58906-30020J0 |
JZS149,UZS143,145 DK.BLUE,TRIM8# |
1 | ||
| 58906-30020B0 |
JZS147,149,UZS147 SHADOW GRAY,TRIM1# |
1 | ||
| 58906-30040E0 |
JZS149,UZS143,145..B,C L-1 ﾊﾟﾂｹ-ｼﾞ OR V ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,TRIM4# |
1 | ||
| 58906-30020E0 |
JZS147,149,UZS147 QUARTZ,TRIM4# |
1 | ||
| 58906-30020J0 |
JZS149 DK.BLUE,TRIM8# |
1 | ||
| 58906-30030B0 |
JZS149,UZS141,143,145..B,C L-2 ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 58906-30030E0 |
JZS149,UZS141,143,145..B,C L-2 ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,TRIM4# |
1 | ||
| 58906-30040B0 |
JZS147,149,UZS141,147 SHADOW GRAY,TRIM1# |
1 | ||
| 58906-30040E0 |
JZS147,149,UZS141,147 QUARTZ,TRIM4# |
1 | ||
| 58906-30040J0 |
JZS147,149,UZS141,147 DK.BLUE,TRIM8# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-50010 |
JZS147,149,UZS14# |
1 | ||
| 58909A - STOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58909-30020 |
JZS147,149,UZS14# |
2 | ||
| 58912B - BOX, REAR CONSOLE, LOWER | ||||
| 58912-30110E0 |
JZS147,149,UZS14# QUARTZ,TRIM4# |
1 | ||
| 58912-30110B0 |
JZS147,149,UZS147 SHADOW GRAY,TRIM1# |
1 | ||
| 58912-30110E0 |
JZS147,149,UZS147 QUARTZ,TRIM4# |
1 | ||
| 58912-30110J0 |
JZS149 DK.BLUE,TRIM8# |
1 | ||
| 58912-30110B0 |
JZS147,149,UZS14# SHADOW GRAY,TRIM1# |
1 | ||
| 58912-30110J0 |
JZS149,UZS14# DK.BLUE,TRIM8# |
1 | ||
| 58912-30110B0 |
JZS147,149,UZS14# SHADOW GRAY,TRIM1# |
1 | ||
| 58912-30110E0 |
JZS147,149,UZS14# QUARTZ,TRIM4# |
1 | ||
| 58912-30110J0 |
JZS147,149,UZS14# DK.BLUE,TRIM8# |
1 | ||
| 58915 - PANEL, BOX BOTTOM | ||||
| 58915-30040 |
JZS147,149,UZS14# |
1 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-30100 |
JZS147,149,UZS14# |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-30080 |
JZS147,149,UZS14# |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-30070 |
JZS147,149,UZS147..A,C |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-30060 |
JZS147,149,UZS14# |
1 | ||
| Common parts | ||||
| 90119-06448 | ||||
| 90159-50277 | ||||
| 90168-50053 | ||||
| 90468-04087 | ||||
| 90468-05073 | ||||
| 91651-60814 | ||||
| 91665-40616 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 3312 | ||||
