JZS149-ATPQF (1991)

Toyota Crown/Crown Majesta

Production Oct 1991 - Aug 1995
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )JZS147,149,UZS14#

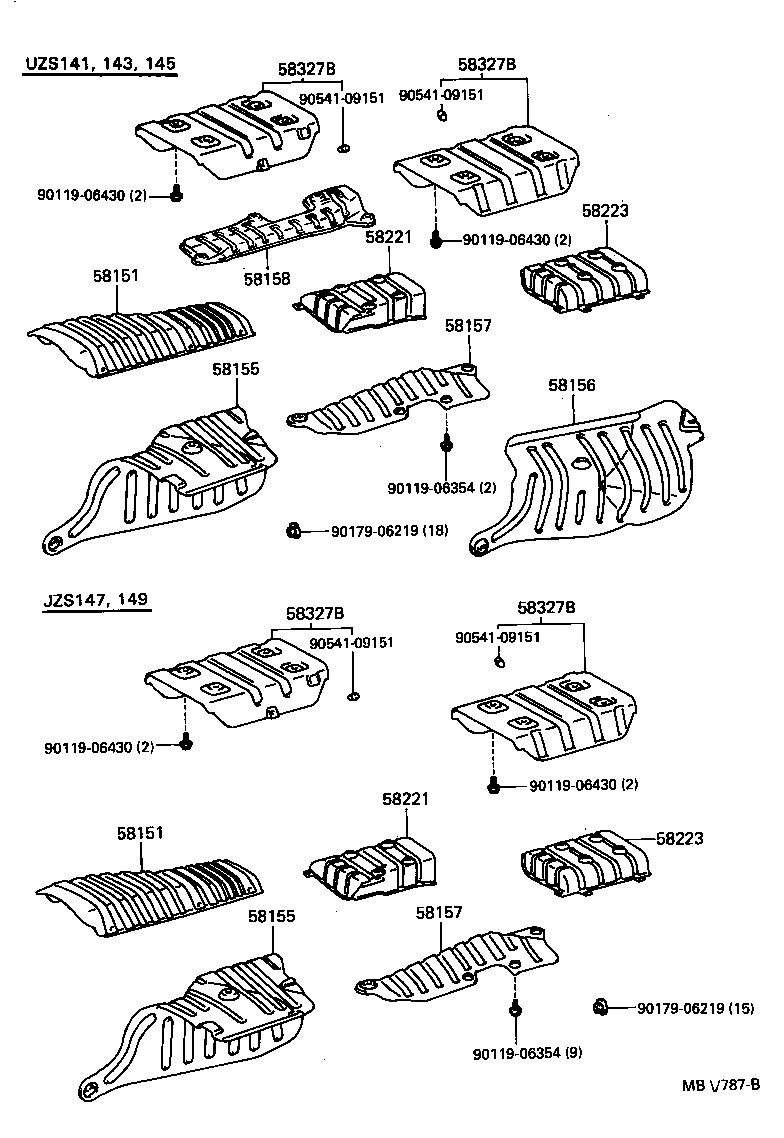

Click highlighted areas on diagram

diagram 58151 58151 58155 58155 58156 58157 58157 58158 58221 58221 58223 58223 58327B 58327B 58327B 58327B 9011906354 9011906354 9011906430 9011906430 9011906430 9011906430 9017906219 9017906219 9054109151 9054109151 9054109151 9054109151
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-30050

JZS147,149,UZS141,147

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-30050

JZS147,149,UZS141,147

 1
58155 - INSULATOR, FRONT FLOOR HEAT, NO.3
58155-30020

JZS147,149,UZS141,147

 1
58155 - INSULATOR, FRONT FLOOR HEAT, NO.3
58155-30020

JZS147,149,UZS141,147

 1
58157 - INSULATOR, FRONT FLOOR HEAT, NO.5
58157-30030

JZS147,149,UZS141,147

 1
58157 - INSULATOR, FRONT FLOOR HEAT, NO.5
58157-30030

JZS147,149,UZS141,147

 1
58221 - INSULATOR, CENTER FLOOR HEAT, NO.1
58221-30040

JZS147,149,UZS14#

 1
58221 - INSULATOR, CENTER FLOOR HEAT, NO.1
58221-30040

JZS147,149,UZS14#

 1
58223 - INSULATOR, CENTER FLOOR HEAT, NO.2
58223-30070

JZS147,149,UZS14#

 1
58223 - INSULATOR, CENTER FLOOR HEAT, NO.2
58223-30070

JZS147,149,UZS14#

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58328-30010

JZS147,149,UZS14#

左側

 1
58327-30010

JZS147,149,UZS14#

右側

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58328-30010

JZS147,149,UZS14#

左側

 1
58327-30010

JZS147,149,UZS14#

右側

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58328-30010

JZS147,149,UZS14#

左側

 1
58327-30010

JZS147,149,UZS14#

右側

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58328-30010

JZS147,149,UZS14#

左側

 1
58327-30010

JZS147,149,UZS14#

右側

 1
Common parts
90119-06354
90119-06430
90179-06219
90541-09151
