JZS149-ATPQF (1991)

Toyota Crown/Crown Majesta

Production Oct 1991 - Aug 1995
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )JZS147,149,UZS14#

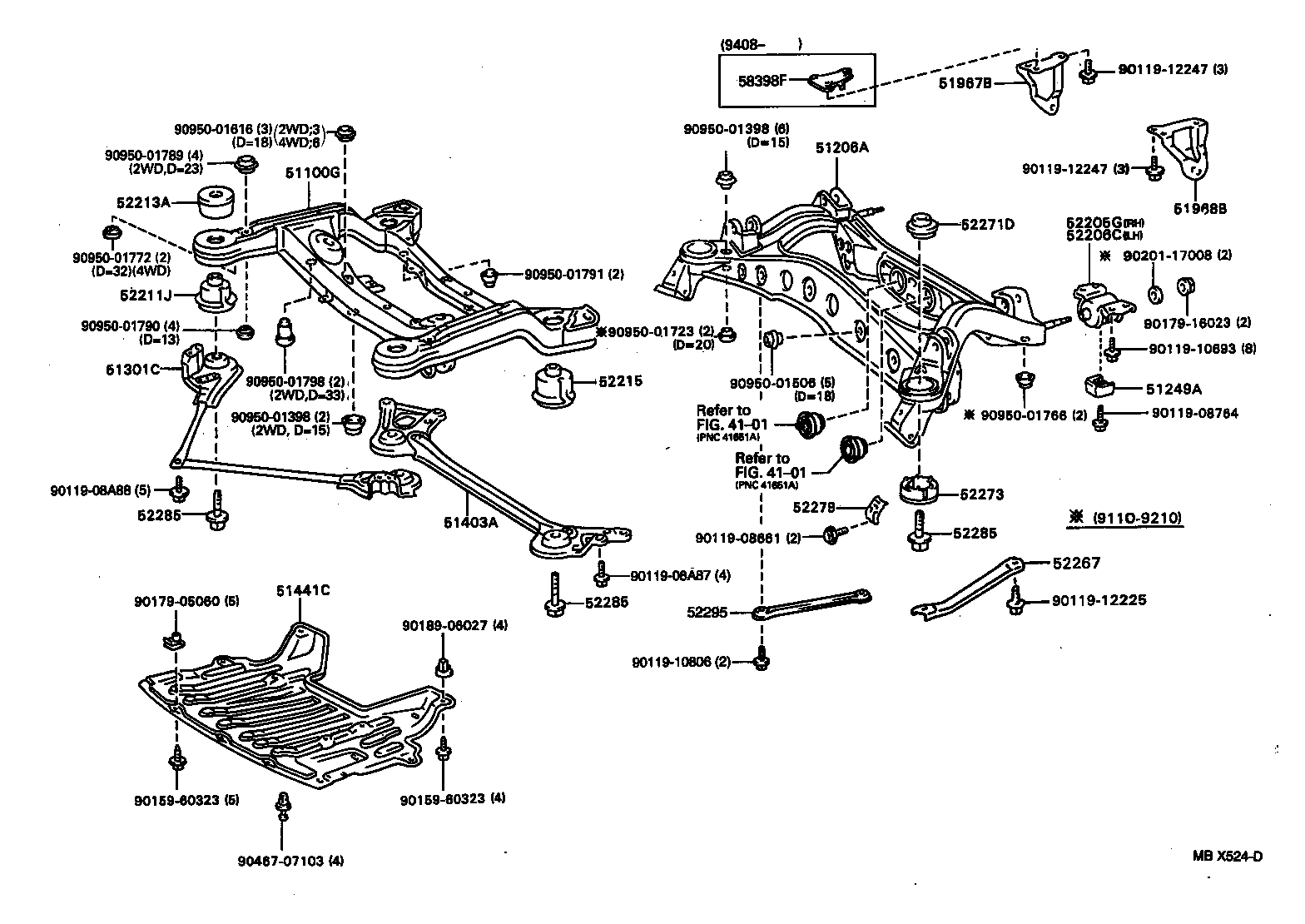

Click highlighted areas on diagram

diagram 4101 4101 51100G 51206A 51249A 51301C 51403A 51441C 51967B 51968B 52205G 52206C 52211J 52213A 52215 52267 52271D 52273 52279 52285 52285 52285 52295 58398F 9011908661 9011908764 9011908A87 9011908A88 9011910693 9011910806 9011912225 9011912247 9011912247 9015960323 9015960323 9017905060 9017916023 9018906027 9020117008 9046707103 9095001398 9095001398 9095001506 9095001616 9095001723 9095001766 9095001772 9095001789 9095001790 9095001791 9095001798
Part # Description Qty Price
51100G - FRAME ASSY, FRONT
51100-30650

JZS147,149,UZS141,147

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-24050

JZS147,149,UZS141,143,147

 1
51249A - DAMPER, REAR SUSPENSION MEMBER
51249-30030

JZS147,149

 2
51301C - ROD SUB-ASSY, FRONT FRAME
51301-30030

JZS147,149,UZS141,147

 1
51403A - BRACE SUB-ASSY, FRONT SUSPENSION MEMBER, RH
51403-30010

JZS147,149,UZS141,143,147

 1
51441C - COVER, ENGINE UNDER, RH
51441-30110

JZS147,149,UZS141,147

 1
51967B - HOOK, TRANSPORT, REAR RH
51967-30020

JZS147,149,UZS14#

 1
51968B - HOOK, TRANSPORT, REAR LH
51968-30010

JZS147,149,UZS14#

 1
51968-30030

JZS147,149,UZS14#

 1
52205G - CUSHION SUB-ASSY, BODY MOUNTING, LOWER
52205-30080

JZS149,UZS141

 1
52205-30110

JZS147,149

 1
52206C - CUSHION SUB-ASSY, BODY MOUNTING, REAR LH
52205-30110

JZS147,149

 1
52205-30080

JZS149,UZS141

 1
52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52211-30080

JZS147,149,UZS141

 2
52211-30110

JZS147,149,UZS14#

 2
52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52213-30040

JZS147,149,UZS141

 4
52213-30070

JZS147,149

 4
52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52215-30020

JZS147,149,UZS141

 2
52215-30050

JZS147,149,UZS141,147

 2
52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52271-30010

JZS147,149,UZS14#

 2
52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER
52273-30010

JZS147,149,UZS14#

 2
52279 - RETAINER, REAR SUSPENSION MEMBER CUSHION
52279-24010

JZS149,UZS141

 2
52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1
52285-30020

JZS147,149,UZS14#

REAR

 2
52285-30010

JZS147,149,UZS14#

FRONT

 4
52285-30020

JZS147,149,UZS14#

REAR

 2
52285-30010

JZS147,149,UZS14#

FRONT

 4
52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1
52285-30020

JZS147,149,UZS14#

REAR

 2
52285-30010

JZS147,149,UZS14#

FRONT

 4
52285-30020

JZS147,149,UZS14#

REAR

 2
52285-30010

JZS147,149,UZS14#

FRONT

 4
52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1
52285-30020

JZS147,149,UZS14#

REAR

 2
52285-30010

JZS147,149,UZS14#

FRONT

 4
52285-30020

JZS147,149,UZS14#

REAR

 2
52285-30010

JZS147,149,UZS14#

FRONT

 4
52295 - BRACE, REAR SUSPENSION MEMBER, RH
52295-50010

JZS147,149,UZS14#

 2
58398F - COVER, FLOOR UNDER, NO.1
58398-30010

JZS147,149,UZS14#

 1
Common parts
90119-08661
90119-08764
90119-08A87
90119-08A88
90119-10693
90119-10806
90119-12225
90119-12247
90159-60323
90179-05060
90179-16023
90189-06027
90201-17008
90467-07103
90950-01398
90950-01506
90950-01616
90950-01723
90950-01766
90950-01772
90950-01789
90950-01790
90950-01791
90950-01798
Linked diagrams
4101
