JZS149-ATPQF (1991)

Toyota Crown/Crown Majesta

Production Oct 1991 - Aug 1995
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )1JZGE,2JZGE

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

(9110- )2JZGE..JZS147,149

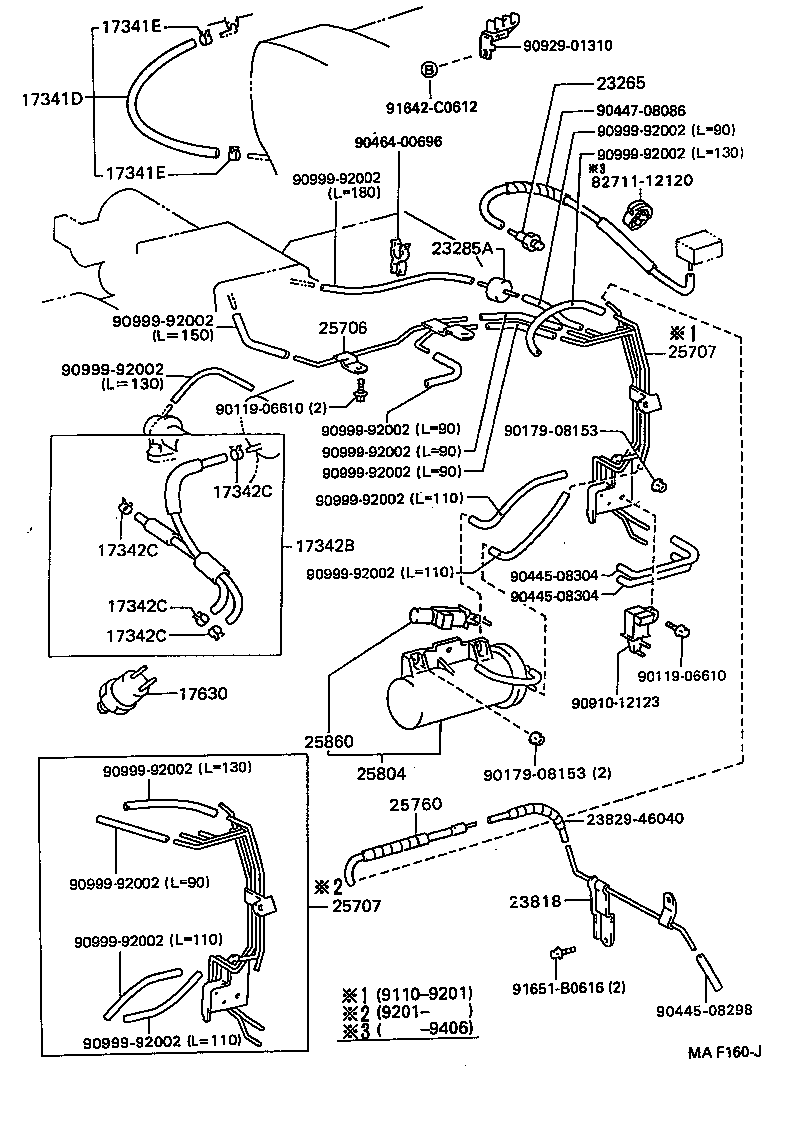

Click highlighted areas on diagram

diagram 17341D 17341E 17341E 17342B 17342C 17342C 17342C 17342C 17630 23265 23285A 23818 2382946040 25706 25707 25707 25760 25804 25860 8271112120 9011906610 9011906610 9017908153 9017908153 9044508298 9044508304 9044508304 9044708086 9046400696 9091012123 9092901310 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 91642C0612 91651B0616
Part # Description Qty Price
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-46090

2JZGE..JZS147,149

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-10106

2JZGE..JZS147,149

 2
90467-10106

1JZGE,2JZGE..JZS14#

 2
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-10106

2JZGE..JZS147,149

 2
90467-10106

1JZGE,2JZGE..JZS14#

 2
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-46090

2JZGE..JZS147,149

 1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10106

1JZGE,2JZGE..JZS14#

 4
90467-10106

2JZGE..JZS147,149

 4
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10106

1JZGE,2JZGE..JZS14#

 4
90467-10106

2JZGE..JZS147,149

 4
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10106

1JZGE,2JZGE..JZS14#

 4
90467-10106

2JZGE..JZS147,149

 4
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10106

1JZGE,2JZGE..JZS14#

 4
90467-10106

2JZGE..JZS147,149

 4
17630 - VALVE ASSY, AIR CONTROL
17630-70020

1JZGE,2JZGE..JZS14#

 1
17630-70020

1JZGE,2JZGE..JZS14#

 1
17630-70020

1JZGE,2JZGE..JZS14#

 1
23265 - FILTER, GAS, NO.1
90917-11031

1JZGE,2JZGE..JZS14#

 1
23285A - VALVE, CHECK, NO.1
90917-10080

1JZGE,2JZGE..JZS14#

 1
23818 - PIPE, FUEL VAPOR FEED
23818-46010

2JZGE..JZS147,149

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-46030

2JZGE..JZS143,145,147,149

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-46030

2JZGE..JZS143,145,149

 1
25707-46060

2JZGE..JZS143,145,147,149

 1
25707-46031

2JZGE..JZS143,145,147,149

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-46030

2JZGE..JZS143,145,149

 1
25707-46060

2JZGE..JZS143,145,147,149

 1
25707-46031

2JZGE..JZS143,145,147,149

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-46010

2JZGE..JZS147,149

 1
25760-46011

2JZGE..JZS147,149

 1
25804 - VALVE SET, VACUUM CONTROL
25804-46020

2JZGE..JZS143,145,147,149

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
90910-12124

2JZGE..JZS143,145,147,149

 1
Common parts
23829-46040
82711-12120
90119-06610
90179-08153
90445-08298
90445-08304
90447-08086
90464-00696
90910-12123
90929-01310
90999-92002
91642-C0612
91651-B0616
