JZS147-ATPQF (1992)

Toyota Crown/Crown Majesta

Production Oct 1992 - Aug 1995
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9110-9508)JZS147,149,UZS14#

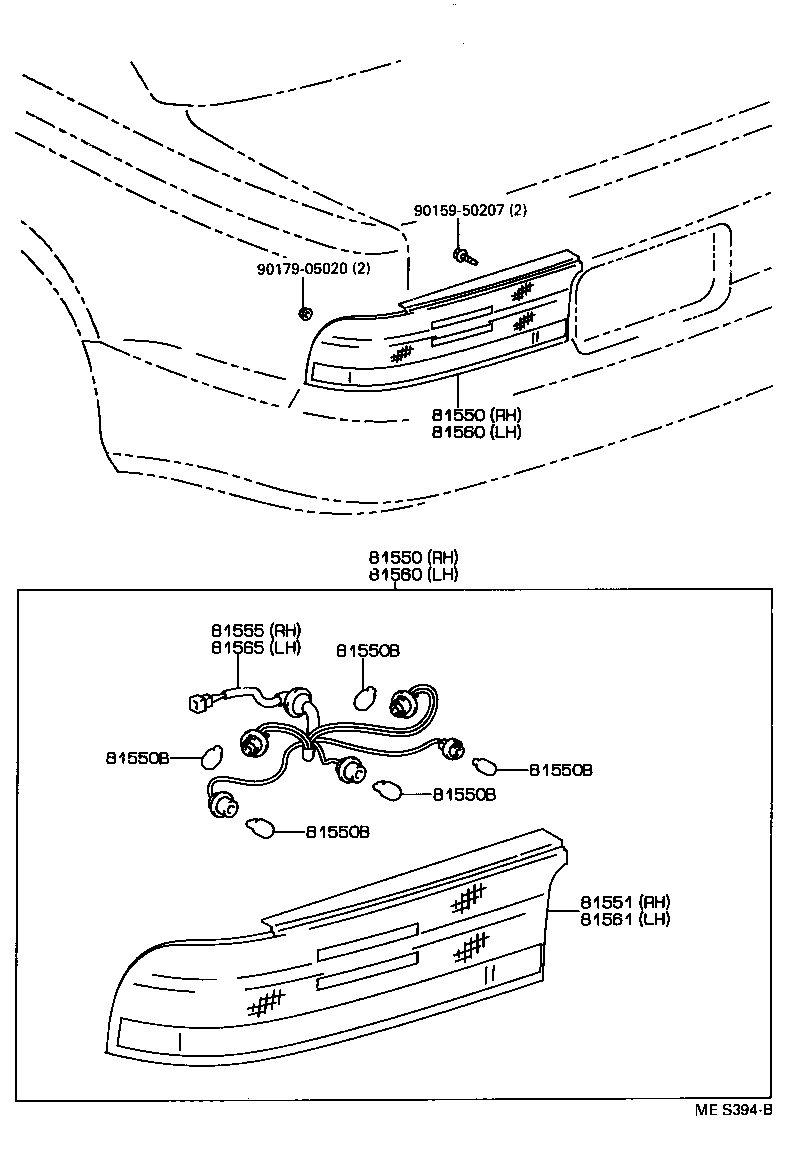

Click highlighted areas on diagram

diagram 81550 81550 81550B 81550B 81550B 81550B 81550B 81551 81555 81560 81560 81561 81565 9015950207 9017905020
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-30610

JZS147,149,UZS14#

 1
81550-30681

JZS147,149,UZS14#

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-30610

JZS147,149,UZS14#

 1
81550-30681

JZS147,149,UZS14#

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11042

JZS14#,LS141,UZS14#

12V 21W

 4
90981-11039

GS141,JZS14#,LS141,UZS14#

12V 16W

 2
90981-11039

JZS147,149,UZS14#

12V 16W

 2
90981-11042

JZS147,149,UZS14#

12V 21W

 4
90981-11043

JZS147,149,UZS14#

12V 21/5W

 4
90981-11043

JZS14#,LS141,UZS14#

12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11042

JZS14#,LS141,UZS14#

12V 21W

 4
90981-11039

GS141,JZS14#,LS141,UZS14#

12V 16W

 2
90981-11039

JZS147,149,UZS14#

12V 16W

 2
90981-11042

JZS147,149,UZS14#

12V 21W

 4
90981-11043

JZS147,149,UZS14#

12V 21/5W

 4
90981-11043

JZS14#,LS141,UZS14#

12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11042

JZS14#,LS141,UZS14#

12V 21W

 4
90981-11039

GS141,JZS14#,LS141,UZS14#

12V 16W

 2
90981-11039

JZS147,149,UZS14#

12V 16W

 2
90981-11042

JZS147,149,UZS14#

12V 21W

 4
90981-11043

JZS147,149,UZS14#

12V 21/5W

 4
90981-11043

JZS14#,LS141,UZS14#

12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11042

JZS14#,LS141,UZS14#

12V 21W

 4
90981-11039

GS141,JZS14#,LS141,UZS14#

12V 16W

 2
90981-11039

JZS147,149,UZS14#

12V 16W

 2
90981-11042

JZS147,149,UZS14#

12V 21W

 4
90981-11043

JZS147,149,UZS14#

12V 21/5W

 4
90981-11043

JZS14#,LS141,UZS14#

12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11042

JZS14#,LS141,UZS14#

12V 21W

 4
90981-11039

GS141,JZS14#,LS141,UZS14#

12V 16W

 2
90981-11039

JZS147,149,UZS14#

12V 16W

 2
90981-11042

JZS147,149,UZS14#

12V 21W

 4
90981-11043

JZS147,149,UZS14#

12V 21/5W

 4
90981-11043

JZS14#,LS141,UZS14#

12V 21/5W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-30681

JZS147,149,UZS14#

 1
81551-30610

JZS147,149,UZS14#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-30610

JZS147,149,UZS14#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-30681

JZS147,149,UZS14#

 1
81560-30580

JZS147,149,UZS14#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-30681

JZS147,149,UZS14#

 1
81560-30580

JZS147,149,UZS14#

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-30580

JZS147,149,UZS14#

 1
81561-30681

JZS147,149,UZS14#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-30610

JZS147,149,UZS14#

 1
Common parts
90159-50207
90179-05020
