JZS145-ATPUF (1991)

Toyota Crown/Crown Majesta

Production Oct 1991 - Aug 1995
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9110-9508)JZS14#,LS141,UZS14#

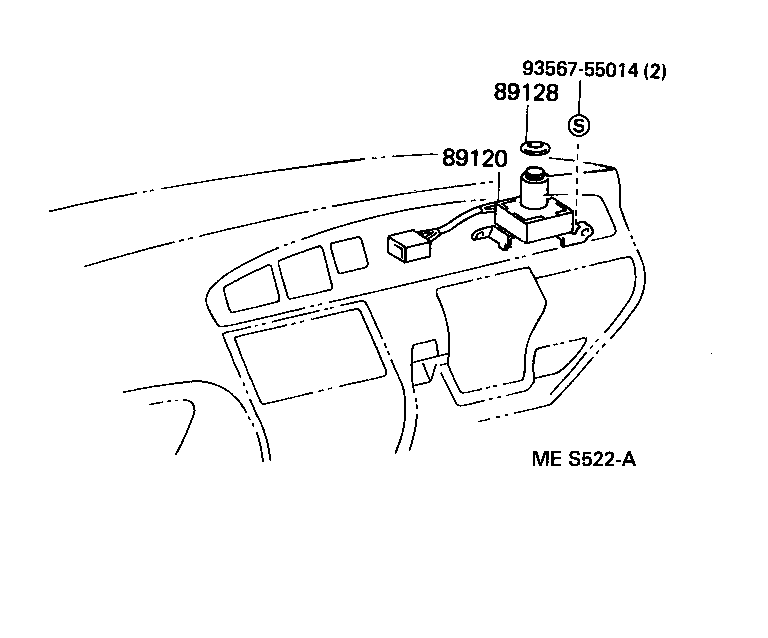

Click highlighted areas on diagram

diagram 89120 89128 9356755014
Part # Description Qty Price
89120 - SENSOR, AUTOMATIC LIGHT CONTROL
89120-30090

JZS141,143,145,LS141..ROY,ROYG,ROYT,SALEX

 1
89120-30091

GS141,JZS141,143,145,LS141

 1
89128 - NUT, CONLIGHT SCANNER
89128-24010J0

JZS141,143,145,LS141..ROY,ROYG,SALEX

DK.BLUE,TRIM8#

 1
89128-24010P0

JZS141,143,145,LS141..ROY,ROYG,ROYT,SALEX

SHADOW GR,TRIM1#

 1
89128-24010E0

JZS141,143,145,LS141..ROY,ROYG,SALEX

DK.ROSE,TRIM4#

 1
89128-30020

GS141,JZS141,143,145,LS141

 1
89128-30020

JZS141,143,145,LS141..ROY,ROYG,ROYT,SALEX

 1
Common parts
93567-55014
