JZS145-ATPUF (1991)
Toyota Crown/Crown Majesta

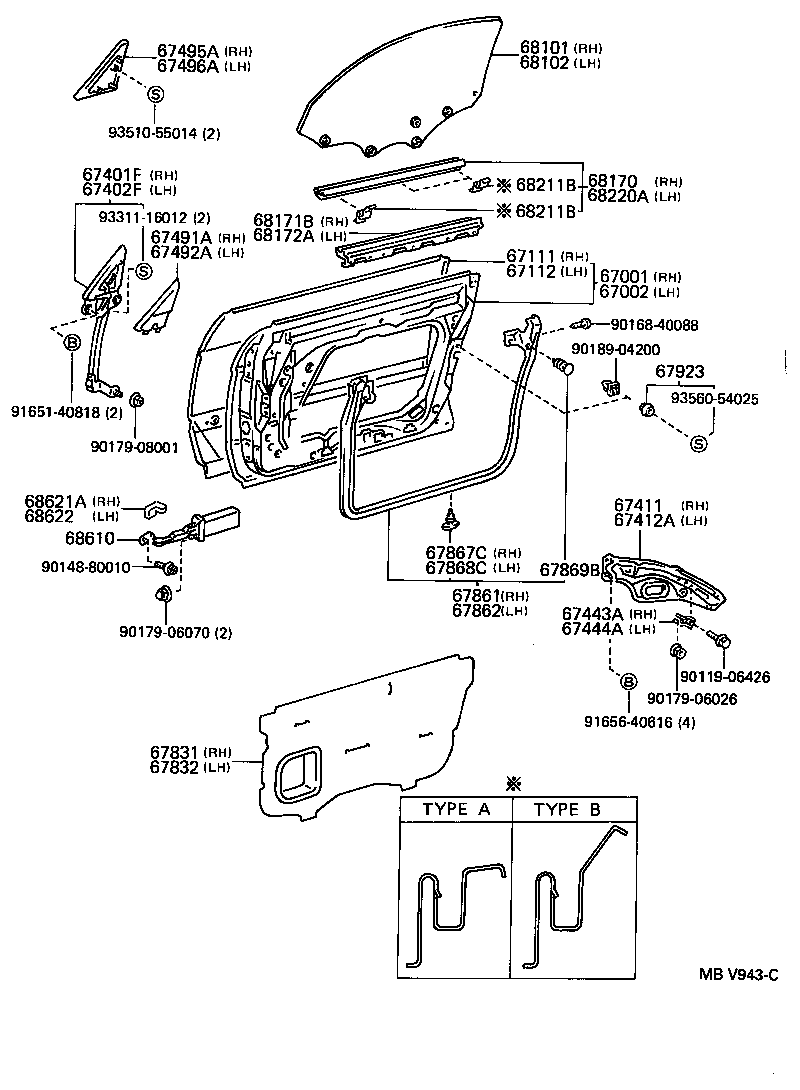

ILLUST NO. 1 OF 2(9110- )GS141,JZS141,143,145,LS141
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-30640 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-30720 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-30370 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-30430 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67503-30020 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67504-30020 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 67411 - FRAME, FRONT DOOR WINDOW, FRONT UPPER RH | ||||
| 67411-30170 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 67412A - FRAME, FRONT DOOR WINDOW, FRONT UPPER LH | ||||
| 67412-30170 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 67443A - PLATE, FRONT DOOR WINDOW OPENING, OUTER RH | ||||
| 67443-32030 |
GS141,JZS14#,LS141,UZS14# |
1 | ||
| 67444A - PLATE, FRONT DOOR WINDOW OPENING, OUTER LH | ||||
| 67443-32030 |
GS141,JZS14#,LS141,UZS14# |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-30110 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-30110 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-30050 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-30040 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-30340 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-30200 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-30210 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-30210 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-20130 |
JZS14#,LS141,UZS141 |
17 | ||
| 67867-20160 |
GS141,JZS141,143,145,LS141 |
17 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-20130 |
JZS14#,LS141,UZS141 |
17 | ||
| 67867-20160 |
GS141,JZS141,143,145,LS141 |
17 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-30050 |
GS141,JZS141,143,145,LS141 ﾌﾛﾝﾄ |
8 | ||
| 67869-30050 |
JZS141,143,145,LS141 ﾘﾔ |
8 | ||
| 67869-32010 |
GS141,JZS141,143,145,LS141 ﾘﾔ |
2 | ||
| 67869-32010 |
JZS141,143,145,LS141 ﾌﾛﾝﾄ |
2 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-30020 |
GS141,JZS141,143,145,LS141 |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-30440 |
JZS145 *SERT,厚さ=5.0,ｸﾞﾚｰ |
1 | ||
| 68101-30370 |
JZS149,UZS143,145..B,C *SERT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68101-30380 |
JZS149,UZS143,145..B,C *SERT,厚さ=5.0,ｸﾞﾚｰ |
1 | ||
| 68101-30330 |
JZS149,UZS141,143,145 *TEM,厚さ=5.0,ｸﾞﾚｰ |
1 | ||
| 68101-30310 |
JZS149,UZS141,143,145 *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68101-30430 |
JZS145 *SERT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68101-30410 |
JZS141,143,145,LS141..ROY,ROYG,SALEX *TEM,厚さ=5.0,ｸﾞﾚｰ |
1 | ||
| 68101-30430 |
JZS145 *SERT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68101-30400 |
GS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68101-30430 |
JZS145 *SERT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68101-30370 |
JZS149,UZS141,143,145..B,C *SERT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68101-30380 |
JZS149,UZS141,143,145..B,C *SERT,厚さ=5.0,ｸﾞﾚｰ |
1 | ||
| 68101-30440 |
JZS145 *SERT,厚さ=5.0,ｸﾞﾚｰ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-30380 |
JZS149,UZS143,145..B,C *SERT,厚さ=5.0,ｸﾞﾚｰ |
1 | ||
| 68102-30440 |
JZS145 *SERT,厚さ=5.0,ｸﾞﾚｰ |
1 | ||
| 68102-30430 |
JZS145 *SERT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102-30430 |
JZS145 *SERT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102-30400 |
GS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102-30370 |
JZS149,UZS143,145..B,C *SERT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102-30330 |
JZS149,UZS141,143,145 *TEM,厚さ=5.0,ｸﾞﾚｰ |
1 | ||
| 68102-30370 |
JZS149,UZS141,143,145..B,C *SERT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102-30310 |
JZS149,UZS141,143,145 *TEM,厚さ=5.0,BROBZE |
1 | ||
| 68102-30440 |
JZS145 *SERT,厚さ=5.0,ｸﾞﾚｰ |
1 | ||
| 68102-30380 |
JZS149,UZS141,143,145..B,C *SERT,厚さ=5.0,ｸﾞﾚｰ |
1 | ||
| 68102-30430 |
JZS145 *SERT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102-30410 |
JZS141,143,145,LS141..ROY,ROYG,SALEX *TEM,厚さ=5.0,ｸﾞﾚｰ |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-30240 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-30090 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-30040 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 68211B - CLIP(FOR FRONT DOOR GLASS WEATHERSTRIP) | ||||
| 68212-30010 |
GS141,JZS141,143,145,LS141 ﾀｲﾌﾟ B |
4 | ||
| 68211-30140 |
GS141,JZS141,143,145,LS141 ﾀｲﾌﾟ A |
2 | ||
| 68211B - CLIP(FOR FRONT DOOR GLASS WEATHERSTRIP) | ||||
| 68212-30010 |
GS141,JZS141,143,145,LS141 ﾀｲﾌﾟ B |
4 | ||
| 68211-30140 |
GS141,JZS141,143,145,LS141 ﾀｲﾌﾟ A |
2 | ||
| 68220A - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH | ||||
| 68220-30200 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68620-30030 |
GS141,JZS141,143,145,LS141 左側 |
1 | ||
| 68610-30090 |
GS141,JZS141,143,145,LS141 右側 |
1 | ||
| 68621A - COVER, FRONT DOOR CHECK, RH | ||||
| 68621-30020 |
GS141,JZS14#,LS141,UZS14# |
1 | ||
| 68622 - COVER, FRONT DOOR CHECK, LH | ||||
| 68622-30020 |
GS141,JZS14#,LS141,UZS14# |
1 | ||
| Common parts | ||||
| 90119-06426 | ||||
| 90148-80010 | ||||
| 90168-40088 | ||||
| 90179-06026 | ||||
| 90179-06070 | ||||
| 90179-08001 | ||||
| 90189-04200 | ||||
| 91651-40818 | ||||
| 91656-40616 | ||||
| 93311-16012 | ||||
| 93510-55014 | ||||
| 93560-54025 | ||||

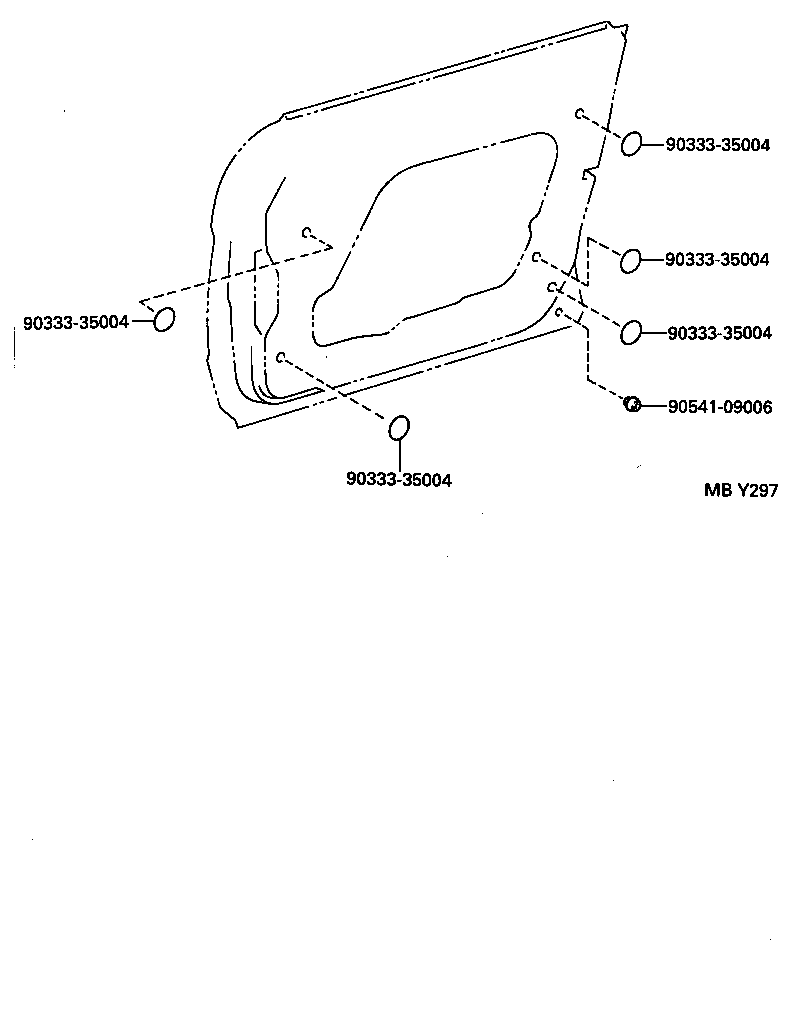

ILLUST NO. 1 OF 2(9110- )GS141,JZS141,143,145,LS141
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90333-35004 | ||||
| 90541-09006 | ||||
ILLUST NO. 2 OF 2(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-30110 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-30110 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-3F020E0 |
JZS141,143,145..ROY,ROYG ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),QUARTZ,TRIM4# |
1 | ||
| 67610-3F020B0 |
JZS141,143,145..ROY,ROYG ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-3A540E0 |
JZS145 L-1 ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,TRIM4# |
1 | ||
| 67650-3A540J0 |
JZS145 L-1 ﾊﾟﾂｹ-ｼﾞ-*99,DK.BLUE,TRIM8# |
1 | ||
| 67650-3A540B0 |
JZS145 L-1 ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3F020J0 |
JZS141,143,145..ROY,ROYG ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),DK.BLUE,TRIM8# |
1 | ||
| 67650-3A530B0 |
JZS145 SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3F030B0 |
JZS145 L-1 ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-3A500B0 |
JZS149,UZS143,145..B,C L-1 ﾊﾟﾂｹ-ｼﾞ OR V ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-3A530E0 |
JZS145 QUARTZ,TRIM4# |
1 | ||
| 67610-3F030E0 |
JZS145 L-1 ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)-*99,QUARTZ,TRIM4# |
1 | ||
| 67610-3F030J0 |
JZS145 L-1 ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)-*99,DK.BLUE,TRIM8# |
1 | ||
| 67650-3A500E0 |
JZS149,UZS143,145..B,C L-1 ﾊﾟﾂｹ-ｼﾞ OR V ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,QUARTZ,TRIM4# |
1 | ||
| 67650-3A530J0 |
JZS145 DK.BLUE,TRIM8# |
1 | ||
| 67650-3A500J0 |
JZS149,UZS143,145..B,C L-1 ﾊﾟﾂｹ-ｼﾞ OR V ﾊﾟﾂｹ-ｼﾞ-*99,DK.BLUE,DK.BLUE,TRIM8# |
1 | ||
| 67610-3F020E0 |
JZS141,143,145..ROY,ROYG,ROYT ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),QUARTZ,TRIM4# |
1 | ||
| 67610-3F070E0 |
JZS141,143,145..ROY,ROYG,ROYT QUARTZ,TRIM4# |
1 | ||
| 67610-3F070J0 |
JZS141,143,145..ROY,ROYG DK.BLUE,TRIM8# |
1 | ||
| 67610-3F070B0 |
JZS141,143,145..ROY,ROYG,ROYT SHADOW GRAY,TRIM1# |
1 | ||
| 67650-3A530B0 |
JZS145 ｱﾘ(*88),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-3A530E0 |
JZS145 ｱﾘ(*88),QUARTZ,TRIM4# |
1 | ||
| 67650-3A530J0 |
JZS145 ｱﾘ(*88),DK.BLUE,TRIM8# |
1 | ||
| 67650-3A520J0 |
JZS149,UZS143,145 DK.BLUE,TRIM8# |
1 | ||
| 67610-3F020B0 |
JZS141,143,145..ROY,ROYG,ROYT ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-3A540B0 |
JZS145 L-1 ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-3A520B0 |
JZS147,149,UZS143,145 SHADOW GRAY,TRIM1# |
1 | ||
| 67650-3A520E0 |
JZS147,149,UZS143,145 QUARTZ,TRIM4# |
1 | ||
| 67650-3A540J0 |
JZS145 L-1 ﾊﾟﾂｹ-ｼﾞ-*99,DK.BLUE,TRIM8# |
1 | ||
| 67610-3F030E1 |
JZS145 L-1 ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)-*99,QUARTZ,TRIM4# |
1 | ||
| 67650-3A540E0 |
JZS145 L-1 ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,TRIM4# |
1 | ||
| 67610-3F030B1 |
JZS145 L-1 ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3F030J1 |
JZS145 L-1 ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)-*99,DK.BLUE,TRIM8# |
1 | ||
| 67610-3F241J0 |
JZS141,143,145..ROY,ROYG ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),DK.BLUE,TRIM8# |
1 | ||
| 67610-3F241B0 |
JZS141,143,145..ROY,ROYG,ROYT ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3F251E0 |
JZS141,143,145..ROY,ROYG,ROYT QUARTZ,TRIM4# |
1 | ||
| 67610-3F251J0 |
JZS141,143,145..ROY,ROYG DK.BLUE,TRIM8# |
1 | ||
| 67610-3F241E0 |
JZS141,143,145..ROY,ROYG,ROYT ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),QUARTZ,TRIM4# |
1 | ||
| 67650-3A501J2 |
UZS143,145 L-1 ﾊﾟﾂｹ-ｼﾞ OR V ﾊﾟﾂｹ-ｼﾞ-*99,DK.BLUE,TRIM8# |
1 | ||
| 67610-3F300B0 |
JZS145 L-1 ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-3A501E3 |
UZS143,145 L-1 ﾊﾟﾂｹ-ｼﾞ OR V ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,TRIM4# |
1 | ||
| 67650-3A521E3 |
UZS143,145 QUARTZ,TRIM4# |
1 | ||
| 67610-3F300E0 |
JZS145 L-1 ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,TRIM4# |
1 | ||
| 67650-3A501B3 |
UZS143,145 L-1 ﾊﾟﾂｹ-ｼﾞ OR V ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3F251B0 |
JZS141,143,145..ROY,ROYG,ROYT SHADOW GRAY,TRIM1# |
1 | ||
| 67650-3A521J2 |
UZS143,145 DK.BLUE,TRIM8# |
1 | ||
| 67610-3F300J0 |
JZS145 L-1 ﾊﾟﾂｹ-ｼﾞ-*99,DK.BLUE,TRIM8# |
1 | ||
| 67650-3A521B3 |
UZS143,145 SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-3A511E1 |
JZS149,UZS141,143,145..B,C L-2 ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,TRIM4# |
1 | ||
| 67650-3A511B1 |
JZS149,UZS141,143,145..B,C L-2 ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-28020 |
GS141,JZS14#,LS141,UZS14# ﾀｲﾌﾟ A |
1 | ||
| 67771-28020 |
GS141,JZS141,143,145,LS141 ﾀｲﾌﾟ A |
2 | ||
| 67771-28030 |
GS141,JZS141,143,145,LS141 ﾀｲﾌﾟ B |
5 | ||
| 67771-28030 |
GS141,JZS14#,LS141,UZS14# ﾀｲﾌﾟ B |
4 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3F350B0 |
JZS145 L-1 ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3F310J0 |
JZS149,UZS143,145..B,C L-1 ﾊﾟﾂｹ-ｼﾞ OR V ﾊﾟﾂｹ-ｼﾞ-*99,DK.BLUE,TRIM8# |
1 | ||
| 67620-3F310B0 |
JZS149,UZS143,145..B,C L-1 ﾊﾟﾂｹ-ｼﾞ OR V ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3F340J0 |
JZS141,143,145..ROY,ROYG DK.BLUE,TRIM8# |
1 | ||
| 67620-3F340E0 |
JZS141,143,145..ROY,ROYG QUARTZ,TRIM4# |
1 | ||
| 67620-3F340B0 |
JZS141,143,145..ROY,ROYG SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3F350E0 |
JZS145 L-1 ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,TRIM4# |
1 | ||
| 67620-3F350J0 |
JZS145 L-1 ﾊﾟﾂｹ-ｼﾞ-*99,DK.BLUE,TRIM8# |
1 | ||
| 67620-3F310E0 |
JZS149,UZS143,145..B,C L-1 ﾊﾟﾂｹ-ｼﾞ OR V ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,TRIM4# |
1 | ||
| 67620-3F340E0 |
JZS141,143,145..ROY,ROYG,ROYT QUARTZ,TRIM4# |
1 | ||
| 67620-3F330B0 |
JZS147,149,UZS143,145 SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3F350B0 |
JZS145 L-1 ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3F330J0 |
JZS149,UZS143,145 DK.BLUE,TRIM8# |
1 | ||
| 67620-3F340B0 |
JZS141,143,145..ROY,ROYG,ROYT SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3F350E0 |
JZS145 L-1 ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,TRIM4# |
1 | ||
| 67620-3F330E0 |
JZS147,149,UZS143,145 QUARTZ,TRIM4# |
1 | ||
| 67620-3F350J0 |
JZS145 L-1 ﾊﾟﾂｹ-ｼﾞ-*99,DK.BLUE,TRIM8# |
1 | ||
| 67620-3F311E3 |
UZS143,145 L-1 ﾊﾟﾂｹ-ｼﾞ OR V ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,TRIM4# |
1 | ||
| 67620-3F321E1 |
JZS149,UZS141,143,145..B,C L-2 ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,TRIM4# |
1 | ||
| 67620-3F311B3 |
UZS143,145 L-1 ﾊﾟﾂｹ-ｼﾞ OR V ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3F331B3 |
UZS143,145 SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3F321B1 |
JZS149,UZS141,143,145..B,C L-2 ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3F331E3 |
UZS143,145 QUARTZ,TRIM4# |
1 | ||
| 67620-3F350B1 |
JZS145 L-1 ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3F331J2 |
UZS143,145 DK.BLUE,TRIM8# |
1 | ||
| 67620-3F311J2 |
UZS143,145 L-1 ﾊﾟﾂｹ-ｼﾞ OR V ﾊﾟﾂｹ-ｼﾞ-*99,DK.BLUE,TRIM8# |
1 | ||
| 67620-3F751B0 |
JZS141,143,145..ROY,ROYG,ROYT SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3F751E0 |
JZS141,143,145..ROY,ROYG,ROYT QUARTZ,TRIM4# |
1 | ||
| 67620-3F350J1 |
JZS145 L-1 ﾊﾟﾂｹ-ｼﾞ-*99,DK.BLUE,TRIM8# |
1 | ||
| 67620-3F350E1 |
JZS145 L-1 ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,TRIM4# |
1 | ||
| 67620-3F751J0 |
JZS141,143,145..ROY,ROYG DK.BLUE,TRIM8# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-28020 |
GS141,JZS141,143,145,LS141 ﾀｲﾌﾟ A |
2 | ||
| 67771-28020 |
GS141,JZS14#,LS141,UZS14# ﾀｲﾌﾟ A |
1 | ||
| 67771-28030 |
GS141,JZS141,143,145,LS141 ﾀｲﾌﾟ B |
5 | ||
| 67771-28030 |
GS141,JZS14#,LS141,UZS14# ﾀｲﾌﾟ B |
4 | ||
| 67625A - BRACKET, FRONT DOOR TRIM, NO.1 | ||||
| 67625-30070 |
GS141,JZS14#,LS141,UZS14# |
2 | ||
| 67837B - SEAL, FRONT DOOR DUST PROOF | ||||
| 67837-50010 |
GS141,JZS14#,LS141,UZS14# |
2 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-30090 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-30040 |
GS141,JZS141,143,145,LS141 |
1 | ||
| Common parts | ||||
| 90159-40223 | ||||
| 90164-60018 | ||||
| 90189-04200 | ||||
| 90189-06030 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
