JZS145-ATPUF (1991)

Toyota Crown/Crown Majesta

Production Oct 1991 - Aug 1995
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )GS141,JZS141,143,145,LS141

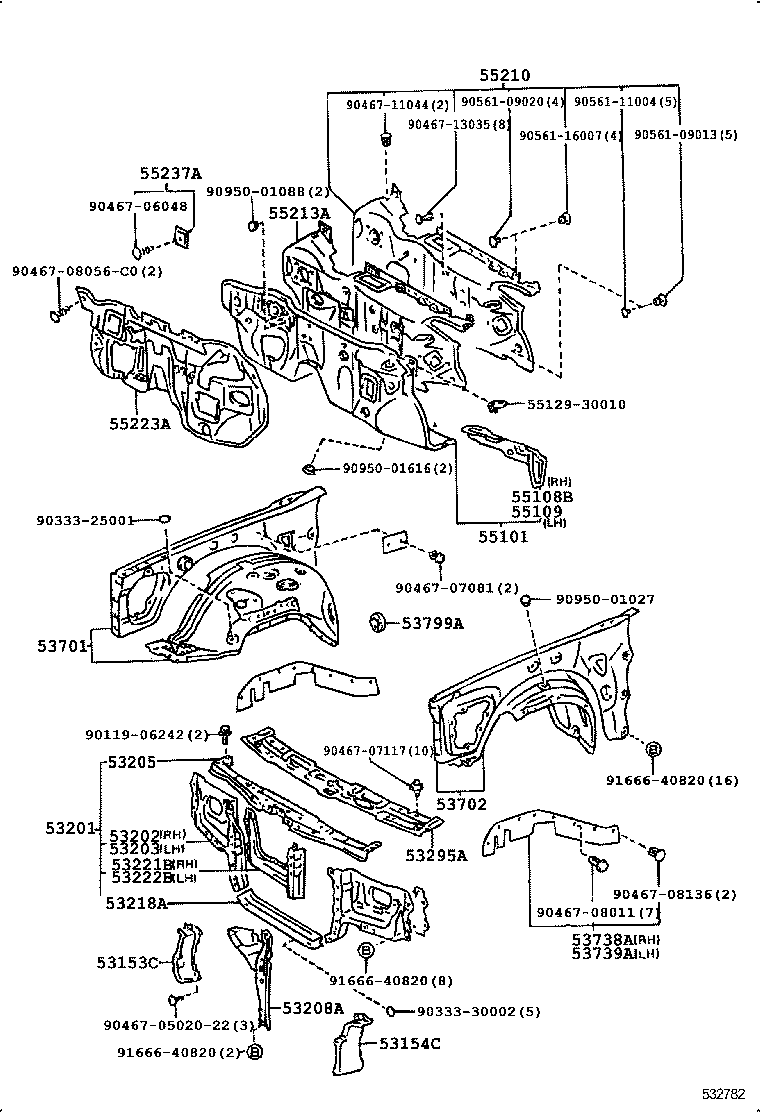

Click highlighted areas on diagram

diagram 53153C 53154C 53201 53202 53203 53205 53208A 53218A 53221B 53222B 53295A 53701 53702 53738A 53739A 53799A 55101 55108B 55109 5512930010 55210 55213A 55223A 55237A 9011906242 9033325001 9033330002 904670502022 9046706048 9046707081 9046707117 9046708011 9046708056C0 9046708136 9046711044 9046713035 9056109013 9056109020 9056111004 9056116007 9095001027 9095001088 9095001616 9166640820 9166640820 9166640820
Part # Description Qty Price
53153C - GUIDE, RADIATOR GRILLE SIDE AIR, RH
53153-30030

GS141,JZS141,143,145,LS141

 1
53154C - GUIDE, RADIATOR GRILLE SIDE AIR, LH
53154-30030

GS141,JZS141,143,145,LS141

 1
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-30340

GS141,JZS141,143,145,LS141

 1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-30020

GS141,JZS141,143,145,LS141

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-30020

GS141,JZS141,143,145,LS141

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53216-30905

GS141,JZS141,143,145,LS141

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53209-30110

GS141,JZS141,143,145,LS141

 1
53218A - SUPPORT, RADIATOR, LOWER
53218-30902

GS141,JZS141,143,145,LS141

 1
53221B - BRACE, RADIATOR SUPPORT APRON, RH
53221-30900

GS141,JZS141,143,145,LS141

 1
53222B - BRACE, RADIATOR SUPPORT APRON, LH
53222-30900

GS141,JZS141,143,145,LS141

 1
53295A - DEFLECTOR, RADIATOR UPPER AIR
53293-30020

JZS143;JZS141,145,LS141..ROY,ROYG,SALEX,SSL

 1
53293-30020

GS141,JZS141,143,145,LS141

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-3A111

JZS143,145..ROYG,ROYT

 1
53701-3A111

JZS143,145..4FC

 1
53701-30790

JZS149,UZS141,143,145

 1
53701-3A111

JZS145

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-30711

GS141,JZS141,143,145,LS141

 1
53702-30540

JZS149,UZS141,143,145

 1
53738A - SEAL, FRONT FENDER APRON, REAR RH
53738-30060

GS141,JZS141,143,145,LS141

 1
53739A - SEAL, FRONT FENDER APRON, REAR LH
53739-30040

GS141,JZS141,143,145,LS141

 1
53799A - COVER, STEERING GEAR BOX SERVICE HOLE
53799-30030

GS141,JZS141,143,145,LS141

 1
55101 - PANEL SUB-ASSY, DASH
55101-3A140

UZS143,145

 1
55101-3A070

GS141,JZS141,143,145

 1
55108B - BRACE SUB-ASSY, DASH TO FRAME, RH
55108-30070

GS141,JZS141,143,145,LS141

 1
55109 - BRACE SUB-ASSY, DASH TO FRAME, LH
55109-30070

GS141,JZS141,143,145,LS141

 1
55210 - INSULATOR ASSY, DASH PANEL
55211-30590

JZS143,145,LS141

 1
55213A - PAD, DASH PANEL SILENCER
55213-30350

JZS143,145,LS141

 1
55223A - INSULATOR, DASH PANEL, OUTER
55223-30100

GS141,JZS141,143,145,LS141

 1
55237A - PLATE, DASH PANEL INSULATOR, NO.1
55237-30010

GS141,JZS141,143,145,LS141

 1
Common parts
55129-30010
90119-06242
90333-25001
90333-30002
90467-0502022
90467-06048
90467-07081
90467-07117
90467-08011
90467-08056C0
90467-08136
90467-11044
90467-13035
90561-09013
90561-09020
90561-11004
90561-16007
90950-01027
90950-01088
90950-01616
91666-40820
