JZS145-ATPUF (1991)
Toyota Crown/Crown Majesta

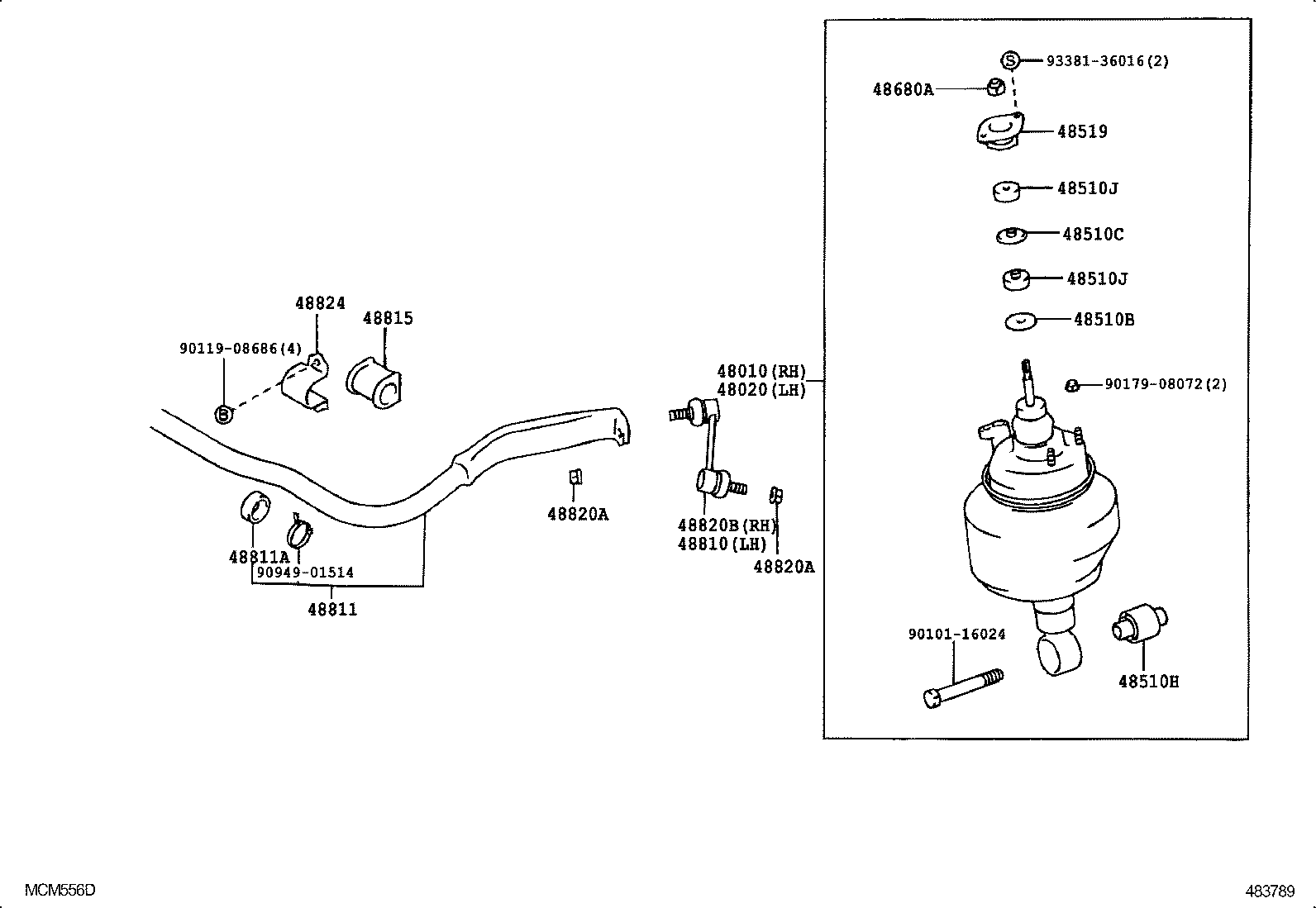

ILLUST NO. 1 OF 2(9110- )JZS145
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48010 - CYLINDER ASSY, PNEUMATIC, FRONT RH W/SHOCK ABSORBER | ||||
| 48010-39025 |
JZS145 |
1 | ||
| 48010-30070 |
UZS143,145 |
1 | ||
| 48020 - CYLINDER ASSY, PNEUMATIC, FRONT LH W/SHOCK ABSORBER | ||||
| 48020-30070 |
UZS143,145 |
1 | ||
| 48020-39025 |
JZS145 |
1 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02091 |
JZS143,145..ROYG,ROYT |
2 | ||
| 90948-02091 |
JZS145 |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02092 |
GS141,JZS141,143,145,LS141 |
2 | ||
| 48510H - BUSH(FOR FRONT SHOCK ABSORBER) | ||||
| 90389-16012 |
JZS145 |
2 | ||
| 48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1 | ||||
| 90948-01034 |
JZS145 上側 |
2 | ||
| 90948-01033 |
JZS145 下側 |
2 | ||
| 90948-01033 |
JZS145 下側 |
4 | ||
| 48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1 | ||||
| 90948-01034 |
JZS145 上側 |
2 | ||
| 90948-01033 |
JZS145 下側 |
2 | ||
| 90948-01033 |
JZS145 下側 |
4 | ||
| 48519 - BRACKET, ACTUATOR SUPPORT, FRONT | ||||
| 48519-30020 |
JZS145 |
2 | ||
| 48519-30020 |
JZS143,145..ROYG,ROYT |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 90179-12117 |
JZS143,145..ROYG,ROYT |
2 | ||
| 94187-11200 |
JZS143,145..ROYG,ROYT |
2 | ||
| 90179-12117 |
JZS145 |
2 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-30030 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 48810-30041 |
UZS143,145 |
1 | ||
| 48810-30040 |
UZS143,145 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-30411 |
UZS143,145 |
1 | ||
| 48811-30360 |
GS141,JZS141,143,145 |
1 | ||
| 48811-30410 |
UZS143,145 |
1 | ||
| 48811A - BUSH(FOR FRONT STABILIZER BAR) | ||||
| 90385-31002 |
GS141,JZS141,143,145 |
2 | ||
| 90385-29002 |
LS141,UZS143,145 |
2 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-30350 |
GS141,JZS141,143,145 |
2 | ||
| 48815-30390 |
UZS143,145 |
2 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12047 |
GS141,JZS141,143,145,LS141 |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12047 |
GS141,JZS141,143,145,LS141 |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-30050 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-30100 |
UZS143,145 |
2 | ||
| 48824-30070 |
GS141,JZS141,143,145,LS141 |
2 | ||
| Common parts | ||||
| 90101-16024 | ||||
| 90119-08686 | ||||
| 90179-08072 | ||||
| 90949-01514 | ||||
| 93381-36016 | ||||

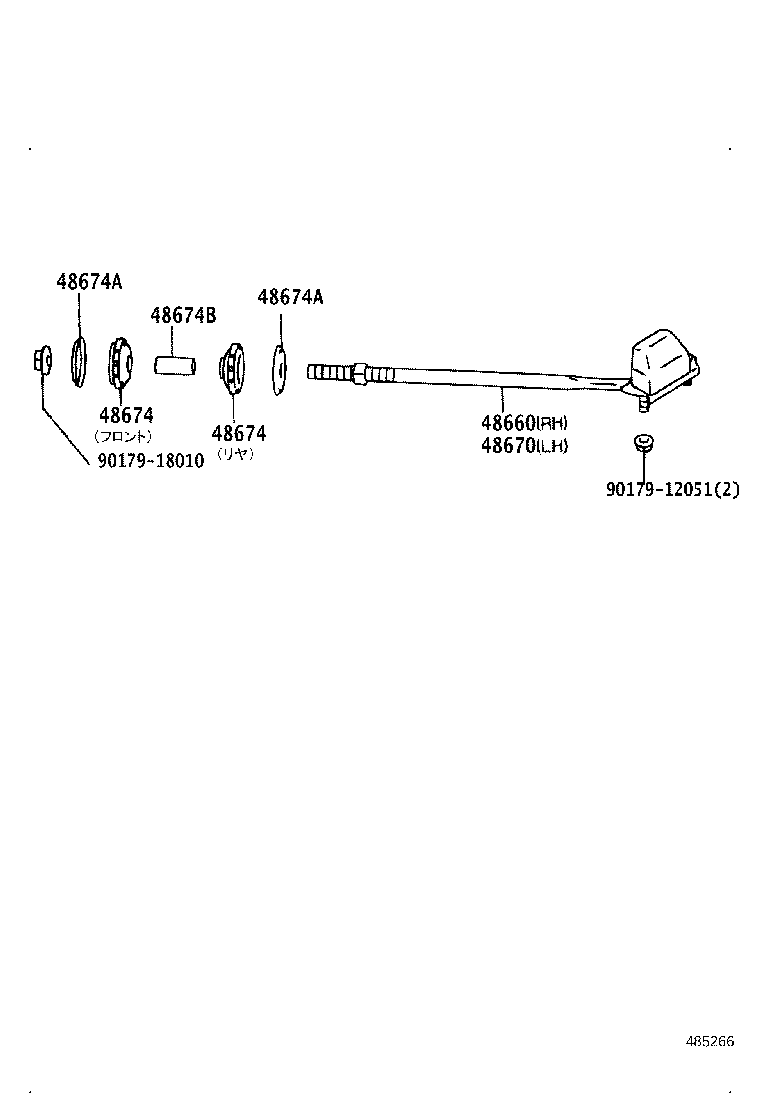

ILLUST NO. 2 OF 2(9110- )GS141,JZS141,143,145,LS141
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48660 - BAR ASSY, STRUT, RH | ||||
| 48660-30130 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 48670 - BAR ASSY, STRUT, LH | ||||
| 48670-30130 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 48674 - CUSHION, STRUT BAR | ||||
| 48674-30060 |
GS141,JZS141,143,145,LS141 ﾘﾔ |
2 | ||
| 48674-30070 |
GS141,JZS141,143,145,LS141 ﾌﾛﾝﾄ |
2 | ||
| 48674 - CUSHION, STRUT BAR | ||||
| 48674-30060 |
GS141,JZS141,143,145,LS141 ﾘﾔ |
2 | ||
| 48674-30070 |
GS141,JZS141,143,145,LS141 ﾌﾛﾝﾄ |
2 | ||
| 48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION) | ||||
| 90948-02071 |
GS141,JZS141,143,145,LS141 |
4 | ||
| 48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION) | ||||
| 90948-02071 |
GS141,JZS141,143,145,LS141 |
4 | ||
| 48674B - COLLAR(FOR STRUT BAR CUSHION) | ||||
| 90387-18013 |
GS141,JZS141,143,145,LS141 |
2 | ||
| Common parts | ||||
| 90179-12051 | ||||
| 90179-18010 | ||||

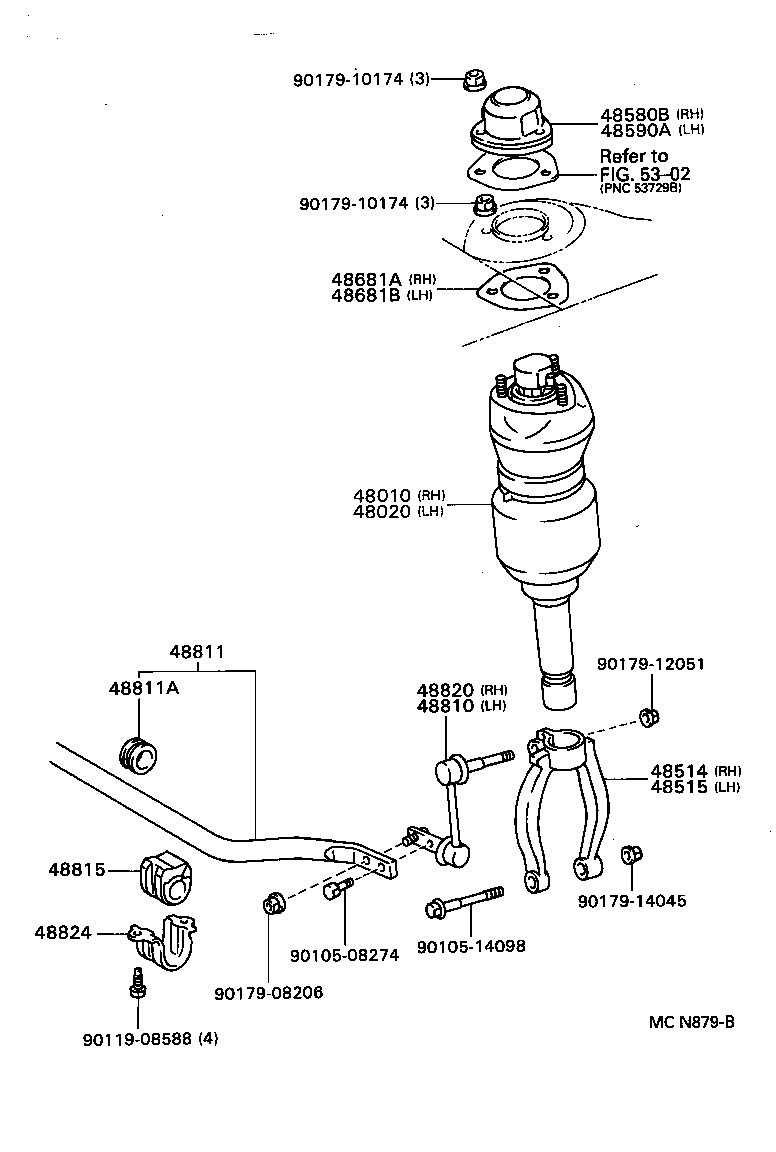

(9110- )UZS143,145
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48010 - CYLINDER ASSY, PNEUMATIC, FRONT RH W/SHOCK ABSORBER | ||||
| 48010-39025 |
JZS145 |
1 | ||
| 48010-30070 |
UZS143,145 |
1 | ||
| 48020 - CYLINDER ASSY, PNEUMATIC, FRONT LH W/SHOCK ABSORBER | ||||
| 48020-30070 |
UZS143,145 |
1 | ||
| 48020-39025 |
JZS145 |
1 | ||
| 48514 - BRACKET, FRONT SHOCK ABSORBER, LOWER RH | ||||
| 48514-30040 |
UZS143,145 |
1 | ||
| 48515 - BRACKET, FRONT SHOCK ABSORBER, LOWER LH | ||||
| 48515-30040 |
UZS143,145 |
1 | ||
| 48580B - CAP ASSY, FRONT SHOCK ABSORBER, RH | ||||
| 48553-30030 |
JZS149,UZS141,143,145 |
1 | ||
| 48590A - CAP ASSY, FRONT SHOCK ABSORBER, LH | ||||
| 48554-30010 |
JZS149,UZS141,143,145 |
1 | ||
| 48681A - GASKET, FRONT SUSPENSION SUPPORT, RH | ||||
| 48681-30010 |
UZS143,145 |
1 | ||
| 48681-30010 |
JZS147,UZS143,145 |
1 | ||
| 48681B - GASKET, FRONT SUSPENSION SUPPORT, LH | ||||
| 48681-30010 |
JZS147,UZS143,145 |
1 | ||
| 48681-30010 |
UZS143,145 |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-30030 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 48810-30041 |
UZS143,145 |
1 | ||
| 48810-30040 |
UZS143,145 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-30411 |
UZS143,145 |
1 | ||
| 48811-30360 |
GS141,JZS141,143,145 |
1 | ||
| 48811-30410 |
UZS143,145 |
1 | ||
| 48811A - BUSH(FOR FRONT STABILIZER BAR) | ||||
| 90385-31002 |
GS141,JZS141,143,145 |
2 | ||
| 90385-29002 |
LS141,UZS143,145 |
2 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-30350 |
GS141,JZS141,143,145 |
2 | ||
| 48815-30390 |
UZS143,145 |
2 | ||
| 48820 - LINK ASSY, FRONT STABILIZER | ||||
| 48820-30060 |
UZS143,145 |
1 | ||
| 48820-30061 |
UZS143,145 |
1 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-30100 |
UZS143,145 |
2 | ||
| 48824-30070 |
GS141,JZS141,143,145,LS141 |
2 | ||
| Common parts | ||||
| 90105-08274 | ||||
| 90105-14098 | ||||
| 90119-08588 | ||||
| 90179-08206 | ||||
| 90179-10174 | ||||
| 90179-12051 | ||||
| 90179-14045 | ||||
| Linked diagrams | ||||
| 5302 | ||||
