JZS145-ATPUF (1991)
Toyota Crown/Crown Majesta
(9110- )

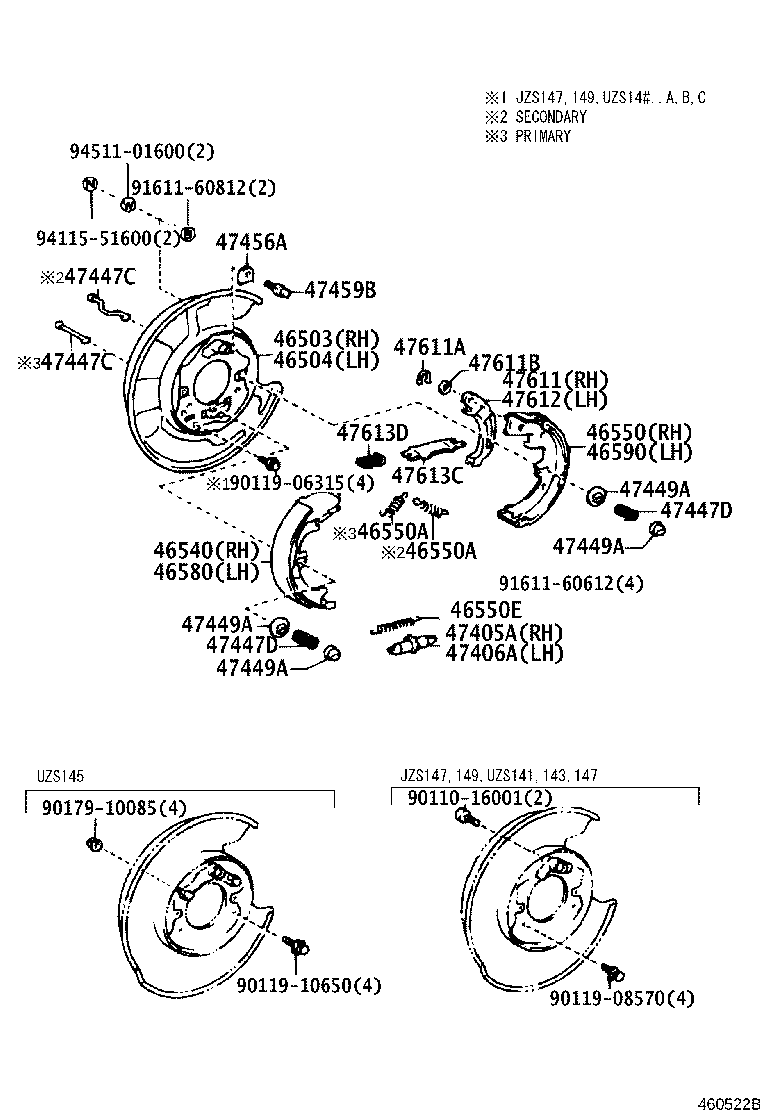

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-30070 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-30070 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-30030 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-30030 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-16007 |
GS141,JZS141,143,145,LS141 SECONDARY |
2 | ||
| 90506-16005 |
GS141,JZS141,143,145,LS141 PRIMARY |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-16007 |
GS141,JZS141,143,145,LS141 SECONDARY |
2 | ||
| 90506-16005 |
GS141,JZS141,143,145,LS141 PRIMARY |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12010 |
GS141,JZS141,143,145,LS141 |
2 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-30030 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-30020 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
GS141,JZS14#,LS141,UZS14# |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
GS141,JZS14#,LS141,UZS14# |
1 | ||
| 47447C - PIN, SHOE HOLD DOWN SPRING(FOR PARKING BRAKE) | ||||
| 47447-22020 |
GS141,JZS141,143,145,LS141 SECONDARY |
2 | ||
| 47447-20030 |
GS141,JZS141,143,145,LS141 PRIMARY |
2 | ||
| 47447C - PIN, SHOE HOLD DOWN SPRING(FOR PARKING BRAKE) | ||||
| 47447-22020 |
GS141,JZS141,143,145,LS141 SECONDARY |
2 | ||
| 47447-20030 |
GS141,JZS141,143,145,LS141 PRIMARY |
2 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-16053 |
GS141,JZS141,143,145,LS141 PRIMARY |
2 | ||
| 90501-14049 |
JZS141,143,145,LS141 PRIMARY |
2 | ||
| 90501-14049 |
GS141,JZS141,143,145,LS141 SECONDARY |
2 | ||
| 90501-16053 |
JZS14#,LS141,UZS14# SECONDARY |
2 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-16053 |
GS141,JZS141,143,145,LS141 PRIMARY |
2 | ||
| 90501-14049 |
JZS141,143,145,LS141 PRIMARY |
2 | ||
| 90501-14049 |
GS141,JZS141,143,145,LS141 SECONDARY |
2 | ||
| 90501-16053 |
JZS14#,LS141,UZS14# SECONDARY |
2 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
GS141,JZS14#,LS141,UZS14# 外側 |
4 | ||
| 47449-40010 |
JZS141,143,145,LS141 内側 |
4 | ||
| 47449-40010 |
GS141,JZS14#,LS141,UZS14# 内側 |
4 | ||
| 47449-22010 |
JZS14#,LS141,UZS14# 内側 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
GS141,JZS14#,LS141,UZS14# 外側 |
4 | ||
| 47449-40010 |
JZS141,143,145,LS141 内側 |
4 | ||
| 47449-40010 |
GS141,JZS14#,LS141,UZS14# 内側 |
4 | ||
| 47449-22010 |
JZS14#,LS141,UZS14# 内側 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
GS141,JZS14#,LS141,UZS14# 外側 |
4 | ||
| 47449-40010 |
JZS141,143,145,LS141 内側 |
4 | ||
| 47449-40010 |
GS141,JZS14#,LS141,UZS14# 内側 |
4 | ||
| 47449-22010 |
JZS14#,LS141,UZS14# 内側 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
GS141,JZS14#,LS141,UZS14# 外側 |
4 | ||
| 47449-40010 |
JZS141,143,145,LS141 内側 |
4 | ||
| 47449-40010 |
GS141,JZS14#,LS141,UZS14# 内側 |
4 | ||
| 47449-22010 |
JZS14#,LS141,UZS14# 内側 |
4 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-20030 |
GS141,JZS14#,LS141,UZS14# |
2 | ||
| 47456-33010 |
GS141,JZS14#,LS141,UZS14# |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
GS141,JZS14#,LS141,UZS14# |
2 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-22030 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 47611A - WASHER, TYPE C(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90213-07018 |
GS141,JZS14#,LS141,UZS14# |
2 | ||
| 47611B - SHIM(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90564-09186 |
GS141,JZS14#,LS141,UZS14# 厚さ=0.9 |
1 | ||
| 90564-09185 |
GS141,JZS14#,LS141,UZS14# 厚さ=0.6 |
1 | ||
| 90564-09184 |
GS141,JZS14#,LS141,UZS14# 厚さ=0.3 |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-22030 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 47613C - STRUT, PARKING BRAKE SHOE | ||||
| 47613-22020 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
GS141,JZS14#,LS141,UZS14# |
2 | ||
| Common parts | ||||
| 90110-16001 | ||||
| 90119-06315 | ||||
| 90119-08570 | ||||
| 90119-10650 | ||||
| 90179-10085 | ||||
| 91611-60612 | ||||
| 91611-60812 | ||||
| 94115-51600 | ||||
| 94511-01600 | ||||
(9110- )JZS141,143,145,LS141 ; (9308- )GS141

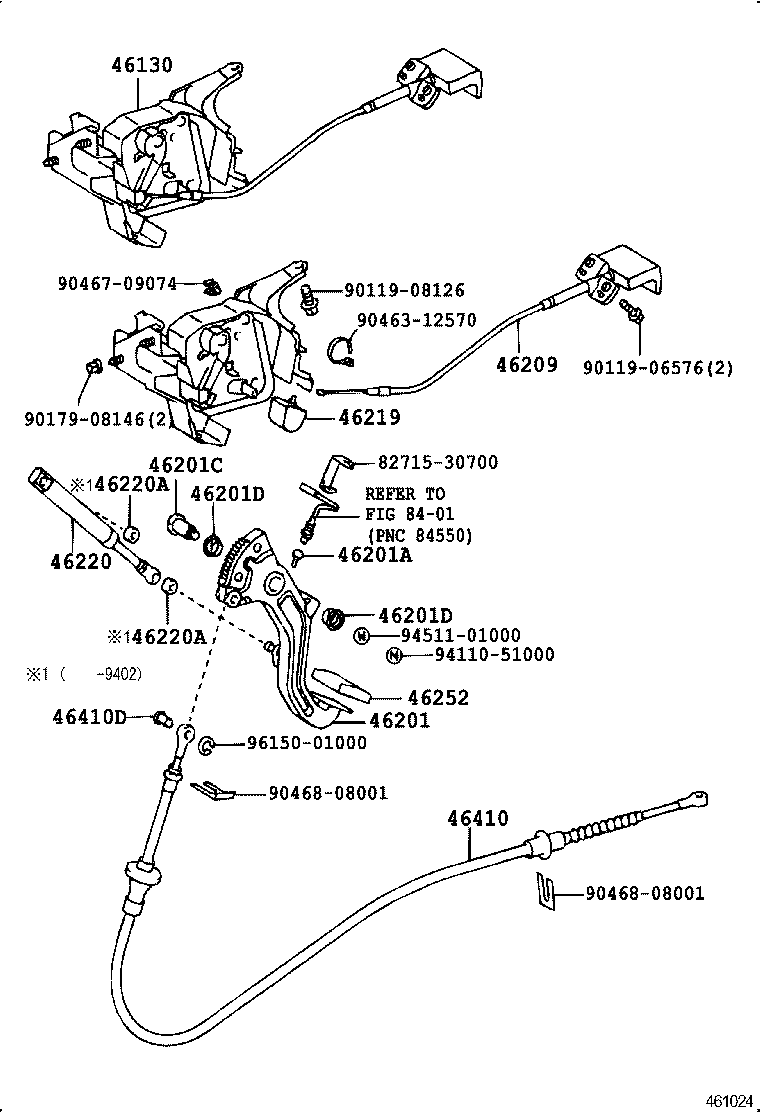

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46130 - BRACKET ASSY, PARKING BRAKE PEDAL | ||||
| 46130-30140J0 |
JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL DARK BLUE,TRIM8# |
1 | ||
| 46130-30140B0 |
JZS141,143,145,LS141 SHADOW GRAY,TRIM1# |
1 | ||
| 46130-30140E0 |
JZS141,143,145,LS141 QUARTZ,TRIM4# |
1 | ||
| 46130-30140E4 |
GS141,JZS141,143,145,LS141 DK.ROSE,TRIM4# |
1 | ||
| 46130-30140E0 |
JZS141,143,145,LS141..4FC QUARTZ,TRIM4# |
1 | ||
| 46130-30140J4 |
GS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 46130-30140B5 |
GS141,JZS141,143,145,LS141 SHADOW GRAY,TRIM1# |
1 | ||
| 46201 - PEDAL SUB-ASSY, PARKING BRAKE | ||||
| 46201-30110 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 46201A - CUSHION(FOR PARKING BRAKE PEDAL) | ||||
| 90541-01001 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 46201C - SHAFT, PEDAL | ||||
| 90109-10033 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
GS141,JZS141,143,145,LS141 |
2 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
GS141,JZS141,143,145,LS141 |
2 | ||
| 46209 - CABLE SUB-ASSY, PARKING BRAKE RELEASE | ||||
| 46209-30100J0 |
JZS149,UZS141,143,145 DARK BLUE,TRIM8# |
1 | ||
| 46209-30110B0 |
GS141,JZS141,143,145,LS141 SHADOW GRAY,TRIM1# |
1 | ||
| 46209-30110J0 |
GS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL DARK BLUE,TRIM8# |
1 | ||
| 46209-30110E0 |
JZS141,143,145,LS141..4FC DARK ROSE,TRIM4# |
1 | ||
| 46209-30110E0 |
GS141,JZS141,143,145,LS141 DARK ROSE,TRIM4# |
1 | ||
| 46219 - STOPPER, PARKING PEDAL | ||||
| 90541-07008 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 46220 - ABSORBER ASSY, PARKING BRAKE PEDAL RETURN | ||||
| 46220-30010 |
GS141,JZS14#,LS141,UZS14# |
1 | ||
| 46220A - CUSHION(FOR PARKING BRAKE PEDAL RETURN ABSORBER) | ||||
| 90540-07010 |
GS141,JZS14#,LS141,UZS14# |
2 | ||
| 46220A - CUSHION(FOR PARKING BRAKE PEDAL RETURN ABSORBER) | ||||
| 90540-07010 |
GS141,JZS14#,LS141,UZS14# |
2 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-20010 |
GS141,JZS14#,LS141,UZS14# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-30530 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 46410D - PIN(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90249-10012 |
GS141,JZS141,143,145,LS141 |
1 | ||
| Common parts | ||||
| 82715-30700 | ||||
| 90119-06576 | ||||
| 90119-08126 | ||||
| 90179-08146 | ||||
| 90463-12570 | ||||
| 90467-09074 | ||||
| 90468-08001 | ||||
| 94110-51000 | ||||
| 94511-01000 | ||||
| 96150-01000 | ||||
| Linked diagrams | ||||
| 8401 | ||||

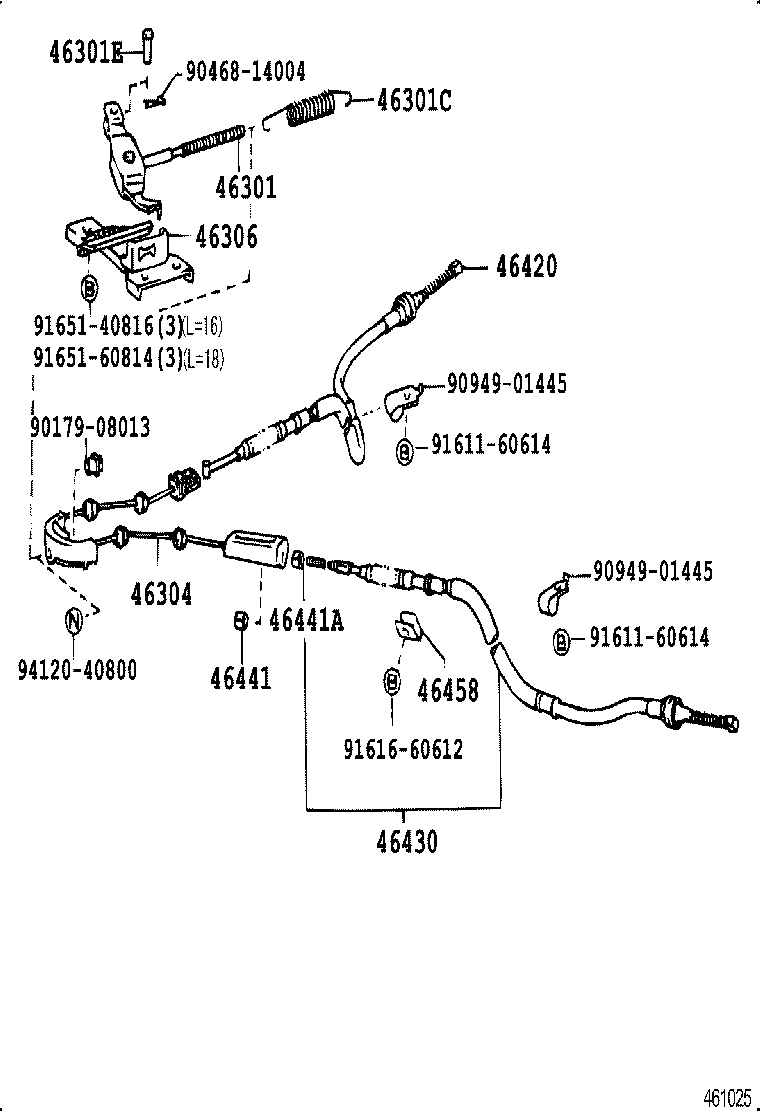

(9110- )JZS141,143,145,LS141 ; (9308- )GS141
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-30240 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 46301C - SPRING, TENSION(FOR INTERMEDIATE LEVER) | ||||
| 90507-22002 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 46301E - PIN, W/HOLE(FOR INTERMEDIATE LEVER) | ||||
| 90240-08059 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 90240-08059 |
JZS14#,LS141,UZS141 |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46304-30080 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 46306 - BRACKET SUB-ASSY, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46306-30070 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-30430 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-30070 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30030 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 46441-30050 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-30060 |
GS141,JZS14#,LS141,UZS14# |
2 | ||
| Common parts | ||||
| 90179-08013 | ||||
| 90468-14004 | ||||
| 90949-01445 | ||||
| 91611-60614 | ||||
| 91616-60612 | ||||
| 91651-40816 | ||||
| 91651-60814 | ||||
| 94120-40800 | ||||
