JZS145-ATPUF (1991)

Toyota Crown/Crown Majesta

Production Oct 1991 - Aug 1995
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )1JZGE,2JZGE

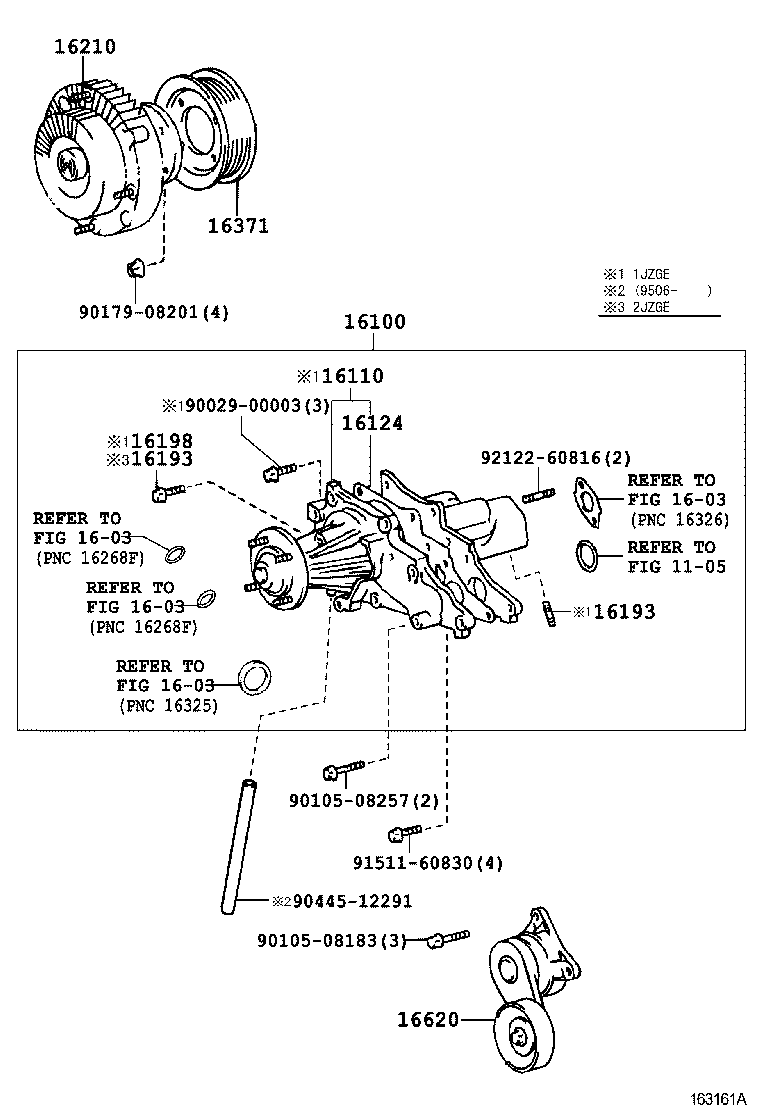

Click highlighted areas on diagram

diagram 1105 1603 1603 1603 1603 16100 16110 16124 16193 16193 16198 16210 16371 16620 9002900003 9010508183 9010508257 9017908201 9044512291 9151160830 9212260816
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-49835

2JZGE..JZS143,145,147,149

 1
16100-49836

2JZGE..JZS143,145,147,149

 1
16124 - GASKET, WATER PUMP COVER
16124-46040

2JZGE..JZS143,145,147,149

 1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
16193-46040

2JZGE..JZS143,145,147,149

 5
16193 - BOLT, STUD(FOR WATER PUMP COVER)
16193-46040

2JZGE..JZS143,145,147,149

 5
16210 - COUPLING ASSY, FLUID
16210-46040

1JZGE,2JZGE..JZS14#

 1
16371 - PULLEY, FAN
16371-46020

1JZGE,2JZGE..JZS14#

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-46031

2JZGE..JZS143,145,149

 1
16620-46032

2JZGE..JZS143,145,147,149

 1
16620-0W021

2JZGE..JZS143,145,147,149

 1
16620-0W022

2JZGE..JZS143,145,147,149

 1
16620-0W020

2JZGE..JZS143,145,147,149

 1
Common parts
90029-00003
90105-08183
90105-08257
90179-08201
90445-12291
91511-60830
92122-60816
Linked diagrams
1105
1603
