JZS143-ATPQF (1991)
Toyota Crown/Crown Majesta
Production
Oct 1991
-
Aug 1995
Engine
2JZGE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9110-9508)

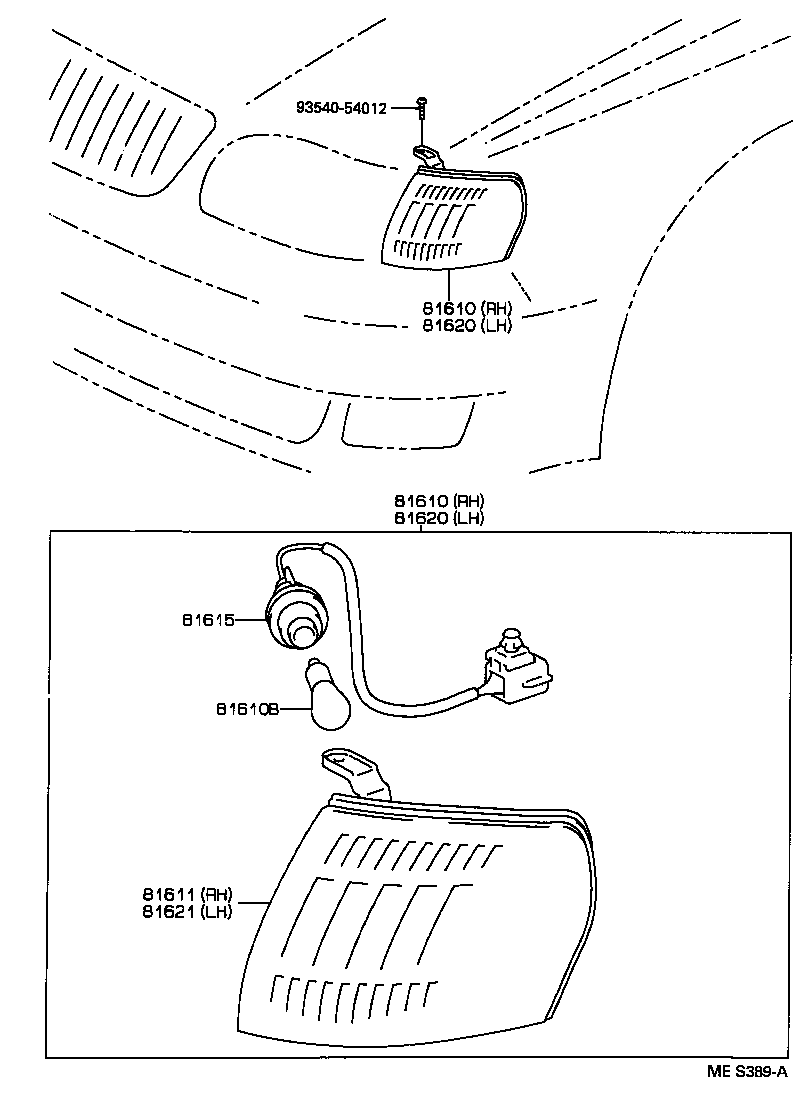

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81610 - LAMP ASSY, PARKING & CLEARANCE, RH | ||||
| 81610-30300 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 81610 - LAMP ASSY, PARKING & CLEARANCE, RH | ||||
| 81610-30300 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 90981-13036 |
GS141,JZS141,143,145,LS141 12V 35/5W |
2 | ||
| 81611 - LENS, PARKING & CLEARANCE LAMP, RH | ||||
| 81611-30300 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 81615 - SOCKET AND WIRE, CLEARANCE LAMP | ||||
| 81615-30300 |
GS141,JZS141,143,145,LS141 |
2 | ||
| 81620 - LAMP ASSY, PARKING & CLEARANCE, LH | ||||
| 81620-30300 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 81620 - LAMP ASSY, PARKING & CLEARANCE, LH | ||||
| 81620-30300 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 81621 - LENS, PARKING & CLEARANCE LAMP, LH | ||||
| 81621-30300 |
GS141,JZS141,143,145,LS141 |
1 | ||
| Common parts | ||||
| 93540-54012 | ||||
