JZS143-ATPQF (1991)

Toyota Crown/Crown Majesta

Production Oct 1991 - Aug 1995
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )2JZGE..JZS143,145

Click highlighted areas on diagram

diagram 22203 22203 22210 22210 22267 22270 22270 22271 23250 23250B 23250C 23270 23270B 23270B 23280 23280D 23280F 23280F 23291 23300P 23300T 23300T 23801F 23801P 23802B 23803C 23803C 23803D 23807 23849A 23849C 8404 8404 8411 9007911021 9007911021 9007911030 9007911030 9007911044 9007911044 9007930006 9007930006 9007960004 9007960004 9010510151 9011906610 9011906610 9011906610 9011908757 9011908893 9017908153 9017908153 9030107001 9056108009 91656B0625 9211260818
Part # Description Qty Price

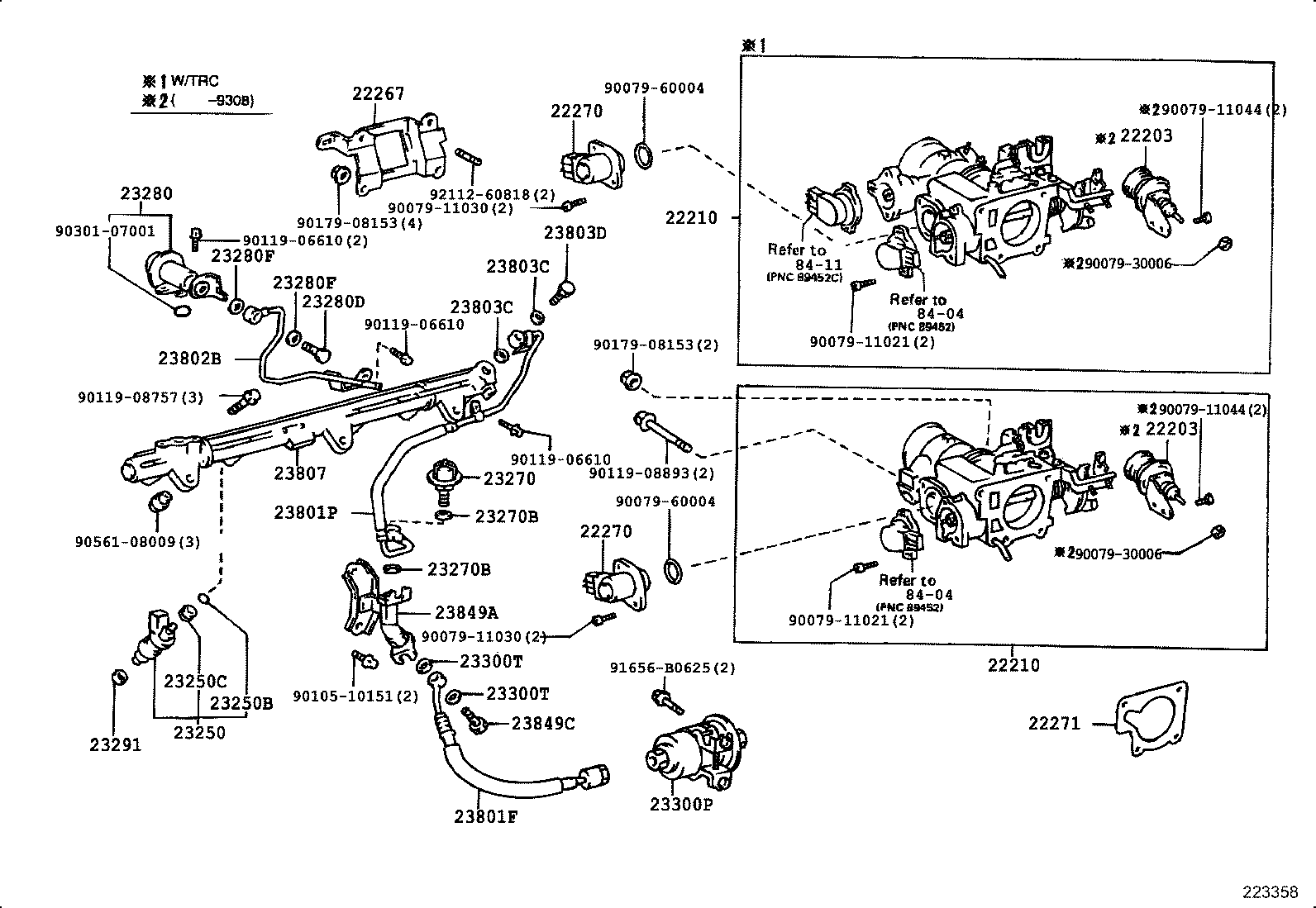

22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY)
22202-46060

2JZGE..JZS143,145,147,149

 1
22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY)
22202-46060

2JZGE..JZS143,145,147,149

 1
22210 - BODY ASSY, THROTTLE
22210-46090

2JZGE..JZS143,149..A,ROY,ROYT

 1
22210-46120

2JZGE..JZS143,149..A,ROY,ROYT

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
22210-46121

2JZGE..JZS143,149..A,ROY,ROYT

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
22210-46091

2JZGE..JZS143,145,147,149

 1
22210-46091

2JZGE..JZS143,149..A,ROY,ROYT

 1
22210-46121

2JZGE..JZS143,145,147,149

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
22210-46240

2JZGE..JZS143,145,147,149..A,ROY,ROYG,ROYT

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
22210-46230

2JZGE..JZS143,145,147,149..A,ROY,ROYG,ROYT

 1
22210 - BODY ASSY, THROTTLE
22210-46090

2JZGE..JZS143,149..A,ROY,ROYT

 1
22210-46120

2JZGE..JZS143,149..A,ROY,ROYT

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
22210-46121

2JZGE..JZS143,149..A,ROY,ROYT

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
22210-46091

2JZGE..JZS143,145,147,149

 1
22210-46091

2JZGE..JZS143,149..A,ROY,ROYT

 1
22210-46121

2JZGE..JZS143,145,147,149

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
22210-46240

2JZGE..JZS143,145,147,149..A,ROY,ROYG,ROYT

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
22210-46230

2JZGE..JZS143,145,147,149..A,ROY,ROYG,ROYT

 1
22267 - BRACKET, THROTTLE BODY
22267-46020

2JZGE..JZS143,145,147,149

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-46050

2JZGE..JZS143,145,147,149

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-46050

2JZGE..JZS143,145,147,149

 1
22271 - GASKET, THROTTLE BODY
22271-46020

2JZGE..JZS143,145,147,149

 1
23250 - INJECTOR ASSY, FUEL
23209-46030

2JZGE..JZS143,145,147,149

 6
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

1JZGE,2JZGE..JZS14#

 6
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

1JZGE,2JZGE..JZS14#

 6
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23207-46021

1JZGE,2JZGE..JZS14#

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
90430-12026

1JZGE,2JZGE..JZS14#

DELIVERY PIPE SIDE

 1
90430-14008

1JZGE,2JZGE..JZS14#

DAMPER SIDE

 1
90430-12026

1JZGE,2JZGE..JZS14#

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
90430-12026

1JZGE,2JZGE..JZS14#

DELIVERY PIPE SIDE

 1
90430-14008

1JZGE,2JZGE..JZS14#

DAMPER SIDE

 1
90430-12026

1JZGE,2JZGE..JZS14#

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-46010

1JZGE,2JZGE..JZS14#

 1
23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET)
90401-10038

1JZGE,2JZGE..JZS14#

 1
23280F - GASKET(FOR FUEL PRESSURE REGULATOR)
90430-10012

1JZGE,2JZGE..JZS14#

 2
23280F - GASKET(FOR FUEL PRESSURE REGULATOR)
90430-10012

1JZGE,2JZGE..JZS14#

 2
23291 - INSULATOR, INJECTOR VIBRATION
23291-46010

1JZGE,2JZGE..JZS14#

 6
23291-41010

1JZGE,2JZGE..JZS14#

 6
23300P - FILTER, FUEL(FOR EFI)
23300-50030

1JZGE,2JZGE..JZS141,143,145

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12026

1JZGE,2JZGE..JZS141,143,145

 1
90430-12026

1JZGE,2JZGE..JZS14#

 2
90430-12026

1JZGE,2JZGE..JZS14#

 2
23300T - GASKET(FOR FUEL FILTER)
90430-12026

1JZGE,2JZGE..JZS141,143,145

 1
90430-12026

1JZGE,2JZGE..JZS14#

 2
90430-12026

1JZGE,2JZGE..JZS14#

 2
23801F - HOSE, FUEL, NO.1
90923-01408

1JZGE,2JZGE..JZS141,143,145

 1
90923-01413

1JZGE,2JZGE..JZS141,143,145

 1
90923-01389

1JZGE,2JZGE..JZS141,143,145

 1
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-46020

2JZGE..JZS143,145,147,149

 1
23801-46021

2JZGE..JZS143,145,147,149

 1
23802B - PIPE SUB-ASSY, FUEL, NO.2
23802-46030

2JZGE..JZS143,145,147,149

 1
23802-46060

2JZGE..JZS143,145,147,149

 1
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90430-12026

1JZGE,2JZGE..JZS14#

 2
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90430-12026

1JZGE,2JZGE..JZS14#

 2
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90401-12023

1JZGE,2JZGE..JZS14#

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-46011

1JZGE,2JZGE..JZS14#

 1
23807-46010

1JZGE,2JZGE..JZS14#

 1
23849A - SUPPORT, FUEL PIPE
23849-46010

1JZGE,2JZGE..JZS14#

 1
23849C - BOLT, UNION(FOR FUEL PIPE SUPPORT)
90401-12029

1JZGE,2JZGE..JZS14#

 1
90401-12035

1JZGE,2JZGE..JZS141,143,145

 1
90401-12029

1JZGE,2JZGE..JZS14#

 1
Common parts
90079-11021
90079-11030
90079-11044
90079-30006
90079-60004
90105-10151
90119-06610
90119-08757
90119-08893
90179-08153
90301-07001
90561-08009
91656-B0625
92112-60818
Linked diagrams
8404
8411

(9110- )2JZGE..JZS143,145

Click highlighted areas on diagram

diagram 23206A 23206B 23217A 23217A 23220P 23229 23233 23233B 23233B 23249 9338115010
Part # Description Qty Price

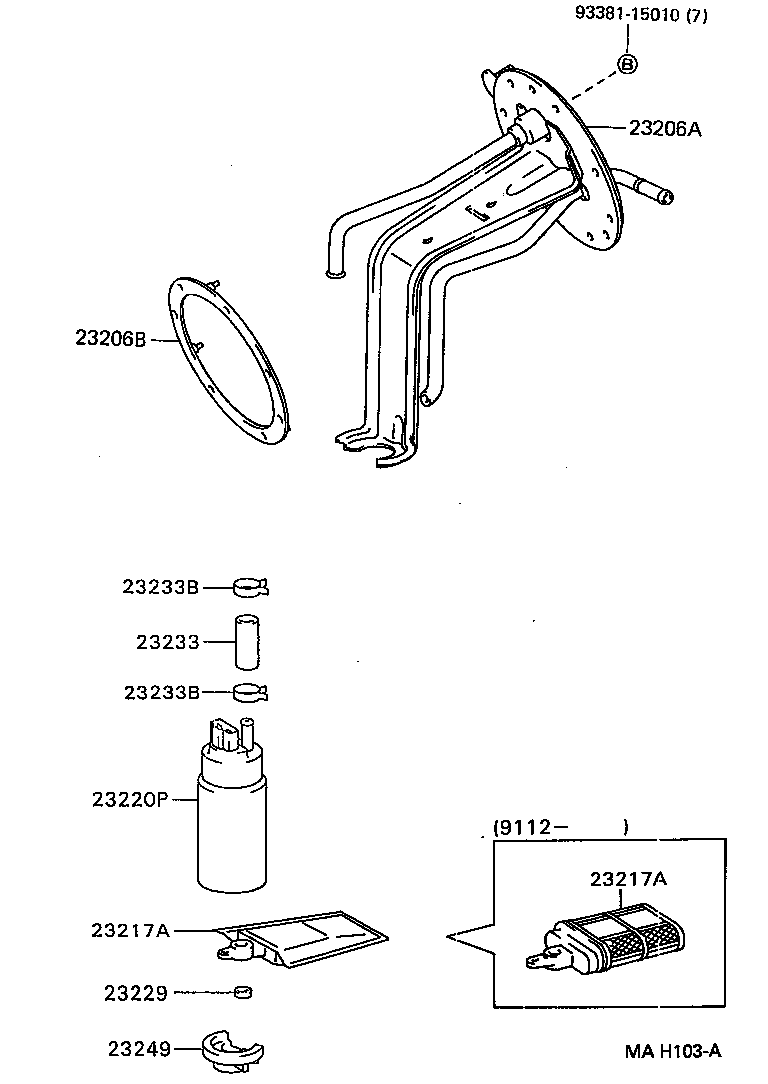

23206A - BRACKET, FUEL PUMP
23206-46090

2JZGE..JZS143,145

 1
23206B - GASKET, FUEL PUMP BRACKET
77169-14010

1JZGE,2JZGE..JZS141,143,145

 1
23217A - FILTER, FUEL PUMP
23217-50061

2JZGE..JZS143,145,147,149

 1
23217-50060

2JZGE..JZS143,145,149

 1
23217A - FILTER, FUEL PUMP
23217-50061

2JZGE..JZS143,145,147,149

 1
23217-50060

2JZGE..JZS143,145,149

 1
23220P - PUMP ASSY, FUEL
23221-50060

2JZGE..JZS143,145,147,149

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

1JZGE,2JZGE..JZS14#

 1
23233 - HOSE, FUEL PUMP
23239-63010

2JZGE..JZS143,145

 1
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13054

1JZGE,2JZGE..JZS14#

 2
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13054

1JZGE,2JZGE..JZS14#

 2
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74610

2JZGE..JZS143,145,147,149

 1
Common parts
93381-15010
