JZS143-ATPQF (1991)

Toyota Crown/Crown Majesta

Production Oct 1991 - Aug 1995
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )1JZGE,2JZGE

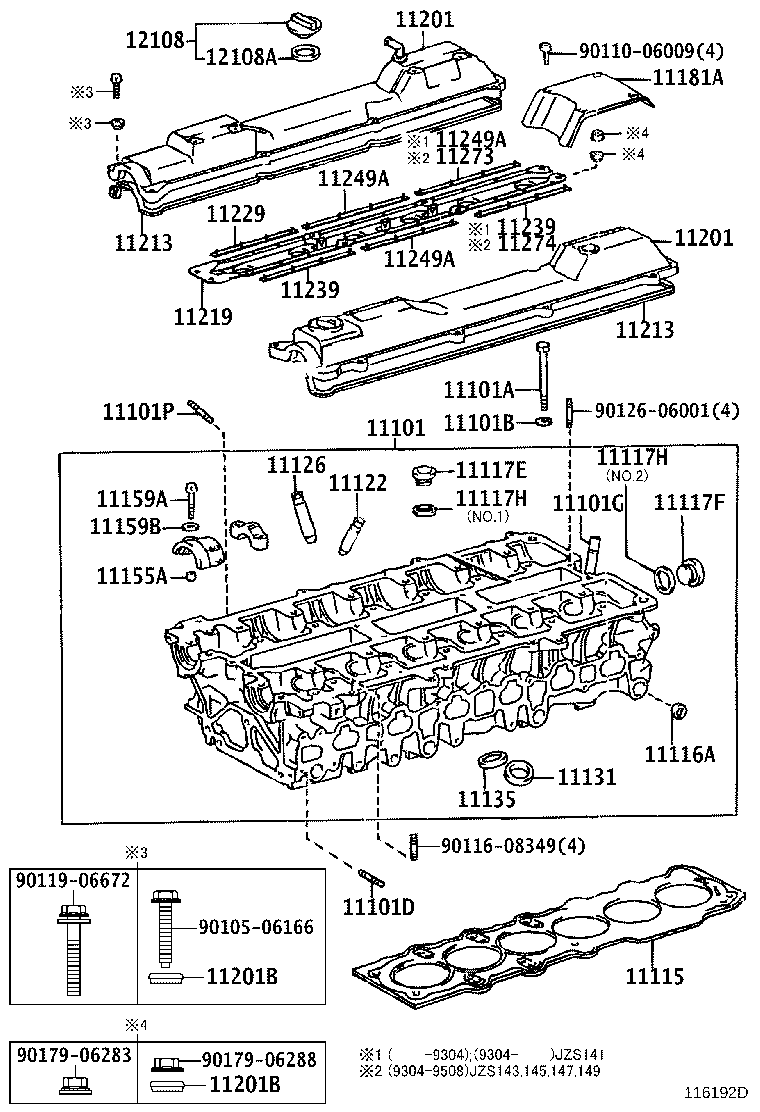

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11101D 11101G 11101P 11115 11116A 11117E 11117F 11117H 11117H 11122 11126 11131 11135 11155A 11159A 11159B 11181A 11201 11201 11201B 11201B 11213 11213 11219 11229 11239 11239 11249A 11249A 11249A 11273 11274 12108 12108A 9010506166 9011006009 9011608349 9011906672 9012606001 9017906283 9017906288
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-49335

2JZGE..JZS143,145,149

 1
11101-49336

2JZGE..JZS143,145,147,149

 1
11101-49337

2JZGE..JZS143,145,147,149

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02102

1JZGE,2JZGE..JZS14#

 14
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-11018

1JZGE,2JZGE..JZS14#

 14
11101D - BOLT, STUD(FOR WATER OUTLET)
90116-08348

1JZGE,2JZGE..JZS14#

 2
11101G - UNION(FOR CYLINDER HEAD)
90406-17010

1JZGE,2JZGE..JZS14#

 1
90406-17017

1JZGE,2JZGE..JZS14#

 1
11101P - BOLT, STUD(FOR DISTRIBUTOR)
90116-08348

1JZGE,2JZGE..JZS14#

 1
92122-B0822

1JZGE,2JZGE..JZS14#

 1
11115 - GASKET, CYLINDER HEAD
11115-46040

1JZGE,2JZGE..JZS14#

 1
11115-46041

1JZGE,2JZGE..JZS14#

 1
11115-46042

1JZGE,2JZGE..JZS14#

 1
11116A - PLUG, TIGHT, NO.1
96411-42000

1JZGE,2JZGE..JZS14#

 4
11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1
90341-24010

1JZGE,2JZGE..JZS14#

 3
11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2
90341-36001

1JZGE,2JZGE..JZS14#

 1
11117H - GASKET(FOR WATER HOLE)
90430-36003

1JZGE,2JZGE..JZS14#

NO.2

 1
90430-24010

1JZGE,2JZGE..JZS14#

NO.1

 3
11117H - GASKET(FOR WATER HOLE)
90430-36003

1JZGE,2JZGE..JZS14#

NO.2

 1
90430-24010

1JZGE,2JZGE..JZS14#

NO.1

 3
11122 - BUSH, INTAKE VALVE GUIDE
11123-74030

1JZGE,2JZGE..JZS14#

O/S 0.05

 12
11122-74030

1JZGE,2JZGE..JZS14#

STD

 12
11126 - BUSH, EXHAUST VALVE GUIDE
11122-16010

1JZGE,2JZGE..JZS14#

STD

 12
11123-16010

1JZGE,2JZGE..JZS14#

O/S 0.05

 12
11131 - SEAT, INTAKE VALVE
11132-46020

1JZGE,2JZGE..JZS14#

O/S 0.03

 12
11131-46020

1JZGE,2JZGE..JZS14#

STD

 12
11135 - SEAT, EXHAUST VALVE
11135-46020

1JZGE,2JZGE..JZS14#

STD

 12
11136-46020

1JZGE,2JZGE..JZS14#

O/S 0.03

 12
11155A - PIN, RING W/HEAD
90253-11021

1JZGE,2JZGE..JZS14#

 28
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-08890

1JZGE,2JZGE..JZS14#

 28
11159B - WASHER, SEAL(FOR HEAD TO CAMSHAFT BEARING CAP)
90210-08033

1JZGE,2JZGE..JZS14#

FOR CAM CAP NO.1

 4
90210-08033

1JZGE,2JZGE..JZS14#

 4
11181A - COVER, CYLINDER HEAD, REAR
11181-46021

1JZGE,2JZGE..JZS14#

 1
11181-46022

1JZGE,2JZGE..JZS14#

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-0W010

2JZGE..JZS143,145,147,149

INTAKE SIDE

 1
11202-46010

1JZGE,2JZGE..JZS14#

EXHAUST SIDE

 1
11202-0W020

2JZGE..JZS143,145,147,149

EXHAUST SIDE

 1
11201-46030

1JZGE,2JZGE..JZS14#

INTAKE SIDE

 1
11202-0W021

2JZGE..JZS143,145

EXHAUST SIDE

 1
11201-0W011

2JZGE..JZS143,145

INTAKE SIDE

 1
11201-0W011

2JZGE..JZS143,145,147,149

INTAKE SIDE

 1
11202-0W021

2JZGE..JZS143,145,147,149

EXHAUST SIDE

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-0W010

2JZGE..JZS143,145,147,149

INTAKE SIDE

 1
11202-46010

1JZGE,2JZGE..JZS14#

EXHAUST SIDE

 1
11202-0W020

2JZGE..JZS143,145,147,149

EXHAUST SIDE

 1
11201-46030

1JZGE,2JZGE..JZS14#

INTAKE SIDE

 1
11202-0W021

2JZGE..JZS143,145

EXHAUST SIDE

 1
11201-0W011

2JZGE..JZS143,145

INTAKE SIDE

 1
11201-0W011

2JZGE..JZS143,145,147,149

INTAKE SIDE

 1
11202-0W021

2JZGE..JZS143,145,147,149

EXHAUST SIDE

 1
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-07001

1JZGE,2JZGE..JZS14#

 16
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-07001

1JZGE,2JZGE..JZS14#

 16
11213 - GASKET, CYLINDER HEAD COVER
11214-46011

1JZGE,2JZGE..JZS14#

EXHAUST SIDE

 1
11214-46010

1JZGE,2JZGE..JZS14#

EXHAUST SIDE

 1
11213-46020

1JZGE,2JZGE..JZS14#

INTAKE SIDE

 1
11213 - GASKET, CYLINDER HEAD COVER
11214-46011

1JZGE,2JZGE..JZS14#

EXHAUST SIDE

 1
11214-46010

1JZGE,2JZGE..JZS14#

EXHAUST SIDE

 1
11213-46020

1JZGE,2JZGE..JZS14#

INTAKE SIDE

 1
11219 - COVER, CYLINDER HEAD, NO.3
11219-46021

2JZGE..JZS143,145,147,149

 1
11219-46021

2JZGE..JZS143,145,147,149

 1
11219-46011

1JZGE,2JZGE..JZS14#

 1
11219-46010

1JZGE,2JZGE..JZS14#

 1
11229 - GASKET, CYLINDER HEAD COVER, NO.3
11229-46010

1JZGE,2JZGE..JZS14#

 1
11229-46020

2JZGE..JZS143,145,147,149

 1
11229-46020

2JZGE..JZS143,145,147,149

 1
11239 - GASKET, CLINDER HEAD CONER, NO.4
11239-46010

1JZGE,2JZGE..JZS14#

 2
11239-46020

2JZGE..JZS143,145,147,149

 1
11239-46020

2JZGE..JZS143,145,147,149

 1
11239 - GASKET, CLINDER HEAD CONER, NO.4
11239-46010

1JZGE,2JZGE..JZS14#

 2
11239-46020

2JZGE..JZS143,145,147,149

 1
11239-46020

2JZGE..JZS143,145,147,149

 1
11249A - GASKET, CLINDER HEAD CONER, NO.5
11249-46010

1JZGE,2JZGE..JZS14#

 3
11249-46020

2JZGE..JZS143,145,147,149

 2
11249-46020

2JZGE..JZS143,145,147,149

 2
11249A - GASKET, CLINDER HEAD CONER, NO.5
11249-46010

1JZGE,2JZGE..JZS14#

 3
11249-46020

2JZGE..JZS143,145,147,149

 2
11249-46020

2JZGE..JZS143,145,147,149

 2
11249A - GASKET, CLINDER HEAD CONER, NO.5
11249-46010

1JZGE,2JZGE..JZS14#

 3
11249-46020

2JZGE..JZS143,145,147,149

 2
11249-46020

2JZGE..JZS143,145,147,149

 2
11273 - GASKET, CYLINDER BLOCK SIDE COVER
11273-46010

2JZGE..JZS143,145,147,149

 1
11273-46010

2JZGE..JZS143,145,147,149

 1
11274 - GASKET, CYLINDER HEAD COVER, NO.7
11274-46010

2JZGE..JZS143,145,147,149

 1
11274-46010

2JZGE..JZS143,145,147,149

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-46010

1JZGE,2JZGE..JZS14#

 1
12108A - GASKET(FOR OIL FILLER CAP)
12195-46011

1JZGE,2JZGE..JZS14#

 1
Common parts
90105-06166
90110-06009
90116-08349
90119-06672
90126-06001
90179-06283
90179-06288
