JZS143-ATAXF (1991)

Toyota Crown/Crown Majesta

Production Oct 1991 - Aug 1995
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9110-9508)GS141,JZS141,143,145,LS141

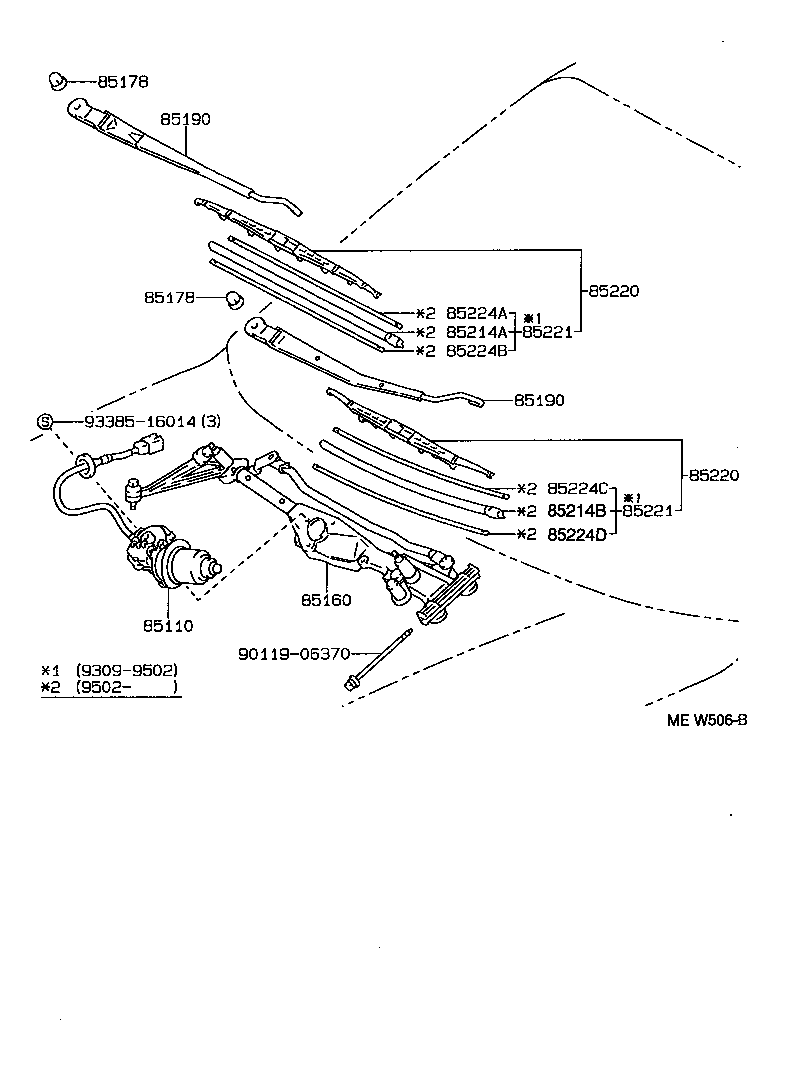

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85190 85190 85214A 85214B 85220 85220 85221 85221 85224A 85224B 85224C 85224D 9011906370 9338516014
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-30300

JZS141,143,145,LS141

 1
85110-30310

JZS141,143,145,LS141

ｶﾝﾚｲﾁ ｼﾖｳ

 1
85110-30311

GS141,JZS141,143,145,LS141

ｶﾝﾚｲﾁ ｼﾖｳ

 1
85110-30301

GS141,JZS141,143,145,LS141

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-30300

GS141,JZS141,143,145,LS141

PNC85153(MARK)ｻﾝｼｮｳ

 1
85150-30310

GS141,JZS141,143,145,LS141

ｶﾝﾚｲﾁ ｼﾖｳ;PNC85153(MARK)ｻﾝｼｮｳ

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08040

JZS14#,LS141,UZS14#

 2
90176-08040

GS141,JZS141,143,145,LS141

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08040

JZS14#,LS141,UZS14#

 2
90176-08040

GS141,JZS141,143,145,LS141

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85211-30300

GS141,JZS141,143,145,LS141

ｱﾘ(ﾌｴﾝﾀﾞ ﾘﾓｺﾝ ﾐﾗ-),右側

 1
85221-30210

GS141,JZS141,143,145,LS141

ｶﾝﾚｲﾁ ｼﾖｳ,左側

 1
85221-30200

GS141,JZS141,143,145,LS141

左側

 1
85211-30270

GS141,JZS141,143,145,LS141

ｶﾝﾚｲﾁ ｼﾖｳ,右側

 1
85211-30260

GS141,JZS141,143,145,LS141

右側

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85211-30300

GS141,JZS141,143,145,LS141

ｱﾘ(ﾌｴﾝﾀﾞ ﾘﾓｺﾝ ﾐﾗ-),右側

 1
85221-30210

GS141,JZS141,143,145,LS141

ｶﾝﾚｲﾁ ｼﾖｳ,左側

 1
85221-30200

GS141,JZS141,143,145,LS141

左側

 1
85211-30270

GS141,JZS141,143,145,LS141

ｶﾝﾚｲﾁ ｼﾖｳ,右側

 1
85211-30260

GS141,JZS141,143,145,LS141

右側

 1
85214A - RUBBER, WIPER, RH
85214-30250

GS141,JZS14#,LS141,UZS14#

 1
85214B - RUBBER, WIPER, LH
85214-20320

GS141,JZS141,143,145,LS141

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85212-30240

JZS14#,LS141,UZS141

右側

 1
85222-30400

JZS141,143,145,LS141

左側

 1
85212-30241

GS141,JZS14#,LS141,UZS14#

右側

 1
85291-30030

GS141,JZS14#,LS141,UZS14#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,左側

 1
85291-30020

GS141,JZS14#,LS141,UZS14#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,右側

 1
85222-30401

GS141,JZS141,143,145,LS141

左側

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85212-30240

JZS14#,LS141,UZS141

右側

 1
85222-30400

JZS141,143,145,LS141

左側

 1
85212-30241

GS141,JZS14#,LS141,UZS14#

右側

 1
85291-30030

GS141,JZS14#,LS141,UZS14#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,左側

 1
85291-30020

GS141,JZS14#,LS141,UZS14#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,右側

 1
85222-30401

GS141,JZS141,143,145,LS141

左側

 1
85221 - BLADE, WINDSHIELD WIPER
85223-1G040

JZS141,143,145,LS141

左側

 1
85213-16070

JZS14#,LS141,UZS141

右側

 1
85213-16090

JZS14#,LS141,UZS141

右側

 1
85213-30250

GS141,JZS14#,LS141,UZS14#

右側

 1
85223-30400

GS141,JZS141,143,145,LS141

左側

 1
85221 - BLADE, WINDSHIELD WIPER
85223-1G040

JZS141,143,145,LS141

左側

 1
85213-16070

JZS14#,LS141,UZS141

右側

 1
85213-16090

JZS14#,LS141,UZS141

右側

 1
85213-30250

GS141,JZS14#,LS141,UZS14#

右側

 1
85223-30400

GS141,JZS141,143,145,LS141

左側

 1
85224A - PLATE, WIPER RUBBER BACKING, NO.1
85224-30380

GS141,JZS14#,LS141,UZS14#

 1
85224B - PLATE, WIPER RUBBER BACKING, NO.2
85224-30380

GS141,JZS14#,LS141,UZS14#

 1
85224C - PLATE, WIPER RUBBER BACKING, NO.3
85224-30430

GS141,JZS141,143,145,LS141

 1
85224D - PLATE, WIPER RUBBER BACKING, NO.4
85224-30420

GS141,JZS141,143,145,LS141

 1
Common parts
90119-06370
93385-16014
