JZS143-ATAXF (1991)

Toyota Crown/Crown Majesta

Production Oct 1991 - Aug 1995
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )JZS141,143,145,LS141 ; (9308- )GS141

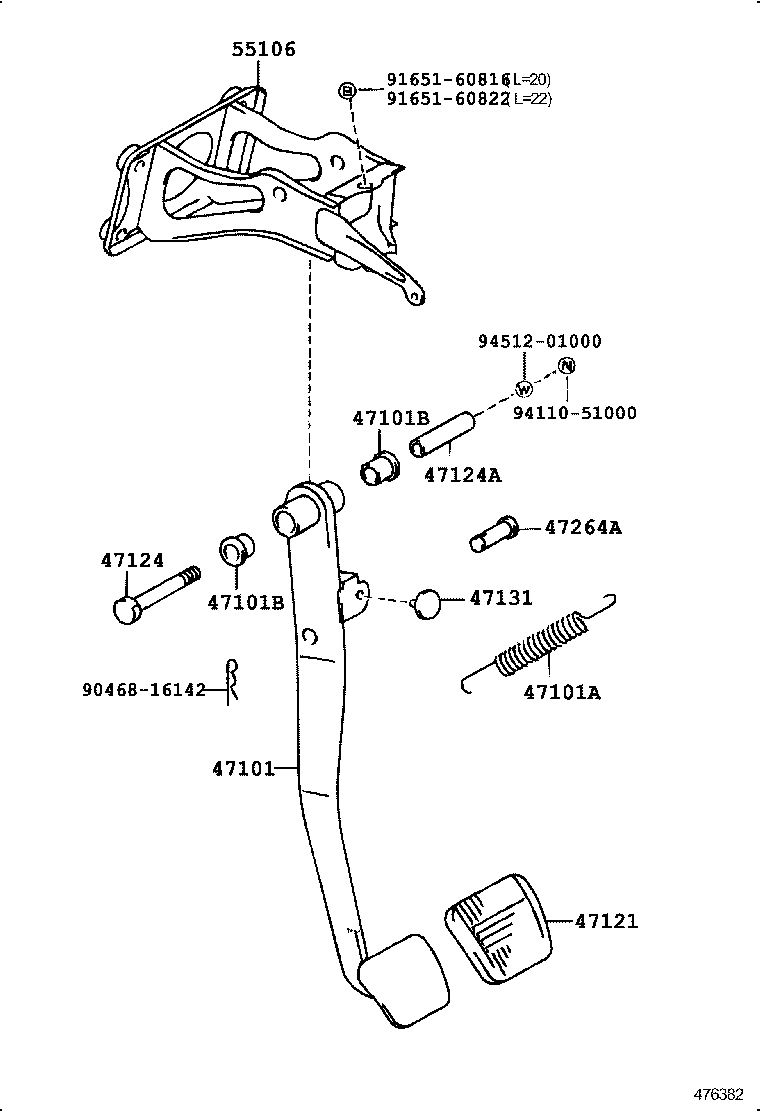

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124 47124A 47131 47264A 55106 9046816142 9165160816 9165160822 9411051000 9451201000
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-30330

GS141,JZS141,143,145,LS141

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-12039

GS141,JZS141,143,145,LS141

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

GS141,JZS14#,LS141,UZS14#

 2
90386-13015

JZS141,143,145,LS141

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

GS141,JZS14#,LS141,UZS14#

 2
90386-13015

JZS141,143,145,LS141

 2
47121 - PAD, BRAKE PEDAL
47121-14010

GS141,JZS14#,LS141,UZS14#

 1
47124 - SHAFT, BRAKE PEDAL
90101-10164

GS141,JZS141,143,145,LS141

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10105

GS141,JZS141,143,145,LS141

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06036

GS141,JZS14#,LS141,UZS14#

 1
47264A - PIN(FOR PUSH ROD)
90249-10064

GS141,JZS14#,LS141,UZS14#

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-30230

GS141,JZS141,143,145,LS141

 1
Common parts
90468-16142
91651-60816
91651-60822
94110-51000
94512-01000
