JZS141-ATPSF (1991)

Toyota Crown/Crown Majesta

Production Oct 1991 - Aug 1995
Engine 1JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )

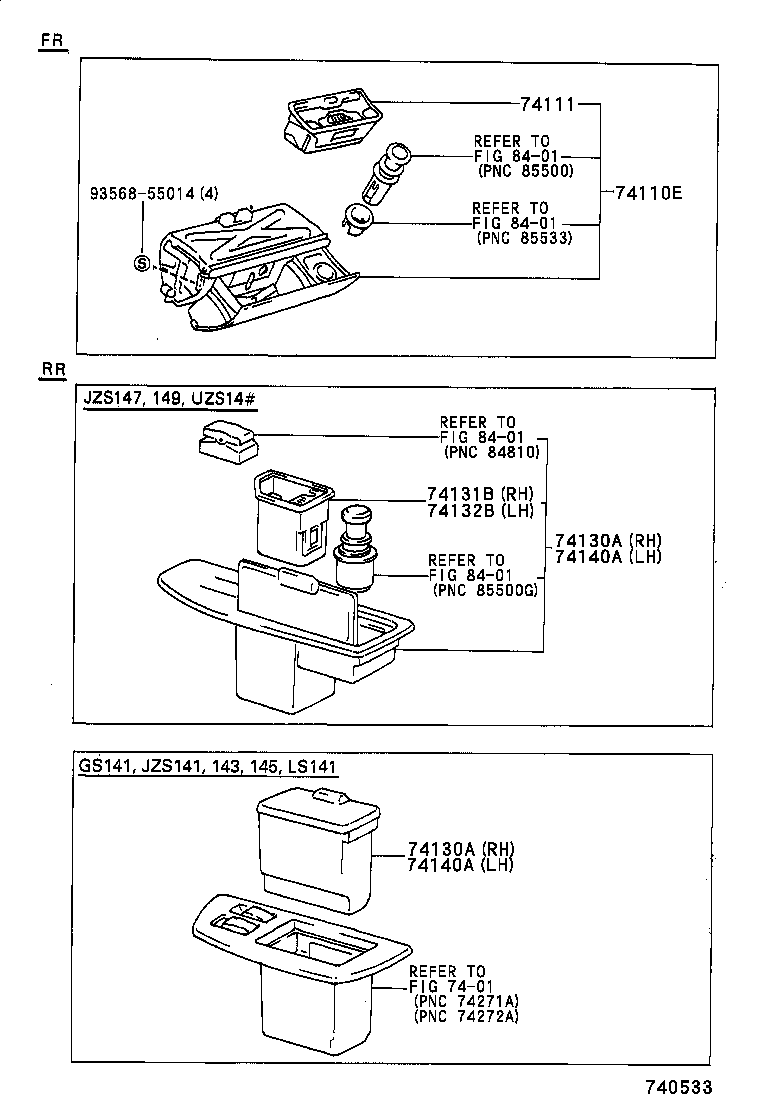

Click highlighted areas on diagram

diagram 7401 74110E 74111 74130A 74130A 74131B 74132B 74140A 74140A 8401 8401 8401 8401 9356855014
Part # Description Qty Price
74110E - RECEPTACLE ASSY, FRONT ASH
74110-30150

JZS14#,LS141,UZS14#

 1
74110-30140

JZS141,LS141..SALEX,SSL

 1
74110-30151

GS141,JZS14#,LS141,UZS14#

 1
74111 - BOX, FRONT ASH RECEPTACLE
74111-30140

GS141,JZS14#,LS141,UZS14#

 1
74130A - RECEPTACLE ASSY, REAR ASH, RH
74130-30230J0

GS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL

DK.BLUE,TRIM8#

 1
74130-30230E0

JZS141,143,145,LS141..4FC

QUARTZ,TRIM4#

 1
74130-30230E0

GS141,JZS141,143,145,LS141

QUARTZ,TRIM4#

 1
74130-30230B0

GS141,JZS141,143,145,LS141

SHADOW GRAY,TRIM1#

 1
74130A - RECEPTACLE ASSY, REAR ASH, RH
74130-30230J0

GS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL

DK.BLUE,TRIM8#

 1
74130-30230E0

JZS141,143,145,LS141..4FC

QUARTZ,TRIM4#

 1
74130-30230E0

GS141,JZS141,143,145,LS141

QUARTZ,TRIM4#

 1
74130-30230B0

GS141,JZS141,143,145,LS141

SHADOW GRAY,TRIM1#

 1
74140A - RECEPTACLE ASSY, REAR ASH, LH
74140-30090B0

GS141,JZS141,143,145,LS141

SHADOW GRAY,TRIM1#

 1
74140-30090E0

JZS141,143,145,LS141..4FC

QUARTZ,TRIM4#

 1
74140-30090E0

GS141,JZS141,143,145,LS141

QUARTZ,TRIM4#

 1
74140-30090J0

GS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL

DK.BLUE,TRIM8#

 1
74140A - RECEPTACLE ASSY, REAR ASH, LH
74140-30090B0

GS141,JZS141,143,145,LS141

SHADOW GRAY,TRIM1#

 1
74140-30090E0

JZS141,143,145,LS141..4FC

QUARTZ,TRIM4#

 1
74140-30090E0

GS141,JZS141,143,145,LS141

QUARTZ,TRIM4#

 1
74140-30090J0

GS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL

DK.BLUE,TRIM8#

 1
Common parts
93568-55014
Linked diagrams
7401
8401
