JZS141-ATPSF (1991)

Toyota Crown/Crown Majesta

Production Oct 1991 - Aug 1995
Engine 1JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )1JZGE,2JZGE

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

(9110- )1JZGE

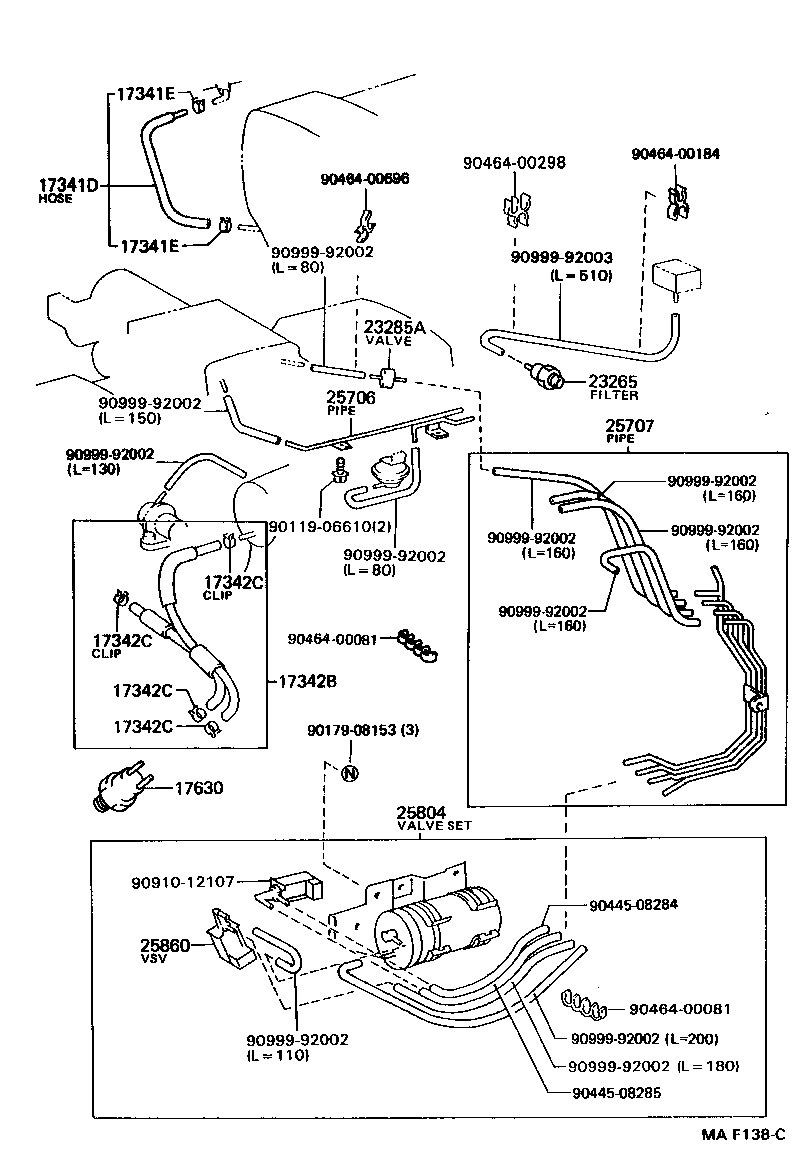

Click highlighted areas on diagram

diagram 17341D 17341E 17341E 17342B 17342C 17342C 17342C 17342C 17630 23265 23285A 25706 25707 25804 25860 9011906610 9017908153 9044508284 9044508285 9046400081 9046400081 9046400184 9046400298 9046400696 9091012107 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003
Part # Description Qty Price
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-46040

1JZGE,2JZGE..JZS141,143,145

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-10106

1JZGE,2JZGE..JZS141,143,145

 6
90467-10106

1JZGE,2JZGE..JZS14#

 2
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-10106

1JZGE,2JZGE..JZS141,143,145

 6
90467-10106

1JZGE,2JZGE..JZS14#

 2
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-46040

1JZGE,2JZGE..JZS141,143,145

 1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10106

1JZGE,2JZGE..JZS14#

 4
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10106

1JZGE,2JZGE..JZS14#

 4
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10106

1JZGE,2JZGE..JZS14#

 4
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10106

1JZGE,2JZGE..JZS14#

 4
17630 - VALVE ASSY, AIR CONTROL
17630-70020

1JZGE,2JZGE..JZS14#

 1
17630-70020

1JZGE,2JZGE..JZS14#

 1
17630-70020

1JZGE,2JZGE..JZS14#

 1
23265 - FILTER, GAS, NO.1
90917-11031

1JZGE,2JZGE..JZS14#

 1
23285A - VALVE, CHECK, NO.1
90917-10080

1JZGE,2JZGE..JZS14#

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-46010

1JZGE..JZS141

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-46050

1JZGE..JZS141

 1
25707-46010

1JZGE..JZS141

 1
25707-46051

1JZGE..JZS141

 1
25804 - VALVE SET, VACUUM CONTROL
25804-46040

1JZGE..JZS141

 1
25804-46010

1JZGE..JZS141

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-46010

1JZGE..JZS141

 1
Common parts
90119-06610
90179-08153
90445-08284
90445-08285
90464-00081
90464-00184
90464-00298
90464-00696
90910-12107
90999-92002
90999-92003
