JZS141-ATPQF (1991)

Toyota Crown/Crown Majesta

Production Oct 1991 - Aug 1995
Engine 1JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )

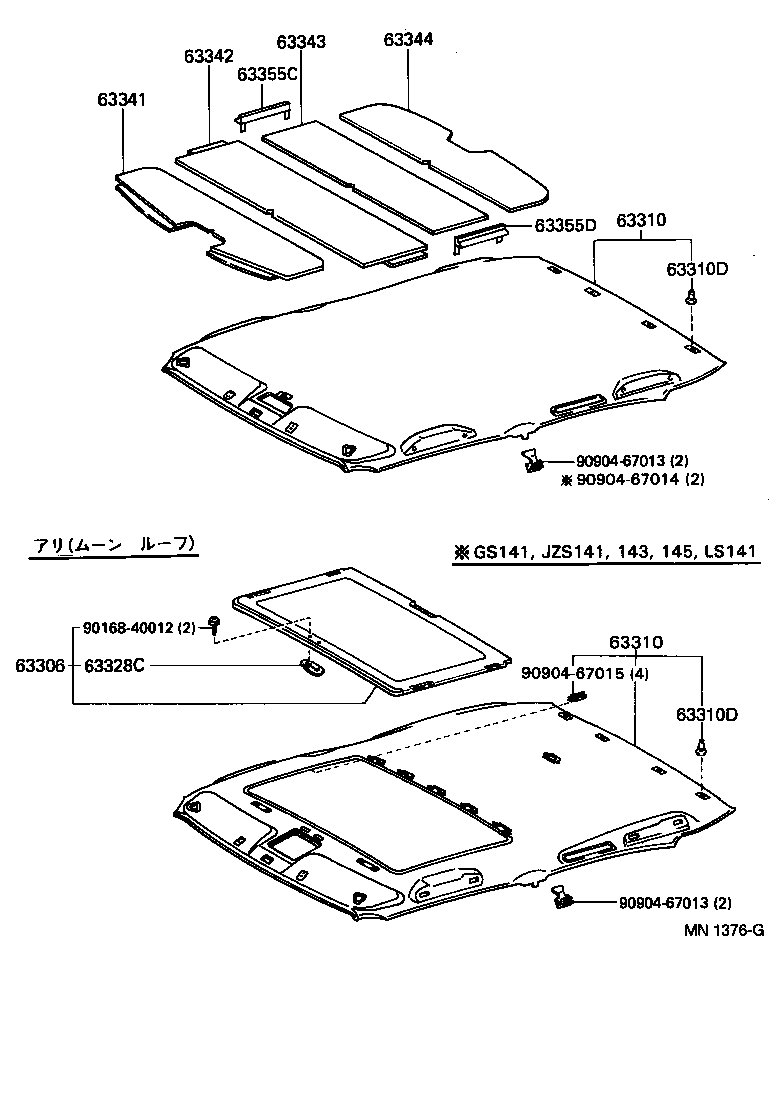

Click highlighted areas on diagram

diagram 63306 63310 63310 63310D 63310D 63328C 63341 63342 63343 63344 63355C 63355D 9016840012 9090467013 9090467013 9090467014 9090467015
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-30540E0

JZS141,143,145,LS141..4FC

QUARTZ,TRIM4#

 1
63310-30540E0

GS141,JZS141,143,145,LS141

QUARTZ,TRIM4#

 1
63310-30540J0

GS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL

DK.BLUE,TRIM8#

 1
63310-30540B0

GS141,JZS141,143,145,LS141

SHADOW GRAY,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63310-30540E0

JZS141,143,145,LS141..4FC

QUARTZ,TRIM4#

 1
63310-30540E0

GS141,JZS141,143,145,LS141

QUARTZ,TRIM4#

 1
63310-30540J0

GS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL

DK.BLUE,TRIM8#

 1
63310-30540B0

GS141,JZS141,143,145,LS141

SHADOW GRAY,TRIM1#

 1
63310D - CLIP, ROOF HEADLINING
90467-10153

GS141,JZS14#,LS141,UZS14#

 4
90467-09126

GS141,JZS141,143,145,LS141

 4
63310D - CLIP, ROOF HEADLINING
90467-10153

GS141,JZS14#,LS141,UZS14#

 4
90467-09126

GS141,JZS141,143,145,LS141

 4
63341 - PAD, ROOF SILENCER, NO.1
63341-30210

GS141,JZS141,143,145,LS141

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-30140

GS141,JZS141,143,145,LS141

 1
63343 - PAD, ROOF SILENCER, NO.3
63343-30160

GS141,JZS141,143,145,LS141

 1
63344 - PAD, ROOF SILENCER, NO.4
63344-30080

GS141,JZS141,143,145,LS141

 1
63355C - PAD, ROOF HEADLINING, RH
63355-30010

GS141,JZS141,143,145,LS141

 1
63355D - PAD, ROOF HEADLINING, LH
63355-30010

GS141,JZS141,143,145,LS141

 1
Common parts
90168-40012
90904-67013
90904-67014
90904-67015
