JZS141-ATPQF (1991)

Toyota Crown/Crown Majesta

Production Oct 1991 - Aug 1995
Engine 1JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )1JZGE

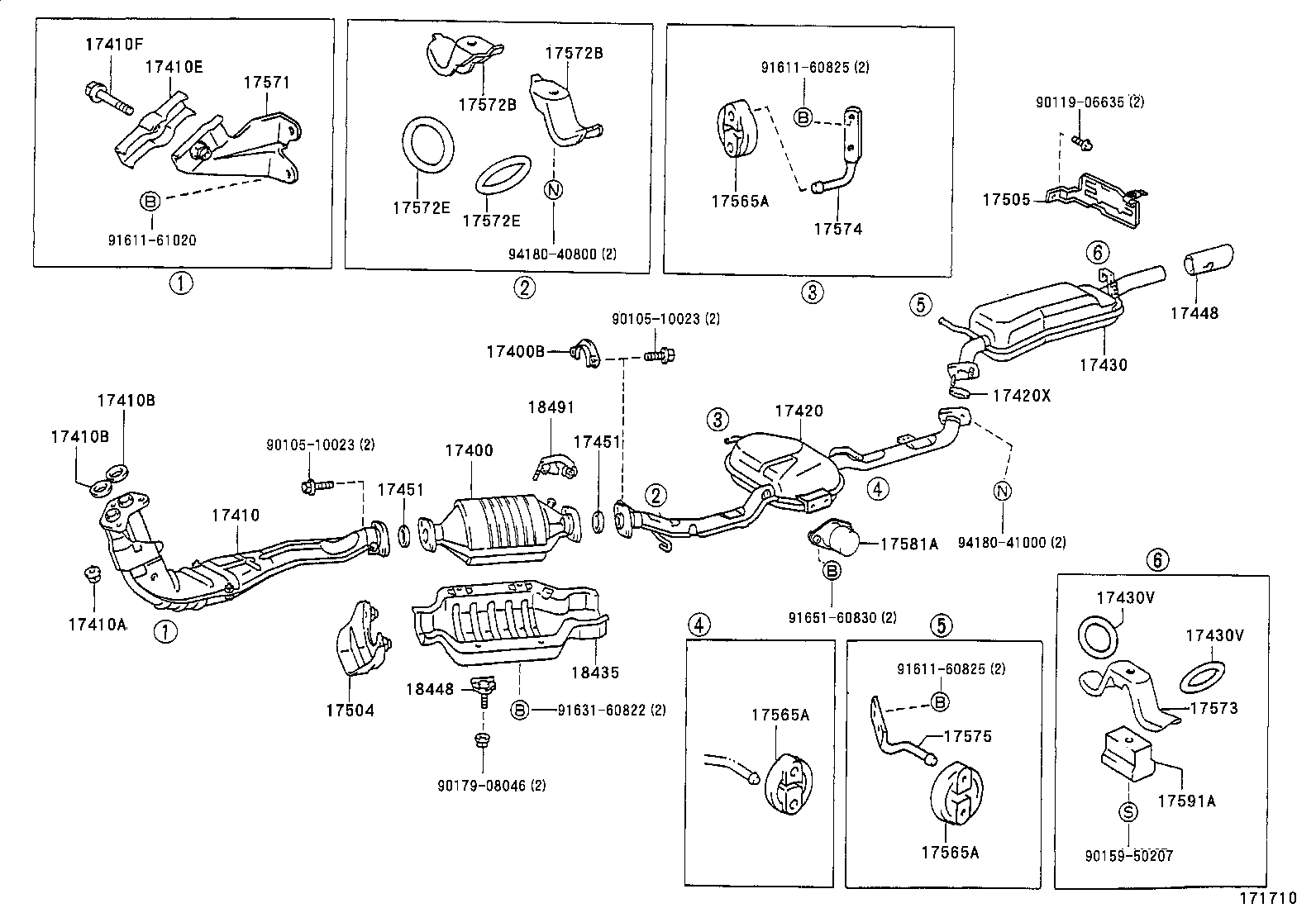

Click highlighted areas on diagram

diagram 17400 17400B 17410 17410A 17410B 17410B 17410E 17410F 17420 17420X 17430 17430V 17430V 17448 17451 17451 17504 17505 17565A 17565A 17565A 17571 17572B 17572B 17572E 17572E 17573 17574 17575 17581A 17591A 18435 18448 18491 9010510023 9010510023 9011906635 9015950207 9017908046 9161160825 9161160825 9161161020 9163160822 9165160830 9418040800 9418041000
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-42090

1JZGE..JZS141

 1
18450-46080

1JZGE..JZS141

 1
17400B - RETAINER, EXHAUST PIPE
18495-46010

1JZGE,2JZGE..JZS141,143,145

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-70200

1JZGE..JZS141

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1GFE,1JZGE,2LT#..GS141,JZS141,LS141

 3
17410B - GASKET, EXHAUST PIPE
90917-06039

1GFE,1JZGE..GS141,JZS141

 2
17410B - GASKET, EXHAUST PIPE
90917-06039

1GFE,1JZGE..GS141,JZS141

 2
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04041

1GFE,1JZGE..GS141,JZS141

 1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90105-10018

1GFE,1JZGE..GS141,JZS141

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-46090

1JZGE..JZS141

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06073

1JZGE,2JZGE..JZS141,143,145

 1
90917-06049

1JZGE,2JZGE..JZS141,143,145

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-70491

1JZGE..JZS141

 1
17430-70492

1JZGE..JZS141

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-32005

1JZGE,2LT#..JZS141,LS141

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-32005

1JZGE,2LT#..JZS141,LS141

 2
17448 - BAFFLE, TAIL PIPE
17448-74050

1JZGE..JZS141

 1
17451 - GASKET, EXHAUST PIPE
90917-06043

1JZGE..JZS141

ﾌﾛﾝﾄ

 1
90917-06054

1JZGE,2JZGE..JZS141,143,145

ﾘﾔ

 1
17451 - GASKET, EXHAUST PIPE
90917-06043

1JZGE..JZS141

ﾌﾛﾝﾄ

 1
90917-06054

1JZGE,2JZGE..JZS141,143,145

ﾘﾔ

 1
17504 - BRACKET SUB-ASSY, CATALYTIC CONVERTER
17504-42010

1JZGE..JZS141

 1
17505 - INSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.1
17505-70090

1JZGE..JZS141

TAIL PIPE SIDE

 1
17505-70090

1JZGE..JZS141

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63060

1JZGE..JZS141

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63060

1JZGE..JZS141

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63060

1JZGE..JZS141

 3
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-46080

1JZGE..JZS141

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-54100

1GFE,1JZGE,2JZGE,2LT#..GS141,JZS141,143,145,LS141

 2
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-54100

1GFE,1JZGE,2JZGE,2LT#..GS141,JZS141,143,145,LS141

 2
17572E - RING,O(FOR BRACKET, EXHAUST PIPE SUPPORT, NO.2)
90301-34207

1GFE,1JZGE,2JZGE,2LT#..GS141,JZS141,143,145,LS141

 2
17572E - RING,O(FOR BRACKET, EXHAUST PIPE SUPPORT, NO.2)
90301-34207

1GFE,1JZGE,2JZGE,2LT#..GS141,JZS141,143,145,LS141

 2
17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573-41040

1GFE,1JZGE,2LT#..GS141,JZS141,LS141

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-42020

1JZGE,2JZGE..JZS141,143,145

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-42021

1GFE,1JZGE,2JZGE,2LTE..GS141,JZS141,143,145,LS141

 1
17575-42020

1JZGE,2JZGE..JZS141,143,145

 1
17575-42021

1JZGE,2JZGE..JZS141,143,145

 1
17581A - DAMPER, EXHAUST PIPE
17581-46030

1JZGE..JZS141

 1
17591A - STOPPER, EXHAUST PIPE SUPPORT
17591-36011

1GFE,1JZGE,2LT#..GS141,JZS141,LS141

 1
18435 - PROTECTOR, CATALYTIC CONVERTER
18407-42010

1GFE,1JZGE..GS141,JZS141

 1
18448 - BRACKET, CONVERTER PROTECTOR, CENTER
18448-43010

1GFE,1JZGE..GS141,JZS141

 2
18491 - FLANGE, THERMOSENSOR INLET
18491-63010

1GFE,1JZGE,2JZGE..GS141,JZS141,143,145

 1
Common parts
90105-10023
90119-06635
90159-50207
90179-08046
91611-60825
91611-61020
91631-60822
91651-60830
94180-40800
94180-41000
